1 (py)opencl na kartach graficznych: Wprowadzenie do GPGPU kolodziejj.info

2 wyszukiwanie obiektów na zdjęciu CPU-bound 32 MPix implementacje: Matlab: 6 godzin Python + OpenCL: 1 minuta Tak, słownie: jedna minuta. 360 x szybciej.

3

4 Agenda zastosowanie co muszę umieć? rys historyczny sprzęt terminologia omówienie przykładowego kodu co dalej?

5 GPGPU General-Purpose computing on GPU

6 Zastosowanie strumieniowe przetwarzanie obrazów dużych tablic w podobny sposób obrazy, video kryptografia fizyka (od astrofizyki do fizyki kwantowej) biologia, medycyna bazy danych...

7 Co przyda się z C funkcje podstawowe typy danych ([unsigned] integer, float, double) tablice wskaźniki umiejętność rozrzucania wszędzie tych dziwnych znaczków { } ;

8 Historia programowalne shadery, obsługa floatów programowanie via OpenGL, DirectX pierwsze dedykowane platformy Sh/RapidMind, Brook, Accelerator

9 Platformy GPGPU nvidia CUDA i nadal mają się nieźle MicroSoft's F# + DirectCompute AMD's FireStream C++ AMP OpenACC

10

11

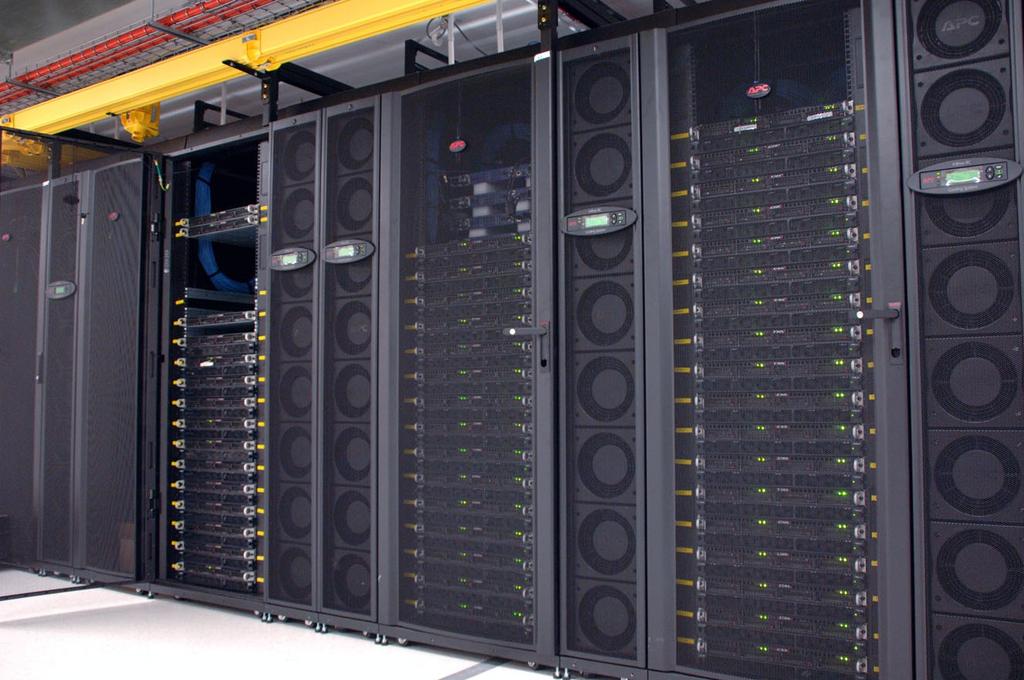

12 Tylko takie CSIRO

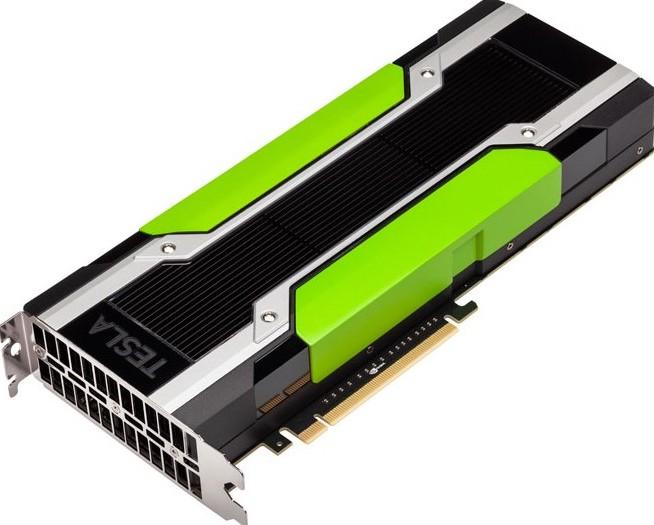

13 Tylko takie nvidia

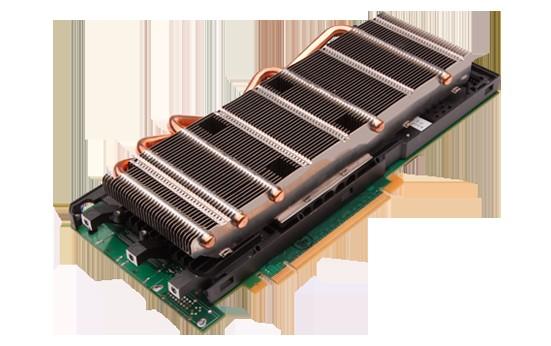

14 @ benchmark.pl

15 Zrównoleglalny przykład Dodawanie wektorów!

16 Zrównoleglalny przykład A[0] B[0] C[0] = A[0] + B[0] A[1] B[1] C[1] = A[1] + B[1] C[2] = A[2] + B[2] A[2] A[n-1] + B[2] B[n-1] = C[n-1] = A[n-1] + B[n-1]

17 Zrównoleglalny przykład void add(float * a, float * b, unsigned int n, float * c) { for (int i = 0; i < n; ++i) { c[i] = a[i] + b[i]; } }

18 CPU, szeregowo N ops CPU ops

19 Zrównoleglalny przykład A[0] B[0] C[0] = A[0] + B[0] A[1] B[1] C[1] = A[1] + B[1] C[2] = A[2] + B[2] A[2] A[n-1] + B[2] B[n-1] = C[n-1] = A[n-1] + B[n-1]

20 Zrównoleglalny przykład A[i] + B[i] = C[i] = A[i] + B[i]

21 CPU, równolegle N ops / 4 CPU ops

22 Trochę liczb Dodawanie: N = 24, jeden wątek 24 kroki N = 24, 4 wątki 6 kroków N = 220, 4 wątki 218 kroków potrzebujemy więcej wątków!

23 GPGPU massive parallelism - setki-tysiące wątków na raz

24 GPGPU Optymalizowanie: maksymalnego wykorzystania jednostek obliczeniowych w GPU vs. maksymalną przepustowość przesyłania danych

25 GPGPU Metryka: przepustowość obliczeń [MB/s]

26 OpenCL kernele work items work groups model pamięci

27 Kernele z grubsza funkcje w C z keyword'em global global void add( global const global const const unsigned global float int gid = get_global_id(0); if (gid < n) { c[gid] = a[gid] + b[gid]; } } float * a, float * b, int n, * c) {

28 Kernele z grubsza funkcje w C z keyword'em global global void add( global const global const const unsigned global float int gid = get_global_id(0); if (gid < n) { c[gid] = a[gid] + b[gid]; } } float * a, float * b, int n, * c) {

29 Work items instancje kerneli bardzo ograniczona prywatna pamięć (rzędu KB) powinny żyć bardzo krótko ale może ich być bardzo dużo

30 Work items A[0] B[0] C[0] = A[0] + B[0] A[1] B[1] C[1] = A[1] + B[1] C[2] = A[2] + B[2] A[2] A[n-1] + B[2] B[n-1] = C[n-1] = A[n-1] + B[n-1]

31 Work items C[0] = A[0] + B[0] C[1] = A[1] + B[1] C[2] = A[2] + B[2] C[n-1] = A[n-1] + B[n-1]

32 Work items C[2] = A[2] + B[2]

33 Work groups grupy work items wielkość grupy local work size maksymalna wielkość zależy od urządzenia pamięć lokalna

34 Work groups C[0] = A[0] + B[0] C[1] = A[1] + B[1] C[2] = A[2] + B[2] C[n-1] = A[n-1] + B[n-1]

35 Work groups C[0] C[1] C[2] C[n-1]

36 Work groups

37 Work groups local work size = 1024 N = 3 * 1024 = 3072

38 Model pamięci

39 Model pamięci a t e m e m local memory local memory local memory work group 1 work group 2 work group n p r i v global memory device host memory host

40 Czas na kod! global void add( global const global const const unsigned global float int gid = get_global_id(0); if (gid < n) { c[gid] = a[gid] + b[gid]; } } float * a, float * b, int n, * c) {

41 ret = clbuildprogram(program, 1, &device_id, NULL, NULL, NULL); if (ret!= 0) { printf("clbuildprogram returned non-zero status %d: ", ret); #include <stdio.h> #include <stdlib.h> #include <time.h> if (ret == CL_INVALID_PROGRAM) { printf("invalid program\n"); } else if (ret == CL_INVALID_VALUE) { printf("invalid value\n"); } else if (ret == CL_INVALID_DEVICE) { printf("invalid device\n"); } else if (ret == CL_INVALID_BINARY) { printf("invalid binary\n"); } else if (ret == CL_INVALID_BUILD_OPTIONS) { printf("invalid build options\n"); } else if (ret == CL_INVALID_OPERATION) { printf("invalid operation\n"); } else if (ret == CL_COMPILER_NOT_AVAILABLE) { printf("compiler not available\n"); } else if (ret == CL_BUILD_PROGRAM_FAILURE) { printf("build program failure\n"); #include <CL/cl.h> #define ARRAY_SIZE 4096 #define MAX_SOURCE_SIZE (0x100000) int main(void) { const size_t ARRAY_BYTES = ARRAY_SIZE * sizeof(float); float h_a[array_size]; float h_b[array_size]; for (int i = 0; i < ARRAY_SIZE; i++) { h_a[i] = (float)i; h_b[i] = (float)(2 * i); } float h_c[array_size]; size_t log_size; clgetprogrambuildinfo(program, device_id, CL_PROGRAM_BUILD_LOG, 0, NULL, &log_size); FILE *fp; char *source_str; size_t source_size; char *log = (char *) malloc(log_size); fp = fopen("vectors_cl.cl", "r"); if (!fp) { fprintf(stderr, "Failed to load kernel.\n"); exit(1); } source_str = (char *)malloc(max_source_size); source_size = fread(source_str, 1, MAX_SOURCE_SIZE, fp); fclose(fp); clgetprogrambuildinfo(program, device_id, CL_PROGRAM_BUILD_LOG, log_size, log, NULL); printf("%s\n", log); } else if (ret == CL_OUT_OF_HOST_MEMORY) { printf("out of host memory\n"); } exit(1); } cl_platform_id platform_id = NULL; cl_device_id device_id = NULL; cl_uint ret_num_devices; cl_uint ret_num_platforms; cl_int ret = clgetplatformids(1, &platform_id, &ret_num_platforms); ret = clgetdeviceids(platform_id, CL_DEVICE_TYPE_DEFAULT, 1, &device_id, &ret_num_devices); cl_kernel kernel = clcreatekernel(program, "add", &ret); ret = clsetkernelarg(kernel, 0, ret = clsetkernelarg(kernel, 1, ret = clsetkernelarg(kernel, 2, size_t array_size = ARRAY_SIZE; ret = clsetkernelarg(kernel, 3, cl_context context = clcreatecontext(null, 1, &device_id, NULL, NULL, &ret); sizeof(const size_t), (void *)&array_size); size_t global_item_size = ARRAY_SIZE; // Process the entire lists size_t local_item_size = 1; // Divide work items into groups of 64 ret = clenqueuendrangekernel(command_queue, kernel, 1, NULL, &global_item_size, &local_item_size, 0, NULL, NULL); cl_command_queue command_queue = clcreatecommandqueue(context, device_id, 0, &ret); cl_mem a_mem_obj = clcreatebuffer(context, CL_MEM_READ_ONLY, ARRAY_BYTES, NULL, &ret); cl_mem b_mem_obj = clcreatebuffer(context, CL_MEM_READ_ONLY, ARRAY_BYTES, NULL, &ret); cl_mem c_mem_obj = clcreatebuffer(context, CL_MEM_WRITE_ONLY, ARRAY_BYTES, NULL, &ret); ret = clenqueuereadbuffer(command_queue, c_mem_obj, CL_TRUE, 0, ARRAY_BYTES, h_c, 0, NULL, NULL); ret ret ret ret ret ret ret ret ret ret = clenqueuewritebuffer(command_queue, a_mem_obj, CL_TRUE, 0, ARRAY_BYTES, h_a, 0, NULL, NULL); ret = clenqueuewritebuffer(command_queue, b_mem_obj, CL_TRUE, 0, ARRAY_BYTES, h_b, 0, NULL, NULL); cl_program program = clcreateprogramwithsource(context, 1, (const char **)&source_str, (const size_t *)&source_size, &ret); if (ret!= 0) { printf("clcreateprogramwithsource returned non-zero status %d\n\n", ret); exit(1); } sizeof(cl_mem), (void *)&a_mem_obj); sizeof(cl_mem), (void *)&b_mem_obj); sizeof(cl_mem), (void *)&c_mem_obj); } = = = = = = = = = clflush(command_queue); clfinish(command_queue); clreleasekernel(kernel); clreleaseprogram(program); clreleasememobject(a_mem_obj); clreleasememobject(b_mem_obj); clreleasememobject(c_mem_obj); clreleasecommandqueue(command_queue); clreleasecontext(context); return 0;

42 Jak to odpalić? Instalacja OpenCL + ICD ICD Installable Client Driver

43 Jak to odpalić? kompilacja, uruchomienie: $ gcc -std=c99 vectors_cl.c -o vectors_cl -l OpenCL $./vectors_cl

44

45 pyopencl

46 Czas na ładny kod! global void add( global const global const const unsigned global float int gid = get_global_id(0); if (gid < n) { c[gid] = a[gid] + b[gid]; } } float * a, float * b, int n, * c) {

47 import numpy import os import pyopencl def add(a, b): # Create context. context = pyopencl.create_some_context() # Create command queue withing it. queue = pyopencl.commandqueue(context) # Build the "program". program = pyopencl.program( context, open(os.path.join( os.path.dirname(os.path.abspath( file )), "vectors_cl.cl") ).read() ).build()

48 # Create two readable buffers on the device memory and # copy the input data there. a_in = pyopencl.buffer( context, pyopencl.mem_flags.read_only pyopencl.mem_flags.copy_host_ptr, hostbuf=a) b_in = pyopencl.buffer( context, pyopencl.mem_flags.read_only pyopencl.mem_flags.copy_host_ptr, hostbuf=b) # Create one writeable buffer on the device memory for # result. c_out = pyopencl.buffer( context, pyopencl.mem_flags.write_only, a.nbytes # Size. )

49 # Execute the kernel. program.add(queue, a.shape, None, a_in, b_in, numpy.uint32(array_size), c_out) # Create empty numpy array on the host for result. c = numpy.empty_like(a) # Copy the result from the device to the host. pyopencl.enqueue_copy(queue, c, c_out) return c

50 # Execute the kernel. program.add(queue, a.shape, None, a_in, b_in, numpy.uint32(array_size), c_out) # Create empty numpy array on the host for result. c = numpy.empty_like(a) # Copy the result from the device to the host. pyopencl.enqueue_copy(queue, c, c_out) return c global void add( global const global const const unsigned global float int gid = get_global_id(0); if (gid < n) { c[gid] = a[gid] + b[gid]; } } float * a, float * b, int n, * c) {

51 ARRAY_SIZE = 4096 def test_add(): # Generate the input array on the host. a = numpy.empty(array_size, dtype=numpy.float32) b = numpy.empty(array_size, dtype=numpy.float32) for i in range(array_size): a[i] = i b[i] = 2 * i c = add(a, b) assert assert assert assert c[0] == 0 c[1] == 3 c[-2] == c[-1] == 12285

52 $ py.test examples/test_vectors_cl.py. ================= 1 passed in 0.21 seconds =================

53 Więcej o work items get_global_id(0);

54 Więcej o work items get_global_id(0); get_global_id(1);

55 Więcej o work items ge t _g l ob a l_ id (2 ); get_global_id(1); get_global_id(0);

56 Czas na ładny kod! global void add( global const float * in, const int width, const int height, global float * c) { int x = get_global_id(0); int y = get_global_id(1); int gid = y * width + x; } if (x < width && y < height) { // }
