1 BladeCenter Smarter Systems for a Smarter Planet

2 IBM Systems Director 6.3

3 IBM Systems Director Tiered Agent Support! Common Agent Single agent runtime shared by IBM systems and Tivoli products like Tivoli Provisioning Manager reduces agent footprint, supports shared credentials and drives discovery, inventory and other common services Replaces the previous 5.x Level 2 Agent while providing Seamless integration of Platform Agent Provides a single agent management system for status reporting and operations Common authentication and credential management using a single agent manager Single, shared incoming port (firewall friendly) for management Increased availability using a watchdog to restart common agent, if needed! Platform Agent Provides a subset of Common Agent functions used to communicate with and administer the managed system, including hardware alerts and status information Improved interoperability through open standards, rather than through proprietary technologies Firmware and driver updates and remote deployment! Agent-less Management Agent-less managed systems are best for environments that require very small footprints and are used for specific tasks, such as one-time inventory collection, firmware and driver updates and remote deployment.

other common services Replaces the previous 5.

4 4

5 Active Energy Manager

6 Specjalizowane obudowy, wspólne moduły i zarządzanie BladeCenter E BladeCenter T BladeCenter H BladeCenter HT BladeCenter S BladeCenter E Refresh Kompatybilność między generacjami jest bardzo ważna w systemach modularnych IBM zachowuje kompatybilność, a inni? 6

BladeCenter S BladeCenter E Refresh Kompatybilność między generacjami jest

7 Otwarta specyfikacja Pełna integracja Otwarta specyfikacja 7 Zarządzanie energią Pełna redundancja

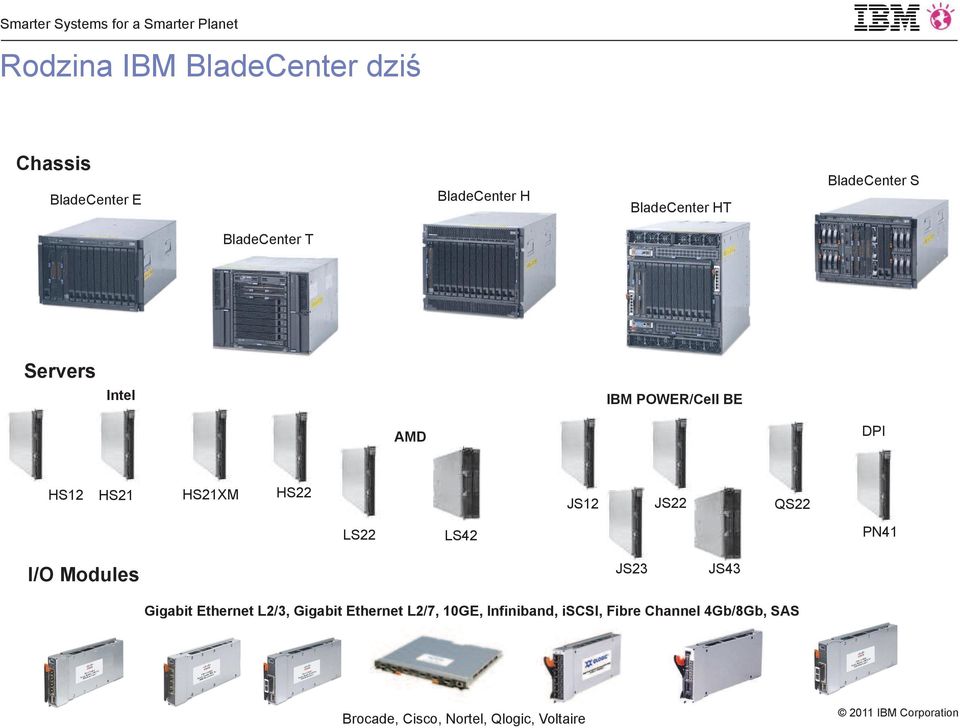

8 Rodzina IBM BladeCenter dziś Chassis BladeCenter E BladeCenter H BladeCenter HT BladeCenter S BladeCenter T Servers Intel IBM POWER/Cell BE AMD DPI HS12 HS21 HS21XM HS22 JS12 JS22 QS22 LS22 LS42 PN41 I/O Modules JS23 JS43 Gigabit Ethernet L2/3, Gigabit Ethernet L2/7, 10GE, Infiniband, iscsi, Fibre Channel 4Gb/8Gb, SAS Brocade, Cisco, Nortel, Qlogic, Voltaire

JS12 JS22 QS22 LS22 LS42 PN41 I/O Modules JS23 JS43 Gigabit Ethernet L2/3, Gigabit

9 Co w praktyce oznacza otwarta specyfikacja? Większy wybór!! Przykład - dostawcy interfejsów 10GE dla BladeCenter to: Broadcom, NetXen, Chelsio, NetEffect, ServerEngines, Myricom i Intel Partnerzy OEM Symbol Wireless Switch UltraSPARC T2

Broadcom, NetXen, Chelsio, NetEffect, ServerEngines,

10 PN41 Deep Packet Inspection

11 Wysoka dostępność w IBM BladeCenter! IBM BladeCenter = Reliability, Availability, Serviceability (RAS) Nadmiarowe i hot-swap zasilacze, wentylatory, przełączniki, AMM Cztery niezależne magistrale zasilające Nadmiarowe konektory i midplane Brak pojedynczego punktu awarii Dwa konektory zasilające Dwa konektory We/Wy Pełna redundancja

hot-swap zasilacze, wentylatory, przełączniki, AMM Cztery niezależne magistrale

12 IBM BladeCenter H Chassis Blade Server Upper midplane BladeCenter H Chassis Space occupied by blade server Ventilation spaces I/O connector Power connector High-speed I/O connector High-speed I/O connector I/O connector Power connector Lower midplane Slide 12 Updated 04/05/08

connector Power connector High-speed I/O connector High-speed I/O

13 IBM BladeCenter H Chassis Ventilation space Blade server Upper midplane Redundant switch modules Lower midplane Redundant power and I/ O connectors Blade server Slide 13 Updated 09/27/08

14 IBM BladeCenter H Power Domain A Left Redundant Pair Power Module 1 Power Module 3 Power Domain B Right Redundant Pair Standard in BladeCenter H chassis Operate as N+N redundant pair Load balancing power modules Maximum draw from each domain is 2900W 38A Power Module 1 powers blades 1-7, I/O modules 1, 2, 3, 4, 7, 8, and AMMs Power Module 2 powers blades 1-7, I/O modules 1, 2, 3, 4, 9, 10, and AMMs Power Module 2 Power Module 4 Optional for BladeCenter H chassis Operates as N+N redundant pair Load balancing power module Maximum draw from each domain is 2900W 38A Power Module 3 powers blades 8-14, I/O modules 1, 2, 5, 6, 7, 8, and AMMs Power Module 4 powers blades 8-14, I/O modules 1, 2, 5, 6, 9, 10, and AMMs IBM BladeCenter H Blower Module Power Source 1 I/O Module 7 I/O Module 8 Power Source 2 IBM BladeCenter H Power Module Directly powered by AC (Blower 1 via Power Source 1, Blower 2 via Power Source 2) N+N redundant When a blower is removed, chassis is designed to prevent air flow issues Blower speed is controlled by AMM I/O Module 1 I/O Module 2 I/O Module 5 I/O Module 6 Blower Module 1 Blower Module 2 I/O Module 9 I/O Module 10 I/O Module 3 I/O Module 4 AMM 1 AMM 2 Rated output of each module is 2900W Front loading for easier service No cable removal for replacement Each power module includes a three pack of fans Two of three fans needed for operation Slide 14 Updated 04/10/08

AMMs Power Module 2 Power Module 4 Optional for BladeCenter H chassis Operates as N+N redundant pair Load balancing power module Maximum draw from each domain is 2900W 38A Power Module 3 powers

15 IBM BladeCenter H Chassis Options d alimentation électrique Burndy power connector Triple 16A IEC 320-C20 ( V) 2.8M Double 30A NEMA L6-30P (208V) 4.3M Slide 15 Updated 01/19/08

connector Triple 16A IEC 320-C20 (200-240V) 2.

16 IBM BladeCenter H! Wysokość 9U, do 14 serwerów i 10 modułów I/O! Do 56 serwerów w szafie rack 42U! Typowa konfiguracja: 4400W (2xGE, 2xFC, 14x HS22 2CPU 80W, 16GB RAM, 2x SAS)! Konfiguracja Low Power: 3700W (2x GE, 2xFC, 14x HS22 2CPU 60W, 16GB RAM, SSD) Zasilacz 1 Zasilacz 4 Bay 7 i 8 14 serwerów blade Media Tray 1 5 Wentylator 1 3 AMM1 2 6 Wentylator 2 4 AMM1 Zasilacz 2 Zasilacz 3 Bay 9 i 10 16

Konfiguracja Low Power: 3700W (2x GE, 2xFC, 14x HS22 2CPU 60W, 16GB RAM, SSD) Zasilacz 1 Zasilacz 4

17 BladeCenter H

18 Karty w serwerach blade a moduły We/Wy On-board do Switch bay 1 & 2 HS22 CFFh options BladeCenter H HS22 CIOv options BladeCenter E 1Gb Ethernet 4/8Gb Fibre Channel 3Gb SAS 10Gb Ethernet 20/40Gb InfiniBand 1Gb Ethernet / Fibre 10Gb Ethernet 20/40Gb InfiniBand MSIM 1Gb Ethernet 4/8Gb Fibre Channel 3Gb SAS Pass-thru

Channel 3Gb SAS 10Gb Ethernet 20/40Gb InfiniBand 1Gb Ethernet / Fibre 10Gb

19 IBM BladeCenter H Chassis Vue connecteur de ports série The BladeCenter H avec le Advanced Management Module (AMM) offre deux choix de connectivités série : Serial over LAN via le Advanced Management Module (AMM) Connection série directement de l arrière du châssis BladeCenter H. BladeCenter H Serial Port Breakout Cable Slide 19 Updated 01/19/08

LAN via le Advanced Management Module (AMM) Connection série directement de l arrière

20 IBM BladeCenter E Chassis BladeCenter E Chassis Blade Server Upper midplane Space occupied by blade server Ventilation spaces I/O connector Power connector I/O connector Power connector Lower midplane Slide 20 Updated 04/04/08

Ventilation spaces I/O connector Power connector I/O

21 IBM BladeCenter E Chassis Power module bay 3 with PFA Power module bay 1 with PFA Switch module bay 1 Switch module bay 3 Hot-swap Advanced Management Module (AMM) Switch module bay 4 Switch module Bay 2 Optional hotswap redundant Advanced Management Module (AMM) Power module bay 4 with PFA Hot-swap redundant blowers with PFA LED panel Power module bay 2 with PFA Slide 21 Updated 09/27/08

22 Hook the top two power supplies to one circuit Hook the bottom two power supplies to another circuit BladeCenter E Power Supply Two modules per option part number Slide 22 Power Domain B Left Redundant Pair Optional Operate as redundant pair with load balancing Provides redundant power for blades 7-14 Updated 09/27/08 Power Domain A Right Redundant Pair Standard with chassis Operate as redundant pair with load balancing Provides redundant power for blades 1-6, module bays, and In the US, each power supply would typically use an IEC 320-C19 to C20 power cable

23 Smarter Systems for a Smarter Planet IBM BladeCenter E! Wysokość 7U, do 14 serwerów i 4 modułów I/O! Do 84 serwerów w szafie rack 42U! Typowa konfiguracja: 4120W (2xGE, 2xFC, 14x HS22 2CPU 80W, 16GB RAM, 2x SAS)! Konfiguracja Low Power: 3450 (2x GE, 2xFC, 14x HS22 2CPU 60W, 16GB RAM, SSD) 1 3 Zasilacz 1 Zasilacz 3 Wentylator Zasilacz 2 Wentylator 2 23 AMM1 Zasilacz 4 AMM2

24 IBM BladeCenter S Media Tray Storage Module 1 Bateria 1 6 serwerów blade Storage Module 2 AMM1 Wentylator 1 i Zasilacz 1 Zasilacz 3 Bateria 2 Wentylator 2 i 4 Serial Zasilacz Zasilacz 4 24

25 Smarter Systems for a Smarter Planet Obudowa IBM BladeCenter S

26 BladeCenter S

27 Dwa moduły SAS dla IBM BladeCenter S! IBM BladeCenter SAS Connectivity Module! IBM BladeCenter S SAS RAID Controller Module (RSSM) Nowo RSSM

28 IBM BladeCenter SAS Connectivity Module Serwer NAS z 12 dyskami Rozwiązanie iscsi z DS3300

29 Storage Configuration Manager RSSM
