1 Proponowane modele wdrożenia systemu ALU GPON dla operatorów ISP 21 Maj 2014, Rawa Mazowiecka Witold Zając

2 AGENDA 1. Platforma sprzętowa OLT - ISAM FX 2. Portfolio ONT 3. Zarządzanie AMS 4. Podsumowanie one ISAM family ISAM FX high capacity fiber ISAM FD DSL & fiber Remotes ONTs Cabinets 2

3 one ISAM family ISAM FX high capacity fiber ISAM FD DSL & fiber Remotes ONTs Cabinets 1. Platforma sprzętowa OLT ISAM FX 3

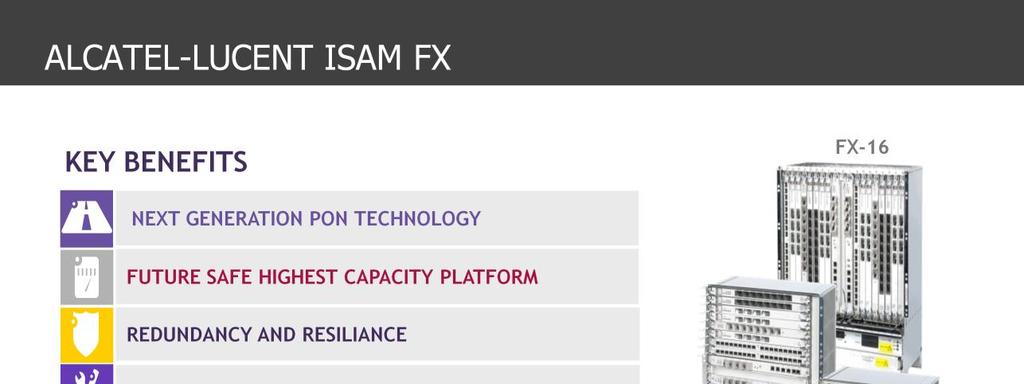

4 Portfolio OLT - ISAM FX 4

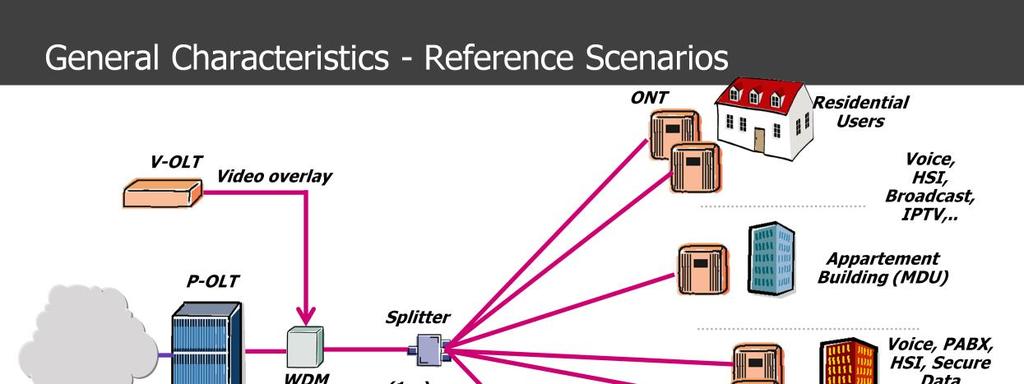

5 Portfolio OLT - ISAM FX 5

6 Portfolio OLT - ISAM FX 6

7 Portfolio OLT 7

8 Splitter maksymalny zasięg 8

9 OLT - usługi 9

10 OLT Pakiet IVP Instant Voice Package is defined by ALU Includes a pre-defined set of Supplementary Services Supplementary Services compliant with International Standards Supported Access Platforms: Equipment Practices : 7360 FX / 7302 FD / 7330 FD Support of ONTs: I-240G-D, I-240W-A, I-241W-S Support of OLT SW: R

11 OLT Pakiet IVP SIP signaling protocol POTS (Residential applications) Codec s: G.711μ-law,G.711a-law Registration and Authentication Basic call functionality: Originating and Terminating Basic call Normal call release Premature call release User Busy Ringing Time-out SIP Reliable Provisional responses SIP Session Timer Calling Line Identification Presentation (CLIP) (on-hook data transmission) (FSK signalling on default CDE implementation) Calling Line Identification Restriction (CLIR ) Mid call digit transport (RFC2833) Distinctive Ringing Call Forwarding Services: Call Forwarding Unconditional (CFU) Call Forwarding Busy (CFB ) Call Forwarding No Reply (CFNR ) Call Forwarding to Voice Mail (CFVM) Audible Message Waiting Indication (A-MWI) Hotline Do Not Disturb Alarm call Outgoing Call Barring (OCB) Incoming Call Barring (ICB) Call Completion to Busy Subscriber (CCBS) Call Return G711 Fax and Modem call Sip Server IP@ configured from the Management Interface Single SIP Server IP@ Support 11

12 one ISAM family ISAM FX high capacity fiber ISAM FD DSL & fiber Remotes ONTs Cabinets 2. Portfolio ONT 12

13 ONT - Family POTS Ports GE I-010G DATA only Use case: 2 box solution with RGW 2 play services: Video + High speed internet (up to 1Gbps) 0 1 I-040G DATA only Small Multi Dwelling units 2 play services: Video + High speed internet (up to 1Gbps) 0 4 I-240G DATA + VOICE 1 box to provide 3 play services: Video + Voice + High speed internet Analog POTS services (SIP/H.248) 2 4 I-240W RGW 1 box solution including WiFi Layer 3 ONT features 2 4 I-241W RGW 1 box solution including WiFi + RF Layer 3 ONT features

14 ONT - Family POTS Ports GE I-011G DATA only + RF Use case: 2 box solution with RGW 2 play services: Video + High speed internet (up to 1Gbps)

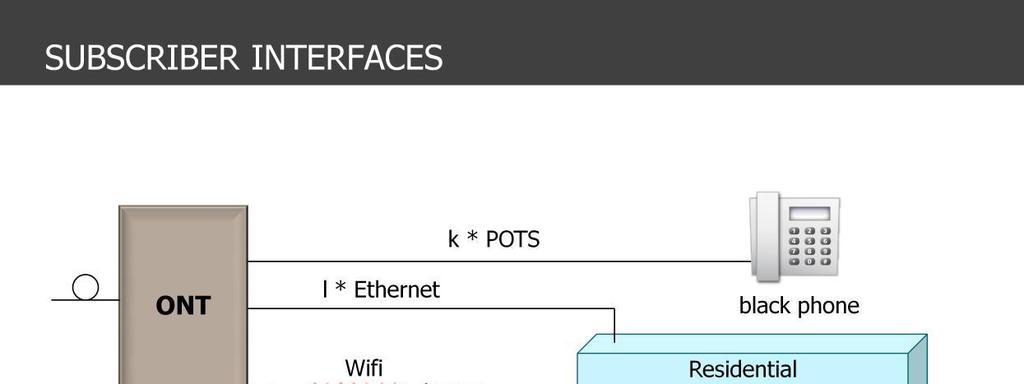

15 ONT - Interfeisy 15

16 ONT modele wdrożenia 16

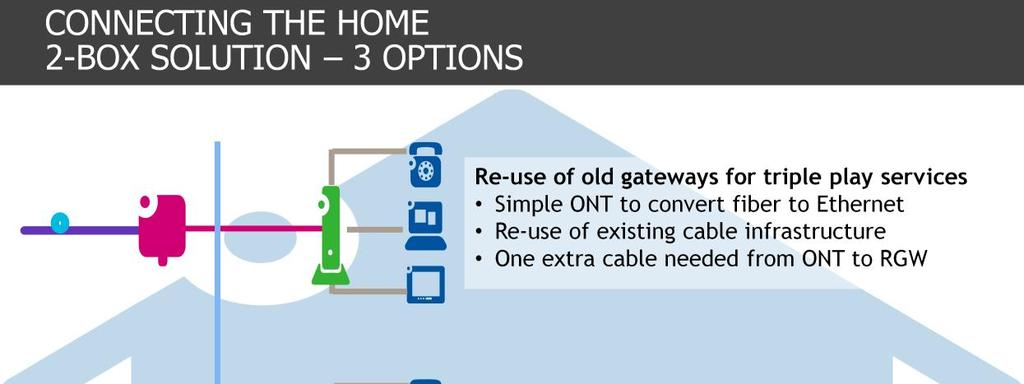

17 ONT modele wdrożenia 17

18 ONT modele wdrożenia FLEXIBILITY Low threshold connectivity Connect any device to GPON SMALL FORM FACTOR ONT: 12 cm x 9.8 cm x 2.8 cm ONT 1 GE port Backhaul ethernet devices without SFP cage GPON ANYWHERE GPON in, GE out UPGRADE P2P SITES Enjoy the OPEX reduction of PON without replacing the CPE BASIC ONT TYPES FOR DEMARCATION POINT BETWEEN NETWORK AND SERVICE PROVIDER 18

19 ONT modele wdrożenia 19

20 ONT modele wdrożenia 20

21 ONT modele wdrożenia I-240W-A Provides wireless access I-240G-D For triple play services ALL SERVICES GE interface for data services POTS interface for voice services USB ports to connect network devices WiFi to limit wiring needs RF overlay Less equipment/less wiring COMMON MANAGEMENT Voice TR69 OMCI stack FULLY INTEGRATED SOLUTION I-241W-S RF overlay included GREEN/COMPACT Less equipment/less wiring Power saving Cost effective 21

22 ONT modele wdrożenia 22

23 ONT modele wdrożenia 23

24 one ISAM family ISAM FX high capacity fiber ISAM FD DSL & fiber Remotes ONTs Cabinets 3. Zarządzanie - AMS 24

25 5520 AMS Management System One Management system for the entire ISAM product family Ease of use State-of-the-art GUI with intuitive design Scale Scale from small, one server configuration to a large cluster Integration standards-based, plug-and-play northbound interfaces Customizable Add features and new NE types with additional software plug-ins as needed 25

26 one ISAM family ISAM FX high capacity fiber ISAM FD DSL & fiber Remotes ONTs Cabinets 4. Podsumowanie 26

27 Podsumowanie Portfolio GPON ALU OLT możliwość dostosowania do potrzeb ONT duża gama urządzeń pracujących na warstwie L2 oraz L3 Pełna gama urządzeń zapewniająca dostępność wszystkich usług Internet/Video/Voice Możliwe różne modele współpracy: - zaprojektuj i wykonaj projekt, dostawy sprzętu, - wykonanie po stronie Sprint - przygotowanie, dostawy sprzętu po stronie Sprint, instalacja po stronie klienta, wsparcie Sprint
