1 Rafał Klimczak Nowości w IBM System x i BladeCenter

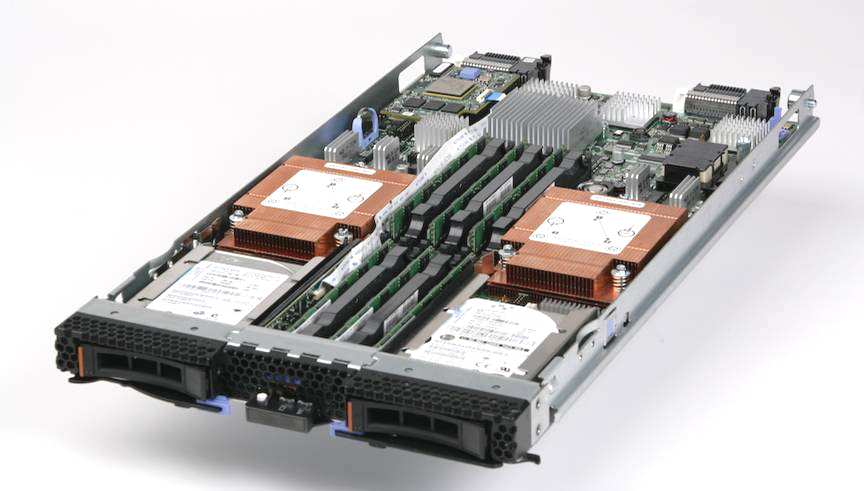

2 Blade HS22 Optional RAID 5 w/ battery-backed write-back cache Internal USB (Embedded Hypervisor) Dual and redundant power & I/O connectors 2x Intel Xeon 5500 Processors (Nehalem EP) Additional Features IMM & UEFI Light Path Diagnostics Expansion blades BCE, BCH, BCS, BCHT 2 I/O Expansion Slots (1x CIOv + 1x CFFh) 2x hot-swap drive bays (SAS or Solid State) 12x VLP DDR3 Memory (96GB Max / 1333MHz Max) 2

3 Blade HS22V Dual and redundant power & I/O connectors 2x Intel Xeon 5500 Processors (Nehalem EP) Additional Features Integrated RAID 0,1 Light Path Diagnostics BCE, BCH, BCS, BCHT CIOv daughter card connector 2x drive bays (1.8 SSD) 18x VLP DDR3 Memory (144GB Max / 1333MHz Max ) 3

4 BladeCenter Open Fabric BladeCenter Open Fabric Portfolio Open, Flexible, Future-Ready Ethernet 1Gb/10Gb Cisco/BNT SAS/Infiniband 3Gb SAS 20Gb/40Gb Infiniband FCoE 10Gb/8Gb BNT, Qlogic Emulex Fibre Channel 4Gb/8Gb Cisco,Brocade, Emulex,Qlogic Virtual Fabric Wielofunkcyjność: wsparcie dla Ethernet, FCoE oraz iscsi Wysoka wydajność: 15% - 34% lepsza od porównywalnych technologii Elastyczność: Funkcjonuje jako 1Gb i/lub 10Gb Zabezpieczenie inwestycji: Nowe funkcjonalności w przyszłości jako licencja 4 BladeCenter Open Fabric Manager IO Virtualization

5 Dwa sposoby wirtualizacji I/O (Virtual Fabric): FCoE i vnic FCoE vnic Ethernet Fibre Channel 5

6 Virtual Fabric z interfejsem Emlulex i przełącznikiem BNT VFS Map vnics to Virtual Port Groups Corporate LAN, Management, VMotion, VMaware, NMotion Emulex Virtual Fabric Adapter (CFFh) Physical 10GbE Ports Physical 10GbE Ports Virtual NICs I Virtual Groups Physical BNT Switch Physical BNT Switch BNT Virtual Fabric Switch BNT Virtual Fabric Switch 6 BladeCenter Open Fabric Manager CLI, BNT Switch Interface with VMready

7 IBM BladeCenter i Cisco Unified Topology dzięki Cisco Nexus 4001 LAN SAN A SAN B Cisco Nexus 4001 dla BCH i BCHT Nexus 5000 Nexus 5000 N4K-1 N4K- 2 N4K-1 N4K-2 Blade Chassis Blade Chassis 7 Enhanced Ethernet and FCoE Ethernet FC

8 Building a smarter planet Budowanie stack ów ułatwia zarządzania (64Gb/s, Flex Link, VBS) Cisco stacking (StackWise) 8 VBS

9 Serwery rack nowej generacji: x3550 M2 i x3650m2 9

10 Nowa generacja serwerów 1CPU: x3200m3 i x3250m3 IBM System x3200 M3 Procesor Intel Xeon 3400 i pamięć RAM DDR3 do 32GB* Cztery dyski SS-SATA lub hot-swap SAS/SATA 3,5 RAID 0,1,1E a w modelach hot-swap opcjonalnie RAID5 Dwa PCI-E x8 Gen2, PCI-E x1 i dwa PCI bit 33MHz 5v Procesor serwisowy Integrated Management Module (IMM) Zasilacz 401W lub redundantne zasilacze hot-swap 430W IBM System x3250 M3 Procesor Intel Xeon 3400 i pamięć RAM DDR3 do 32GB* Dwa dyski SS-SATA 3,5 lub 4 dyski hot-swap SAS/SATA 2,5 RAID 0,1,1E a w modelach hot-swap opcjonalnie RAID5 Dwa PCI-E x8 Gen2 lub PCI-E x8 Gen 2 i PCI-X Procesor serwisowy Integrated Management Module (IMM) Zasilacz 351W 10 * 32GB w modułach 8GB, które będą dostępne na początku 2010 roku

11 Dyski twarde w nowych serwerach System x W nowych serwerach rack standardem stają się dyski 2,5 Dyski nowej generacji Serial Attached Storage (SAS) 6Gb Dyski SAS 2,5 : 73GB 15K, K i 300GB 10K Dyski SATA 2,5 : 300GB 10K Dyski Solid-State (SSD): 16/32GB i 50GB (64GB over provisioning) ND Flash Memory SLC (1 bit per cell szybsze, lecz droższe) MLC (4 bit per cell tańsze lecz wolniejsze) 11

12 Akcesoria do serwerów IBM System x Karta montowana na płytę główną z dwoma dodatkowymi portami Gigabit Ethernet (rack) Bardzo wydajne kontrolery RAID: ServeRAID i 5025 SAS Gen2 (6Gb) i PCI-Express Gen2 800MHz 72-bit ECC DDR2 SDRAM Memory (512 MB) RAID 0,1,10,5,50,6,60 Self Encrypting Disk (SED) Baterie +48 godzin i +3 lata trwałości Rozszerzenia do RAID1 pozwalające wybierać dyski z różnych półek Revertible Hot Spare, Single Controller Multi-pathing, SSD Guard, Load Balancing, Dimmer Switch Szyfrowanie dysków Karty C 10Gb od Qlogic i Brocade Karty FC 8Gb od Qlogic, Emulex i Brocade JBOD SAS EXP3000 IBM High IOPS SSD PCIe Adapters 12

13 Rodzina IBM ServeRAID ServeRAID-BR10il v2 ServeRAID M1015 ServeRAID M5014 ServeRAID M5015 ServeRAID M5025 Part number 49Y M M M M0830 PCI slot PCI-Express x4 PCI-Express x8 PCI-Express x8 PCI-Express x8 PCI-Express x8 Data transfer interface SAS 3 or SATA SAS 3/6Gb or SATA II SAS 3/6Gb or SATA II SAS 3/6Gb or SATA II SAS 3/6Gb or SATA II Form factor PCIe Low Profile, Half Length PCIe Low Profile, Half Length PCIe Low Profile, Half Length PCIe Low Profile, Half Length PCIe Low Profile, Half Length Processor LSI 1064 LSI SAS2008 LSI SAS2108 LSI SAS2108 LSI SAS2108 Cache memory No no 256MB 40bit 800Mhz DDR2 ECC 512MB 72bit 800Mhz DDR2 ECC 512MB 72bit 800Mhz DDR2 ECC Encryption No Optional - Self Encrypting Disk (SED) Optional - Self Encrypting Disk (SED) Optional - Self Encrypting Disk (SED) Optional - Self Encrypting Disk (SED) Battery backup No No Optional Yes Yes Battery No No 48+ hrs data retention time (optional) 48+ hrs data retention time 48+ hrs data retention time RAID levels Standard 0,1,1E Standard 0,1,10, Optional 5 Standard 0,1,10,5,50, Optional 6, 60 Standard 0,1,10,5,50, Optional 6, 60 Standard 0,1,10,5,50, Optional 6, 60 System x supported x3200m3, x3250m3 x3650m2, x3550m2, x3500m2, x3400m2, x3200m3, x3250m3 x3650m2, x3550m2, x3500m2, x3400m2 x3650m2, x3550m2, x3500m2, x3400m2 x3650m2, x3550m2, x3500m2, x3400m2, x3200m3, x3250m3 Host bus interface- Host bus speed (max) PCIe x4 PCIe x8 Gen 2 PCIe x8 Gen 2 PCIe x8 Gen 2 PCIe x8 Gen 2 Connectors 1 x4 Mini-SAS Internal SFF x4 Mini-SAS Internal SFF x4 Mini-SAS Internal SFF x4 Mini-SAS Internal SFF x4 Mini-SAS External SFF-8088 Utilities MSM, Director, DSA, MegaCLI, Flashdrive MSM, Director, DSA, MegaCLI, Flashdrive, ServeRAID-M v1.10 MSM, Director, DSA, MegaCLI, Flashdrive, ServeRAID-M v1.00 MSM, Director, DSA, MegaCLI, Flashdrive, ServeRAID-M v1.00 MSM, Director, DSA, MegaCLI, Flashdrive, ServeRAID-M v1.10 Tape drives supported No no no no no 13

14 Opcje do kontrolerów IBM ServeRAID ServeRAID M1000 Series Advance Feature Key ServeRAID M5000 Series Advance Feature Key ServeRAID M5000 Series Battery Kit Part number 46M M M0917 PCI slot Data transfer interface Form factor Daughter Card Daughter Card Battery Processor None None None Cache memory no no No Encryption Self Encrypting Disk (SED) Self Encrypting Disk (SED) Battery backup Yes Battery na 48+ hrs data retention time RAID levels 5 6, 60 Hardware supported ServeRAID M1015 ServeRAID M5014, M5015, M5025 ServeRAID M5014 Host bus interface- Host bus speed (max) Connectors None None None Utilities MSM, Director, DSA, MegaCLI, Flashdrive, ServeRAID-M v1.10 MSM, Director, DSA, MegaCLI, Flashdrive, ServeRAID-M v1.10 MSM, Director, DSA, MegaCLI, Flashdrive, ServeRAID-M v1.10 Tape drives supported 14

15 IBM High IOPS SSD PCIe Adapters Wysokowydajny dysk SSD o pojemności 160GB lub 320GB Interfejs PCI-Express 11-bit ECC, N+1 redundancja chip ów Pobór mocy max 9W, wydajność do 100,000 IOPS 15

16 Virtual Loaner Program VLP Virtual Loaner Program Zdalne testowanie sprzętu oraz oprogramowania IBM Dostęp przez ssh lub klienta VPN Wybór systemów operacyjnych obejmuje: AIX (AIX 5.3, AIX 6.1) Linux (RHEL, SLES) i5os V5R4, IBM i V6.1 Oraz platformy sprzętowe: Serwery POWER5 Serwery POWER6 (włączając JS22 i JS23) Możliwość testowania aplikacji w środowisku: PowerVM Live Partition Mobility AIX 6 Live Application Mobility AIX 6 Workload Partitions PowerVM Lx86 16

17 IBM Redbooks Repozytorium darmowych podręczników 17

18 IBM Configuration tools Zestaw narzędzi do konfiguracji serwerów klasy IBM System x oraz IBM BladeCenter IBM eserver Configuration and Option Guide (HTML i PDF) IBM BladeCenter and System x Reference Document (xref) IBM BladeCenter Interoperability Guide Standalone Solution Configuration Tool (SSCT) IBM BladeCenter and System x Power Configurator 18

19 IBM Sizing Guides Repozytorium wyników testów wydajnościowych aplikacji IBM oraz firm partnerskich Pomoc przy wymiarowaniu sprzętu pod aplikacje Wśród przetestowanych aplikacji znajdują się np: MS Exchange MS SQL Server MySAP Citrix DB2 Oracle JD Edwards 19

20 Express Selector Plus 20

21 Express Selector Plus Office Productivity Tools 21

22 A co widać w szklanej kuli? 22

23 QLogic Virtual Fabric Extension Module New! Q BNT 14 BNT Q SAN ports 12 LAN ports 23

24 ex5 Oparta na Intel Nehalem-EX Mecha-King Ghidorah Hammer Head + Thresher Mecha-King Megalon 24

25 Scalable Blades Hammerhead and exa SSD CPU CPU 16 DIMMs CPU 16 DIMMs CPU 16 DIMMs 16 DIMMs SSD SSD SSD SSD CPU 16 DIMMs CPU 24 exa DIMMs 16 DIMMs 24 exa DIMMs SSD CPU CPU CPU CPU CPU CPU HX43 HX43 HX43 HX43 Hammerhead Building Block 2-sockets Intel Nehalem EX 95W & 105W SKUs (95W, 105W, and 130W on Intel s roadmap) 16 memory DIMMs, VLP DDR3 8 ports of I/O (two CIOh or 1 Cffh + one COIv + LOMs) 30mm, single-wide Hammerhead Scaling 2S, 16D, 30mm 6S, 48D, 90mm 4S, 32D, 60mm 8S, 64D, 120mm HX43 HX43 Thresher (exa Blade) IBM 30mm expansion blade w/exa Adds 24 extra memory DIMMs Enables 130W SKUs No additional ports of I/O 60mm, double-wide solutions Thresher configuration options 2S, 40D, 60mm 4S, 80D, 120mm 25

26 Dziękuję za uwagę 26
