typ modelu: ATL73TXFR ATL73TXFR/A Kod handlowy: 15698

Transkrypt

1 typ modelu: ATL73TXFR ATL73TXFR/A Kod handlowy: 15698

2 Informacje Główne Przewodnik Dokumentacji Technicznej Możesz tutaj odnaleźć podstawowe informacje ułatwiające korzystanie z dokumentacji technicznej 1. Modele tej samej gamy posiadają wspólne rysunki, które przedstawiają najbogatszy zestaw części; generalnie wybrany model niekoniecznie posiadać będzie w spisie częsci wszystkie pozycje przedstawione na rysunku 2. Niektóre części nie mogą być przedstawione bezpośrednio na rysunku (instrukcje użytkownika, zestawy montażowe itd..). Można je odnaleźć w liście części pod pozycją gdzie są zainstalowane lub pod pozycją W prawym górnym rogu każdego rysunku widnieje numer seryjny wskazujący początek produkcji danej gamy urządzeń. Niektóre modele mogą posiadać więcej niż jeden rysunek dla podanej kategorii, każdy inny dla róznych numerów seryjnych. 4. Rysunki złożeniowe mogą wymagać dalszych uaktualnień po ich publikacji. Nowe części zostaną dodane do odpowiednich oznaczeń numerycznych rysunku. Oznaczenie kodowe modyfikacji rysunku zawarte jest w ostatnich 4 cyfrach numeru seryjnego przedstawionego w prawym górnym rogu rysunku. 5. Lista części odnosząca się do danego rysunku zawiera spis części tylko dla wybranego modelu; dostępne są dodatkowe informacje dla każdej części. REF. Numer referencyjny do tabeli; SUBSTUTUT: lista części które zastępują dany kod zachowując takie same charakterystyki funkcjonalne KOD HANDLOWY: lista wariantów modelu (pokazana w nazwie modelu) gdzie dana część jest zastosowana; UWAGA: kod informacji potrzebny do interwencji, prześledź zmiany aby poprawnie ustalić kod części 6. Niektóre notatki techniczne są ogólne dla danej sekcji, zatem nie mogą być związane tylko konkretnej części. Aby poruszać się w dokumentacjach modelu sprawnie, pomocne jest czytanie notatek i monitorowanie uaktualnień dokumentacji. 7. Okładka dokumentacji technicznej przedstawia model sprzętu oraz jego kod handlowy. page 2

3 rysunki page 3

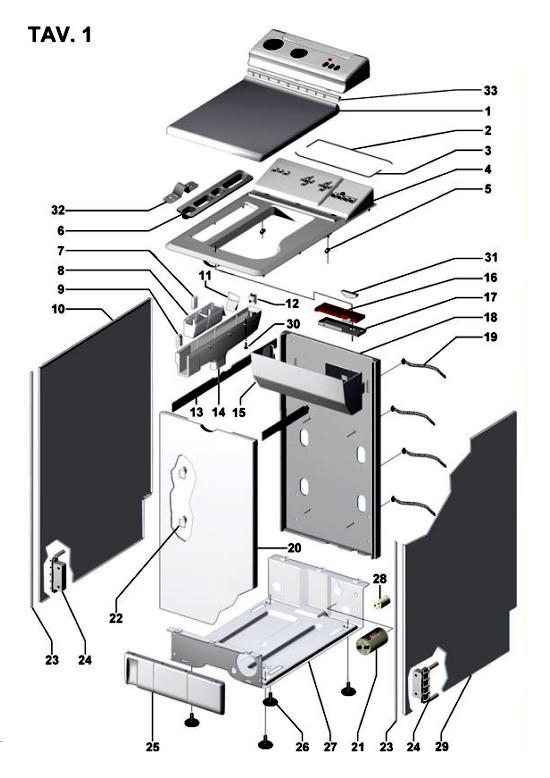

4 Lista części Ref. kod Od S/N Do S/N Zamiennik opis Notatka kod 000 C user instructions booklet C user istructions booklet C pokrywa 'atl53txfr-phil' 002 C sprężyna prawa 'atl53txfr-ph' 003 C sprężyna lewa 'atl53txfr-ph' 004 C spód pokrywy 'atl53txfr-ph' 005 C sprężyna ''atl53txfr-ph'' 006 C x C detergent box container 007 C syfon 'atl53txfr-ph' 008 C x C additive container 009 C syfon pojemn. 'phil' n C x C side panel left n C x C side panel left (010799) n C x C side panel left (00821) 011 C przekładka pranie / pranie 012 C rozdrabniacz myjki 'atl53txfr-ph' 013 C top rear crosspiece n C top rear crosspiece (90701) 014 C x C detergent container 015 C x C skrzynia sterownicza'atl53txfr-ph' n C box control (010799) 016 C mikroelement opóźniający C zabezpieczenie mikroopóźniacza 018 C płyta tylna 'atl53txfr-ph' 019 C hose clamp 020 C x C front panel n C płyta czołowa (010799) 'atl53txfr- 022 C adhesive hook 023 C x C side panel trim n C profil boczny 'atl-(90701)-ph' 024 C płytka 'atl53txfr-ph' 025 C cokół 'atl83txfr-ph' 026 C nóżka poziomująca m10 h C wspornik ruchomy 'atl53txfr-ph' n C x C moving support (90701) n page 4

5 Lista części Ref. kod Od S/N Do S/N Zamiennik opis Notatka kod 027 C wspornik ruchomy 'atl-(00821)-ph' 028 C filtr tłumiący zakł. radiowe 029 C x C side panel right n C x C side panel right (010799) n C x C side panel right (00821) 030 C bolt m8x35 ph 031 C przycisk otwierający drzwiczki 032 C hold symbols n C x C hold symbols (90701) 033 C wspornik sprężyny 'atl53txfr-ph' page 5

6 rysunki page 6

7 Lista części Ref. kod Od S/N Do S/N Zamiennik opis Notatka kod 001 C uchwyt ' atl53txfr-ph' 003 C pokrywa rama zbiornik'atl53txfr- 004 C sprężyna powrotu haka 'atl43x-ph' 005 C hak 'atl53txfr-ph' 006 C uszczelnienie 'atl53txfr-ph' 007 C okienko wewn. 'atl53txfr-ph' 008 C rama zbiornik 'atl53txfr-ph' 009 C podkładka niska 'atl53txfr-ph' 010 C sworzeń drzwiczek 'atl53txfr-ph' 011 C przeciwwaga górna 'atl83txfr-ph' 012 C uszczelnienie termostatu'phil.70' C uszczelnienie sondy zamk C opornik 2000 w 'ph' 014 C sonda z tworzywa 015 C termostat 90[ c'philco-as1047ctx' 016 C x C nakrętka samoblokująca'ph' 017 C x C flange 018 C pierścień uszczelniający 'atl53txfr- 019 C bolt n C bolt (90701) 020 C wodzik ' atl53txfr-ph' 021 C washer 022 C bolt - drum pulley fixing n C podkładka kielichowa 'wdp2001x- n C koło pasowe napędzane 'atl53txfr- 025 C pas 1118 mm 400/600 obr C pas atl 800/1000 obr mm j C pas el 1105 h7 (1105 mm)'atl- 026 C x C motor C silnik 'ph' 027 C lower counterweight 028 C śruba do odciążnika 'atl53txfr-ph' n C bolt (90701) 029 C wspornik dolny 'atl83txfr-ph' n C motor support bracket page 7

8 Lista części Ref. kod Od S/N Do S/N Zamiennik opis Notatka kod 030 C wspornik tylny'atl83txfr-ph' 031 C x C wodzik z masą ' atl53txfr-ph' 032 C wspornik amortyz. tłum. 033 C wspornik zbiorn.'als748tx' 034 C x C shock absorber bolt 035 C x C shock absorber 036 C cabinet bracket 037 C wspornik amort. tłum. 038 C bolt 039 C washer 040 C x C podkładka wysoka 'atl53txfr-ph' 041 C x C outer- set n C zestaw drzwiczek kosza praw. n C screw 8x C nakrętka samoblokująca 'phil' 045 C head n C washer n C screw n C sprężyna pokrywy'atl53txfr-ph' 049 C x C szczotk. siln. sole as1047ctx 050 C x C brush for motor indesco page 8

9 rysunki page 9

10 Lista części Ref. kod Od S/N Do S/N Zamiennik opis Notatka kod 001 C pokrętło timera 'atl53txfr-ph' 002 C pokrętło komponentów'atl53txfr- 003 C przycisk 'atl53txfr-ph' 005 C dashboard 006 C knob disc timer 007 C bolt 008 C dashboard moulding 009 C timer eaton ec 'atl83txfr- 009 C okablowanie 'atl73txfr-ph' 011 C programator temperatury 012 C wyłącznik dwubiegunowy na+na 013 C unipolar switch nc 013 C switch nc+resistor 50 kohm 014 C unipolar switch na 016 C lampka kontrolna 'atl53txfr-ph' 018 C knob disc thermostat 019 C kabel zasilający 3x1 schuko 1,5 m page 10

11 rysunki page 11

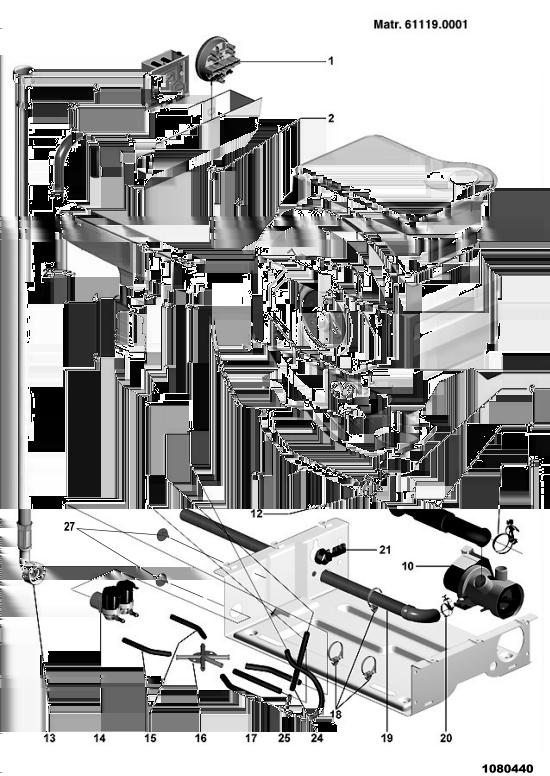

12 Lista części Ref. kod Od S/N Do S/N Zamiennik opis Notatka kod 001 C prestostat 2+1 zakresy 'atl53txfr C prestostat 2+1 zakresy 'wgt837t- 002 C zacisk 'atl53txfr-ph' 003 C x C dcdr control C x C digital module 003 C x C dcdr control C binding n C zacisk 'atl (90701) ph' 005 C mieszek poboru deterg.'atl53txfr- 006 C zacisk 'atl53txfr-ph' 007 C rura zbiornik-filtr 'atl53txfr-ph' 008 C binding 009 C rura presostatu'atl53txfr-ph' 010 C x C drain pump 220v./50hz 011 C syfon 'atl53txfr-ph' 012 C x C binding 013 C x C rura doprowadzająca 'atl53txfr-ph' 1 x C C elektrozawór 3-dr. 'atl53txfr-ph' n C elektrozawór 2-dr. 1we-2wy'atl- 015 C junction pipe 016 C rurka- 5.przewod. 'ph' 017 C rura wody'atl53txfr-ph' n C rura wody'atl (90701)-ph' 018 C hose clamp 019 C rura spustowa 'atl53txfr-ph' 020 C binding 021 C płytka zaciskowa 'atl53txfr-ph' 022 C x C plastic support for drain hose 023 C junction pipe 027 C cap for electrovalve page 12

13 rysunki page 13

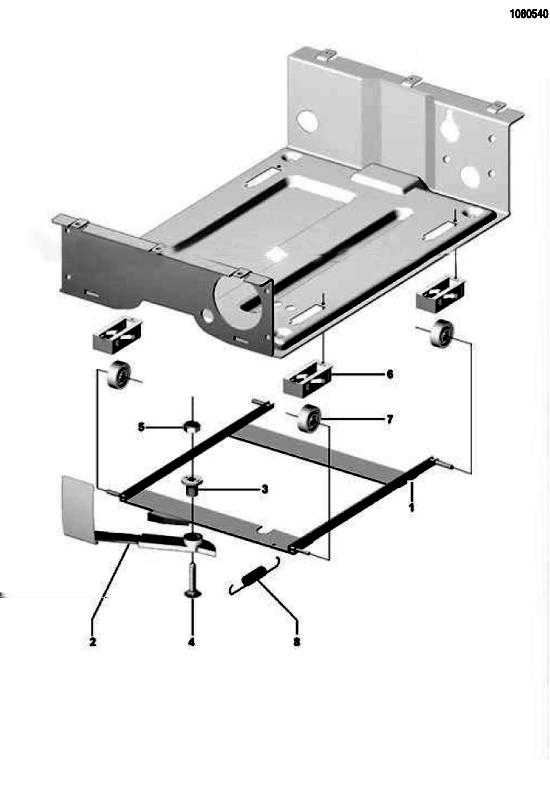

14 Lista części Ref. kod Od S/N Do S/N Zamiennik opis Notatka kod 001 C truck 002 C x C wheel lever 003 C pawl 004 C bolt m8x35 ph 005 C nakrętka samoblokująca 'phil' 006 C whell mounting 007 C whell 008 C tension spring page 14

15 Notatki : MODIFIED CONTACTS FOR DELAY MICROSWITCH Beginning with serial no. PM for the top-loading washing machines manufactured at the Bergamo plant, production needs have forced us to change the way in which the contacts for the thermal lock (051478) are identified, from alphanumeric to numeric: N, C and 3 to 1, 2 and 3. As a result of this change, the position of the faston contact no. 1 was inverted with that of faston no. 2, as shown in the following figure: It must be kept in mind that during the installation phase of the modified electric door switch on pre-modification wiring and vice versa, the electric door switch will not make the electric contact if the wires are not connected correctly : SHORT BELT+C17 Beginning with serial no. PM for the top-loading washing machines operating at 700/800/1000 rpm, a shorter drive belt (part no ) is being used. It is identified by the following stamp: PV.EL.J In terms of providing technical assistance for pre-modification models, the technician must in some cases check to see if there are washers used as spacers between the bottom counterweight and the drum. If so, the belt to be used is the one with part no , which is identified by the following stamp: PV.EL.J This is to prevent excessive tension on the belt, which could cause it to break : READING THE SERIAL NUMBER FOR BREMBATE PRODUCTS Reading the serial number on the models produced in the Brembate factory. The first type was in effect until 31 March 91. This serial number is made up of 12 characters (6 letters and 6 numbers) which provide the following information: Char. 1: Letter P = produced at the Brembate factory; Char. 2: Product Line (A = Washing Machine, F = Washer-Dryer, L = Dryers and M = Top Loading); Char. 3 and 4: Model of the Product (BP = S54, BQ = SD510 and page 15

16 AP1010CTX = FF etc.) Char. 5: Year of Manufacture (S = 1986, T = 1987, U = 1988, V = 1989, W = 1990 e X = 1991) Char. 6: Month of Manufacture (A = January, B = February, C = March etc.) Char. 7 to 12: Sequential production number. Second type, in effect as of 01 April 81. The new serial number is still made up of 12 characters (4 letters and 8 numbers) and differs from the previous one in terms of the information on the production period, which is now provided with characters 5 to 12, and more precisely: Char. 5 and 6: Indicate the year of manufacture, e.g. 91 = 1991; Char. 7 and 8: Identify the week of manufacture from 01 to 52; Char : Sequential production number relative to the week indicated by characters 7 and : POLARIZED MODULES Beginning with serial no. PF , polarized modules have been used on the top-loading washing machines in order to eliminate any risk of errors in connecting the wiring. The modules affected by this change are: Part no MODULE The new polarized module is being handled with part no Part no Module. The new module will also be used in place of the pre- modification one and will keep the same SAT part no Module The new module will also be used in place of the pre- modification one and will keep the same SAT part no : Beginning with serial no. PH on all of the top-loading washing machines produced at the factory in Brembate, the pressure switch with part no is being used on all the 700/800/1000 rpm models, in place of the part with no The new pressure switch can be used in place of the pre-modification one, which will be handled until the stock has been used up : Beginning with serial no (PH ), a new sensor seal with part no is being used in order to improve the sensitivity of the temperature sensor. The form of the new seal ensures that the sensor is entirely water-proof, thereby eliminating the possibility of malfunctions caused by dampness affecting the NTC element in the sensor. If premodification appliances are being serviced for the replacement of the sensor, the old seal must be replaced with the new one. page 16

17 : Beginning with serial no (PH ) on the top-loading 800 rpm model washing machines produced at Brembate, a motor whose shaft diameter is 14 mm as opposed to 18 mm is being used. The parts affected by this modification are: Part no Motor diameter of 14 mm; Part no Module; Part no Belt. The new parts are interchangeable with the pre-modification ones only if used as a complete assembly. The pre-modification parts will contin ue to be handled. n : Modifications to the Cabinet and to the detergent dispenser Beginning with serial no on Top-Loading Washing Machines ranges ATL and WGT, some changes have been carried out on parts relevant to the cabinet and the detergent dispenser. In order to identify the appliances concerned by the modification, an "/A" suffix has been added onto the model symbol indicated on the registration plate, e.g. ATL53TXFR (previous version) ATL53TXFR/A (updated version). Parts concerned by the modification: Parts for both ATL and WGT Part no Dispenser siphon (no longer used on modified appliances); Part no Left side panel Replaced by ; Part no Right side panel Replaced by ; Part no Replaced by Upper cross piece; Part no Control box Replaced by ; Part no Replaced by Side panel section; Part no and Replaced by Torx screws for fixing the pulley; Part no Cap (No longer used on modified appliances); Part no Cup washer (No longer used on modified appliances) Part no and Replaced by Electrovalve 2-way 1E -2U; Part no Electrovalve hole plug; Part no Replaced by Water hose; Part no Replaced by Terminal; Part no Replaced by Furniture support; Specific parts for ATL (Stainless Steel dispenser) Part no Replaced by detergent dispenser rpm, for 800 e 1000 rpm Part no Front panel Replaced by (The modified part can be used instead of the pre-modification one but not viceversa); Part no Replaced by Symbols support; page 17

18 Part no Unified with Flange (The modified part is already used on the 400, 600, 800 e 1000 rpm); Part no Replaced by Dispenser assembly fixing screws; Part no Washer (No longer used on the modified appliances); Part no Replaced by Counterweight and motor support screws; Specific parts for WGT (Plastic dispenser) Part no Wash air break (No longer used on modified appliances); Part no Replaced by Detergent dispenser rpm, for 800 rpm; Part no Replaced by Inner lid; Part no Replaced by Additives dispenser; Part no Front panel Replaced by (The modified part can be used instead of the pre-modification one but not viceversa); Part no Replaced by Dispenser assembly fixing screws; Part no Tumbler fixing screws (No longer used on modified appliances); n : Replacement of drum doors on Top-loading ATL, WGT, TX models. The drum door part no is available from the Central Spare Parts Warehouse, which should be used on Top-loading washing machines in the ATL, WGT range manufactured at the Brembate plant. The kit is made up as follows : No. 1 Short door assembly; No. 1 Long door assembly; No. 2 Right-hand tub springs; No. 2 Left-hand tub springs; No. 2 Drum hinges; No. 18 Steel screws; No. 18 Steel flat washers; No. 18 Steel nuts; No. 1 Plastic tub frame; No. 1 Silicone cartridge. To replace the doors, carry out the following: 1. Place a spongy cloth inside the drum in order to recover any metal shavings produced by the drill bit; 2. Place the drum in such a way that one of the door hinges is situated in the centre of the opening for loading the laundry. 3. Take care not to scratch the tub housing when removing the parts to be replaced and in any case, use a cutter. 4. Using a 4 mm drill bit, remove the rivets that fix the hinge to the drum, taking particular care not to nick the plastic side walls of the tub frame. 5. Once all the rivets have been removed, fix the new door on, making use of the screws. To do this, nose pliers are required in order to insert the washer and secure the screw nuts situated on the outermost sides of the door hinge. N.B. The screw head should be placed inside the drum. 6. Once the door has been replaced, remove the cloth from the inside of the drum, taking care not to spill the shavings (or the metal parts) from within it. 7. Before using the washing machine, wait for at least 12 hours in order to allow the silicone to set wherever it was used. n : Modifications on cabinet support and side panels. page 18

19 Beginning with serial (PH0034?.), the cabinet support and side panels have been modified on all models of the Toploading washing machines. The new cabinet support part no can be used instead of part no but not vice-versa. Part no will continue to be handled until stocks run out. The modified side panels, part no (right) and (left) are not interchangeable with the pre-modification ones which shall continue to be handled regularly with part no (right) and cod (left). n : Special rubber pad for stainless steel tub. Beginning with serial no (PH0036?.), a special rubber pad has been created and placed between each of the two metallic motor supporting brackets and the lower counterweight on all the models of Top-loading washing machines with a stainless steel tub manufactured in the Brembate factory in order to eliminate any cases of resonance of the oscillating assembly. Each motor support consists of an assembly, comprising a pre-assembled bracket with glued on rubber. The part numbers for the bracket assemblies plus rubber pad, differentiated between those for appliances with a collector motor and those with an induction motor, are the following: Models: 400/600 rpm Part no Bracket for induction motor 400/400 rpm; Models: 800/1000 rpm. Part no Bracket for collector motor 800/1000 rpm. page 19
