1 Ochrona przed obrywami skalnymi TRBOVLJE ROCKSLIDE PROTECTION, SI

2 TRBOVLJE ROCKSLIDE PROTECTION Ochrona przed obrywami skalnymi Projekt Lokalizacja Kraj / region Trbovlje rockslide protection Trbovlje Słowenia Rok Instalacji / montazu 2016 Inwestor Projektant Wykonawca Slovenian Infrastructure Agency (DRSI) EHO Projekt Kaskader Opis sytuacyjny projektu On 20th February 2016 over 500 cubic meters of rock and debris collapsed onto the district road between the county seat Trbovlje and Ljubljana. Not only was the important road blocked, the residents were also cut off from electricity and water. The debris removal on route R1-223 had to be completed in the shortest possible time, but first sustainable protection measures needed to be developed and installed. Site investigations and software analysis conducted by geologists and engineers indicate a significant hazard potential. The heavily fractured residual rock mass at the mountain top cannot be taken down as it could damage an important nearby railway. However, parallel to the site investigation and software analysis, limited rock scaling was also being performed. Opis zastosowanego rozwiazania Construction commenced on March 8th with rock drilling to install anchors and base plates for the barrier s post foundations. Based on the study results national authorities decided to apply a Geobrugg rockfall protection system from the RXE-Series. With its ring nets made of high-tensile steel wire the barrier design has been tested and approved to absorb impact energies of up to 8,000 [kj]. Additionally, two GBE-500A systems were selected to protect the lower part of the slope. The posts, ringnet s ropes and accessories produced and pre-assembled in Romanshorn, Switzerland, were already delivered to Trbovlje by mid-march. The biggest helicopter of the Slovenian Armed Forces delivered the four preassembled ring net bundles along with the five posts, weighing almost 2 metric tons, to the heavily inaccessible terrain. Despite high winds the helicopter crew made the decision: We re flying! The experience of the entire ground and helicopter crew was needed to connect the posts to the base plates within a millimeter of accuracy. The mega-barrier technical acceptance inspection took place on April 4th, the same day officials, stakeholders and the public are welcomed to the inaugural reopening of the newly repaired and secured road. Chroniony obiekt Zastosowane systemy Road GBE-500A, RXE-8000 Zabezpieczenie przeciwkorozyjne Galvanized, GEOBRUGG SUPERCOATING Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 2/9

3 Wytrzymalosc systemu Wysokosc ochronna systemu Dlugosc systemu 500 kj, 8000 kj 3.0 m, 8.0 m - 40 m Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 3/9

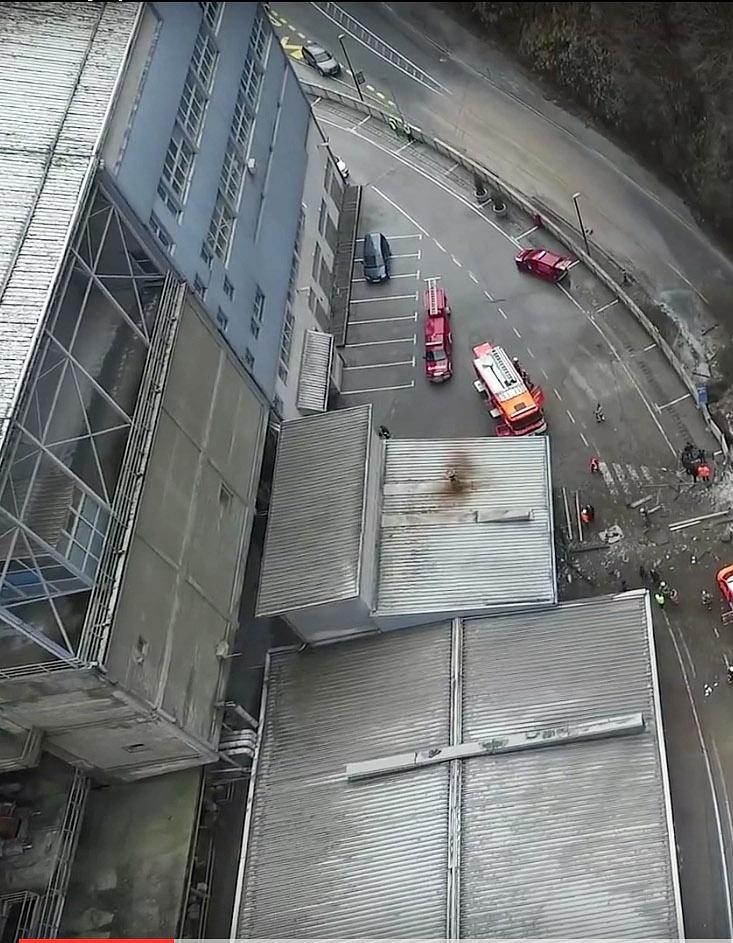

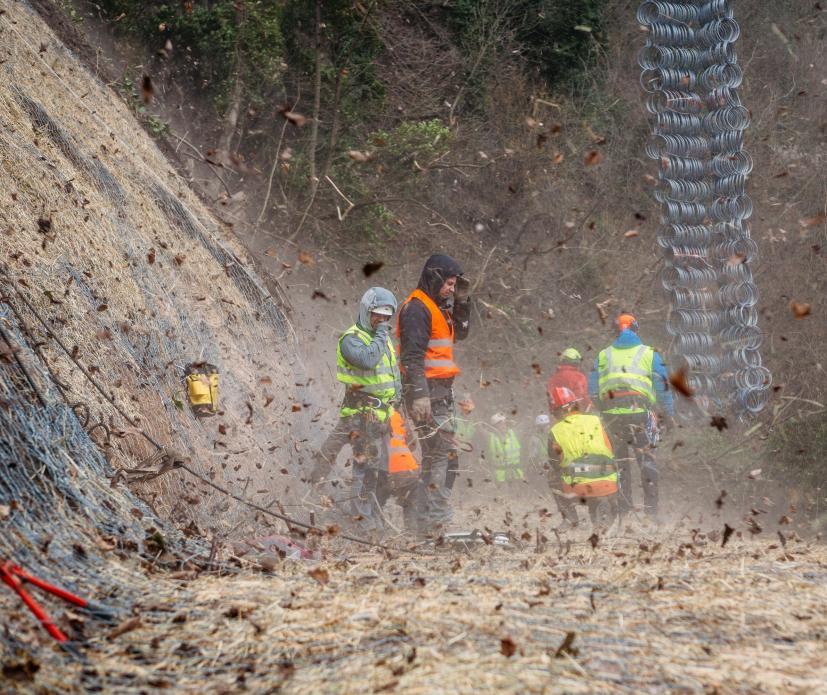

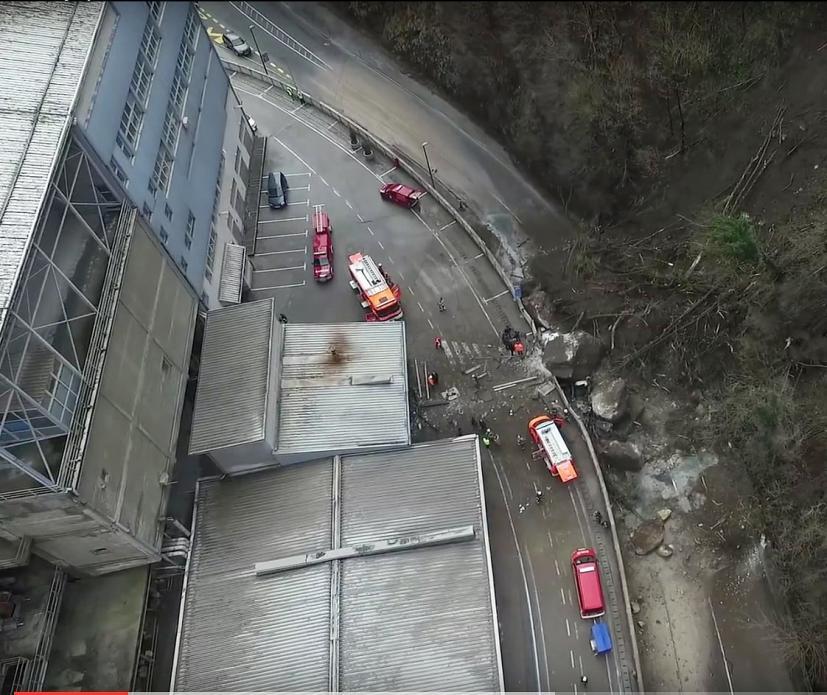

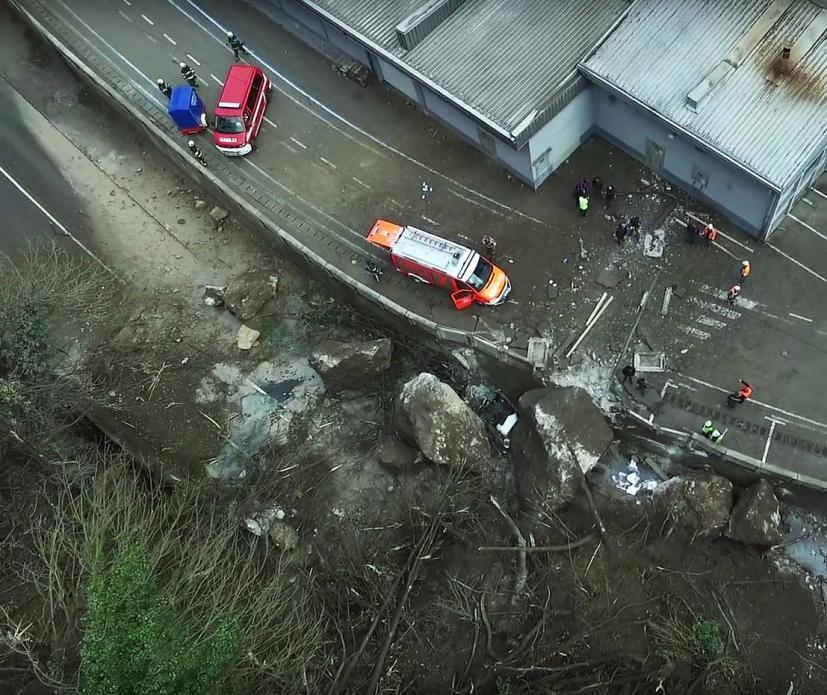

4 Overview of the situation after the event. Overview of the situation after the event. Slope preparation for the installation works. Cleaning of the surface. Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 4/9

Example of conditions on the installation site, where

Border post positions - highest helicopter pilot

Ochrona przed obrywami skalnymi Trbovlje rockslide

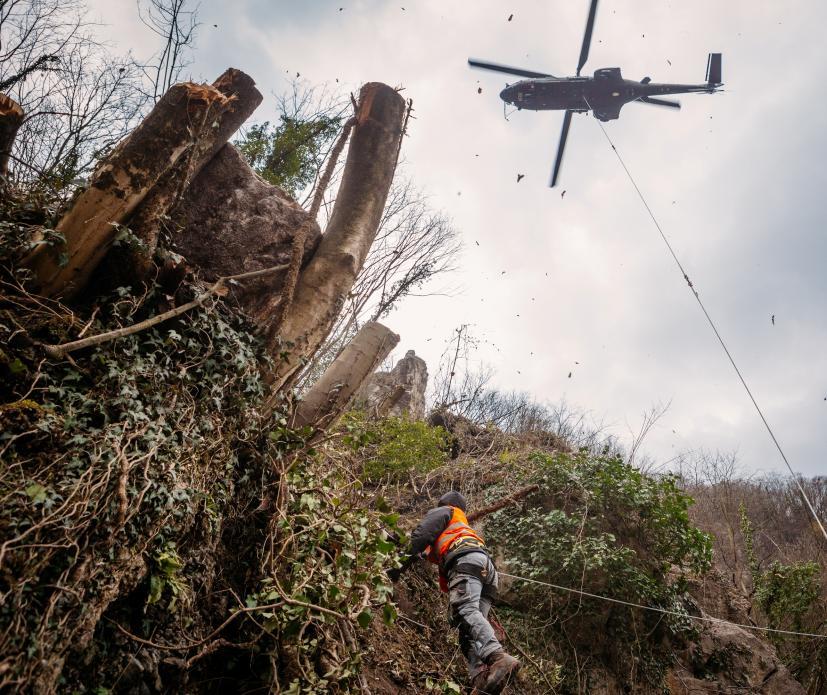

5 Example of conditions on the installation site, where helicopter transport was involved. Example of conditions on the installation site, where helicopter transport was involved. Border post positions - highest helicopter pilot accuracy is clearly visible! Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 5/9

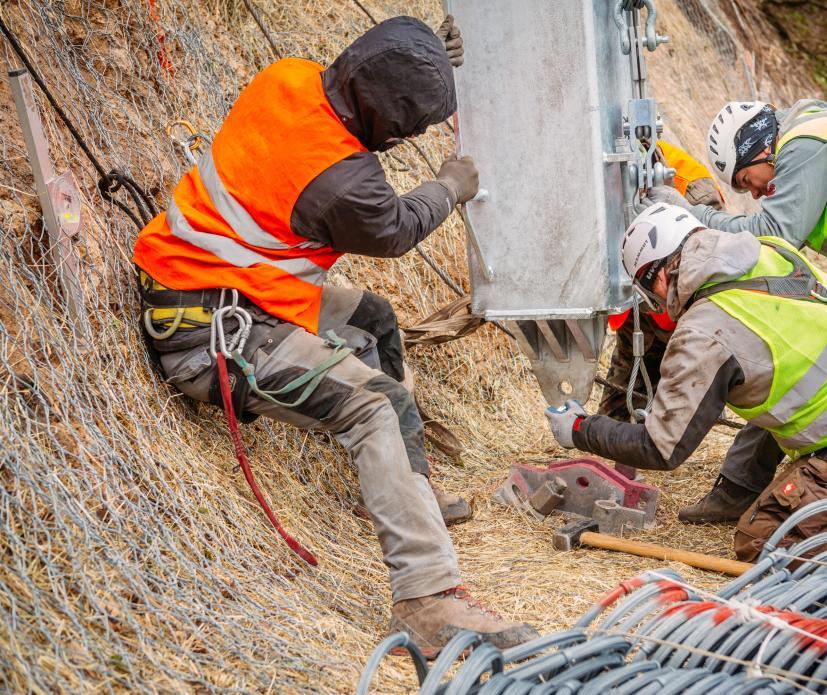

Final posts adjustments, line of protection

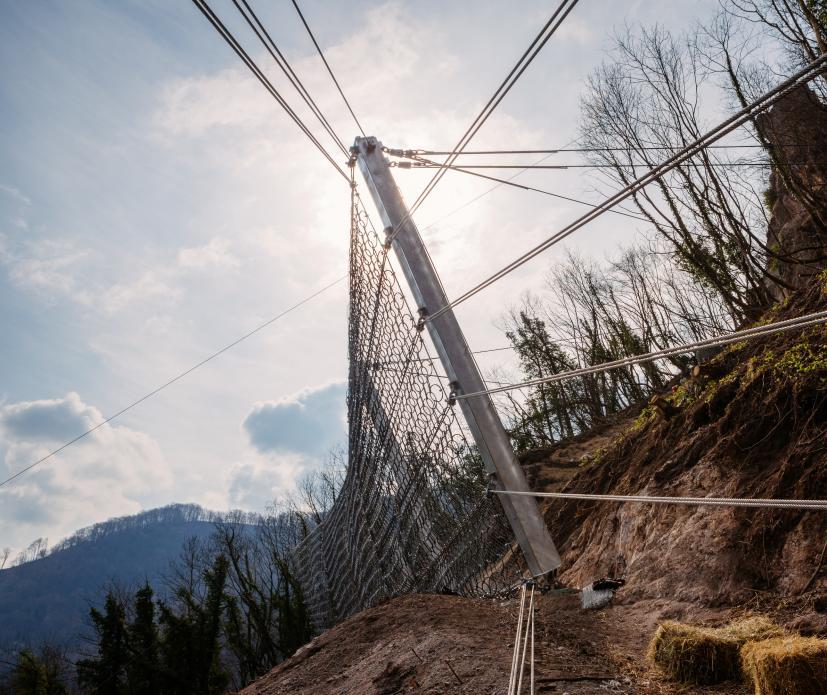

6 Final posts adjustments, line of protection already visible. Transmission ropes installation. Visible tremendous size of the barrier and it's post profiles. ROCCO ring-net bundles prepared for "curtain" installation. Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 6/9

7 ROCCO ring-net installation. RXE-8000 barrier fully installed. RXE-8000 barrier fully installed. Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 7/9

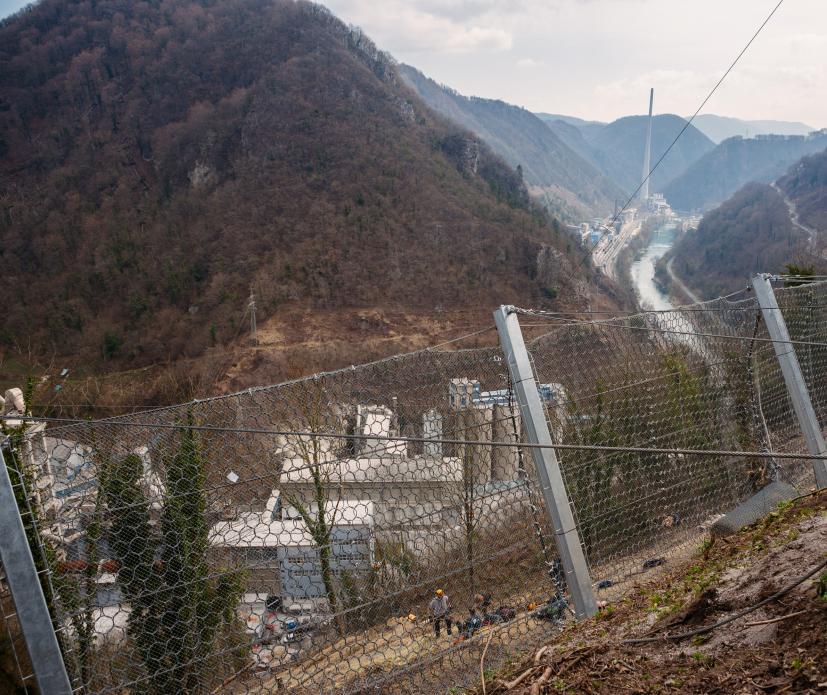

Size of the whole rock slide damage also

8 RXE-8000 barrier fully installed. Perfect perspective concerning protected area. Additional line of protection: GBE-500A barrier. RXE-8000 ready to protect. Size of the whole rock slide damage also visible. Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 8/9

Alexander Barinov, Geographer PhD Phone +7 495 760 72 38 Mobile +7 985 760 72 38 Alexander.Barinov@geobrugg.

9 Whole project overview - desctruction aread clearly visible. W celu uzyskania dokladniejszych informacji skontaktuj sie z naszym Przedstawicielem. Alexander Barinov, Geographer PhD Phone Mobile Alexander.Barinov@geobrugg.com Generala Dorokhova st Moscow Rosja info@geobrugg.ru Ein Unternehmen der Gruppe BRUGG ISO 9001 zertifiziert Ochrona przed obrywami skalnymi Trbovlje rockslide protection, SI 9/9
