1 ASSEMBLY AND SERVICE INSTRUCTION Klätternät - Large Pyramid Art nr:

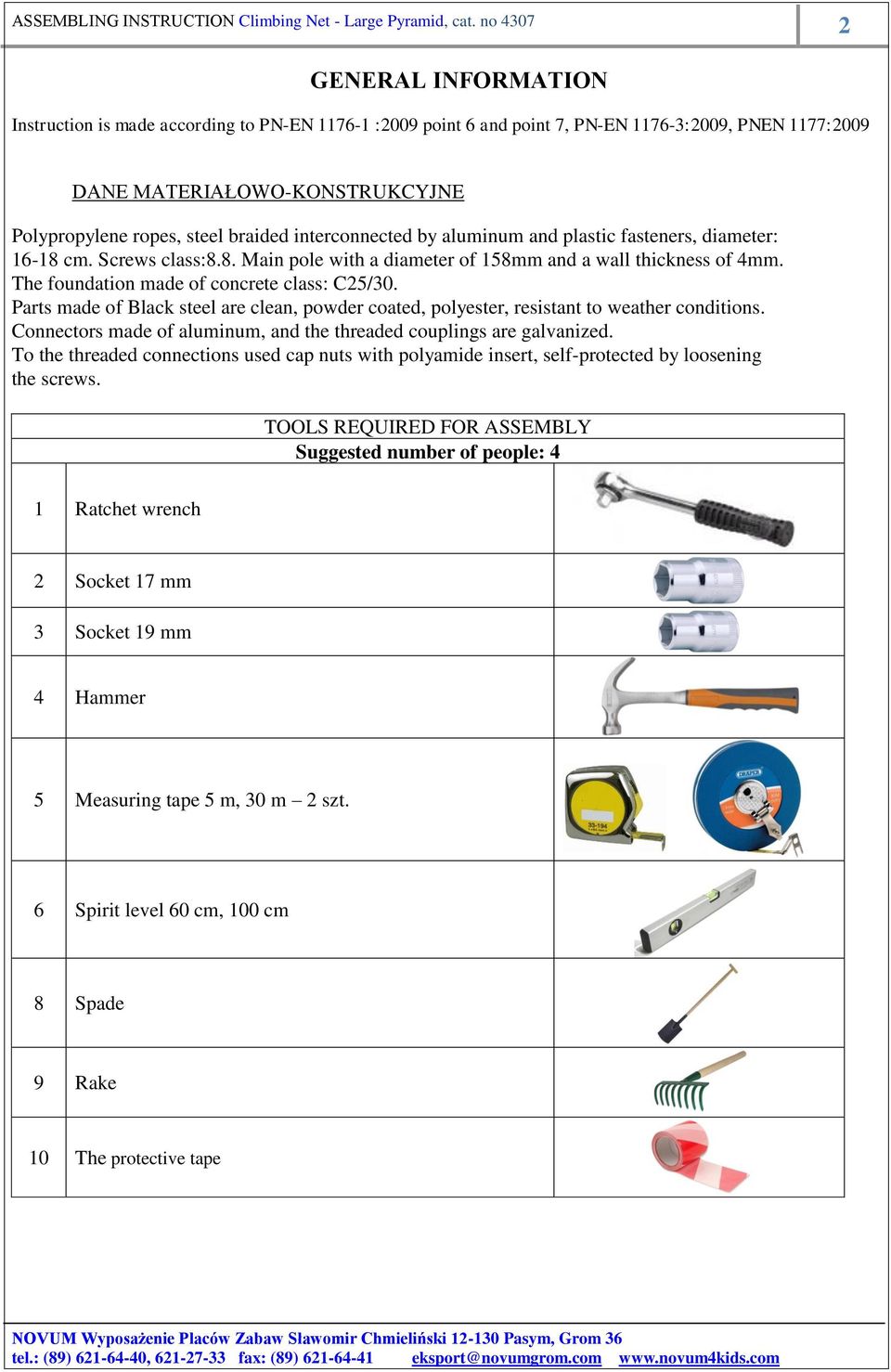

2 2 GENERAL INFORMATION Instruction is made according to PN-EN :2009 point 6 and point 7, PN-EN :2009, PNEN 1177:2009 DANE MATERIAŁOWO-KONSTRUKCYJNE Polypropylene ropes, steel braided interconnected by aluminum and plastic fasteners, diameter: cm. Screws class:8.8. Main pole with a diameter of 158mm and a wall thickness of 4mm. The foundation made of concrete class: C25/30. Parts made of Black steel are clean, powder coated, polyester, resistant to weather conditions. Connectors made of aluminum, and the threaded couplings are galvanized. To the threaded connections used cap nuts with polyamide insert, self-protected by loosening the screws. TOOLS REQUIRED FOR ASSEMBLY Suggested number of people: 4 1 Ratchet wrench 2 Socket 17 mm 3 Socket 19 mm 4 Hammer 5 Measuring tape 5 m, 30 m 2 szt. 6 Spirit level 60 cm, 100 cm 8 Spade 9 Rake 10 The protective tape

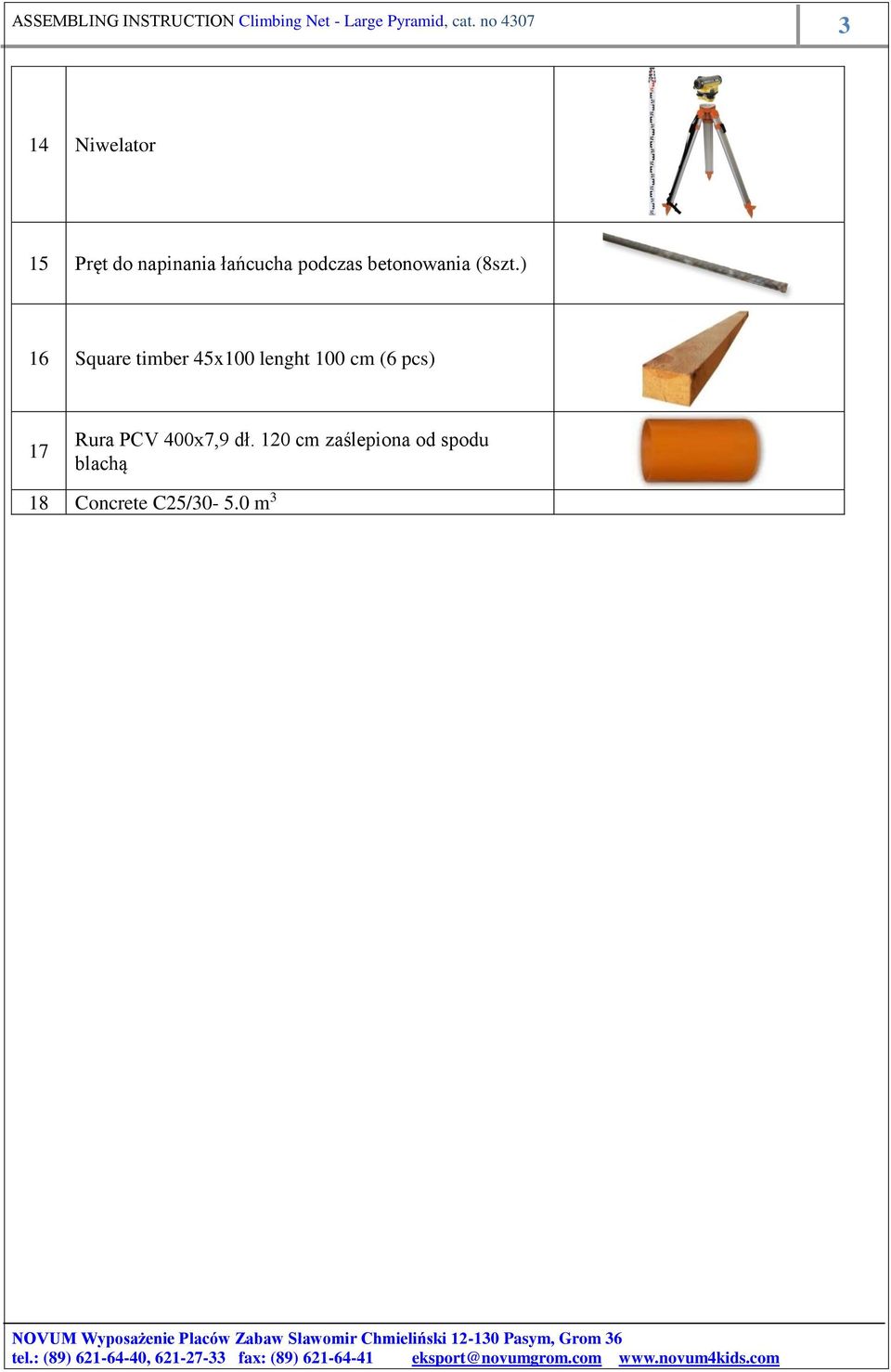

3 3 14 Niwelator 15 Pręt do napinania łańcucha podczas betonowania (8szt.) 16 Square timber 45x100 lenght 100 cm (6 pcs) 17 Rura PCV 400x7,9 dł. 120 cm zaślepiona od spodu blachą 18 Concrete C25/ m 3

4 4 TOP VIEW OF THE SET AND THE SAFETY ZONE Safety surfate Zone Max height of fall Area Perimeter of safety zone. A 1,9 m 153,0 m2 44,0 m Safety surface on the entire area with risk of fall can be made from the following material (the thickness of surface has been chosen for appropriate height of fall from Table 4, BS EN :2009) - Turf / top soil groomed, flexible - The sand fraction 0.2 2mm, - Gravel aggregate fraction 2 8mm, - Bark fraction of 20 80mm, - Sawdust fraction 5 30mm, - Synthetic material conforms to EN 1177

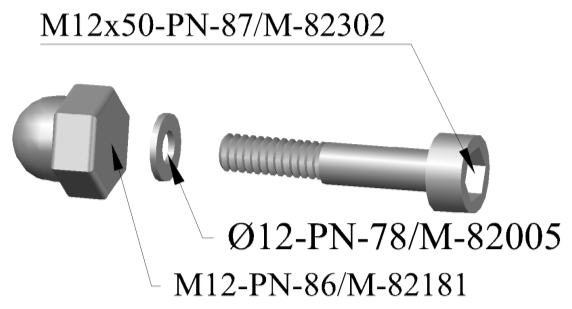

5 5 LIST OF FIXINGS Rod (a stainless steel) 10 lenght 40 cm for anchoring chain in the ground Rod 10 dł. 40 cm Technical chain. 200 cm/13mm Element Cat no Pcs Puller screw 8 5 Bearing post with lines 1 6 Hexagon socket screw M12x50 M12x50-PN-87/M Hexagon socket screw M10x50 M10x50-PN-87/M Hexagon socket screw M10x35 M10x35-PN-87/M Round flat M12 Ø12-PN-78/M Round flat M10 Ø10-PN-78/M Union nut M10 M10-PN-86/M Union nut M12 M12-PN-86/M

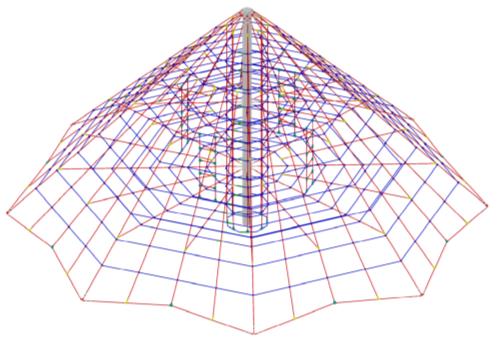

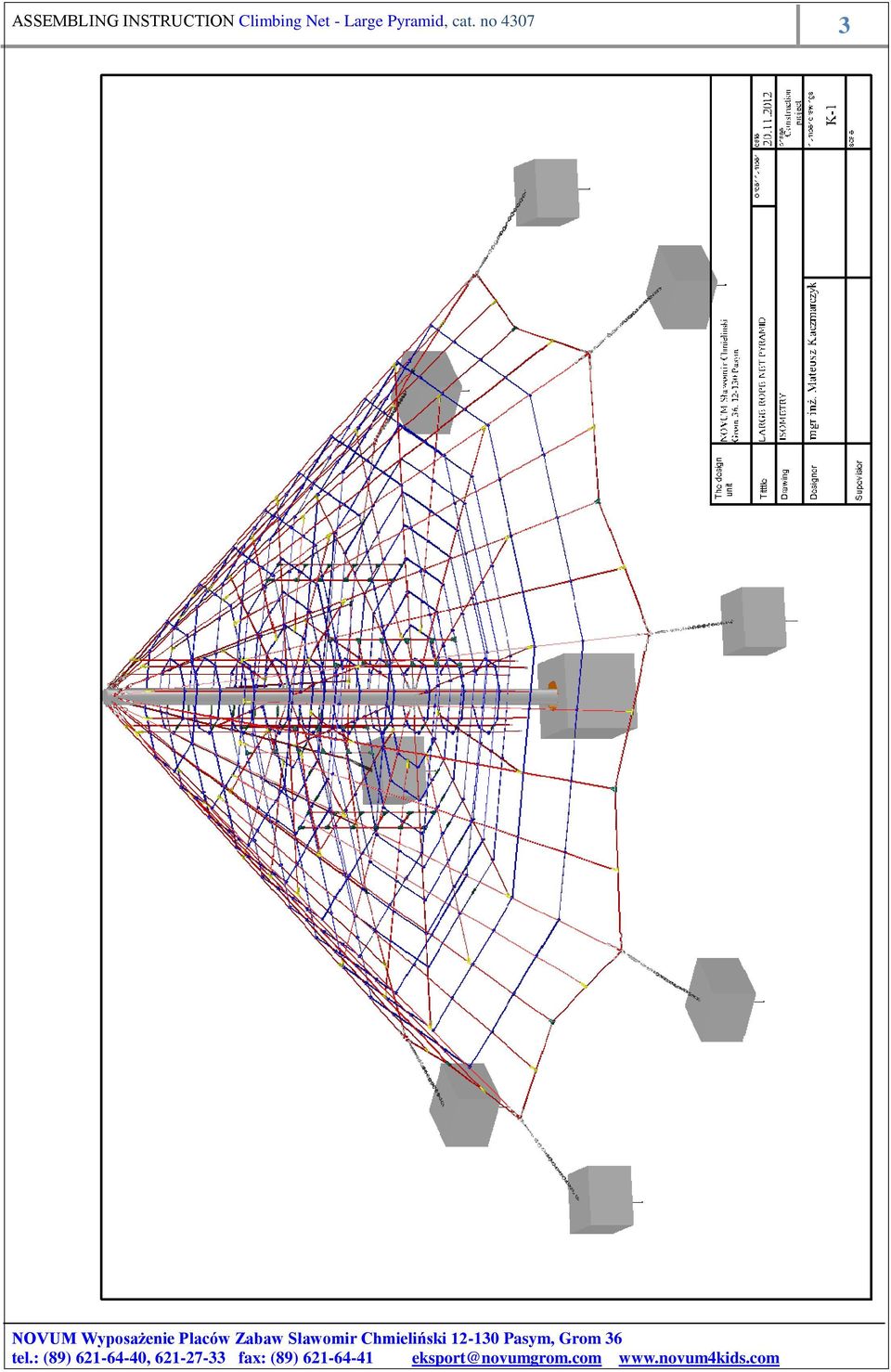

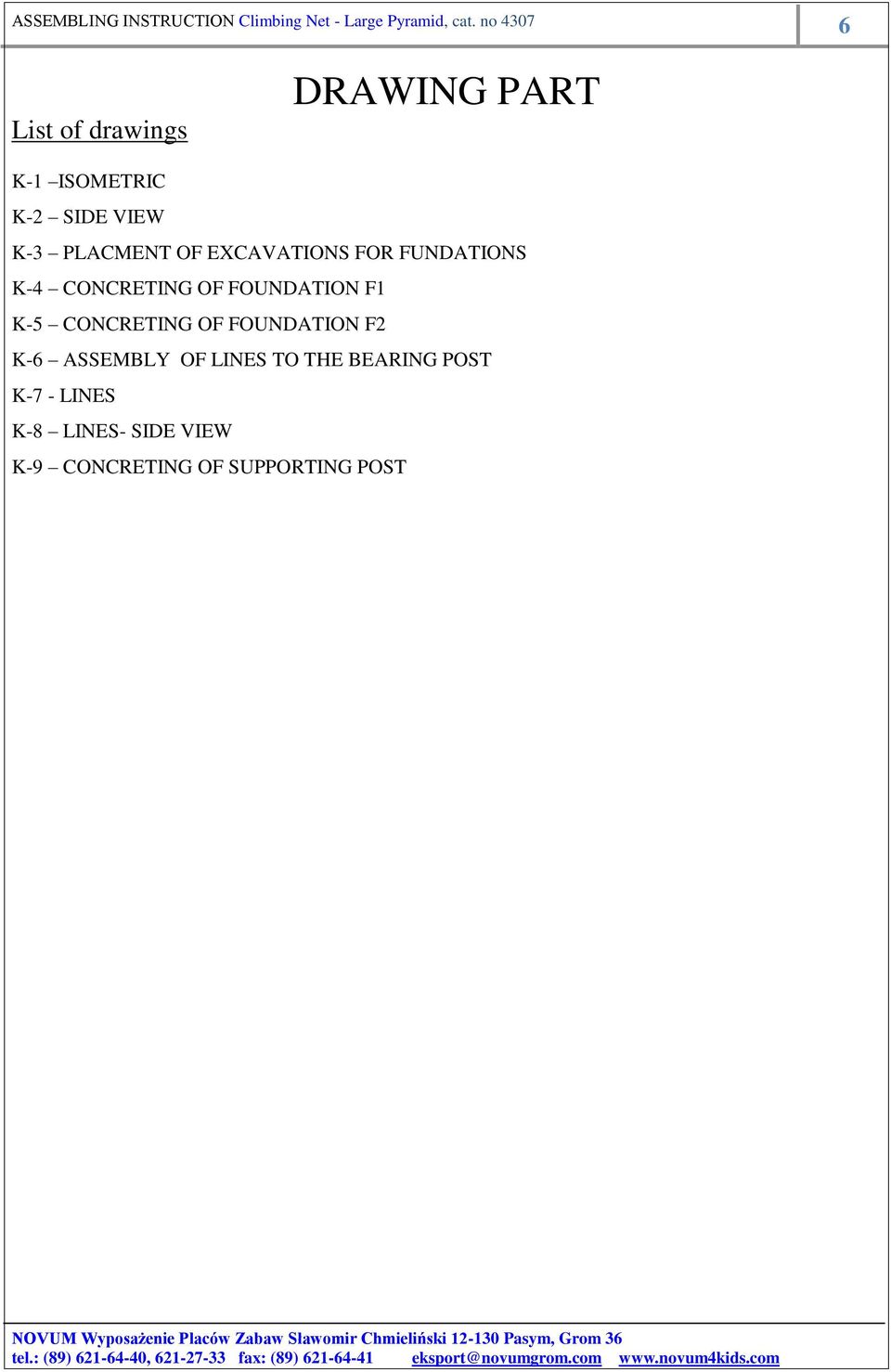

6 6 List of drawings DRAWING PART K-1 ISOMETRIC K-2 SIDE VIEW K-3 PLACMENT OF EXCAVATIONS FOR FUNDATIONS K-4 CONCRETING OF FOUNDATION F1 K-5 CONCRETING OF FOUNDATION F2 K-6 ASSEMBLY OF LINES TO THE BEARING POST K-7 - LINES K-8 LINES- SIDE VIEW K-9 CONCRETING OF SUPPORTING POST

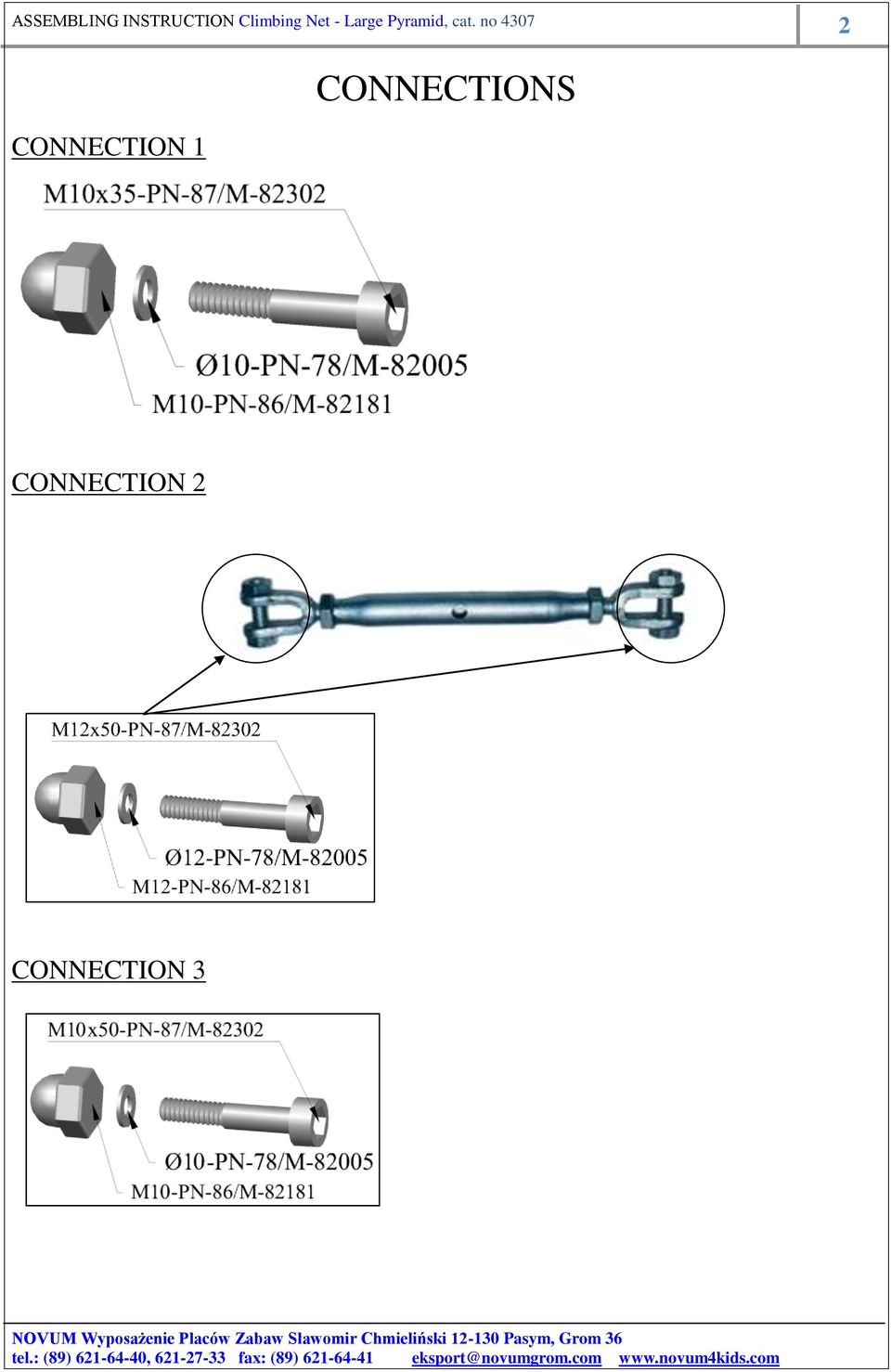

7 2 CONNECTION 1 CONNECTIONS CONNECTION 2 CONNECTION 3

8 3

9 4

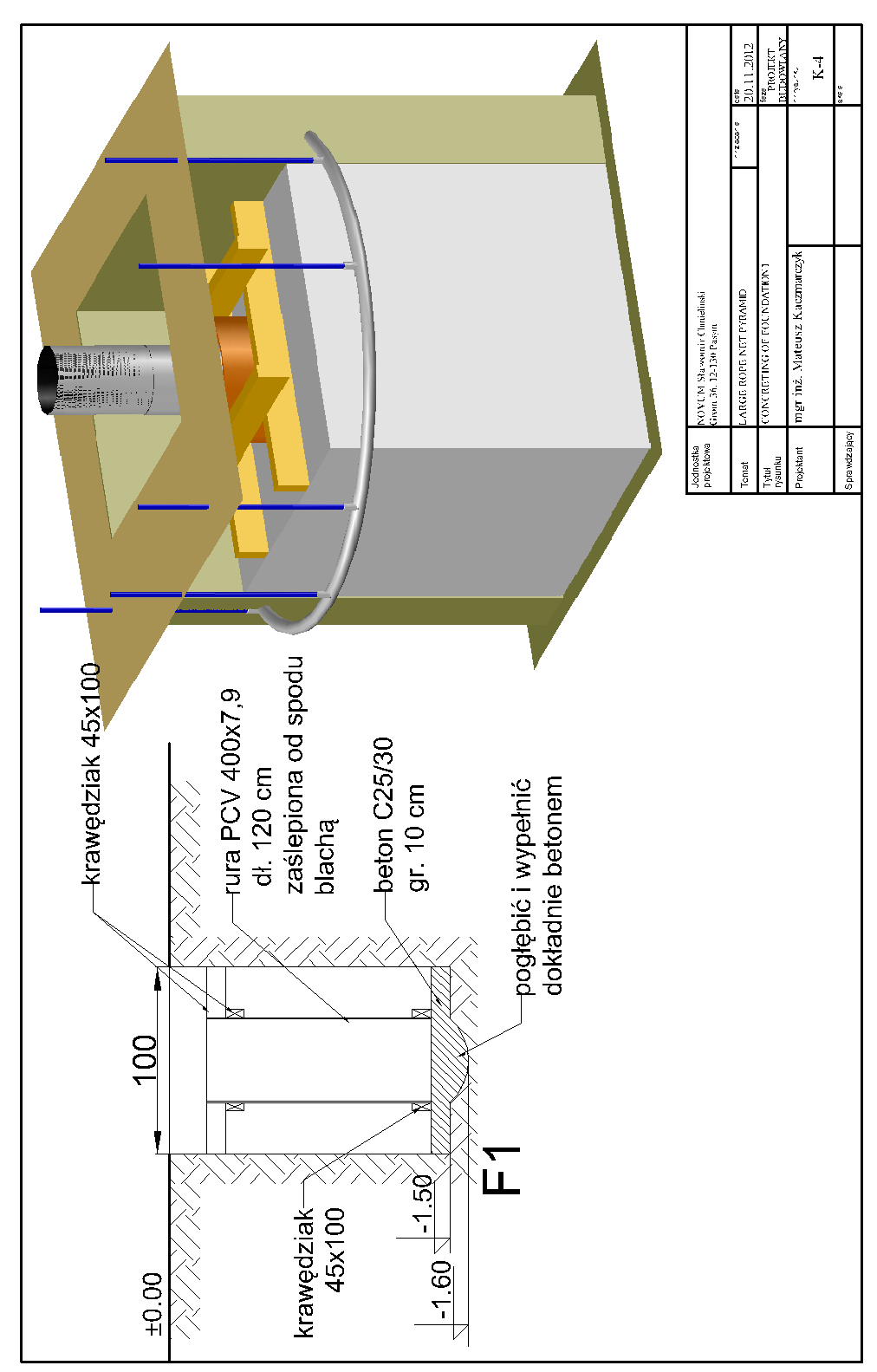

10 5 square timber 45x100 PCV pipe 400x7,9 L =120cm blind from the bottom place concret to C25/30 thick 10 cm extending and fill precisely in concrete square timber 45x100

11 6 square timber 45x100 plastic pipe 400x7,9 L = 120 cm plugged from the bottom with metal sheet concreto C25/30 thick, 10 cm extending and fill precisely in concrete square timber 45x100

12 7

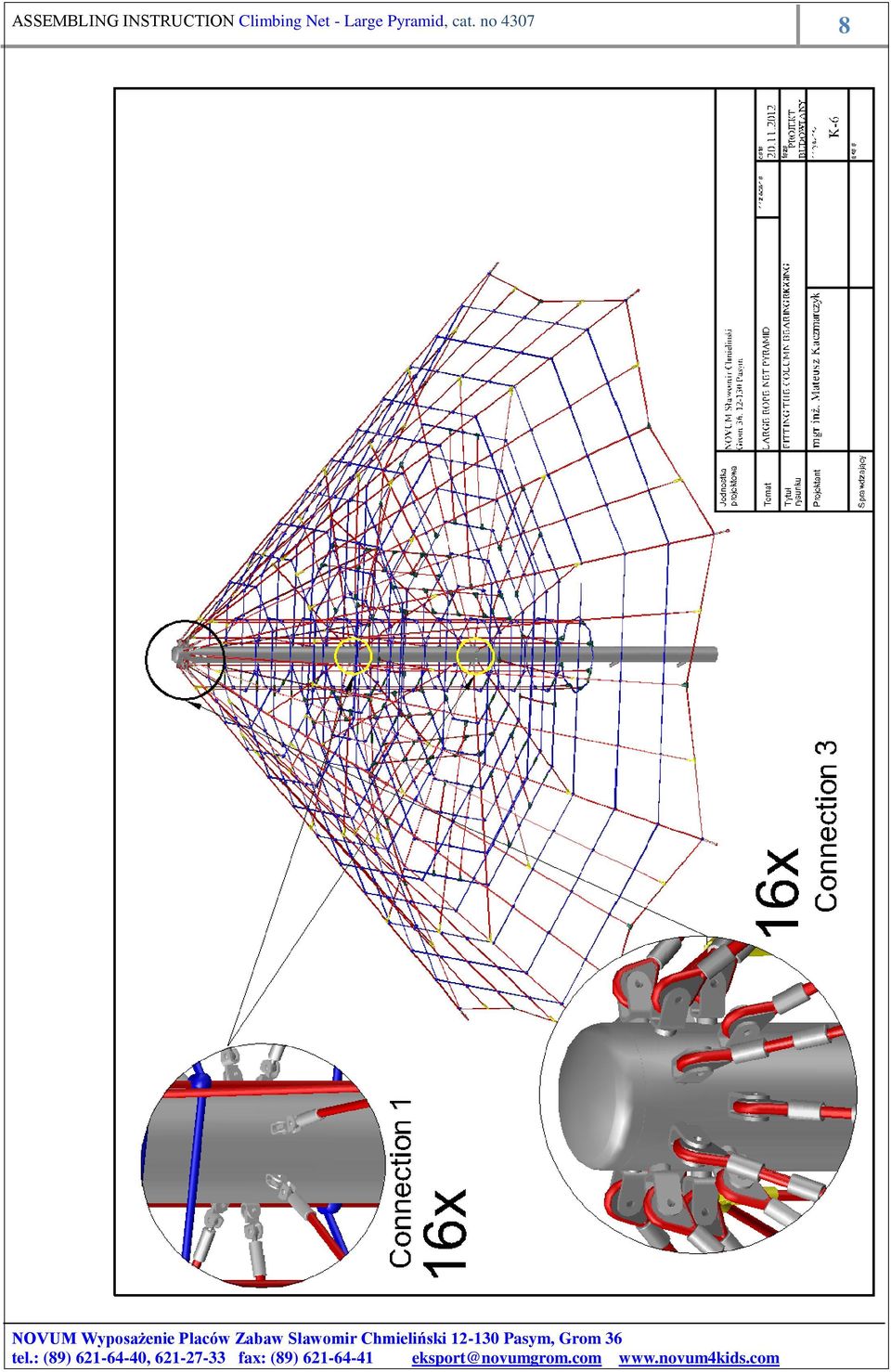

13 8

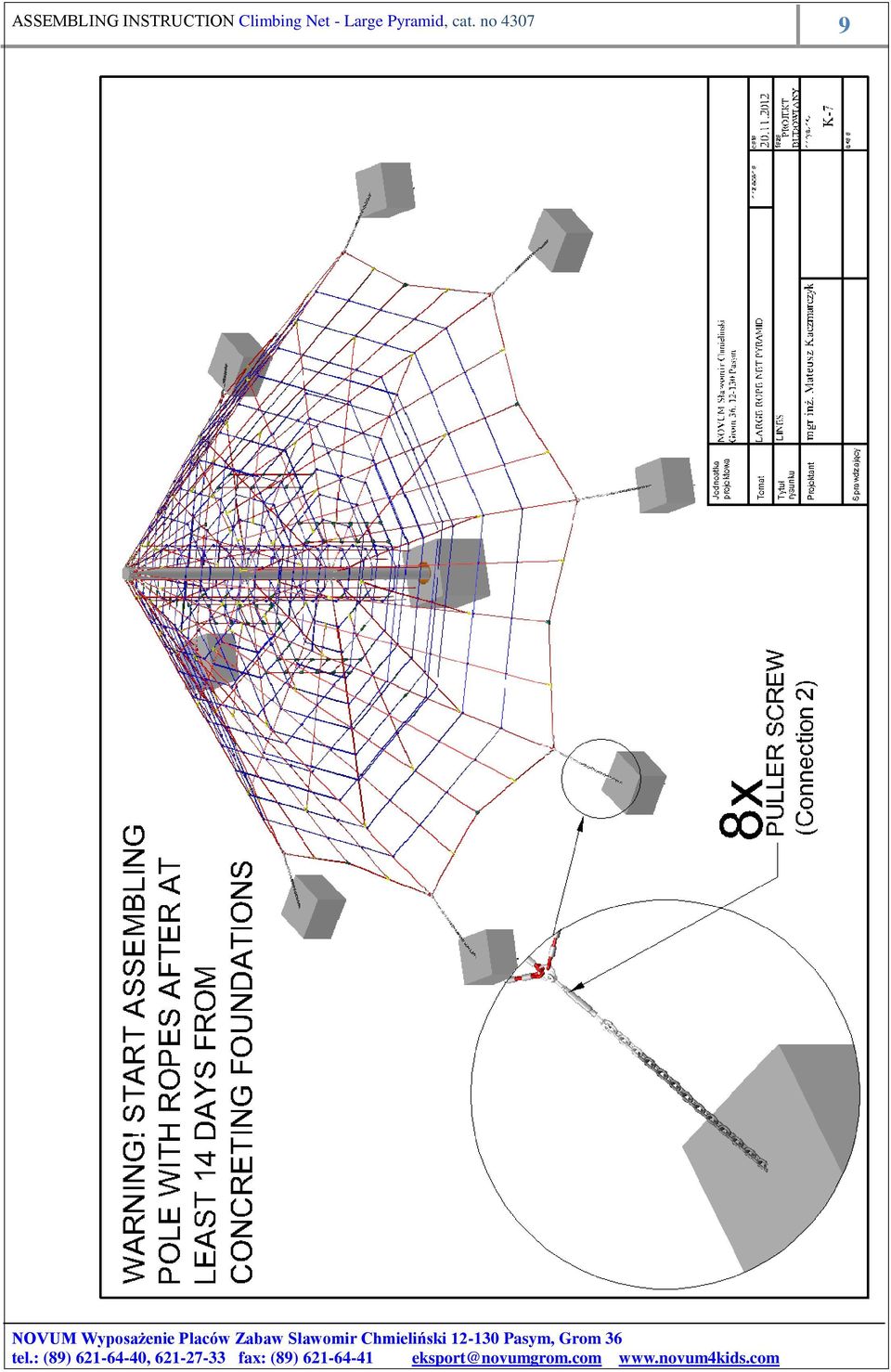

14 9

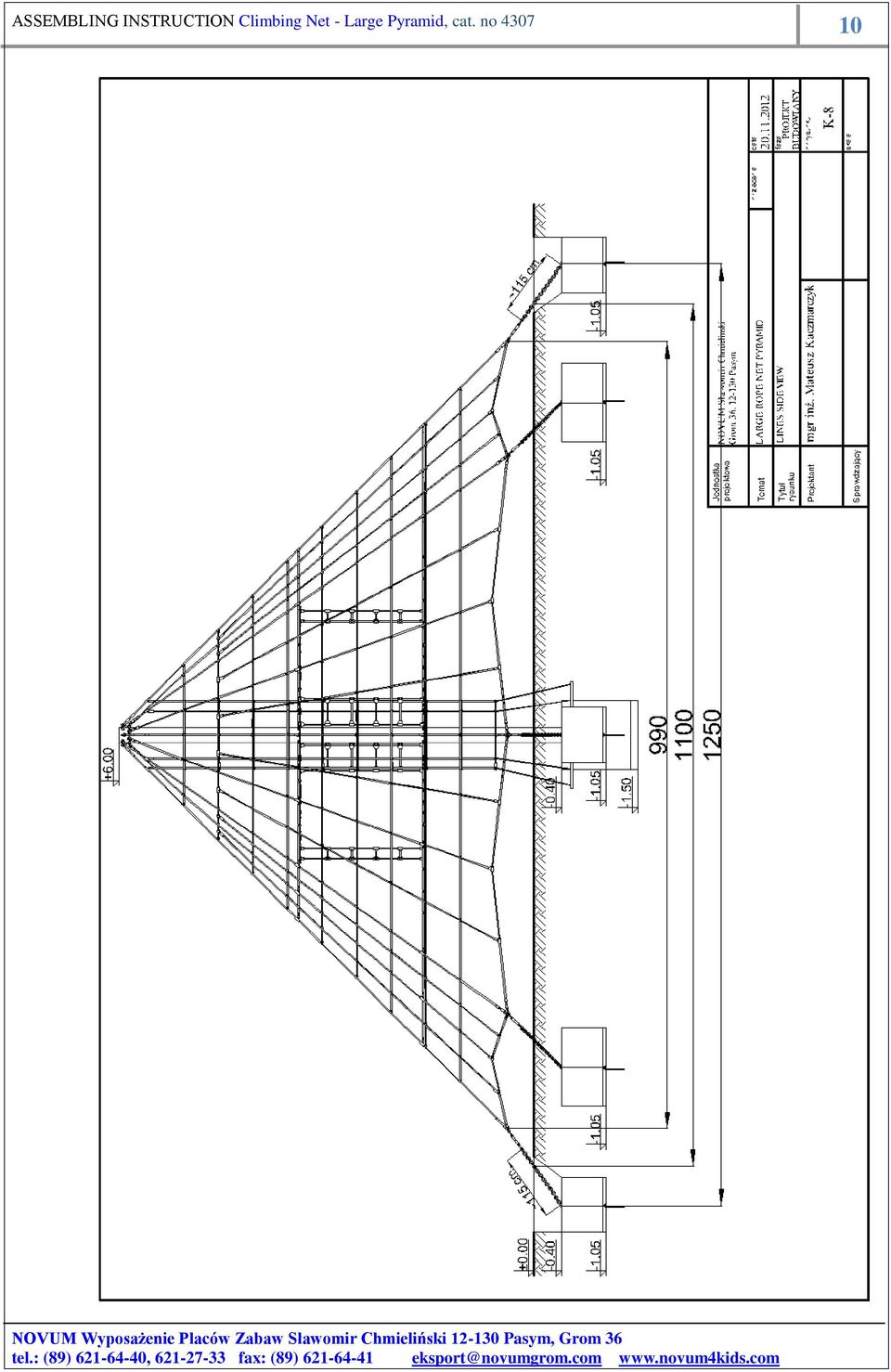

15 10

16 11 plastic pipe 400x7,9 L= 120 cm plugged from the bottom with metal sheet
