1 Wszystko po światłowodzie. Systemy konwersji mediów CTC Union oraz SFP/XFP GBC Photonics. Mariusz Ferenczak - Kraków,

2 Agenda Nowe możliwości w systemach konwersji mediów - zalety nowoczesnych systemów FRM220 - sprawdzone systemy FRM301 - ekonomiczna seria konwerterów FMC Co to są punkty demarkacyjne? Najnowszy multiplexer FMUX1000 (16E1+1Gbps) Nowości z zakresu modułów optycznych: - XFP, SFP+ 10Gbps - XFP CWDM, XFP DWDM - największe na rynku budżety mocy wkładek SFP

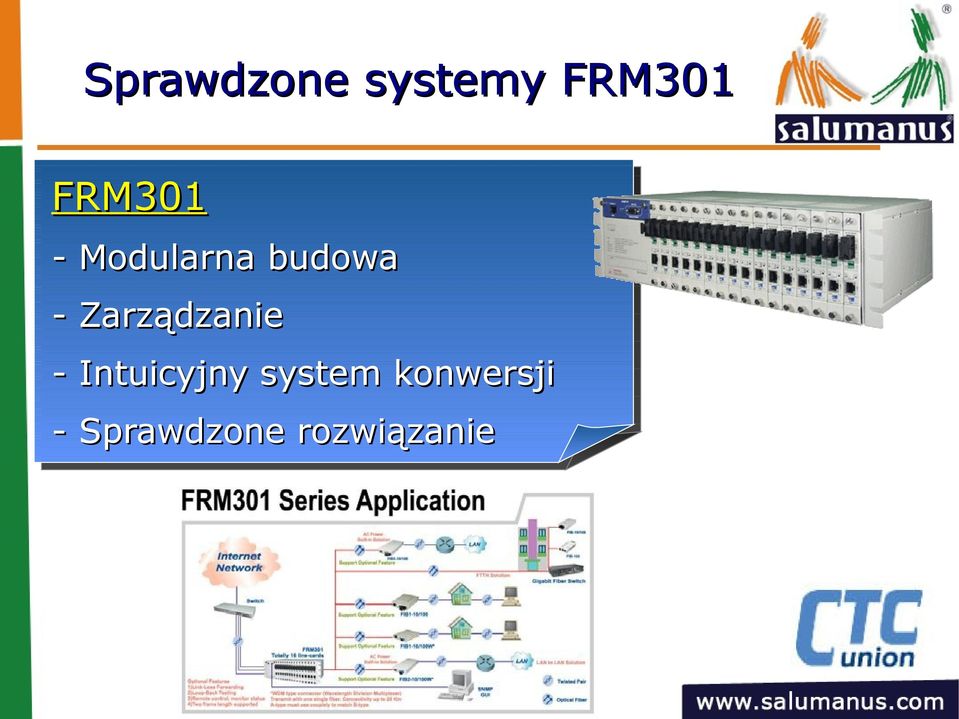

3 Sprawdzone systemy FRM301 FRM301 - Modularna budowa - Zarządzanie - Intuicyjny system konwersji - Sprawdzone rozwiązanie

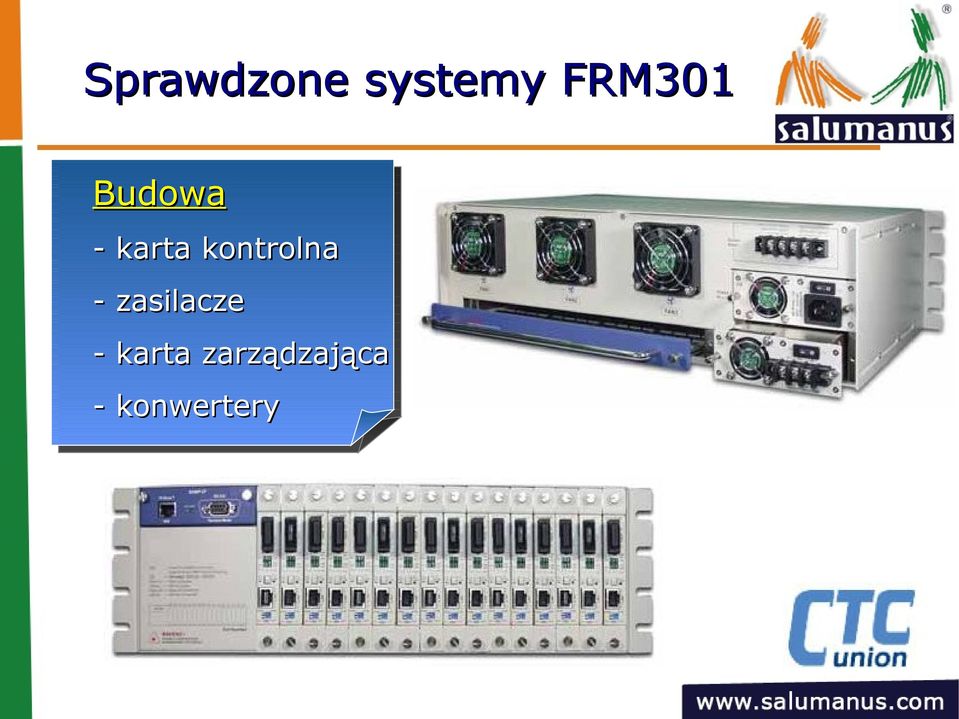

4 Sprawdzone systemy FRM301 Budowa - karta kontrolna - zasilacze - karta zarządzająca - konwertery

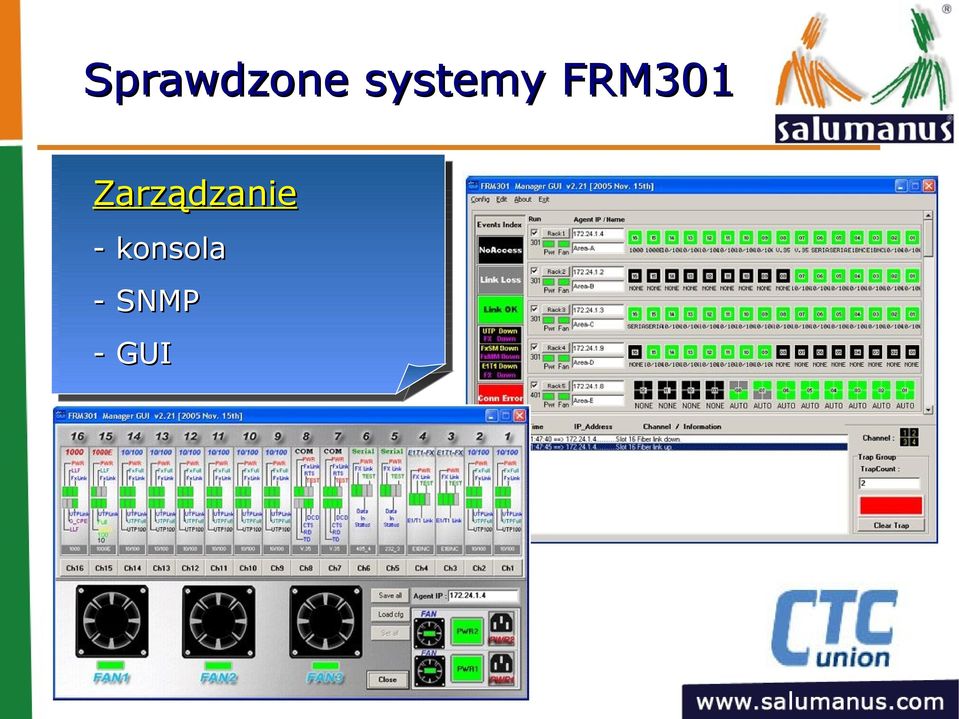

5 Sprawdzone systemy FRM301 Zarządzanie - konsola - SNMP - GUI

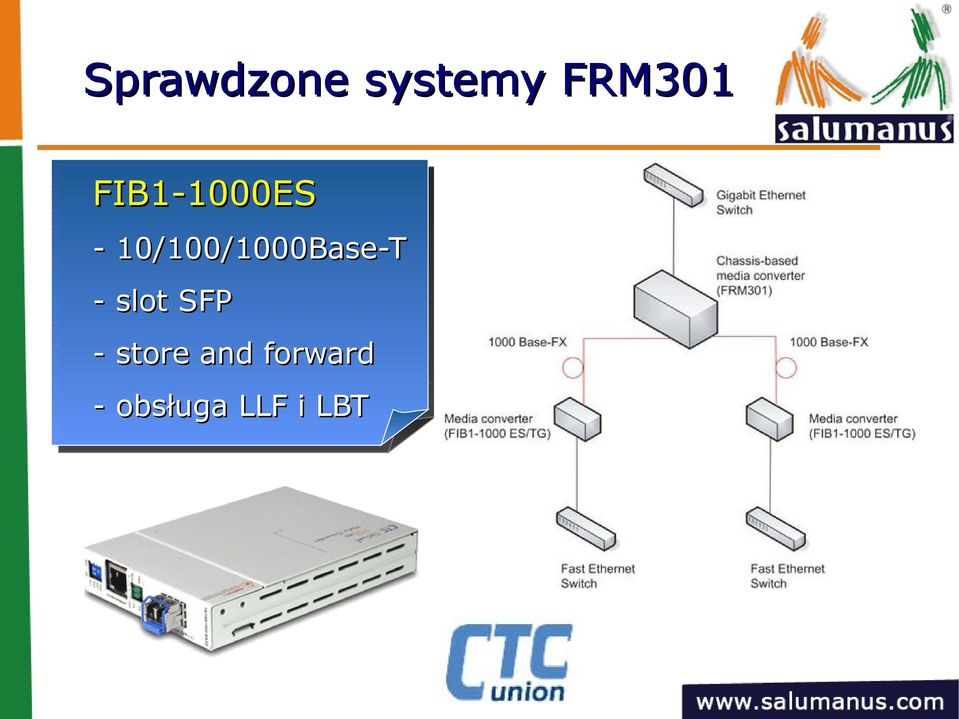

6 Sprawdzone systemy FRM301 FIB1-1000ES - 10/100/1000Base-T - slot SFP - store and forward - obsługa LLF i LBT

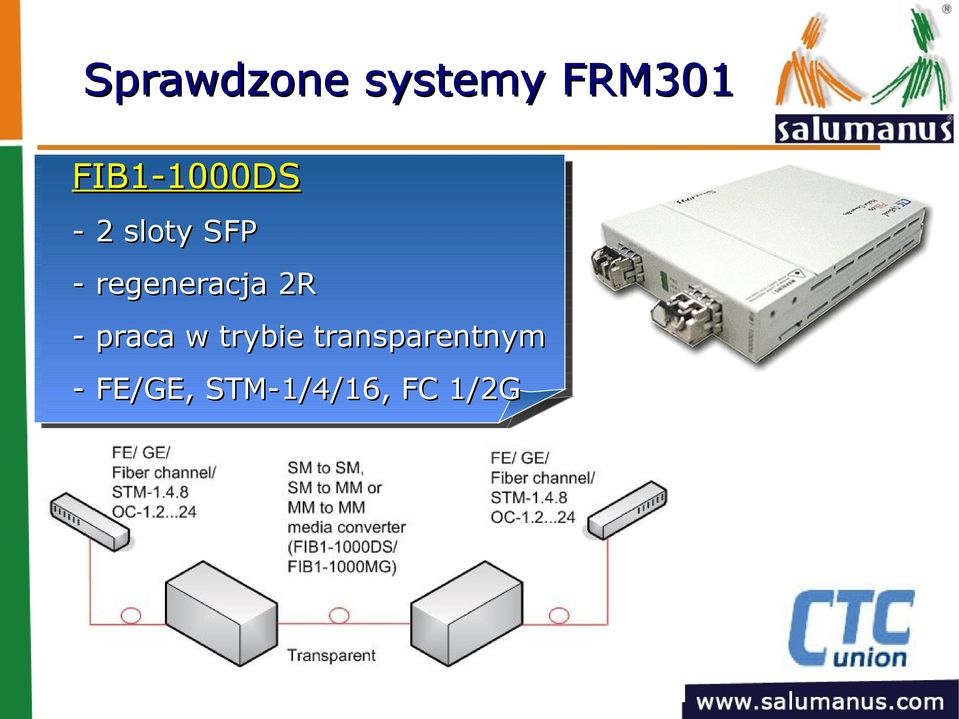

7 Sprawdzone systemy FRM301 FIB1-1000DS - 2 sloty SFP - regeneracja 2R - praca w trybie transparentnym - FE/GE, STM-1/4/16, FC 1/2G

8 Sprawdzone systemy FRM301 FIB1-1000TS Base-T - slot SFP - jumbo frames - obsługa LLF i LBT

9 Wszechstronne systemy FRM220 Modularna budowa Zaawansowane zarządzanie Wszechstronny system konwersji Coraz większe możliwości

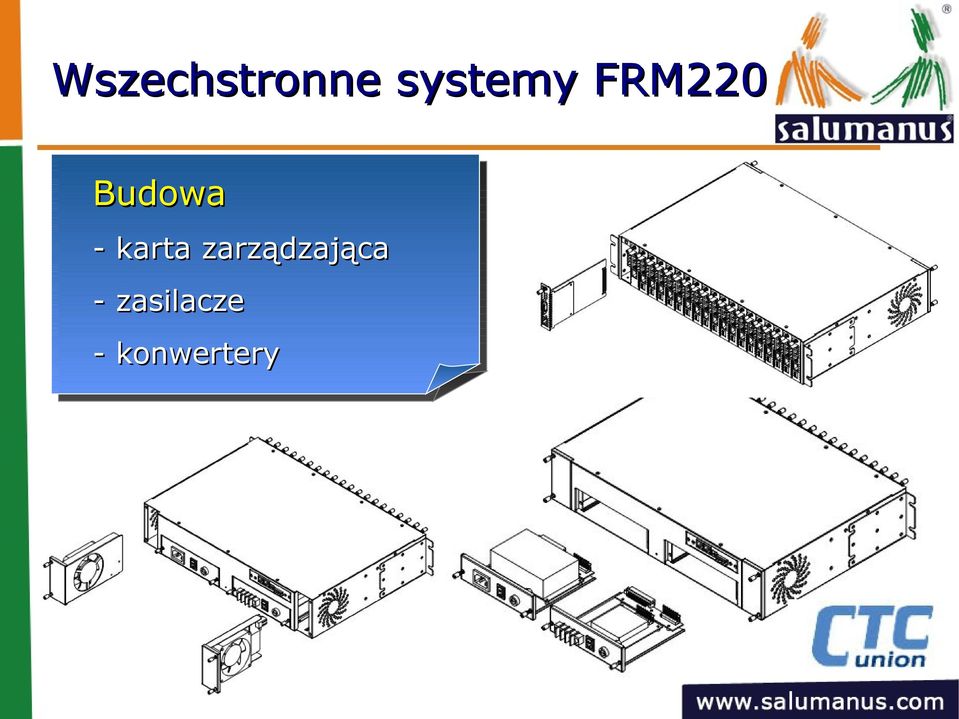

10 Wszechstronne systemy FRM220 Budowa - karta zarządzająca - zasilacze - konwertery

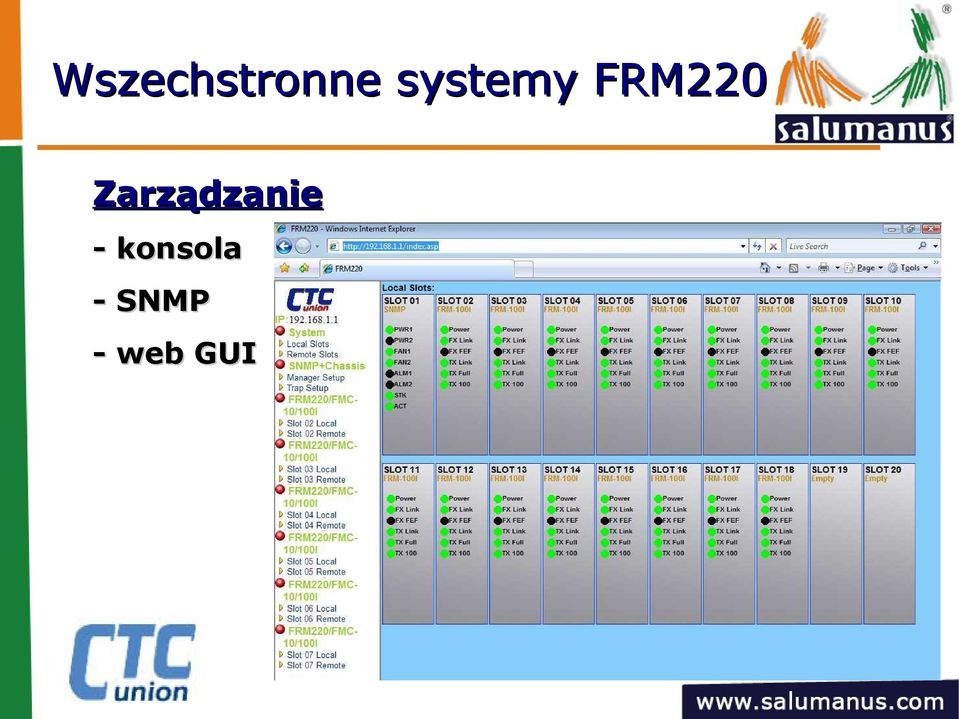

11 Wszechstronne systemy FRM220 Zarządzanie - konsola - SNMP - web GUI

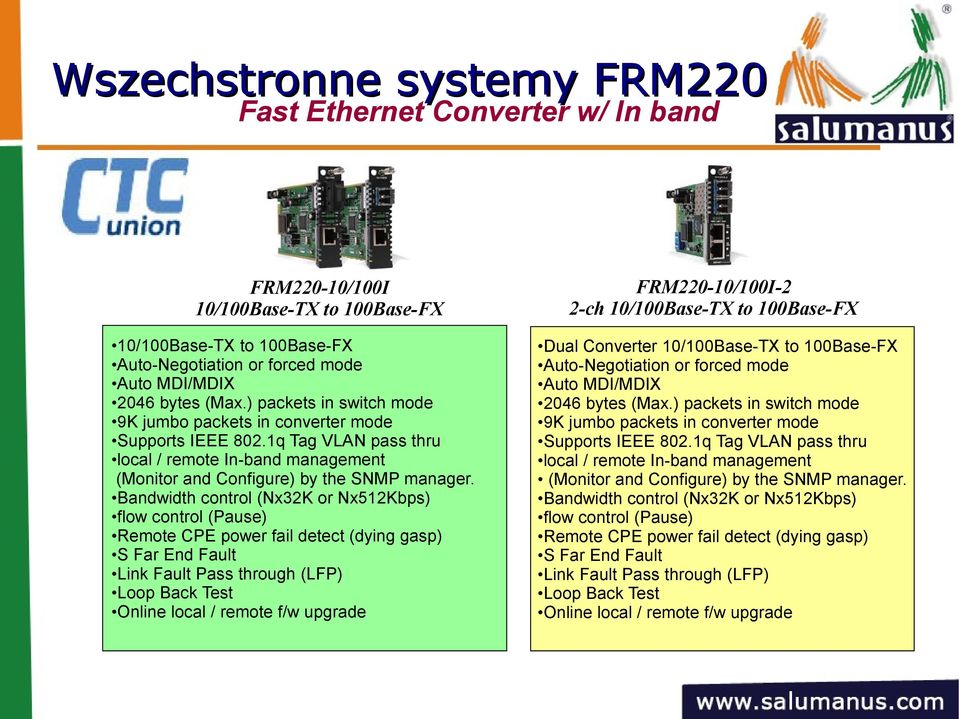

12 Wszechstronne systemy FRM220 Fast Ethernet Converter w/ In band FRM220-10/100I 10/100Base-TX to 100Base-FX 10/100Base-TX to 100Base-FX Auto-Negotiation or forced mode Auto MDI/MDIX 2046 bytes (Max.) packets in switch mode 9K jumbo packets in converter mode Supports IEEE 802.1q Tag VLAN pass thru local / remote In-band management (Monitor and Configure) by the SNMP manager. Bandwidth control (Nx32K or Nx512Kbps) flow control (Pause) Remote CPE power fail detect (dying gasp) S Far End Fault Link Fault Pass through (LFP) Loop Back Test Online local / remote f/w upgrade FRM220-10/100I-2 2-ch 10/100Base-TX to 100Base-FX Dual Converter 10/100Base-TX to 100Base-FX Auto-Negotiation or forced mode Auto MDI/MDIX 2046 bytes (Max.) packets in switch mode 9K jumbo packets in converter mode Supports IEEE 802.1q Tag VLAN pass thru local / remote In-band management (Monitor and Configure) by the SNMP manager. Bandwidth control (Nx32K or Nx512Kbps) flow control (Pause) Remote CPE power fail detect (dying gasp) S Far End Fault Link Fault Pass through (LFP) Loop Back Test Online local / remote f/w upgrade

13 Fast Ethernet Converter w/ In band OAM/IP Wszechstronne systemy FRM220 FRM220-10/100A 10/100Base-TX to 100Base-FX Supports local / remote 802.3ah OAM / IP. Stand-alone IP Based, Web GUI, Telnet, SNMP management 10/100Base-TX to 100Base-FX Auto-Negotiation or forced mode Auto MDI/MDIX 2046 bytes (Max.) packets Q in Q double tagged frame transparent IEEE 802.1q Tag VLAN pass thru Bandwidth control (Nx32K or Nx512Kbps) flow control (Pause) remote CPE power fail detect (dying gasp) Far End Fault Link Fault Pass through (LFP) Loop Back Test Online local / remote f/w upgrade FRM220-10/100A-2 2x 10/100Base-TX to 2x 100Base-FX SFP Supports local / remote 802.3ah OAM / IP. Stand-alone IP Based, Web GUI, Telnet, SNMP management 2-port 10/100Base-TX plus 2-port 100Base-FX SFP Auto-Negotiation or forced mode Auto MDI/MDIX Forward 2046 bytes (Max.) packets Q in Q double tagged frame transparent IEEE 802.1q Tag and Port based VLAN port trunking, flow control (Pause) Bandwidth control (Nx32K or Nx512Kbps) remote CPE power fail detect (dying gasp) Far End Fault, Loop Back Test Link Fault Pass through (LFP) Online local / remote f/w upgrade

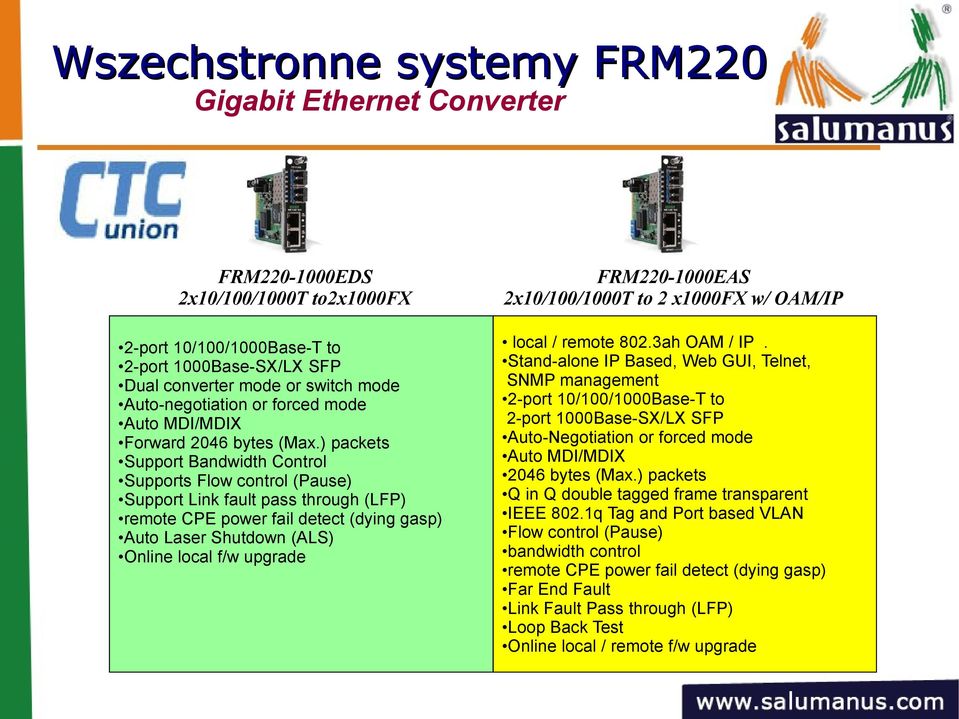

14 Wszechstronne systemy FRM220 Gigabit Ethernet Converter FRM EDS 2x10/100/1000T to2x1000fx 2-port 10/100/1000Base-T to 2-port 1000Base-SX/LX SFP Dual converter mode or switch mode Auto-negotiation or forced mode Auto MDI/MDIX Forward 2046 bytes (Max.) packets Support Bandwidth Control Supports Flow control (Pause) Support Link fault pass through (LFP) remote CPE power fail detect (dying gasp) Auto Laser Shutdown (ALS) Online local f/w upgrade FRM EAS 2x10/100/1000T to 2 x1000fx w/ OAM/IP local / remote 802.3ah OAM / IP. Stand-alone IP Based, Web GUI, Telnet, SNMP management 2-port 10/100/1000Base-T to 2-port 1000Base-SX/LX SFP Auto-Negotiation or forced mode Auto MDI/MDIX 2046 bytes (Max.) packets Q in Q double tagged frame transparent IEEE 802.1q Tag and Port based VLAN Flow control (Pause) bandwidth control remote CPE power fail detect (dying gasp) Far End Fault Link Fault Pass through (LFP) Loop Back Test Online local / remote f/w upgrade

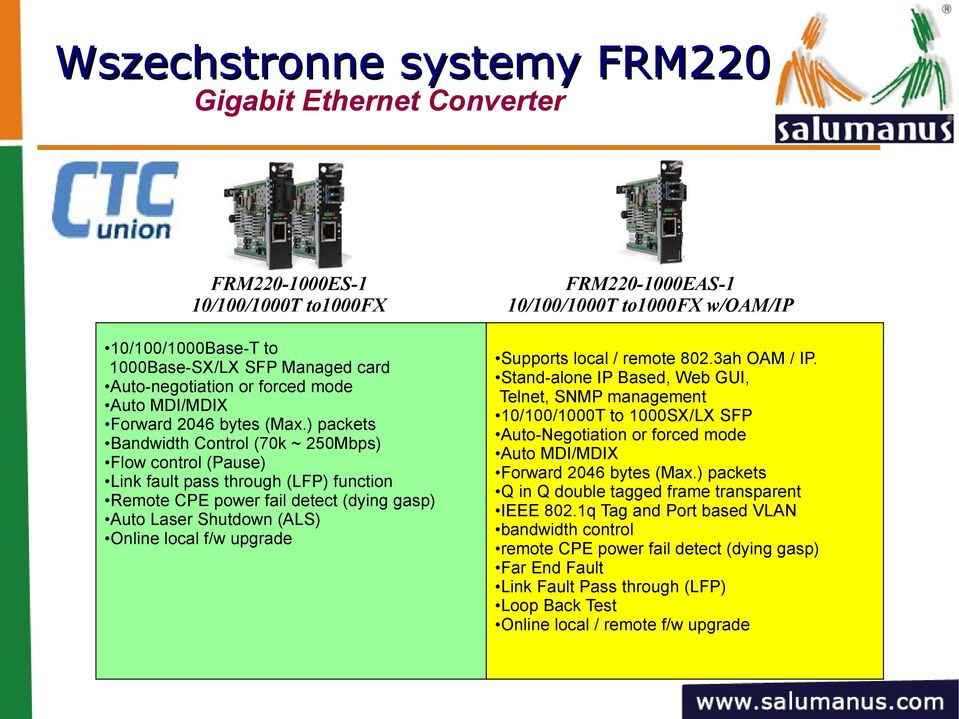

15 Wszechstronne systemy FRM220 Gigabit Ethernet Converter FRM ES-1 10/100/1000T to1000fx 10/100/1000Base-T to 1000Base-SX/LX SFP Managed card Auto-negotiation or forced mode Auto MDI/MDIX Forward 2046 bytes (Max.) packets Bandwidth Control (70k ~ 250Mbps) Flow control (Pause) Link fault pass through (LFP) function Remote CPE power fail detect (dying gasp) Auto Laser Shutdown (ALS) Online local f/w upgrade FRM EAS-1 10/100/1000T to1000fx w/oam/ip Supports local / remote 802.3ah OAM / IP. Stand-alone IP Based, Web GUI, Telnet, SNMP management 10/100/1000T to 1000SX/LX SFP Auto-Negotiation or forced mode Auto MDI/MDIX Forward 2046 bytes (Max.) packets Q in Q double tagged frame transparent IEEE 802.1q Tag and Port based VLAN bandwidth control remote CPE power fail detect (dying gasp) Far End Fault Link Fault Pass through (LFP) Loop Back Test Online local / remote f/w upgrade

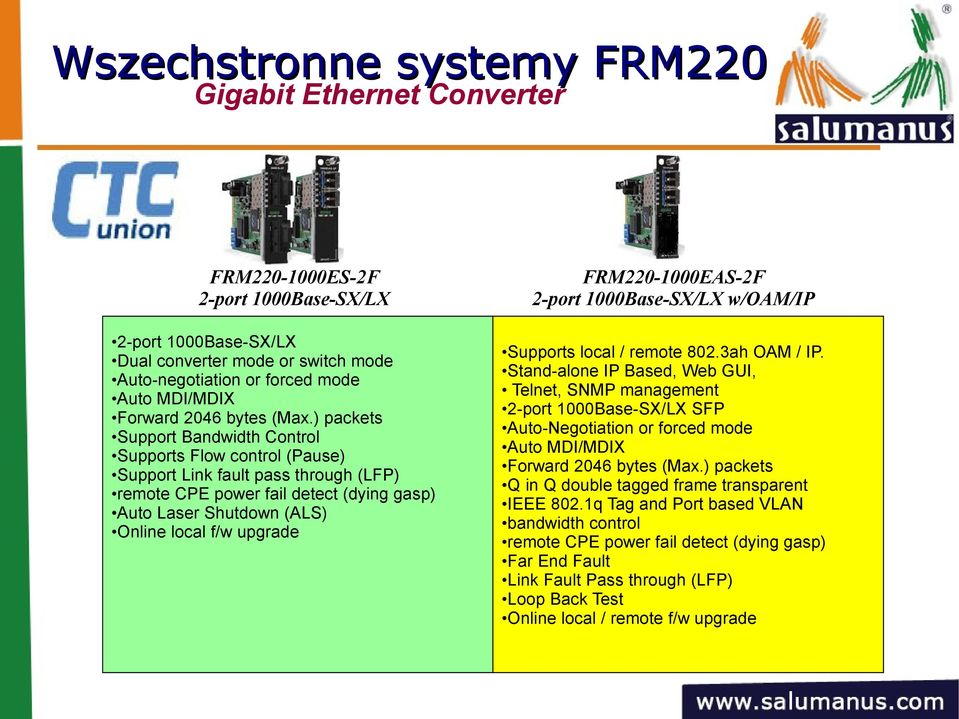

16 Wszechstronne systemy FRM220 Gigabit Ethernet Converter FRM ES-2F 2-port 1000Base-SX/LX 2-port 1000Base-SX/LX Dual converter mode or switch mode Auto-negotiation or forced mode Auto MDI/MDIX Forward 2046 bytes (Max.) packets Support Bandwidth Control Supports Flow control (Pause) Support Link fault pass through (LFP) remote CPE power fail detect (dying gasp) Auto Laser Shutdown (ALS) Online local f/w upgrade FRM EAS-2F 2-port 1000Base-SX/LX w/oam/ip Supports local / remote 802.3ah OAM / IP. Stand-alone IP Based, Web GUI, Telnet, SNMP management 2-port 1000Base-SX/LX SFP Auto-Negotiation or forced mode Auto MDI/MDIX Forward 2046 bytes (Max.) packets Q in Q double tagged frame transparent IEEE 802.1q Tag and Port based VLAN bandwidth control remote CPE power fail detect (dying gasp) Far End Fault Link Fault Pass through (LFP) Loop Back Test Online local / remote f/w upgrade

17 Wszechstronne systemy FRM220 E1/T1, V35/X21/RS530/RS449/RS232 Converter FRM220-E1/T1 E1/T1 over Fiber In-band network Managed via Terminal, web or SNMP in FRM220-CH20 chassis T1/E1 RJ-45 (USOC RJ-48C) or E1 Coax (BNC) to Fiber converter Supports AMI or B8ZS/HDB3 line codes T1 supports unframed to FRM220-Data E1 supports unframed or fractional (N x 64k) to FRM220-Data User selectable line code setting, Electrical and optical Loop back tests FRM220-Data V35/X21/RS530/RS449/RS232 to Fiber Synchronous or Asynchronous data over fiber In-band network management via terminal, web or SNMP in FRM220-CH20 chassis Software selectable interface, V.35, X.21, RS530, RS449, RS232 Software selectable DCE or DTE mode User selectable data rate n x 64kbps, up to 9Mbps Independent clock mode setting, (internal, external, or recovery) for transmit and receive Electrical and optical loop back tests Compatible with FRM220-E1 on same fiber link for N x 64k

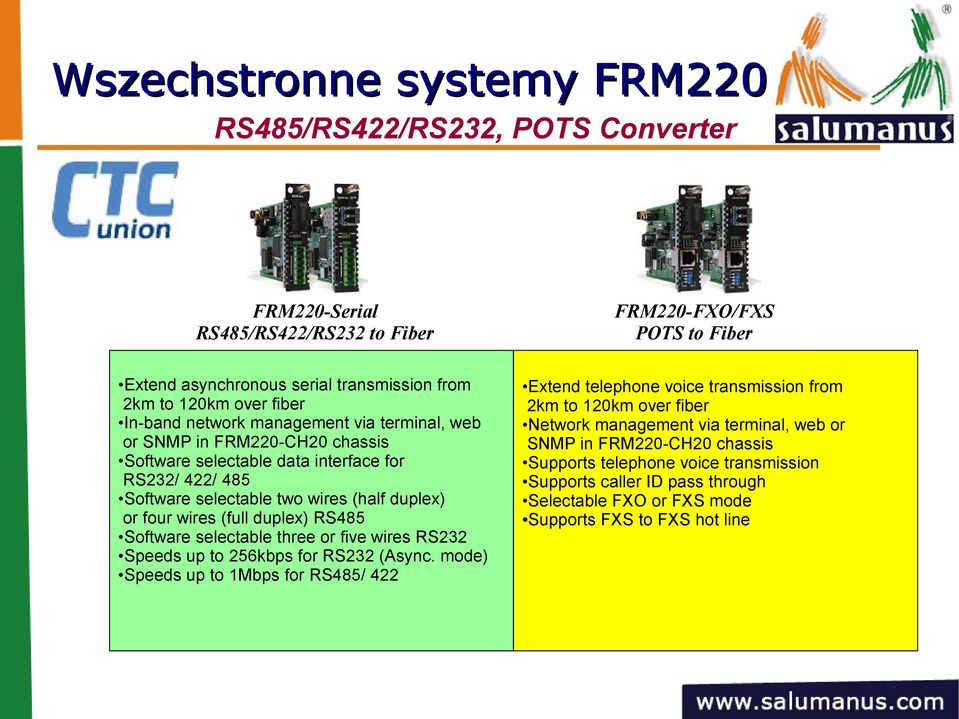

18 Wszechstronne systemy FRM220 RS485/RS422/RS232, POTS Converter FRM220-Serial RS485/RS422/RS232 to Fiber Extend asynchronous serial transmission from 2km to 120km over fiber In-band network management via terminal, web or SNMP in FRM220-CH20 chassis Software selectable data interface for RS232/ 422/ 485 Software selectable two wires (half duplex) or four wires (full duplex) RS485 Software selectable three or five wires RS232 Speeds up to 256kbps for RS232 (Async. mode) Speeds up to 1Mbps for RS485/ 422 FRM220-FXO/FXS POTS to Fiber Extend telephone voice transmission from 2km to 120km over fiber Network management via terminal, web or SNMP in FRM220-CH20 chassis Supports telephone voice transmission Supports caller ID pass through Selectable FXO or FXS mode Supports FXS to FXS hot line

19 Wszechstronne systemy FRM Mbps Repeater FRM MS 155Mbps fiber repeater Transparent fiber media converter / repeater up to 155Mbps ( Fast Ethernet, OC3, STM-1) Network management via terminal, web or SNMP in FRM220-CH20 chassis Extend transmission from 2km to 120km over fiber Perform optical repeater function (Re-amplification and, Reshaping) Supports Client / Line loop back test Link Fault Pass through (LFP) Auto Laser Shutdown (ALS)

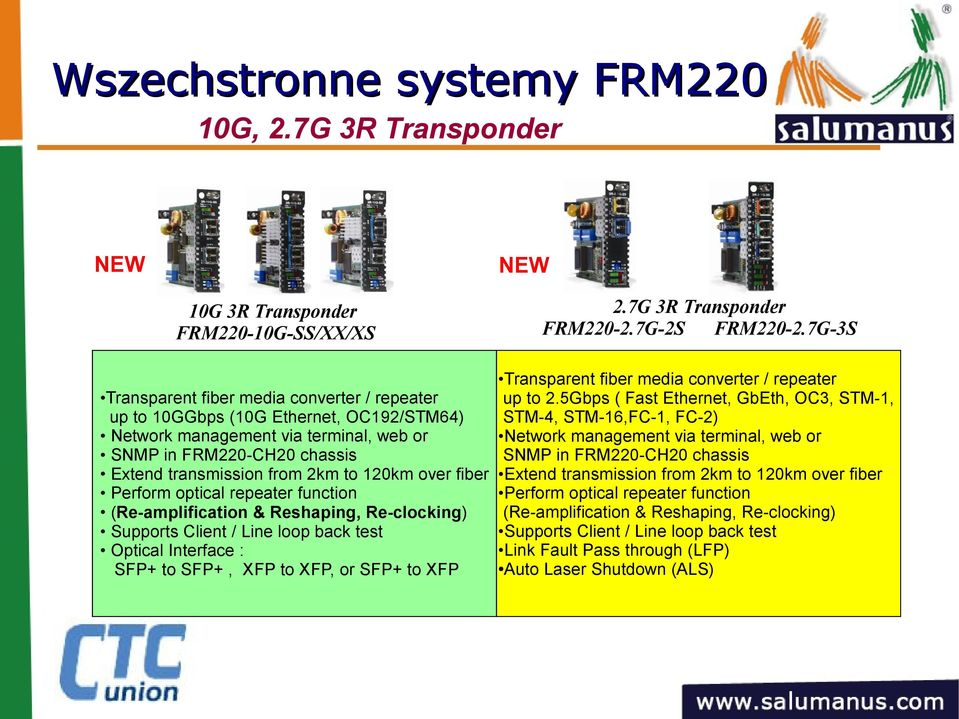

20 Wszechstronne systemy FRM220 10G, 2.7G 3R Transponder NEW NEW 10G 3R Transponder FRM220-10G-SS/XX/XS 2.7G 3R Transponder FRM G-2S FRM G-3S Transparent fiber media converter / repeater Transparent fiber media converter / repeater up to 2.5Gbps ( Fast Ethernet, GbEth, OC3, STM-1, up to 10GGbps (10G Ethernet, OC192/STM64) STM-4, STM-16,FC-1, FC-2) Network management via terminal, web or Network management via terminal, web or SNMP in FRM220-CH20 chassis SNMP in FRM220-CH20 chassis Extend transmission from 2km to 120km over fiber Extend transmission from 2km to 120km over fiber Perform optical repeater function Perform optical repeater function (Re-amplification & Reshaping, Re-clocking) (Re-amplification & Reshaping, Re-clocking) Supports Client / Line loop back test Supports Client / Line loop back test Link Fault Pass through (LFP) Optical Interface : Auto Laser Shutdown (ALS) SFP+ to SFP+, XFP to XFP, or SFP+ to XFP

21 Fiber Application Data Center FTTx 10G Fast Ethernet converter switch Switch Server T1/E1 PBX Switch Gigabit Ethernet converter Fiber Repeater FRM220 Fiber media solution Switch POTS POTS PBX Router FXS/FXO Fiber modem Access SCADA Telecom T1/E1 PBX RS-485 Router V35/X.21/RS530 fiber modem RS-485/232 fiber modem E1/T1 fiber modem

22 Ekonomiczne systemy FMC Półka FMC-CH08/FMC-CH16 FMC-10/100I FMC-1000ES

23 Multiplexer FMUX1000 FMUX 1000 to nowy multiplekser optyczny firmy CTC Union. Multipleksacja Gigabit Ethernetu oraz 16 E1/T1 do linku o przepustowości 1.25Gbps sprawia, że jest to rozwiązanie zarówno ekonomiczne jak i bardzo wydajne. FMUX1000 to urządzenie o budowie modułowej posiadające 4 sloty typu Hot-Swap. Dostępne są karty Ethernetowe posiadające 2 porty Combo (10/100/1000 RJ45 oraz slot SFP) oraz karty E1/ T1 posiadające 4 porty z których każdy może być indywidualnie programowany do obsługi łącza E1 bądź T1. Ponadto urządzenie wyposażone jest w APS (Auto Protection Switch) zapewniający redundancję linku optycznego. Dzięki dwóm wolnym slotom SFP urządzenie to można zainstalować w każdej sieci, również korzystającej z technologii xwdm.

24 Multiplexer FMUX1000 Wire-speed GbE traffic and separated 16E1 data are transmitted simultaneously Higher than 800Mbps throughput for aggregate Ethernet traffic Support advanced Ethernet interface features like jumbo frame size (9K bytes), Provider Ethernet bridge by VLAN stacking (Q in Q, IEEE802.1ad), QoS and traffic rate control Both rack mount and stand-alone types of systems are available for various application convenience. Six systems can be accommodated in 19 inch shelf. Support various loopback and BERT for system diagnosis 1+1 protection switch and Automatic Laser Shutdown [ALS] for aggregate fiber interfaces Built-in EOC channel for OAM&P Support VT100, Telnet, SNMP and client server based NMS interfaces Loss of Power indication for power failure of the remote unit Remote software upgradable Support order-wire for craft person s voice communication Support one RS-232 Async. channel for auxiliary data communication AC and DC power redundancy

25 Multiplexer FMUX1000 Audio Alarm connector Pushbutton s Fiber Status Indicator Fiber Switch & LED O&W port Visual Alarm connector LCD Display Fiber uplink Telnet/SNMP Port Line Indicators Alarm, RMT/LPR indicators CID Port Console Port ACO Buttons & LED O&W Button & LED

26 Multiplexer FMUX1000 E1/T1 Interface 4 channels E1/T1 Gigabit Ethernet Interface 2x SFP slot 1000X 2x RJ45 10/100/1000T DC power AC power -18 ~ 72V 100 ~ 240 Hot Swappable Hot Swappable 4 Slot Design with 4-channel E1/T1 Per card. The maximum E1/T1 channels supported is Slot Design with 2-channel GbE combo per card. The maximum GbE channels supported is 8.

27 Multiplexer FMUX1000 Interface card options 4x E1/T1 interface card 2x GbE Combo ports (2x 10/100/1000T RJ45 + 2x 1000X SFP slots)

28 Transceivery OSZCZĘDNOŚCI (40-80%) WIĘKSZA GAMA PRODUKTÓW SZYBKA DOSTAWA DOSTEPNOŚĆ OD RĘKI MOŻLIWOŚĆ WYMIANY, PRZETESTOWANIA

29 Transceivery NOWOSĆI GBC Photonics SFP CWDM 36 i 41dB do 220km SFP WDM (BiDi) 150km Dedykowane: XFP, X2, Xenpak SFP CWDM FC 4Gb 40km i 80km XFP DWDM i CWDM (Cisco, 3COM, Huawei, Juniper)
