1 and life gets better! MANUAL WI-Fl GATEWAY smartlock security C speed Q, app management remote control

? smartlock and life gets better! Wi-fi gateway allows you to control locks in real time.

The administrator can optionally get push notifications on his phone when somebody opens the door.

Plug your smartlock wi-fi gateway into a socket 110 or 230 V AC. Stable wireless network signal is required. The gateway should be located max.

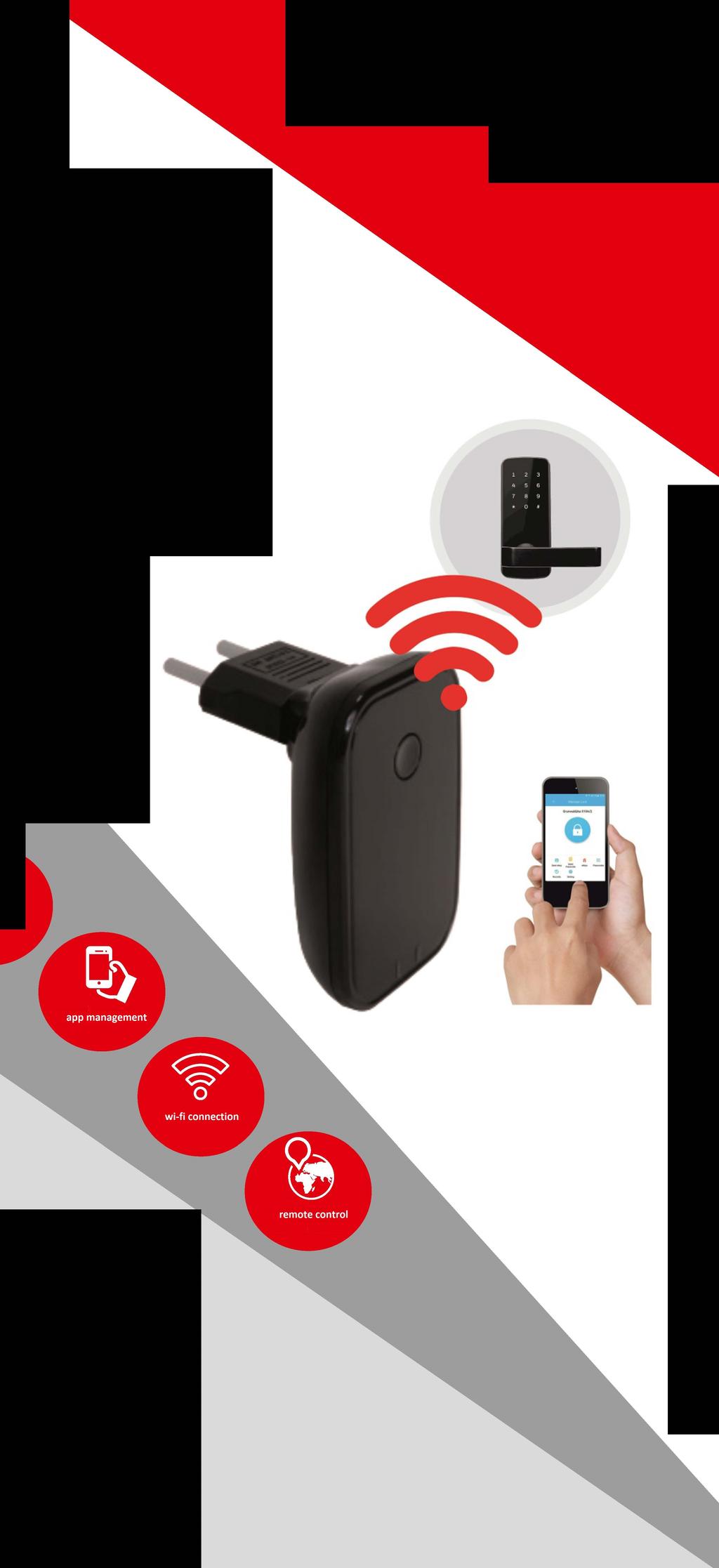

2 ? smartlock and life gets better! Wi-fi gateway allows you to control locks in real time. You can remotely open the lock or manage the authorisation rights. Unlocking records are also available in real time. The administrator can optionally get push notifications on his phone when somebody opens the door. The lock admin is able to remotely delete or generate pincodes. The current battery status can be checked at any time. Plug your smartlock wi-fi gateway into a socket 110 or 230 V AC. Stable wireless network signal is required. The gateway should be located max. 25 m from wi-fi router and max. 12 m from the chosen lock. socket 230V TECHNICAL DATA Power supply: socket 110 or 230 V AC Connection: Internet network Management: TTLock app Ma terial: plastic Dimension: 75x45 mm Access range: up to 12m from the lock / up to 25 m from the wi-fi routera Wi-fi gateway smartlock

3 Operation of smartlock Wi-Fi gateway smartlock Wi-Fi gateway uses Router to send and receive data stream TCP/IP from the phone/app (remote communication) and send it further to other smartlock products. smartlock gateway is compatible with 201, 301 lock models and smartlock access controller. smartlock gateway enables additional functions: User receives the information about unlocking records in real time. Notifications about successful unlocking via Bluetooth or pincode and unsuccessful attempts are sent to the admin. You can also check the battery level. User can remotely delete access pincodes. User can generate his own customized access pincode. Requirements for Wi-fi gateway connection smartlock gateway should be connected to a power socket 110 or 230 V AC. Wi-Fi signal is required. The gateway should be connected to a Wi-fi network and located max. 25 m from a Wi-fi router. Gateway can work with more than one lock, but it has to be located max. 12 m from each lock. The proper operation depends on the propagation of waves in a room. Use TTLock app to configure the gateway with locks. One gateway could be paired only with one account in the app, e.g. admin account. Attention! You should know the ID and password to Wi-fi network in order to configure the gateway. 3

Add gateway to a local Wi-fi network 1. Plug the gateway in the power socket 230V in order to enable a Wi-fi connection. Use a plug converter included in a set. 2. Make sure that there is a Wi-fi network.

4 Add gateway to a local Wi-fi network 1. Plug the gateway in the power socket 230V in order to enable a Wi-fi connection. Use a plug converter included in a set. 2. Make sure that there is a Wi-fi network. 3. Open TTLock app available for Android and ios systems. Your smartphone or tablet should be connected with the local Wi-fi network. 8:29 *.,11I LTE C 4. Go to Settings. 1 TTLock Q Q S ekretariat 45% 11 k Remote y g. Ac'Tiir ( Perm n Choose,,System Settings" ft S s e: lock Remote! g. nir V ( Pe mri Q klamka srebrna iill100% g (. 'Tl,,,t ekontroler 100% C' Perri, ri CK Remotely g Adm n + Add Locks 0 Message CD Customer Service System Settings

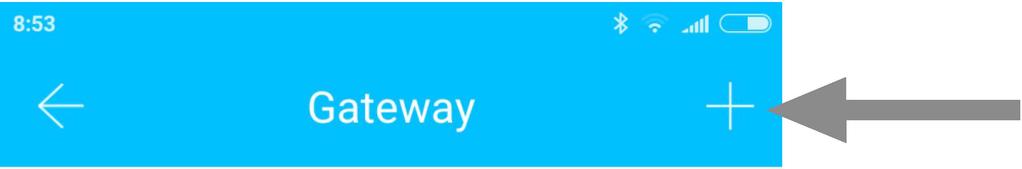

5 8:29 t _.,11 LTE System Settings 5. Find,,Gateway". Touch to Unlock Lock users Manage Groups ---+Gateway Security Setting My Reminders Transfer locks About Us Sign out 6. Make sure that the gateway is plugged in. Connect your mobile device to Wi-fi network and click the icon "plus" in the upper right corner. 5

6 7. Enter the password and gateway name. 8:54 t.,.,.o11i 0 Add Gateway WiFi Name Abiline1 WiFi Password Gateway Name Enter WiFi password... Please name the gateway +-- 8:55 t.,..o11i 0 Add Gateway WiFi Name Abiline1 WiFi Password Gateway Name Bramka - pitro pierwsz Next

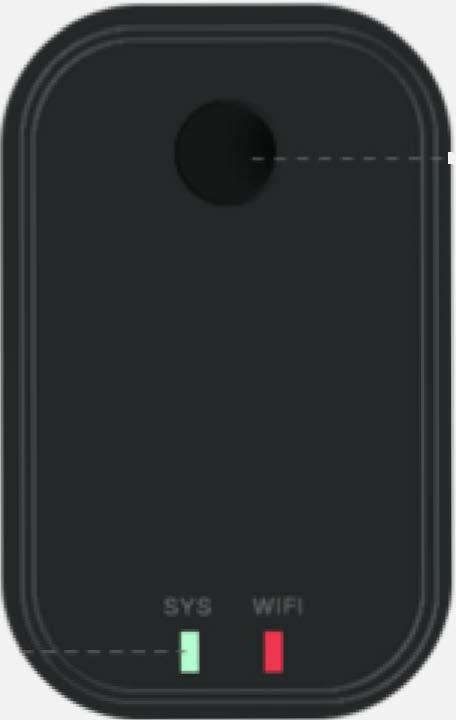

855 t.,,1ic Add Gateway long press the setting key 9. Nastpnie nalezy nacisnqc przycisk,,setting key" na bramce do momentu, az zielona kontrolka zacznie mrugac. -- Setting key s:ss Add Gateway *.,.., "'' c Green ndicator--- Long press the setting key.

7 855 t.,,1ic Add Gateway long press the setting key 9. Nastpnie nalezy nacisnqc przycisk,,setting key" na bramce do momentu, az zielona kontrolka zacznie mrugac. -- Setting key s:ss Add Gateway *.,.., "'' c Green ndicator--- Long press the setting key. And then press the Next button bellow when the green indicator blink fast. in progress - - Setting key Green indicator Nastpnie klikamy,,next''. Bramka zostanie wykryta i po+qczona z sieciq WiFi., Start scanning gateways nearby 7

8 9:13 t """... C. Bramka - pitro pierwsze 11.Jesli w pobliiu znajdujq si klamki smartlock 301, zostanq one automatycznie dodane do zarzqdzania przez bramk. Searching for locks belongs to you. The gateway will connect to the founded locks and manage them. The gateway added 9:20 t ":':,..ill C::. Bramka - pitro pierwsze Locks connected to the gateway 0 niebieski pin V.,!Medium

9 12. Po poprawnym pofqczeniu bramki w zaktadce,,gateway" powinna bye widoczna bramka z wybranq przy fqczeniu nazwq. Widoczne Sq takze informacje o ilosci zarzqdzanych przez bramk klamek oraz czy bramka jest pofqczona z sieciq, czy jest,,online': 9:29 *.,., f- Gateway + Bramka - pitro pierwsze online 1 Konserwacja Bramk nalezy czyscic mikkci szmatkci, bez uzycia silnych srodk6w czyszczcicych Nalezy unikac kontaktu bramki z twardymi przedmiotami. kt6re mog+oby porysowac jej pow+ok. Bramka powinna bye utrzymywana w czystosci. Nie uzywac wody ani alkoholu do czyszczenia zabrudzen na powierzchni bramki. Nalezy uzywac do tego mikkiej sciereczki Produkty smartlock objte sci 2 letnici gwarancjci. Szczego+y dotyczcice gwarancji znajdci Panstwo na naszej stronie: 9
