1 Zał. nr 4 O-TÜV-2 Strona age: 1 Stron ages: 21 Zleceniodawca: Client: HOWE A/S, ilosofgangen 18, 5000 Odense C rzedmiot badania: Test item: SIMLA Bar Height roducent / Klient zew.: Manufacturer / ext. Customer: HOWE A/S, ilosofgangen 18, 5000 Odense C Oznaczenie: Identification: SIMLA Bar Height Nr seryjny: Serial no.: rzyjęcie towaru nr: Receipt no.: /18/140 Data przyjęcia: Date of receipt: Miejsce kontroli: Testing location: TÜV Rheinland olska Sp. z o.o. ul. Lutycka 11, oznań odstawa badań: Test specification: BIMA X Sections: 4.3, 5.2, 5.3, 5.4, 5.5, 6, 7 Wynik badania: Test Result: atrz dalsze punkty raportu. See other points of the report. Opracowane / compiled by: M. Strugalski data Date Not specified nazwisko Name podpis Signature Autoryzowane / authorized by data Date Ł. Skrzypczak nazwisko Name podpis Signature Inne / Other Aspects: Category of the table: I The product was tested for chosen points of the standard. It was not determined the product is intended for use outside the basic environments which are stated in the standard. see Identification of the test item and hoto documentation. Skróty: (ass) (ail) = = = = zgodne z podstawami kontroli niezgodne z podstawami kontroli nie dotyczy nie badano Abbreviations: (ass) (ail) = = = = passed failed not applicable not tested Raport z badań odnosi się wyłącznie do badanych obiektów i nie może być powielany w formie wyciągu bez zezwolenia Laboratorium. Raport nie upoważnia do korzystania ze znaków oraz logo firmy TÜV Rheinland Group. Skrót A metoda akredytowana, metoda podzlecona. This test report relates to the a. m. test samples. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not allow use marks and logo of TÜV Rheinland Group. Abbreviation A accredited method, subcontracted method.

2 Zał. nr 4 O-TÜV-2 Strona age: 2 Stron ages: 21 Stosowane przyrządy/urządzenia pomiarowe Used measuring equipment omiar Measurement Numer urządzenia Equipment no. Data następnej kalibracji Next calibration date Wymiary / masa A/37/W/-H Measurements / weight A/79/W/-H A/136/W/-H A/137/W/-H A/166/W/-H Testy statyczne / dynamiczne A/1/W/-H Statical / dynamical tests A/2/W/-H A/3/W/-H A/4/W/-H E/5/S/-H E/7/S/-H E/8/S/-H E/9/S/-H E/10/S/-H E/30/S/-H E/32/S/-H E/34/S/-H E/35/S/-H E/53/S/-H A/68/W/-H E/74/S/-H E/99/S/-H E/100/S/-H A/128/W/-H A/159/S/-H A/216/S/-H Warunki środowiskowe A/148/W/-H Environmental conditions

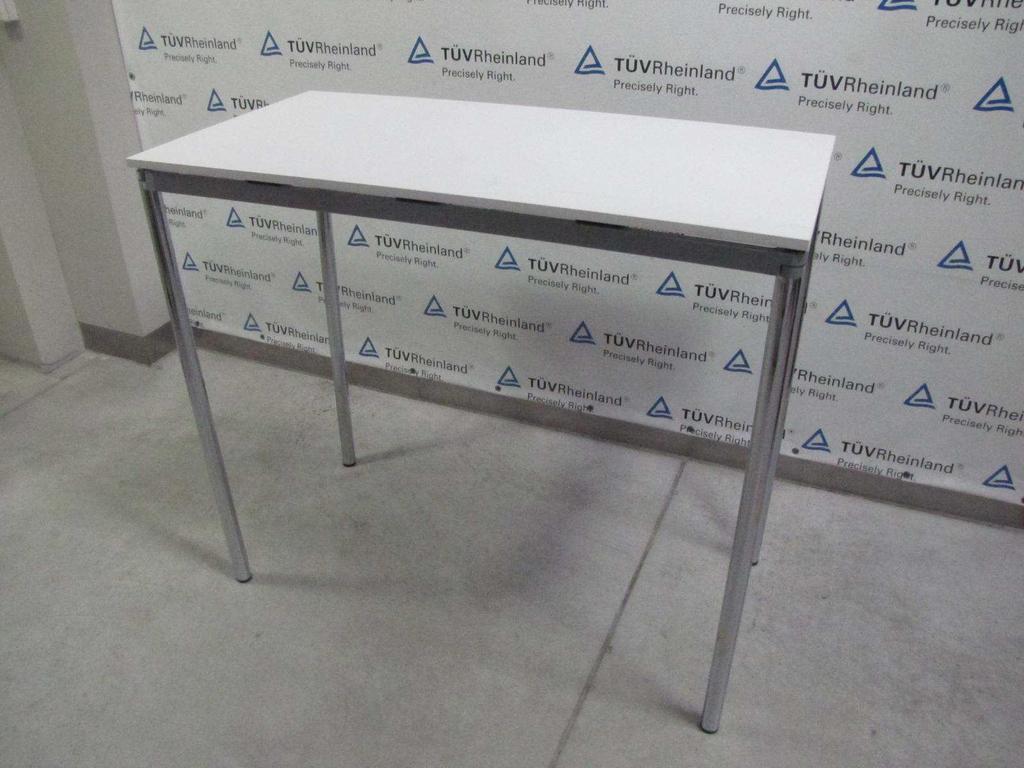

3 Zał. nr 4 O-TÜV-2 Strona age: 3 Stron ages: 21 Identyfikacja przedmiotu badań Identification of test item SIMLA Bar Height The product is designed to be intended for commercial office and related institutional environments such as educational environments. Construction of main, folding frame is chromed steel. Legs are made of profiles with circular crosssections with outer diameter 38,0 mm. Horizontal folding frame is made of profiles with rectangular cross-sections 16,5 x 35,5 [mm]. Both pairs of table legs are equipped with adjustable feet. eet are made of hard artificial material. Countertop is not connected to the frame the assembly system consists of installing the worktop/countertop as a structure that fits into the main frame by ten of matching thresholds made of hard artificial material. Thresholds are fitted to the countertop with pair of screws each (ig. 1). Dimensions: 1201 x 1059 x 600 [mm] Weight: 20,94 kg ig SIMLA Bar Height.

4 Zał. nr 4 O-TÜV-2 Strona age: 4 Stron ages: 21 BIMA X Stability Under Vertical Load Test (See igures 4b and 4c) Note: This test applies to table/desks without extendible elements. This test does not apply to Keyboard/Laptop Tables or Benching Systems Test Setup The unit shall be placed on a level platform and leveled in its normal operating position. Any extendable elements shall be closed and unloaded. Adjustable height desk/tables shall be positioned at a height that places the desk/table in its least stable condition Test rocedure a) or tables less than or equal to 72 in. in length: lace a 305 mm (12 in.) diameter disk so that its center is 178 mm (7 in.) from the edge of the top at the least stable location. If the center of the disk is greater than 305 mm (12 in.) from a corner of the top, move the disk such that its center is 305 mm (12 in.) from a corner keeping the edges of the disk equidistant from both sides of the top. If, at least stable position, the top has a depth less than 356 mm (14 in.), center the loading disk across the depth at that position. or tables greater than 72 in. in length: lace two 305 mm (12 in.) diameter disks 36 in. apart (center-to-center) so that their centers are 178 mm (7 in.) from the edge of the top at the least stable location. If the center of a disk is greater than 305 mm (12 in.) from a corner of the top, move the disk such that its center is 305 mm (12 in.) from the corner keeping the edges of the disk equidistant from both sides of the top. If, at the least stable position, the top has a depth less than 356 mm (14 in.), center the loading disks across the depth at that position. (See igures 4b and 4c). b) lace a 57 kg (125 lb.) static load on the disk(s). c) If necessary, repeat steps (a) and (b) to verify the least stable position has been evaluated Acceptance Level The unit shall not tip over. If one of more extendible elements opens during the test and prevents the unit from tipping over due to contact with the test platform, the unit does not meet the acceptance criteria. The unit did not tip over. The unit doesn t have extendible elements.

5 Zał. nr 4 O-TÜV-2 Strona age: 5 Stron ages: 21

6 Zał. nr 4 O-TÜV-2 Strona age: 6 Stron ages: Concentrated unctional Load Test (See igures 5a-d and 4c) Note: This test does not apply to units with a primary surface greater than 965 mm (38 in.) in height. This test applies to adjustable height tables that can be adjusted to 965 mm (38 in.) or less. This test applies to Benching Systems (See also 5.8 and 5.9) The height of the primary surface is greater than 965 mm.

7 Zał. nr 4 O-TÜV Test Setup a) The unit shall be leveled and the base may be secured to the test platform to prevent tipping. The method of securing shall not affect the load application. If the unit requires support from adjacent units, all units shall be tested together as a system. Adjustable height tables shall be adjusted to their highest position but not to exceed 965 mm (38 in.) b) Apply the specified concentrated load to the primary surface per Table 1 through a 305 mm (12 in.) diameter disk so that its center is 178 mm (7 in.) from the unit s edge at its apparent weakest point. (See Section 4 for load application of non-rectangular tables). If at the apparent weakest point. (See Section 4 for load application of non-rectangular tables). If at the apparent weakest point the top has a depth less than 356 mm (14 in.), center the loading disk across the depth at that position. Ganged unit surfaces where ganging device(s) provide structural support to the unit shall be tested as a single surface. (Large ganged surfaces shall be tested in accordance with 5.2.1c) When the weakest point is not obvious, several load applications may be necessary to properly test the product. The following are some typical weakest points (see igure 5b): Example 1) Center point of longest unsupported span. Example 2) Longest distance from cantilevered support to work surface edge. Example edges. 3) Each side of ganged surface Strona age: 7 Stron ages: 21

8 Zał. nr 4 O-TÜV-2 Strona age: 8 Stron ages: 21 c) When testing ganged units where the surface size is such that a 2,6 m (102 in.) chord can fit within the area of the tops (See igure 5c), (See Step 5.2.1b (Example 3)), two concentrated loads are required. The concentrated loads, described in Table 1, are applied through 305 mm (12 in.) diameter disks. lace the two 305 mm (12 in.) diameter disks equidistant about the ganged edge while maintaining the centers of these disks 914 mm ± 25 mm (36 in. ± 1,0 in.) apart and 178 mm (7 in.) in from the edge of the ganged unit s top (See igure 5d). If there are more than two ganged surfaces, they shall remain unloaded during the testing. d) When testing units with lengths (or diameters) greater than 1829 mm (72 in.), two concentrated loads are required. The concentrated loads, described in Table 1, are applied through 305 mm (12 in.) diameter disks. The centers of these disks shall be placed 915 mm ± 25 mm (36 in. ± 1,0 in.) apart and 178 mm (7 in.) in from the edge of the primary surface at the apparent weakest point. See Section 5.2.1b for guidelines. e) All remaining surfaces and extendible elements shall be loaded according to the disturbed functional loads per Table 1. The largest two extendible elements shall be fully opened for the duration of the test. OIf the unit contains an interlock that will not allow two extendible elements to be opened simultaneously, open the largest capacity extendible element(s).

10 Zał. nr 4 O-TÜV Test rocedure a) Loads shall be allowed to remain for 60 minutes. b) Remove only the concentrated load(s) from the primary surface. c) Without removing any other loads, perform the ull orce Test in Section Acceptance Level There shall be no loss of serviceability. Upon completion of the test, the extendible member(s) shall meet the pull force requirements of Section 19 as tested in Distrubuted unctional Load Test (See igures 5e through 5h) Test Setup a) The unit shall be leveled and the base may be secured to the test platform to prevent tipping. The method of securing shall not affect the load application. If the unit requires support from adjacent units, all units shall be tested together as a system. Adjustable height tables shall be adjusted to their highest position. Keyboard support surfaces shall be loaded in their worst-case position. b) Depending on the desk/table surface classification, apply the specified distributed loads per Table 1. or primary surfaces, loads shall be evenly distributed and centered over a line 203 mm (8 in.) in from the edge along the entire perimeter. or surfaces that are less than 406 mm (16 in.) deep, evenly distribute the load across the surface. The loads may be secured to the surface if necessary to perform this test. c) The largest two extendible elements shall be fully opened for the duration of the test. If the unit contains an interlock that will not allow two extendible elements to be opened simultaneously, open the largest capacity extendible element(s) Test rocedure a) Loads shall be allowed to remain for 60 minutes. b) Close the extendible elements. c) Without removing any load, perform the ull orce Test in Section 19. Strona age: 10 Stron ages: 21

11 Zał. nr 4 O-TÜV-2 Strona age: 11 Stron ages: Acceptance Level There shall be no loss of serviceability. Upon completion of the test, the extendible member(s) shall meet the pull force requirements of Section 19 as tested in The unit did not loose serviceability. 5.4 Concentrated roof Load Test (See igures 5a-d and 4c) Note: This test does not apply to units with primary surface greater than 965 mm (38 in.) in height. This test applies to adjustable height tables that can be adjusted to 965 mm (38 in.) or less Test Setup The setup shall be performed per Section with the appropriate concentrated proof load per Table 1, except for the extendible elements, which shall remain loaded with the distributed functional loads. The unit does not have extendible elements. The height of the primary surface is greater than 965 mm Test rocedure Loads shall be allowed to remain for 15 minutes and then removed Acceptance Level There shall be no sudden and major change in the structural integrity of the product. Loss of serviceability is acceptable.

12 Zał. nr 4 O-TÜV-2 Strona age: 12 Stron ages: Distributed roof Load Test (See igures 5e-h) Test Setup erform the setup per Section using the appropriate distributed proof loads per Table 1, except for the extendible elements, which shall remain loaded with the functional loads. The unit does not have extendible elements Test rocedure Loads shall be allowed to remain for 15 minutes and then removed Acceptance Level There shall be no sudden and major change in the structural integrity of the product. Loss of serviceability is acceptable. There were no sudden or major change in the structural integrity of the product. There were no loss of serviceability.

13 Zał. nr 4 O-TÜV-2 Strona age: 13 Stron ages: 21 6 Top Load Ease Cycle Test (See igure 6) 6.1 urpose of Test The purpose of this test is to evaluate the durability of the unit to withstand cyclic loading if the primary surface(s) resulting from a person on the unit. This test does not apply to: Surfaces greater than 965 mm (38 in.) in height, or height adjustable units that cannot be adjusted to 965 mm (38 in.) or below. Shelves or adjustable keyboard surfaces or keyboard tables. (If it is unclear whether the surface is a primary surface or a shelf, this test applies). Units with integral (non-detachable) overhead storage units, hutches, etc. that limit the useable depth of the primary surface to less than 406 mm (16 in.) or with designs that interfere with a person s ability to sit on the surface. The primary surface is greater than 965 mm in height. Adjustable feet of the unit does not provide a possibility to adjust the primary surface to height of 965 mm or below.

14 Zał. nr 4 O-TÜV-2 Strona age: 14 Stron ages: Test setup a) The unit shall be placed on the test platform, leveled, and testrained to prevent movement. Units with tops that are height adjustable shall be tested at the midpoint of adjustment but not higher than 965 mm (38 in.). b) All extendible elements shall be loaded with the functional load per Table 1 and then closed for the duration of the test. c) or units with a primary surface with a depth greater than or equal to 457 mm (18 in.) deep, a 91 kg (200 lb.) weight applied by means of a 406 ± 13 mm (16 in. ± 0,5 in.) diameter bag (See Appendix A) or force applied through a 406 ± 13 mm (16 in. ± 0,5 in.) disk shall be positioned with the edge of the bag/disk within 25 mm (1 in.) from the edge of the surface at the center of the largest unsupported span. or primary surfaces with a depth less than 457 mm (18 in.), center the bag on the available surface depth. lip top tables shall be tested in the worst case position. If the worst case condition cannot be determined, the weight shall applied to both the front and rear edges of the surface (tests run individually) to adequately test the latching mechanism. d) The cycling device shall be set to operate at a rate of 14 ± 6 cycles per minute. 6.3 Test rocedure a) rior to performing the test procedure, all extendible elements shall be tested to and meet the pull force requirements of Section 19. b) The bag shall be raised until the entire weight is off the primary surface and then eased (without impact) onto the primary surface, so that it takes the entire weight without any support from the cycling device. c) Repeat Step b) for a total of cycles. d) Remove the bag and perform the pull force test in Section Acceptance Level There shall be no loss of serviceability to the unit. Before and after the cycling test, the extendible elements shall meet the pull force test requirements in Section 19.

15 Zał. nr 4 O-TÜV-2 Strona age: 15 Stron ages: 21 7 Desk/Table Unit Drop Test (See igure 7) This test applies to unganged freestanding category I desk or table products which are less than or equal to 1829 mm (72 in.) in length. This test does not apply to desk/table units with casters or to keyboard tables. 7.1 urpose of Test The purpose of this test is to determine the ability of a desk/table unit to withstand an impact force on the legs, column or base. 7.2 Test setup On desk/table units with adjustable features, set the adjustable features at the midpoint of adjustment.

16 Zał. nr 4 O-TÜV-2 Strona age: 16 Stron ages: Test procedure a) Assure all extendable elements and surfaces are unloaded and determine the weight of the unloaded desk/table unit to be tested. b) The unit shall be placed on a test platform and leveled. If the desk/table unit is equipped with glides, extend them to their midpoint but not to exceed 13 mm (0,5 in.) from the fully retracted position. c) Raise one end of the long axis of the unloaded unit so that bottom of the base is above the test platform at the height given in Table 3 or at the balance point, whichever is lower. d) The end of the unit being tested shall be released and allowed a free fall to the test platform. e) Repeat steps (c) and (d) for the other end of the desk/table unit. f) erform the pull force test in Section Acceptance Level There shall be no loss of serviceability. The extendible elements shall meet the pull force test requirements in Section 19. The unit did not loose serviceability. After the test countertop left the main frame. There was remounting needed, to bring the surface of the countertop for output settings. The unit doesn t have extendible elements.

18 Zał. nr 4 O-TÜV-2 Strona age: 18 Stron ages: 21 Załącznik nr 1 / Annex No 1 Dokumentacja fotograficzna hoto documentation otografia / hoto 1 otografia / hoto 2 otografia / hoto 3 otografia / hoto 4

19 Zał. nr 4 O-TÜV-2 Strona age: 19 Stron ages: 21 otografia / hoto 5 otografia / hoto 6 otografia / hoto 7 otografia / hoto 8 otografia / hoto 9 otografia / hoto 10

20 Zał. nr 4 O-TÜV-2 Strona age: 20 Stron ages: 21 otografia / hoto 11 otografia / hoto 12 otografia / hoto 13 otografia / hoto 14 Measurements otografia / hoto 15 Measurements otografia / hoto 16 Measurements / weight

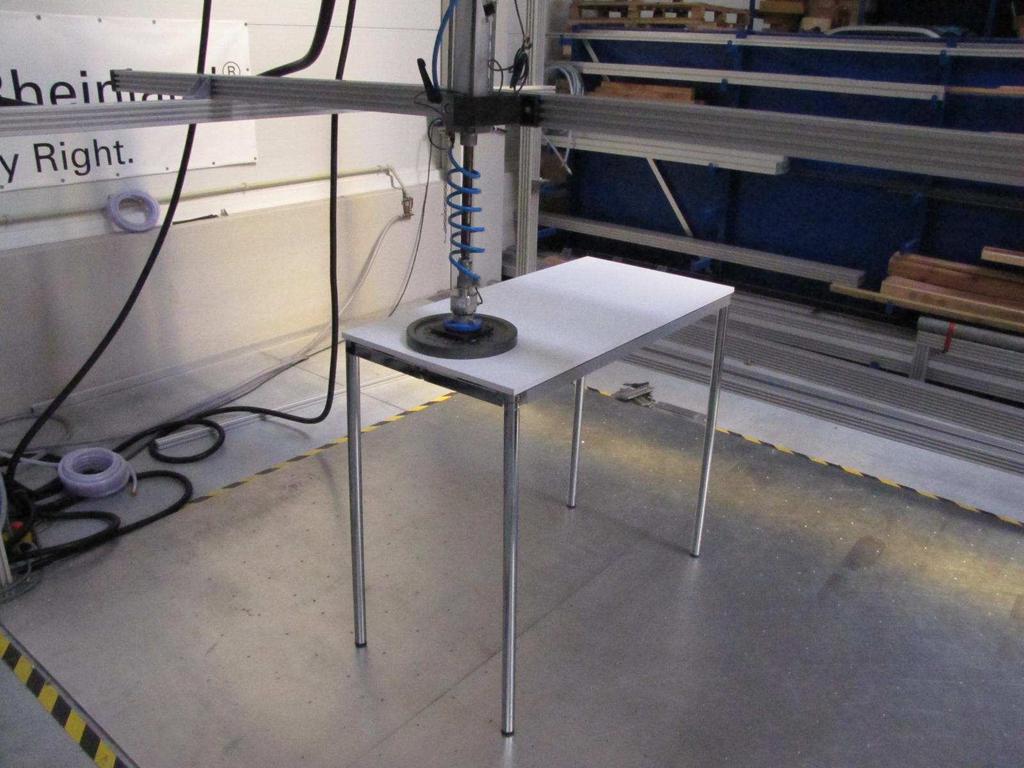

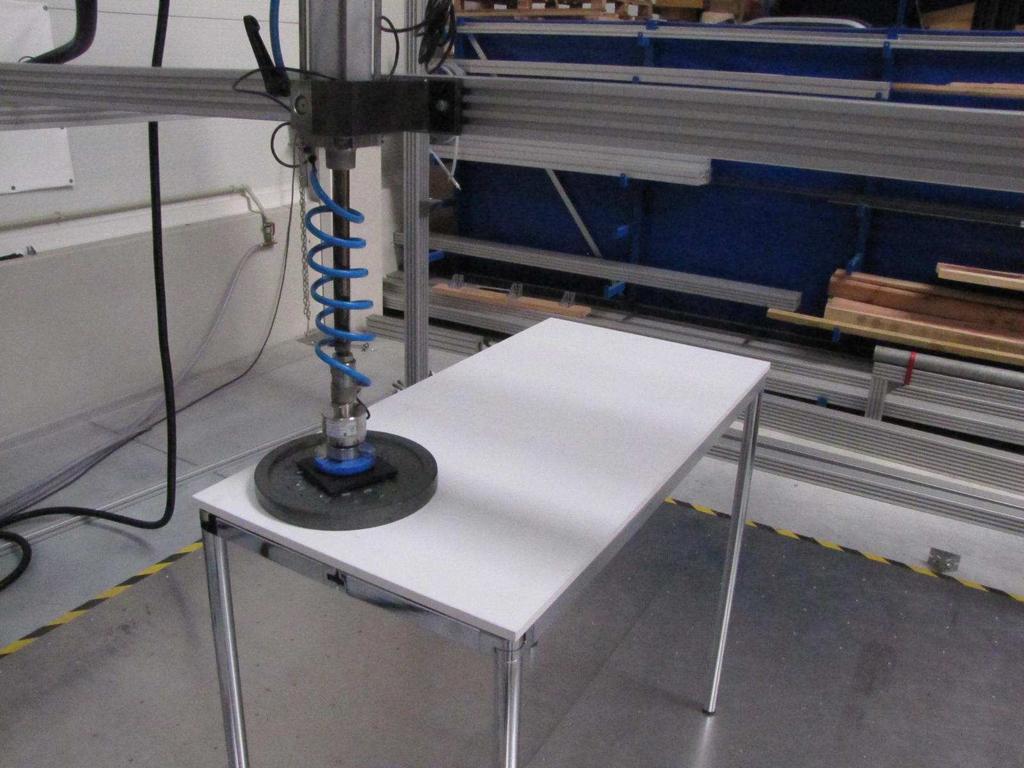

21 Zał. nr 4 O-TÜV-2 Strona age: 21 Stron ages: 21 otografia / hoto 17 Mechanical tests otografia / hoto 18 Mechanical tests otografia / hoto 19 Mechanical tests otografia / hoto 20 Mechanical tests otografia / hoto 21 Mechanical tests otografia / hoto 22 Mechanical tests Koniec raportu End
