1 Sensory w systemach wbudowanych Dr inż. Cezary Worek tel worek@agh.edu.pl Pawilon C2, pokój 08 (niski parter) Konsultacje środa

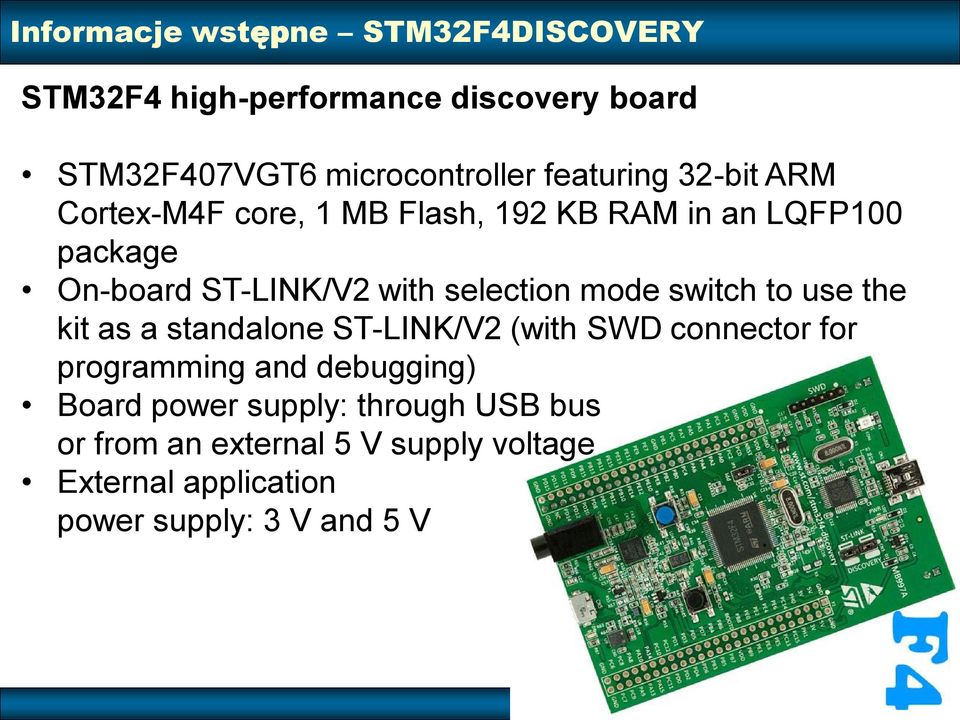

2 Informacje wstępne STM32F4DISCOVERY STM32F4 high-performance discovery board STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging) Board power supply: through USB bus or from an external 5 V supply voltage External application power supply: 3 V and 5 V 2

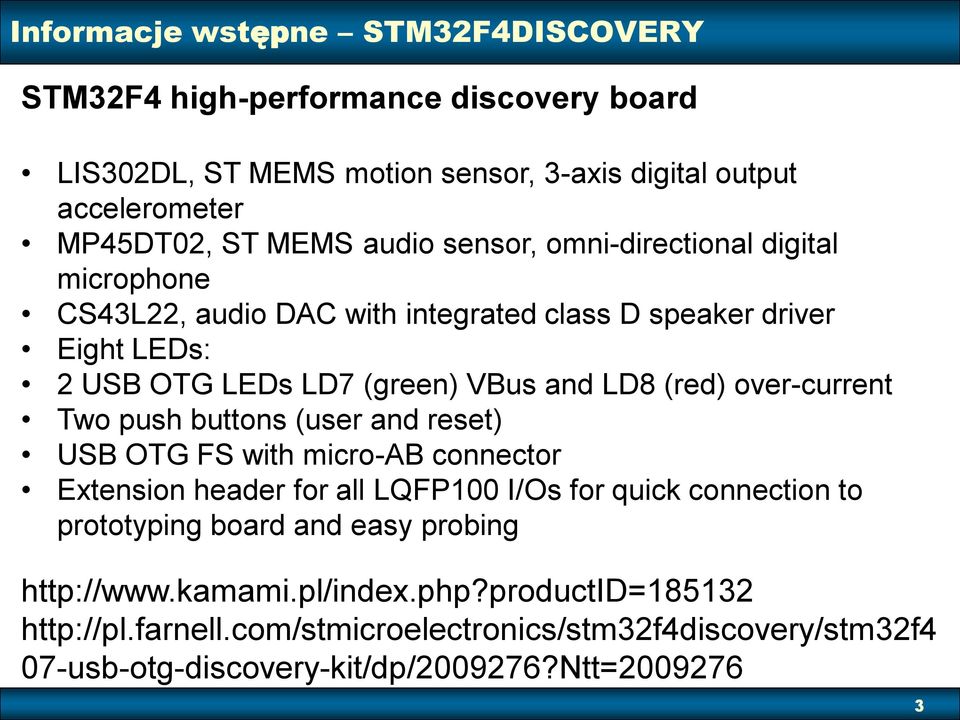

3 Informacje wstępne STM32F4DISCOVERY STM32F4 high-performance discovery board LIS302DL, ST MEMS motion sensor, 3-axis digital output accelerometer MP45DT02, ST MEMS audio sensor, omni-directional digital microphone CS43L22, audio DAC with integrated class D speaker driver Eight LEDs: 2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current Two push buttons (user and reset) USB OTG FS with micro-ab connector Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing usb-otg-discovery-kit/dp/ ?Ntt=

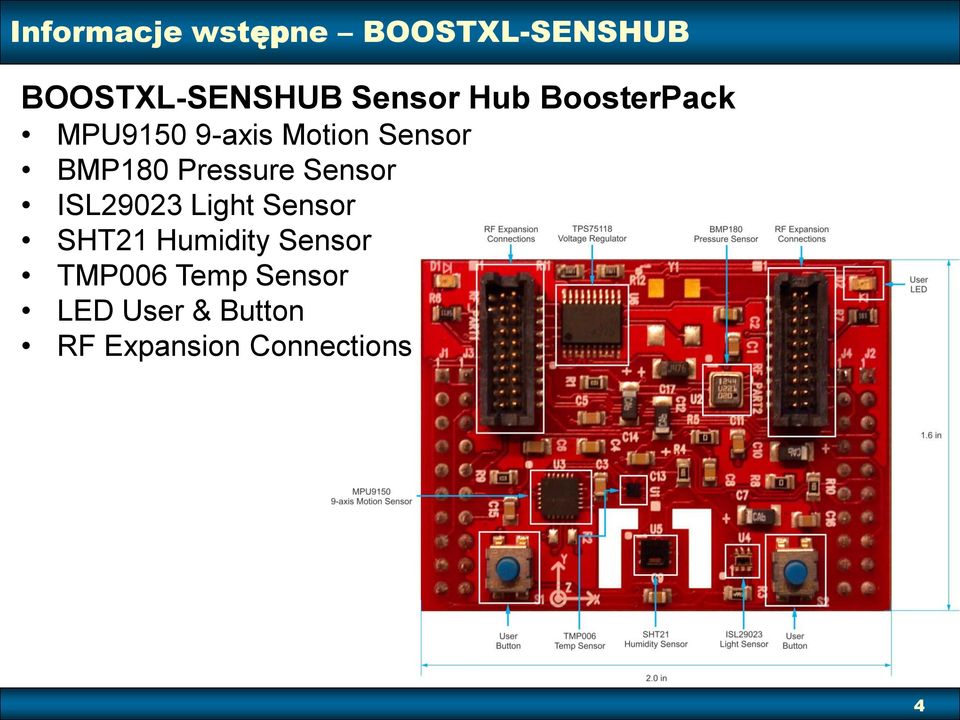

4 Informacje wstępne BOOSTXL-SENSHUB BOOSTXL-SENSHUB Sensor Hub BoosterPack MPU axis Motion Sensor BMP180 Pressure Sensor ISL29023 Light Sensor SHT21 Humidity Sensor TMP006 Temp Sensor LED User & Button RF Expansion Connections 4

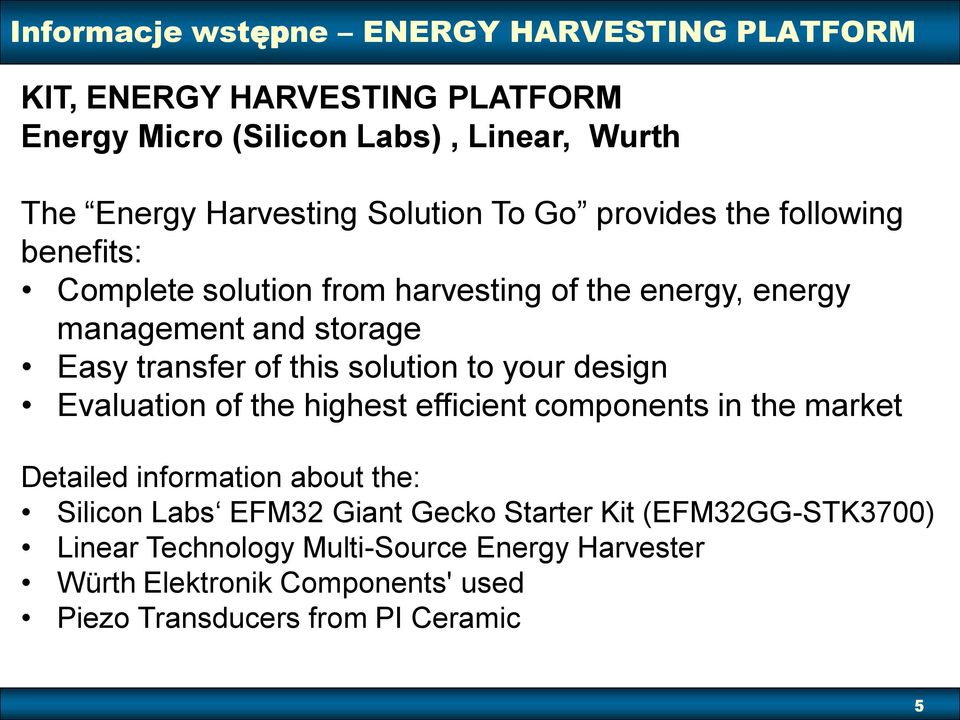

5 Informacje wstępne ENERGY HARVESTING PLATFORM KIT, ENERGY HARVESTING PLATFORM Energy Micro (Silicon Labs), Linear, Wurth The Energy Harvesting Solution To Go provides the following benefits: Complete solution from harvesting of the energy, energy management and storage Easy transfer of this solution to your design Evaluation of the highest efficient components in the market Detailed information about the: Silicon Labs EFM32 Giant Gecko Starter Kit (EFM32GG-STK3700) Linear Technology Multi-Source Energy Harvester Würth Elektronik Components' used Piezo Transducers from PI Ceramic 5

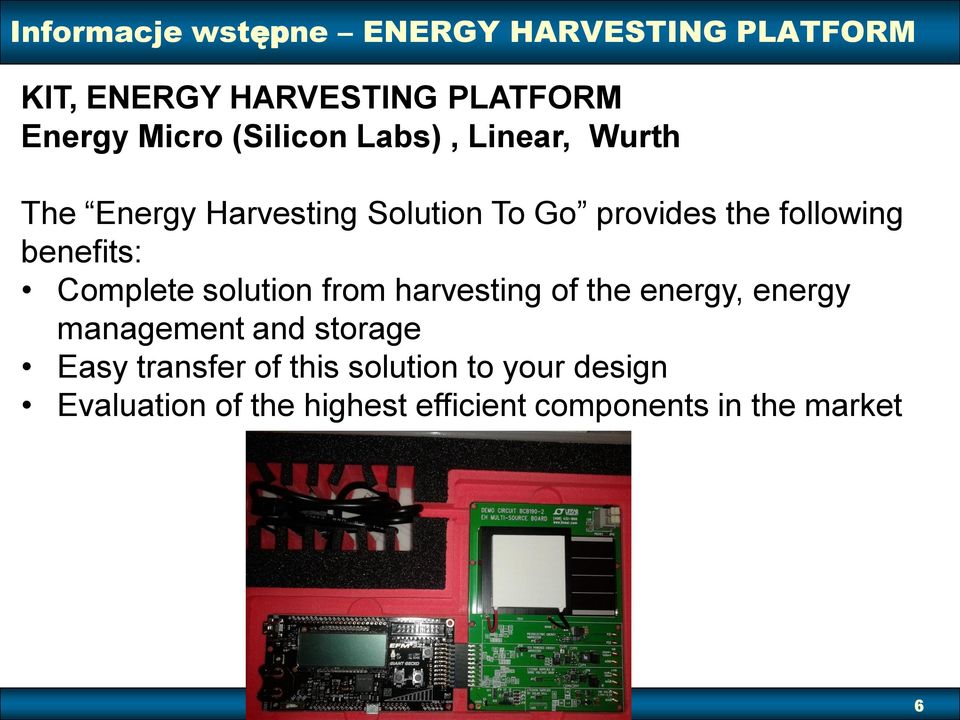

6 Informacje wstępne ENERGY HARVESTING PLATFORM KIT, ENERGY HARVESTING PLATFORM Energy Micro (Silicon Labs), Linear, Wurth The Energy Harvesting Solution To Go provides the following benefits: Complete solution from harvesting of the energy, energy management and storage Easy transfer of this solution to your design Evaluation of the highest efficient components in the market 6

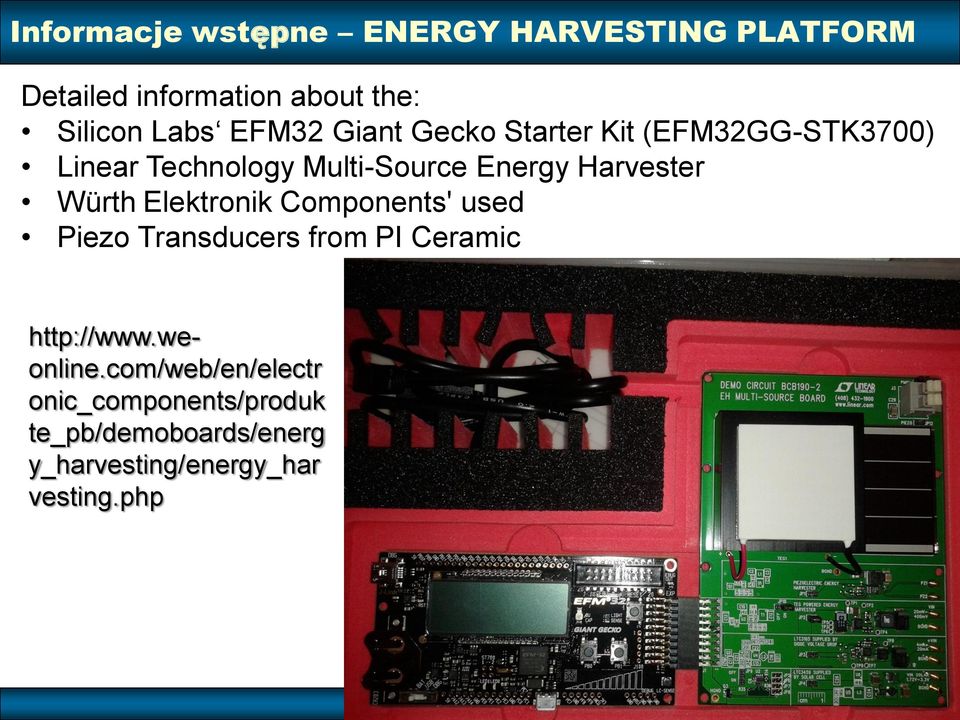

7 Informacje wstępne ENERGY HARVESTING PLATFORM Detailed information about the: Silicon Labs EFM32 Giant Gecko Starter Kit (EFM32GG-STK3700) Linear Technology Multi-Source Energy Harvester Würth Elektronik Components' used Piezo Transducers from PI Ceramic onic_components/produk te_pb/demoboards/energ y_harvesting/energy_har vesting.php 7

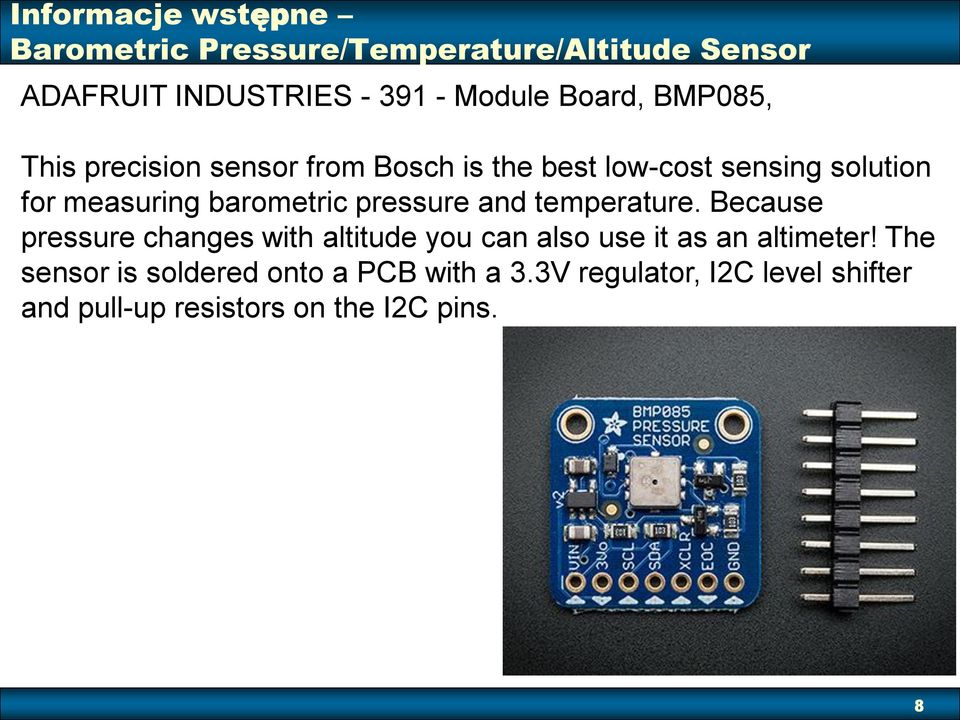

8 Informacje wstępne Barometric Pressure/Temperature/Altitude Sensor ADAFRUIT INDUSTRIES Module Board, BMP085, This precision sensor from Bosch is the best low-cost sensing solution for measuring barometric pressure and temperature. Because pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins. 8

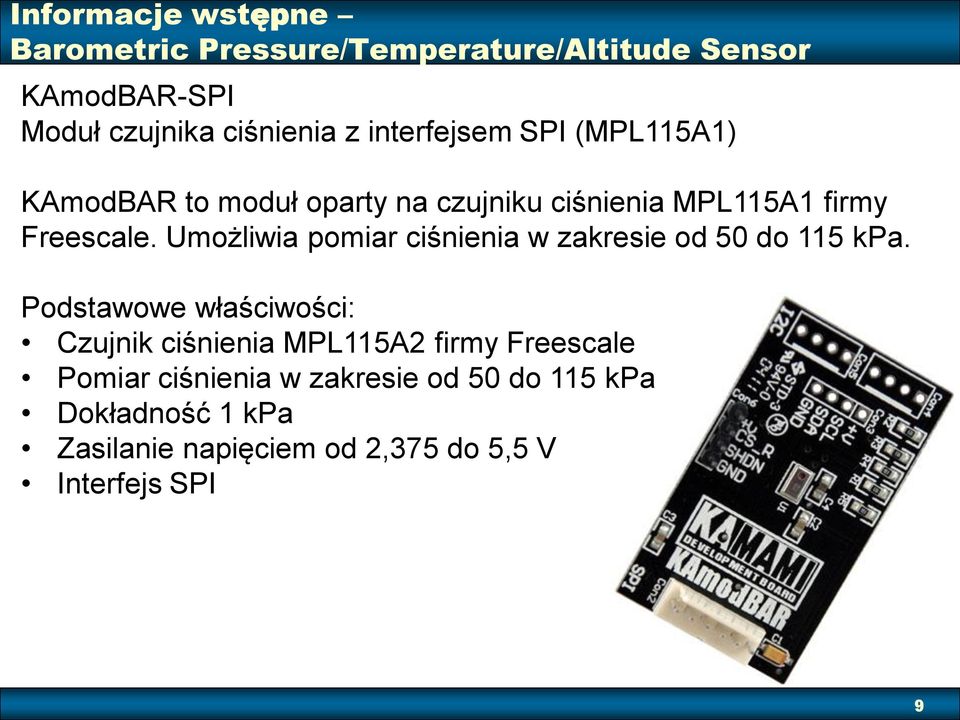

9 Informacje wstępne Barometric Pressure/Temperature/Altitude Sensor KAmodBAR-SPI Moduł czujnika ciśnienia z interfejsem SPI (MPL115A1) KAmodBAR to moduł oparty na czujniku ciśnienia MPL115A1 firmy Freescale. Umożliwia pomiar ciśnienia w zakresie od 50 do 115 kpa. Podstawowe właściwości: Czujnik ciśnienia MPL115A2 firmy Freescale Pomiar ciśnienia w zakresie od 50 do 115 kpa Dokładność 1 kpa Zasilanie napięciem od 2,375 do 5,5 V Interfejs SPI 9

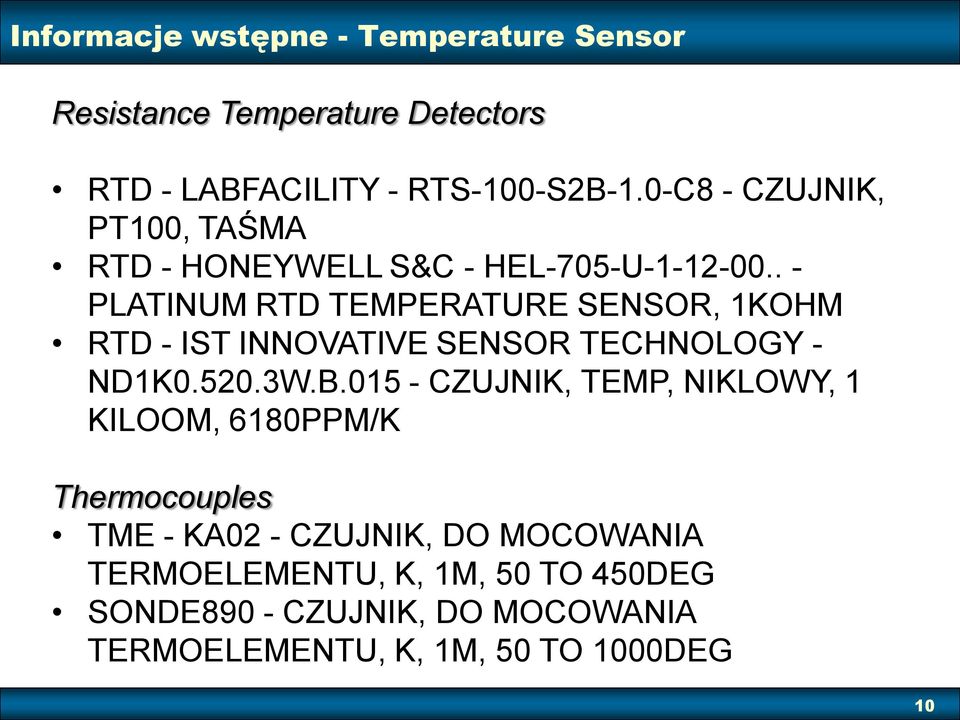

10 Informacje wstępne - Temperature Sensor Resistance Temperature Detectors RTD - LABFACILITY - RTS-100-S2B-1.0-C8 - CZUJNIK, PT100, TAŚMA RTD - HONEYWELL S&C - HEL-705-U PLATINUM RTD TEMPERATURE SENSOR, 1KOHM RTD - IST INNOVATIVE SENSOR TECHNOLOGY - ND1K W.B CZUJNIK, TEMP, NIKLOWY, 1 KILOOM, 6180PPM/K Thermocouples TME - KA02 - CZUJNIK, DO MOCOWANIA TERMOELEMENTU, K, 1M, 50 TO 450DEG SONDE890 - CZUJNIK, DO MOCOWANIA TERMOELEMENTU, K, 1M, 50 TO 1000DEG 10

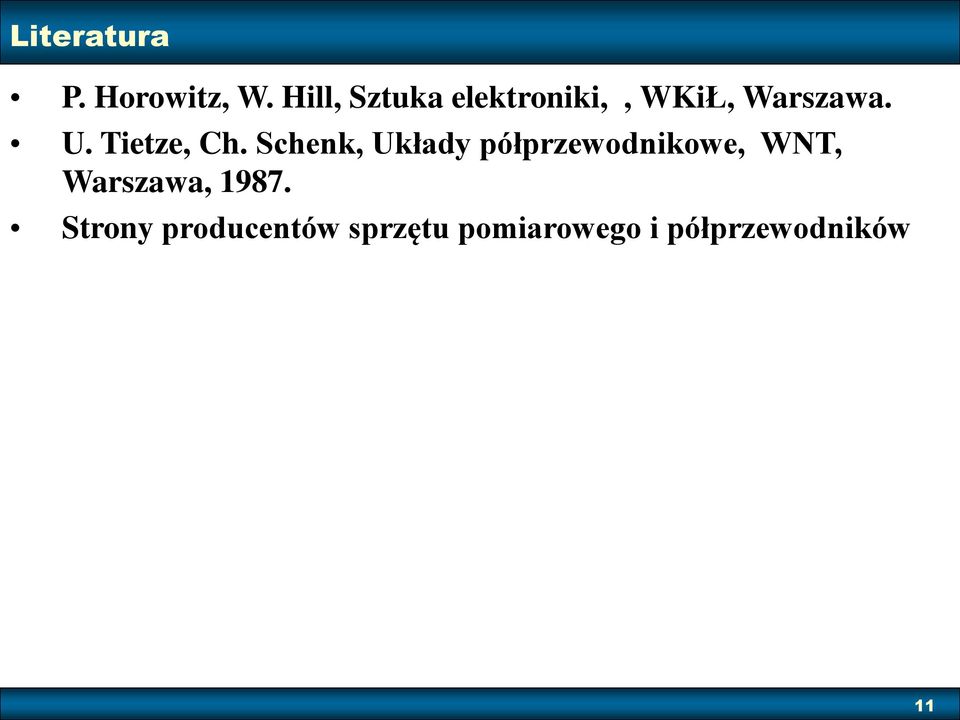

11 Literatura P. Horowitz, W. Hill, Sztuka elektroniki,, WKiŁ, Warszawa. U. Tietze, Ch. Schenk, Układy półprzewodnikowe, WNT, Warszawa, Strony producentów sprzętu pomiarowego i półprzewodników 11

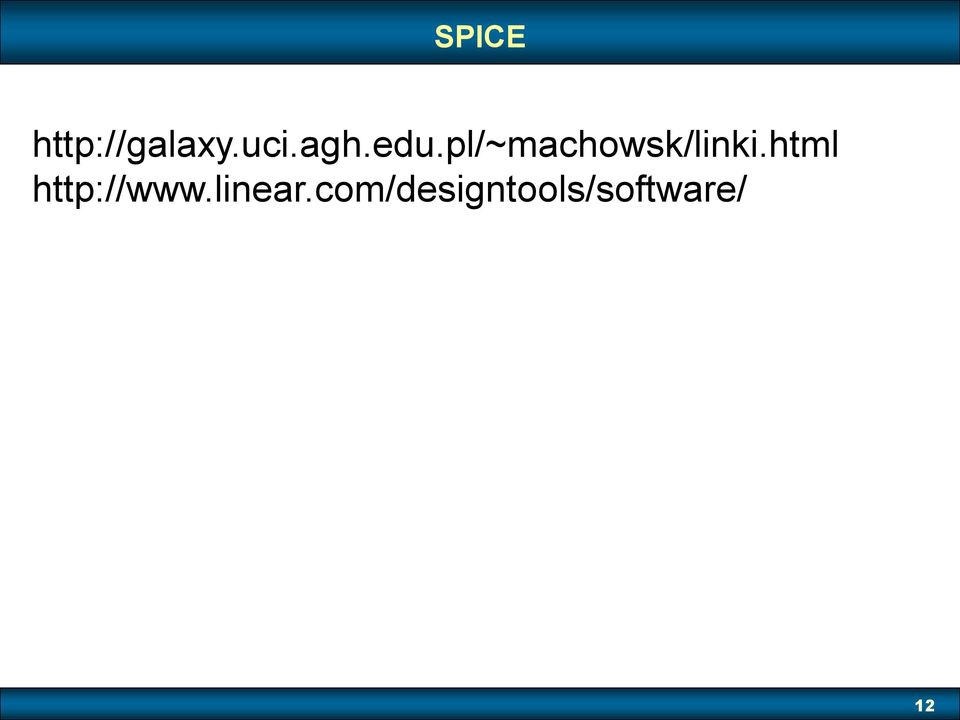

12 SPICE
