1 Table of Contents Table of Contents Elektrotechnika / elektronika 4-mm plug-in system Individual EloTrain components (4mm plugs) EloTrain power supplies Lucas Nülle GmbH 1/8

Elektrotechnika / elektronika Fundamentals of electrical engineering and electronics A comprehensive education in the fundamentals of electrical engineering is essential to the understanding of more

2 Elektrotechnika / elektronika Fundamentals of electrical engineering and electronics A comprehensive education in the fundamentals of electrical engineering is essential to the understanding of more complex relationships in the various applied sectors in both electrical engineering and electronics. The freedom to experiment is backed up by formal experiment literature and the use of safety extra-low voltage means that the system is even safe for complete laymen. It leads to in-depth knowledge and eventually to the kind of practical skills that form an essential basis for further education and training. 4-mm plug-in system Lucas Nülle GmbH 2/8

3 4-mm plug-in system A tried and trusted plug-in system for fundamental education The EloTrain plug-in is a comprehensive set of components for performing experiments in the fields of electrical engineering, electronics and digital technology. The 4-mm plug-in components can be assembled in any way on an EloTrain plug-in board so that electronic circuits of any size can be set up, operated and tested. The plug-in modules include both passive and active electronic components with contacts formed by 4-mm laminated plugs. When inserted into the plug-in board, the plugs hold the components firmly in place, while simultaneously making electrical connections between the board s nodes. Leads and jumpers can then be used to form links to other nodes on the board as well as other components or measuring instruments. The 4mm plug-in components are available in three sizes with two, four or six terminals. For components requiring more terminals than this, additional sockets are provided on top of the module. The housings are comprised of three plastic parts clipped together. The white top part features a scratch-proof, high-contrast print of the component s circuit diagram or symbol along with a type name for the component. The transparent body is made of extremely tough see-through plastic allowing the inside of the component to be seen. The base plate is also made containing 4-mm laminated plugs and joined to the body via an easy-to-open ratchet clip for repair purposes. High-power elements are contained in open, light-metal housings for improved heat dissipation. The components designed for digital technology experiments are provided with power via 4 laminated plugs. Digital inputs and outputs are made available on the top of the modules and can be linked together by means of leads tipped with 2-mm plugs. Lucas Nülle GmbH 3/8

Individual EloTrain components (4mm plugs) Individual EloTrain components (4mm plugs) You can put together a set of components tailored specifically to your own needs or select individual components

4 Individual EloTrain components (4mm plugs) Individual EloTrain components (4mm plugs) You can put together a set of components tailored specifically to your own needs or select individual components from our extensive range of modules. Extensive range of modules featuring both active and passive components Wide variety of plug-in boards for various needs Multi-function power supplies and measuring instruments Manuals conveying knowledge of electrical fundamentals as well as more complex experiments and everything in between Storage systems to keep components safe Lucas Nülle GmbH 4/8

EloTrain power supplies EloTrain power supplies Multi-functional, compact power supply plus function generator and three-phase supply for all basic and advanced experiments in the areas of

5 EloTrain power supplies EloTrain power supplies Multi-functional, compact power supply plus function generator and three-phase supply for all basic and advanced experiments in the areas of electrical engineering, electronics and digital technology. The equipment is available in the form of a desk-top unit or for mounting in a 3HU power supply duct. Lucas Nülle GmbH 5/8

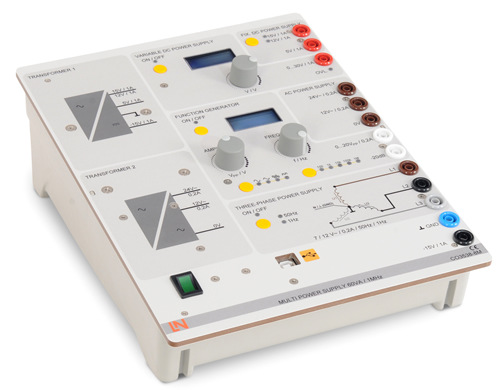

6 List of articles: Pos. nazwa produktu Bestell-Nr. Anz. 1 Zasilacz 4 x DC, 2 x AC, 3 fazowy, generator funkcyjny CO3538-8M 1 Wielofunkcyjne, kompaktowe źródło zasilania z generatorem funkcyjnym i trójfazowe źródło, dostosowane do podstawowych lub zaawansowanych eksperymentów w zakresie elektryki, elektroniki i techniki cyfrowej. Może być używane jako samodzielne, wolno stojące urządzenie lub montowane w ramie do eksperymentów. Źródło zasilania wyposażone jest w izolację ochronną i nadaje się do zastosowań niskonapięciowych (SELV) w zgodności z EN Do połączenia wystarczy standardowa wtyczka 230 V. Wszystkie wyjścia posiadają samo resetujące wyłączniki pozwalające na bezpieczne odcięcie napięcia w wypadku przeładowania. Sprzęt nie wymaga konserwacji i jest przystosowany do obsługi przez początkujących. Nowoczesna technologia zasilania zapewnia niskie zużycie energii i zmniejszoną utratę energii. Ustabilizowane napięcie o stałej wartości, +15 V, -15 V, oba 1 A Ustabilizowane napięcie o stałej wartości, +15 V, +5 V, 1 A Ustabilizowane napięcie o stałej wartości dla pojazdów, 12 V, 1 A Ustabilizowane, regulowane napięcie V, 1 A z regulowanym limitem prądu Napięcia AC, 12V, 24V, oba 200 ma, 50 Hz Trójfazowy generator z 3 fazami i N Amplituda 3 x 7/12 V Maks. prąd wyjściowy 3 x 200 ma, Częstotliwość 1 Hz lub 50 Hz Generator funkcyjny 0,1 Hz... 1 MHz w 5 zakresach Sygnały wyjściowe: sinusoidalny, trójkątny, prostokątny, cyfrowy Napięcie wyjściowe: -10 V V Wyjście z tłumikiem: 10:1 Maks. prąd wyjściowy: 200 ma Odporność na spięcia z samoczynnie resetującymi się wyłącznikami na wszystkich wyjściach 6 przycisków do różnych zastosowań 17 diod LED do użycia jako wskaźniki statusu 2 wyświetlacze LCD z niebieskim podświetleniem Wyświetlanie napięcia DC, prądu i ograniczenia napięcia Wyświetlanie napięcia AC i częstotliwości Port USB umożliwiający kontrolowanie źródeł napięcia przez komputer Podświetlany przełącznik zasilania Płyta eksperymentalna z obudową do konsoli Wymiary: 297 mm x 228 mm x 100 mm Waga: 3,5 kg Lucas Nülle GmbH 6/8

2 Multi-function power supply: DC, AC, 3-phase,function generator, 60PU ST8008-6K 1 Multifunctional compact power supply including function generator and three-phase source, suitable for any basic or

7 2 Multi-function power supply: DC, AC, 3-phase,function generator, 60PU ST8008-6K 1 Multifunctional compact power supply including function generator and three-phase source, suitable for any basic or advanced experiments in the fields of electrical engineering, electronics and digital technology. The power supply has protective isolation and provides safety extra-low voltages in compliance with EN All outputs have self-resetting circuit breakers to cut off the power safely in the event of a current overload. The equipment is maintenancefree and especially suited for use by beginners. Modern switchedmode power supply technology allows for low power consumption and reduces power. Stabilised fixed voltages, +15V, -15V, both 1A Stabilised fixed voltage, +5V,1A Stabilised fixed voltage for vehicles, 12V, 1A Stabilised adjustable voltage, V, 1 A AC voltages, 12V, 24V, both 200mA, 50 Hz Three-phase generator with 3 phases and N Amplitude 3 x 7/12V Output current max. 3 x 200 ma, Frequency 1Hz or 50Hz Function generator 0.1 Hz kHz in 5 ranges Output signals: sine-wave, triangle, square-wave, digital Output voltage - 10V V Output with attenuator: 10:1 Output current max.: 200mA Short-circuit-proof or with self-resetting circuit breakers on all outputs 5 buttons for various functions 17 LEDs for use as signal lights Illuminated mains switch Dimensions: 3HU/60PU Lucas Nülle GmbH 7/8

8 3 Table-top housing for 60 PU inserts incl. connection for nonheating components ST8008-7K 1 3HU table-top housing, 230 V Including low-power connector for non-heating apparatus Housing made of aluminium profiles Fold-away stand Fitting for attaching 3HU modules Width of insert 60PU Lucas Nülle GmbH 8/8
