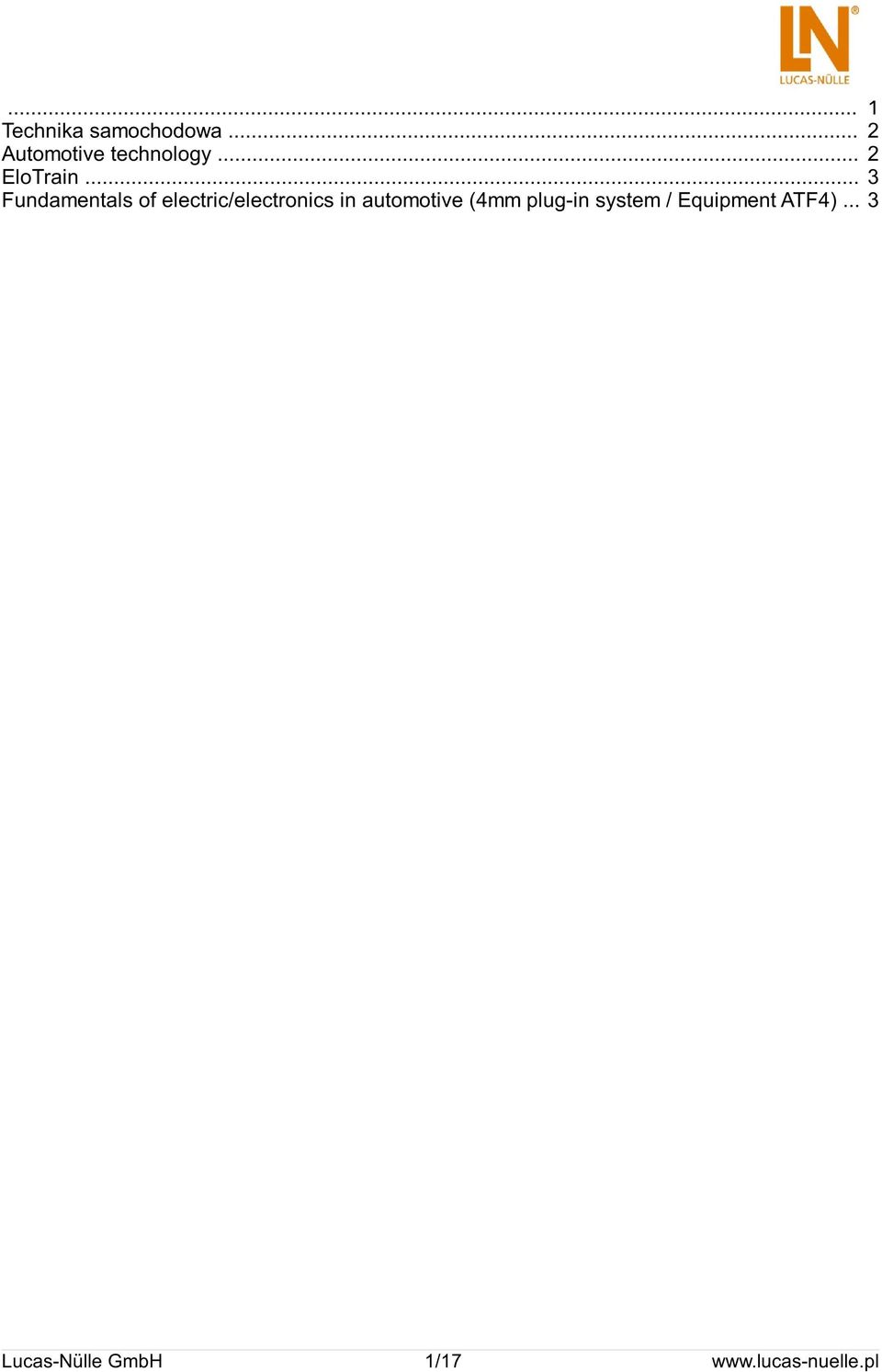

1 ... 1 Technika samochodowa... 2 Automotive technology... 2 EloTrain... 3 Fundamentals of electric/electronics in automotive (4mm plug-in system / Equipment ATF4)... 3 Lucas-Nülle GmbH 1/17

2 Technika samochodowa Automotive technology Automotive technology Teaching fundamentals is always the vital cornerstone for solid and efficient education. Several training courses have been specifically developed for this topic area to teach trainees step by step the basic knowledge to be covered in detail at a later date. The courses are particularly suited for school education and require little or no previous knowledge. Each multimedia course starts by imparting the theoretical foundations before solidifying that knowledge by means of practical measurements. The particular focus is on handling measuring instruments and the way that simple electric circuits operate. Lucas-Nülle GmbH 2/17

3 EloTrain EloTrain Please choose your product: Lucas-Nülle GmbH 3/17

4 Fundamentals of electric/electronics in automotive (4mm plug-in system / Equipment ATF4) Fundamentals of electric/electronics in automotive (4mm plug-in system / Equipment ATF4) The growing significance of electric and electronic components in motor vehicles necessitates practical training in the fundamentals of electronics and electrics. Specially tailored to the demands of automotive, the experiments allow clear understanding of this extensive subject. Lucas-Nülle GmbH 4/17

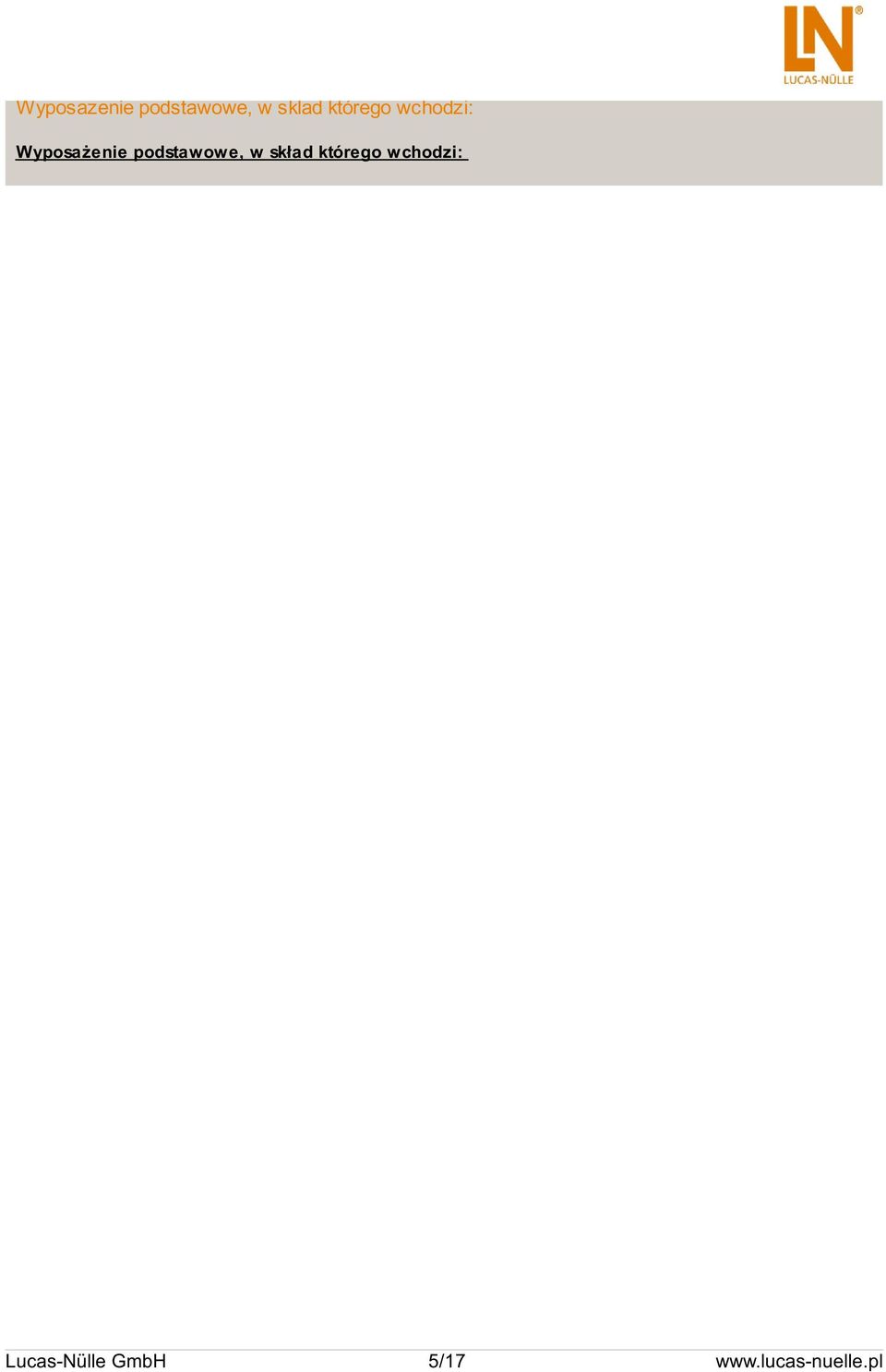

5 Wyposazenie podstawowe, w sklad którego wchodzi: Wyposażenie podstawowe, w skład którego wchodzi: Lucas-Nülle GmbH 5/17

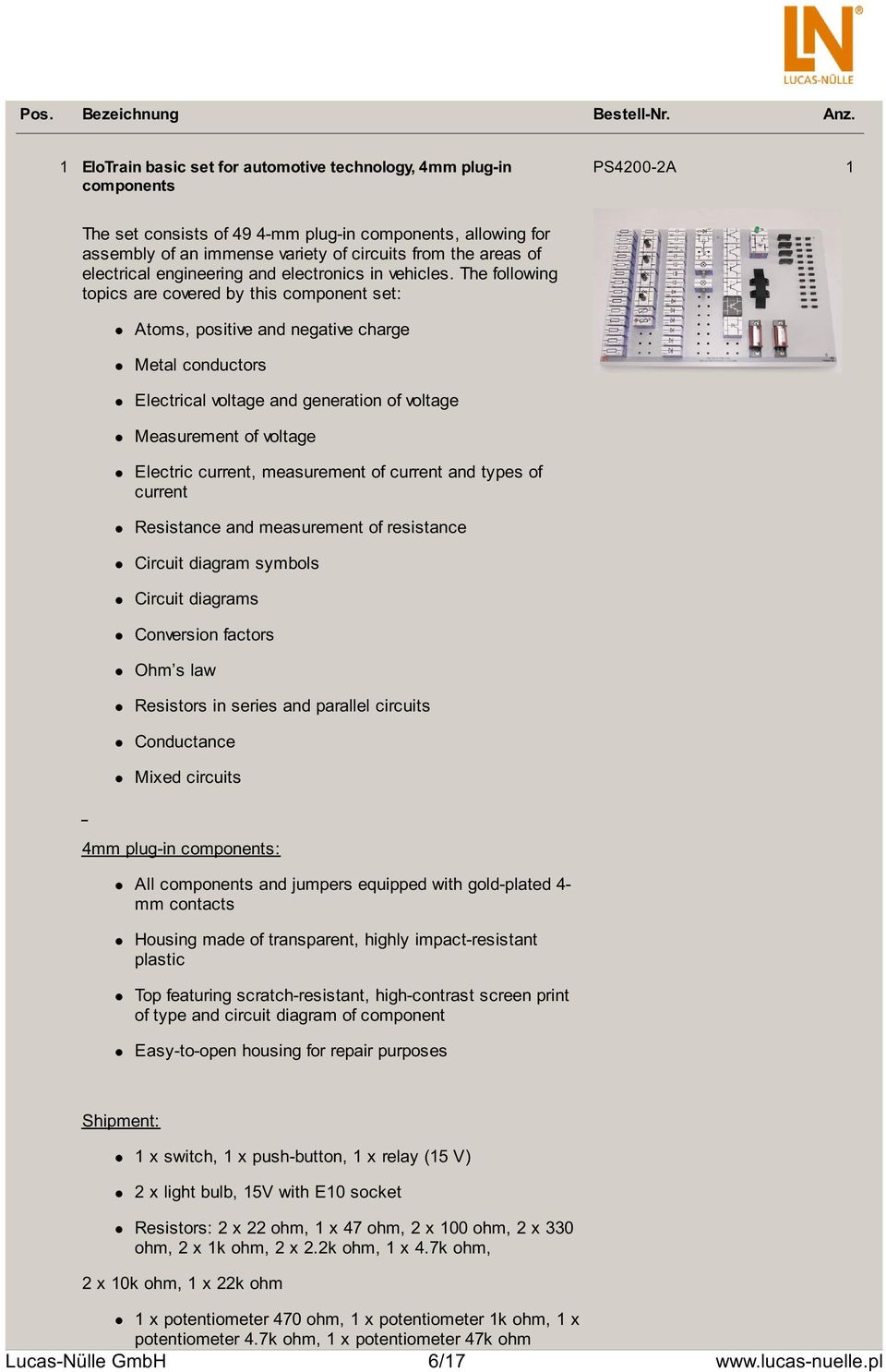

6 Pos. Bezeichnung Bestell-Nr. Anz. 1 EloTrain basic set for automotive technology, 4mm plug-in components PS4200-2A 1 The set consists of 49 4-mm plug-in components, allowing for assembly of an immense variety of circuits from the areas of electrical engineering and electronics in vehicles. The following topics are covered by this component set: Atoms, positive and negative charge Metal conductors Electrical voltage and generation of voltage Measurement of voltage Electric current, measurement of current and types of current Resistance and measurement of resistance Circuit diagram symbols Circuit diagrams Conversion factors Ohm s law Resistors in series and parallel circuits Conductance Mixed circuits 4mm plug-in components: All components and jumpers equipped with gold-plated 4- mm contacts Housing made of transparent, highly impact-resistant plastic Top featuring scratch-resistant, high-contrast screen print of type and circuit diagram of component Easy-to-open housing for repair purposes Shipment: 1 x switch, 1 x push-button, 1 x relay (15 V) 2 x light bulb, 15V with E10 socket Resistors: 2 x 22 ohm, 1 x 47 ohm, 2 x 100 ohm, 2 x 330 ohm, 2 x 1k ohm, 2 x 2.2k ohm, 1 x 4.7k ohm, 2 x 10k ohm, 1 x 22k ohm 1 x potentiometer 470 ohm, 1 x potentiometer 1k ohm, 1 x potentiometer 4.7k ohm, 1 x potentiometer 47k ohm Lucas-Nülle GmbH 6/17

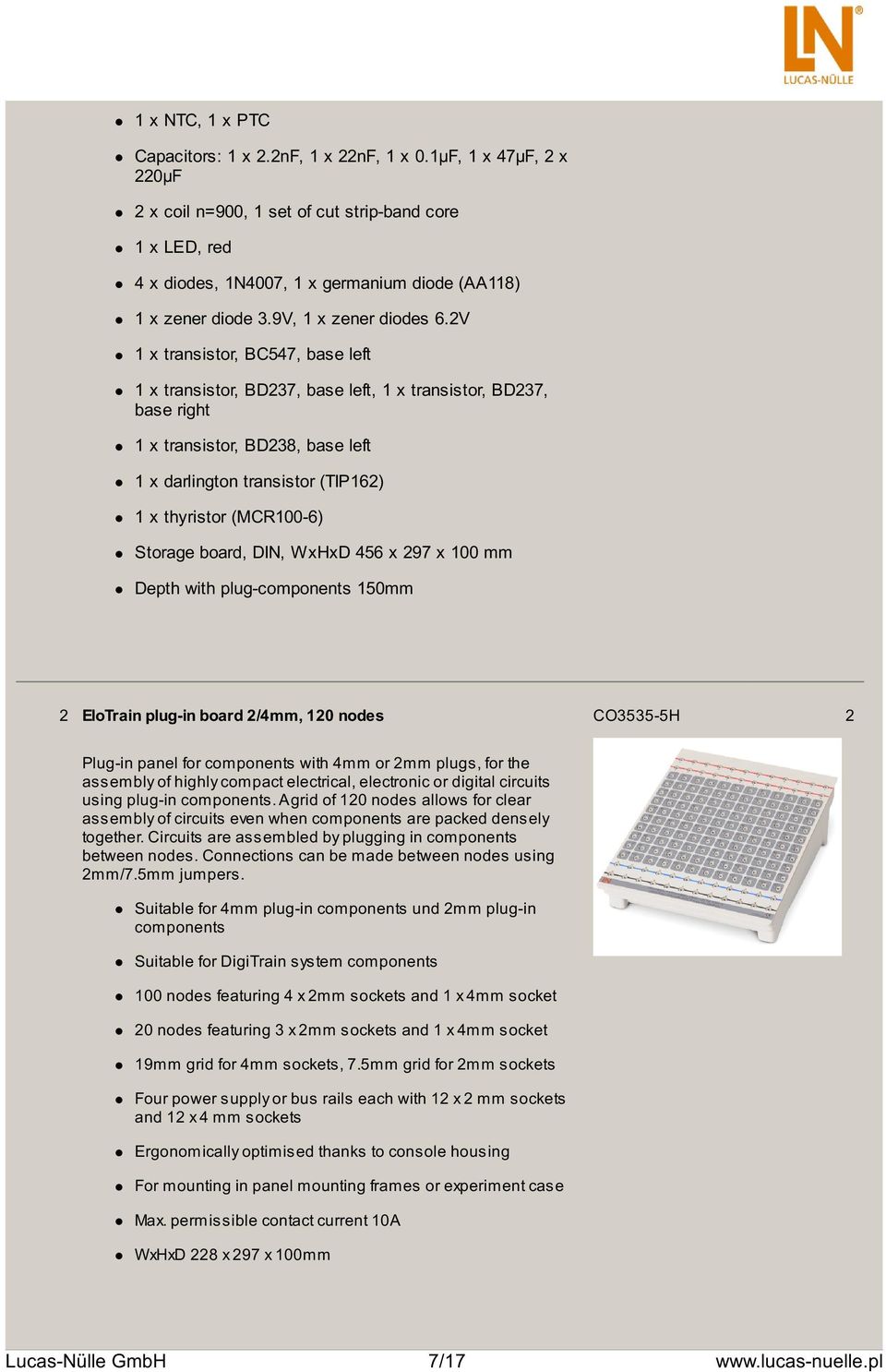

7 1 x NTC, 1 x PTC Capacitors: 1 x 2.2nF, 1 x 22nF, 1 x 0.1µF, 1 x 47µF, 2 x 220µF 2 x coil n=900, 1 set of cut strip-band core 1 x LED, red 4 x diodes, 1N4007, 1 x germanium diode (AA118) 1 x zener diode 3.9V, 1 x zener diodes 6.2V 1 x transistor, BC547, base left 1 x transistor, BD237, base left, 1 x transistor, BD237, base right 1 x transistor, BD238, base left 1 x darlington transistor (TIP162) 1 x thyristor (MCR100-6) Storage board, DIN, WxHxD 456 x 297 x 100 mm Depth with plug-components 150mm 2 EloTrain plug-in board 2/4mm, 120 nodes CO3535-5H 2 Plug-in panel for components with 4mm or 2mm plugs, for the assembly of highly compact electrical, electronic or digital circuits using plug-in components. A grid of 120 nodes allows for clear assembly of circuits even when components are packed densely together. Circuits are assembled by plugging in components between nodes. Connections can be made between nodes using 2mm/7.5mm jumpers. Suitable for 4mm plug-in components und 2mm plug-in components Suitable for DigiTrain system components 100 nodes featuring 4 x 2mm sockets and 1 x 4mm socket 20 nodes featuring 3 x 2mm sockets and 1 x 4mm socket 19mm grid for 4mm sockets, 7.5mm grid for 2mm sockets Four power supply or bus rails each with 12 x 2 mm sockets and 12 x 4 mm sockets Ergonomically optimised thanks to console housing For mounting in panel mounting frames or experiment case Max. permissible contact current 10A WxHxD 228 x 297 x 100mm Lucas-Nülle GmbH 7/17

8 Lucas-Nülle GmbH 8/17

9 Materialy szkoleniowe: Materiały szkoleniowe: Lucas-Nülle GmbH 9/17

10 Pos. Bezeichnung Bestell-Nr. Anz. 3 Manual, EloTrain: Fundamentals of elec. eng./electronics in vehicles 1 SH5005-1V 1 High-quality, bound, colour teachers manual with rigid spine, including solutions. CD-ROM with additional students manual, including exercises and worksheets. Details: Theoretical background Colour CAD drawings for experiment set-ups and circuits Exercises and worksheets Printed on high-quality 100-g/m² colour copy paper, book cover on 210-g/m² glossy paper Training contents: The plug-in component system Plug-in components Multi power supply The atom Positive and negative electrical charges Metallic conductors Electric voltage Voltage generation Voltage measurement Electric current Measuring electric power Measuring current Resistance Measuring resistance Current types Circuit symbols Circuit diagrams Block diagrams Connection diagrams Wiring diagrams Conversion factors Conversion exercises Lucas-Nülle GmbH 10/17

11 Voltage drop Ohm s law Calculation exercises based on Ohm s law Sample solutions of calculation exercises Series connection of resistors Measuring series connections Calculation exercises based on series connections Sample solutions for computing exercises Parallel connection of resistors Measurements on parallel circuit connections Conductance Calculation exercises based on parallel circuit connections Sample solutions for computing exercises Mixed circuitry Measurements on mixed circuitry Calculation exercises based on mixed circuitry Sample solutions for computing exercises Lucas-Nülle GmbH 11/17

12 Zasilanie elektryczne: Pos. Bezeichnung Bestell-Nr. Anz. 4 Multi Power Supply 4x DC, 2x AC, 3-phase, function generator CO3538-8N 1 Multifunctional compact power supply including function generator and three-phase source, suitable for any basic or advanced experiments in the fields of electrical engineering, electronics and digital technology. The power supply has protective isolation and provides safety extra-low voltages in compliance with EN To connect and operate the device only requires a standard 230V mains socket. All outputs have self-resetting circuit breakers to cut off the power safely in the event of a current overload. The equipment is maintenance-free and especially suited for use by beginners. Modern power supply technology allows for low power consumption and reduces power. Stabilised fixed voltages, +15V, -15V, both 1A Stabilised fixed voltage, +5V,1A Stabilised fixed voltage for vehicles, 12V, 1A Stabilised adjustable voltage, V, A, AC voltages, 12V, 24V, both 200mA, 50 Hz Three-phase generator with 3 phases and N - Amplitude 3 x 7/12V - Output current max. 3 x 200 ma, - Frequency 1Hz or 50Hz Function generator Hz kHz in 5 ranges - Output signals: sine-wave, triangle, square-wave, digital - Output voltage - 10V V - Output with attenuator: 10:1 - Output current max.: 300mA - Short-circuit-proof or with self-resetting circuit breakers on all outputs 6 buttons for various functions 14 LEDs for use as signal lights Experiment board with console housing, 297mm x 228mm x 100mm Illuminated mains switch Supply 230 V, Hz; 1.5m mains lead with europlug Lucas-Nülle GmbH 12/17

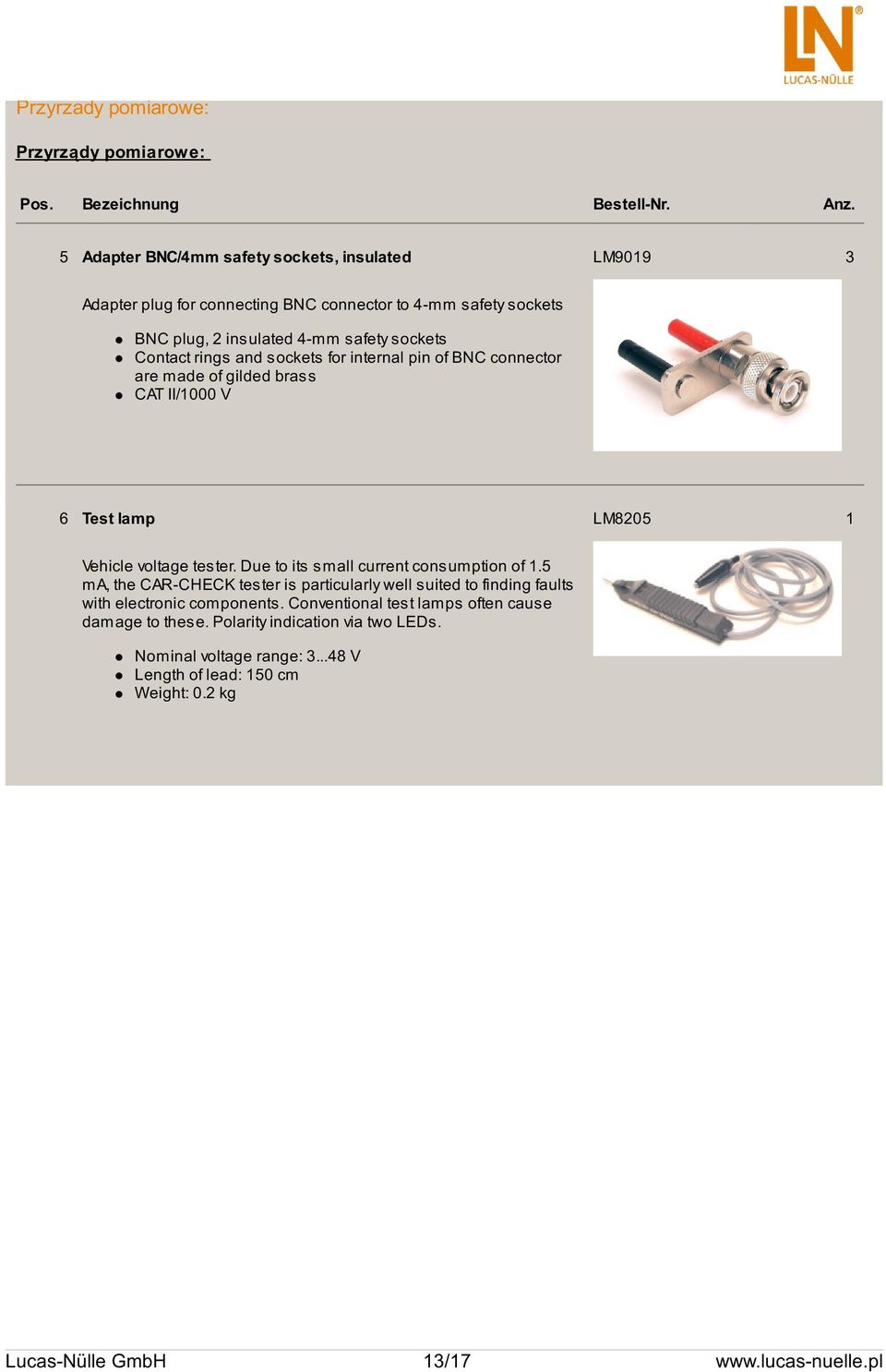

13 Przyrzady pomiarowe: Przyrządy pomiarowe: Pos. Bezeichnung Bestell-Nr. Anz. 5 Adapter BNC/4mm safety sockets, insulated LM Adapter plug for connecting BNC connector to 4-mm safety sockets BNC plug, 2 insulated 4-mm safety sockets Contact rings and sockets for internal pin of BNC connector are made of gilded brass CAT II/1000 V 6 Test lamp LM Vehicle voltage tester. Due to its small current consumption of 1.5 ma, the CAR-CHECK tester is particularly well suited to finding faults with electronic components. Conventional test lamps often cause damage to these. Polarity indication via two LEDs. Nominal voltage range: V Length of lead: 150 cm Weight: 0.2 kg Lucas-Nülle GmbH 13/17

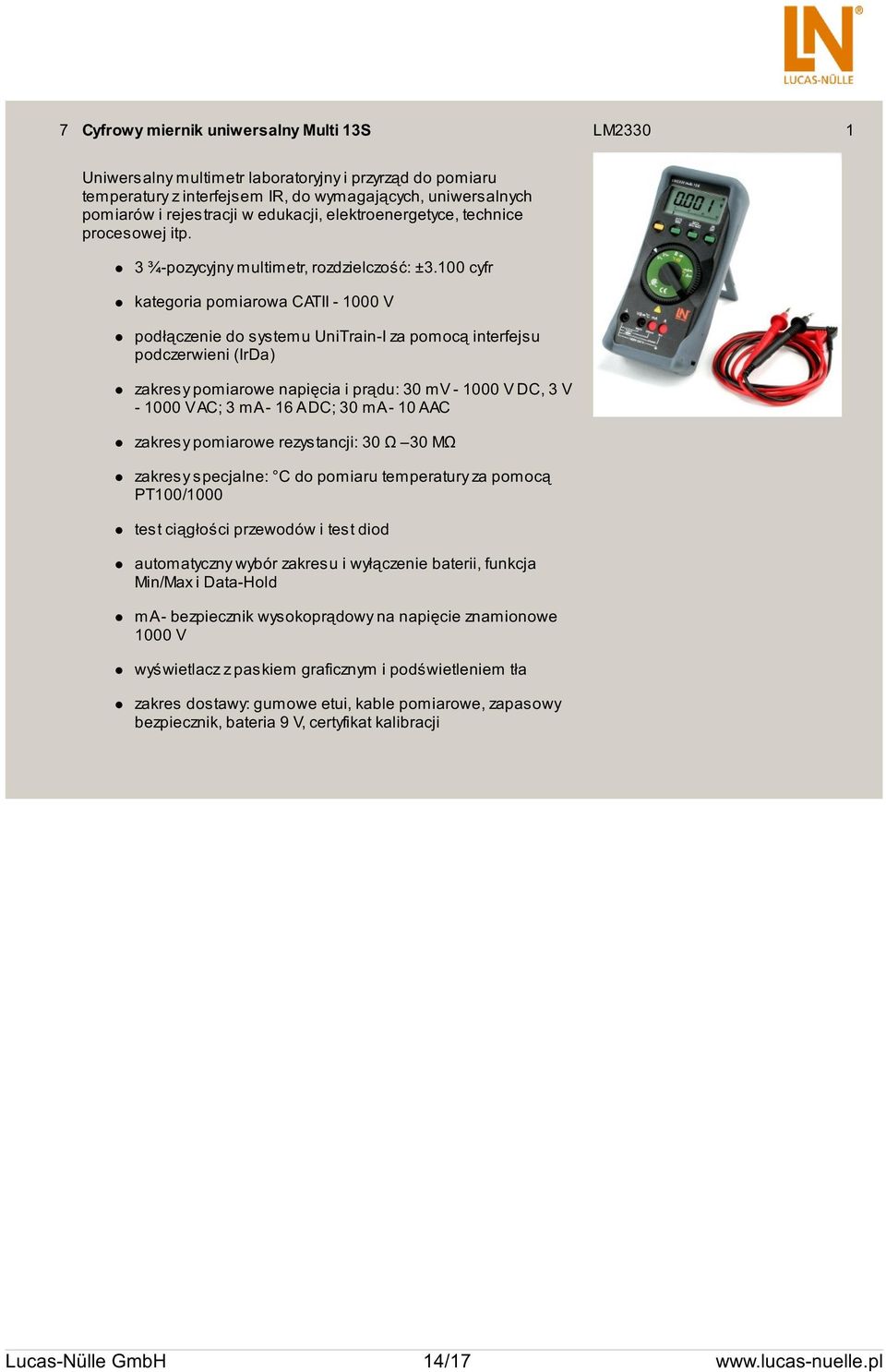

14 7 Cyfrowy miernik uniwersalny Multi 13S LM Uniwersalny multimetr laboratoryjny i przyrząd do pomiaru temperatury z interfejsem IR, do wymagających, uniwersalnych pomiarów i rejestracji w edukacji, elektroenergetyce, technice procesowej itp. 3 ¾-pozycyjny multimetr, rozdzielczość: ±3.100 cyfr kategoria pomiarowa CATII V podłączenie do systemu UniTrain-I za pomocą interfejsu podczerwieni (IrDa) zakresy pomiarowe napięcia i prądu: 30 mv V DC, 3 V V AC; 3 ma - 16 A DC; 30 ma - 10 A AC zakresy pomiarowe rezystancji: 30 Ω 30 MΩ zakresy specjalne: C do pomiaru temperatury za pomocą PT100/1000 test ciągłości przewodów i test diod automatyczny wybór zakresu i wyłączenie baterii, funkcja Min/Max i Data-Hold ma - bezpiecznik wysokoprądowy na napięcie znamionowe 1000 V wyświetlacz z paskiem graficznym i podświetleniem tła zakres dostawy: gumowe etui, kable pomiarowe, zapasowy bezpiecznik, bateria 9 V, certyfikat kalibracji Lucas-Nülle GmbH 14/17

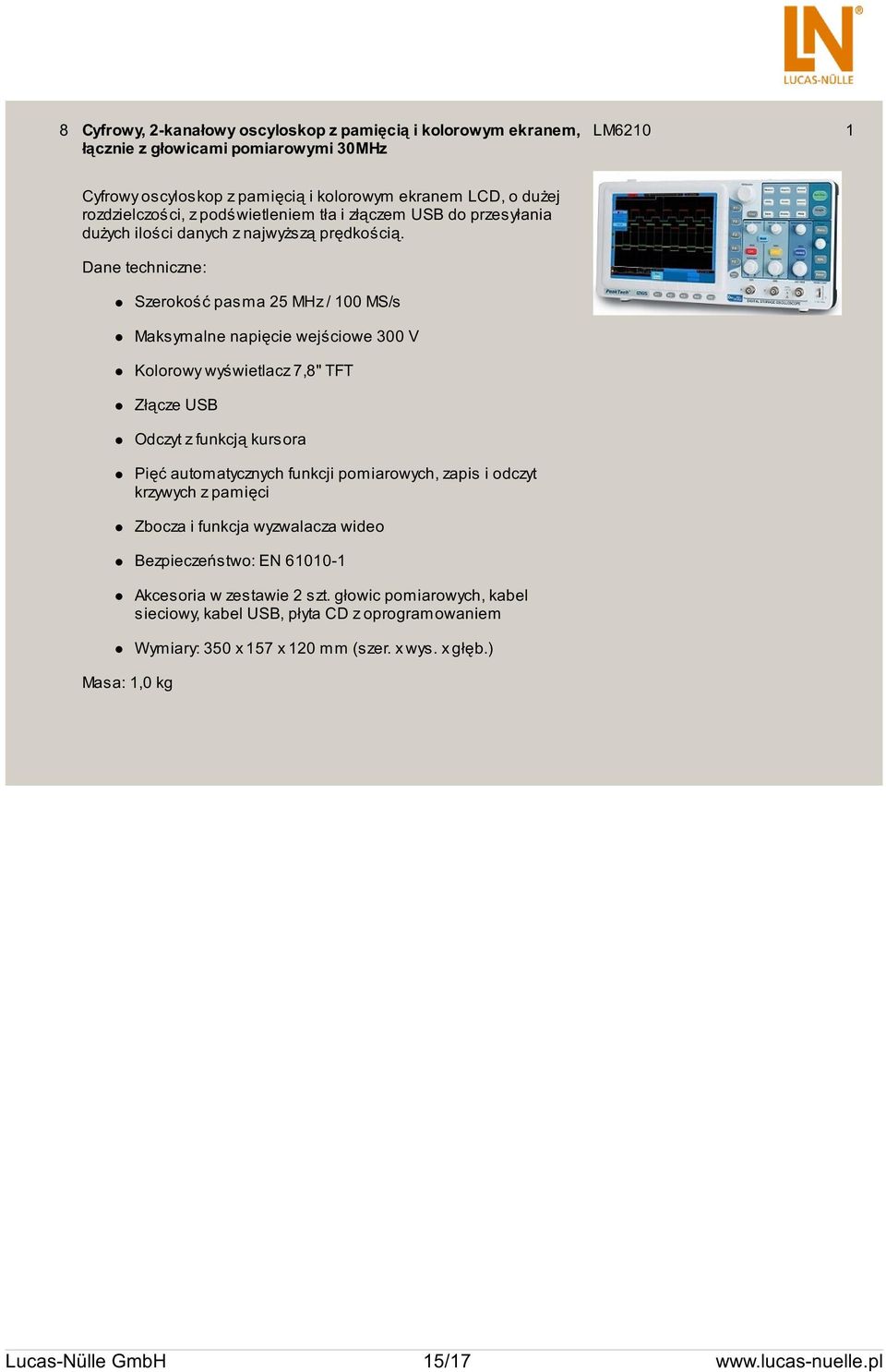

15 8 Cyfrowy, 2-kanałowy oscyloskop z pamięcią i kolorowym ekranem, łącznie z głowicami pomiarowymi 30MHz LM Cyfrowy oscyloskop z pamięcią i kolorowym ekranem LCD, o dużej rozdzielczości, z podświetleniem tła i złączem USB do przesyłania dużych ilości danych z najwyższą prędkością. Dane techniczne: Masa: 1,0 kg Szerokość pasma 25 MHz / 100 MS/s Maksymalne napięcie wejściowe 300 V Kolorowy wyświetlacz 7,8" TFT Złącze USB Odczyt z funkcją kursora Pięć automatycznych funkcji pomiarowych, zapis i odczyt krzywych z pamięci Zbocza i funkcja wyzwalacza wideo Bezpieczeństwo: EN Akcesoria w zestawie 2 szt. głowic pomiarowych, kabel sieciowy, kabel USB, płyta CD z oprogramowaniem Wymiary: 350 x 157 x 120 mm (szer. x wys. x głęb.) Lucas-Nülle GmbH 15/17

16 Akcesoria: Pos. Bezeichnung Bestell-Nr. Anz. 9 EloTrain set of connection cables and plugs for 4mm system SO5146-1M 1 EloTrain measuring lead and plug set 4 mm-system: 12 measuring leads, 2mm, 15cm, blue 12 measuring leads, 2mm, 15cm, yellow 2 measuring leads, 2mm, 45cm, black 4 measuring leads, 2mm, 45cm, red 2 measuring leads, 2mm, 45cm, blue 1 measuring lead, 4 to 2mm, 50cm, black 1 measuring lead, 4 to 2mm, 50cm, red 60 jumpers 2mm / 7.5mm, black 2 jumpers 4mm / 19mm, black 2 safety-jumpers 4mm / 19mm, red 1 safety-jumper 4mm / 19mm, blue 2 safety-jumpers 4mm / 19mm, black 2 safety-jumpers 4mm / 19mm, white Lucas-Nülle GmbH 16/17

17 Opcjonalne akcesoria: Pos. Bezeichnung Bestell-Nr. Anz. 10 EloTrain case to hold DIN A3 boards for storing plug-in components SO5127-3B 1 Handy aluminium profile case with handle and removable lid for storing a complete experiment system with 4mm and/or 2mm plug-in components, incl. a printed storage panel for the accommodation of the EloTrain basic equipment set, the automotive equipment set or additional component sets to be integrated into the removable lid. Capable of accommodating a power supply and universal plug-in board both measuring 456mm in width Capable of accommodating more than 100 plug-in components in the lid Locking compartment for small parts and experiment leads Closable locks with strong hinges Colours: plain aluminium, black, chrome Dimensions: 820 x 320 x 200mm Weight: 3kg Lucas-Nülle GmbH 17/17
