2 Pneumatyka/hydraulika Hydraulics trainer Pneumatics trainer PBC / PEC Pneumatics and Electro-Pneumatics PBC / PEC Pneumatics and Electro-Pneumatics Lucas-Nülle GmbH 2/10

3 PBC 11 BIBB pneumatics set PBC 11 BIBB pneumatics set The pneumatics training set for BiBB (German vocational training institute) schemes is suitable for training objectives and contents for vocational and advanced professional training of technicians as specified by Germany s vocational training institute, the Bundesinstitut für Berufsbildung. It covers the fundamentals of pneumatics based on authentic industrial products. Project exercises: Direct control, single-acting cylinder, extending Direct control, single-acting cylinder, retracting Indirect control, single-acting cylinder Velocity control, single-acting cylinder Quick moving back, single-acting cylinder Direct control, double-acting cylinder with button Indirect control, double-acting cylinder Velocity control, double-acting cylinder Control of double-acting cylinders, pulse valve, 2 manual buttons Distance dependent control of double-acting cylinders, pulse valve Control of double-acting cylinders, pulse valve, 2 reflex nozzles Stop control, double-acting cylinder, 5/3 directional valve, pulling load Pressure-dependent control, 1 double-acting cylinder Time-dependent control, 1 double-acting cylinder Connection control with shuttle and two-pressure valves Signal control, 2 double-acting cylinders, without signal overlapping Sequence control, 2 double-acting cylinders, signal overlapping, roller levers with idle return Sequence control, 2 double-acting cylinders, signal overlapping, switchover valve Grafcet Lucas-Nülle GmbH 3/10

4 Wyposazenie podstawowe, w sklad którego wchodzi: Wyposażenie podstawowe, w skład którego wchodzi: 1 Basic pneumatic kit according to BiBB A-H SE2905-1C 1 Materialy szkoleniowe: Materiały szkoleniowe: 2 Project manuals Pneumatic - Manual/pneumatic operating (GB) SO5153-5R 1 3 Project manuals Pneumatic - Electrical operating (GB) SO5153-5S 1 Akcesoria: 4 Sprężarka, cichobieżna SE2902-9L 1 5 Mobile aluminium experiment stand for pneumatics and hydraulics ST7200-3W 1 6 Grooved plate 1130 x 700 x 30 mm SE2905-8A 1 7 Wall or aluminium-profile mounting cable storage for 48 cables ST8003-8E 2 8 Ochronne etui na mobilne stanowisko doświadczalne 3-piętrowe ST8010-9Y 1 9 Osuszacz membranowy IDG3 z szybkozłączem i filtrem AF20 z separatorem wody LM Lucas-Nülle GmbH 4/10

5 Opcjonalne akcesoria: 10 Uchwyt do płaskiego monitora do 5 kg do zamocowania na profilu aluminiowym, VESA 75/100 ST8010-4L 1 11 Uchwyt PC do stanowiska doświadczalnego SybaPro, z regulacją wysokości i szerokości ST7200-5A 1 Lucas-Nülle GmbH 5/10

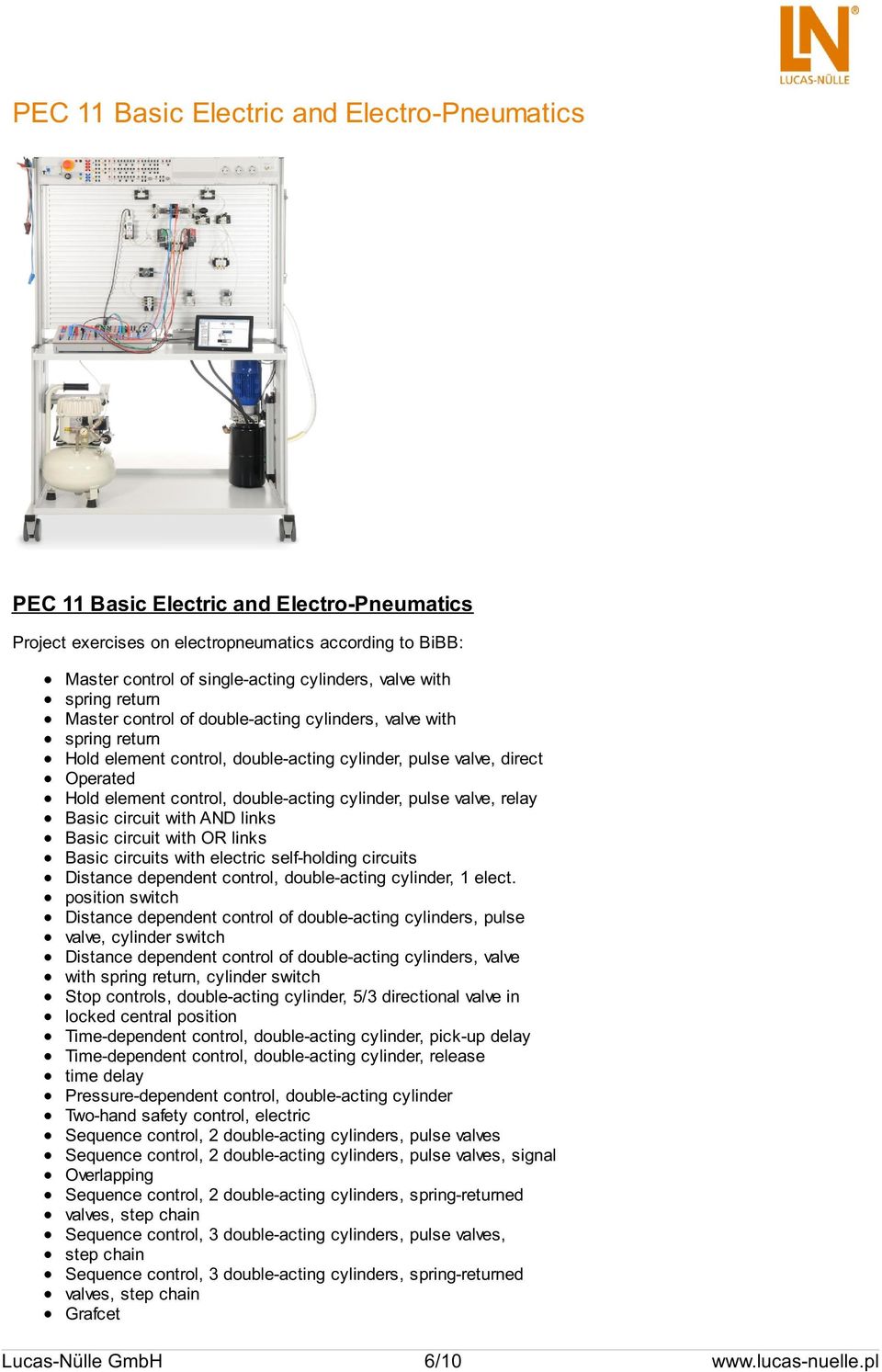

6 PEC 11 Basic Electric and Electro-Pneumatics PEC 11 Basic Electric and Electro-Pneumatics Project exercises on electropneumatics according to BiBB: Master control of single-acting cylinders, valve with spring return Master control of double-acting cylinders, valve with spring return Hold element control, double-acting cylinder, pulse valve, direct Operated Hold element control, double-acting cylinder, pulse valve, relay Basic circuit with AND links Basic circuit with OR links Basic circuits with electric self-holding circuits Distance dependent control, double-acting cylinder, 1 elect. position switch Distance dependent control of double-acting cylinders, pulse valve, cylinder switch Distance dependent control of double-acting cylinders, valve with spring return, cylinder switch Stop controls, double-acting cylinder, 5/3 directional valve in locked central position Time-dependent control, double-acting cylinder, pick-up delay Time-dependent control, double-acting cylinder, release time delay Pressure-dependent control, double-acting cylinder Two-hand safety control, electric Sequence control, 2 double-acting cylinders, pulse valves Sequence control, 2 double-acting cylinders, pulse valves, signal Overlapping Sequence control, 2 double-acting cylinders, spring-returned valves, step chain Sequence control, 3 double-acting cylinders, pulse valves, step chain Sequence control, 3 double-acting cylinders, spring-returned valves, step chain Grafcet Lucas-Nülle GmbH 6/10

7 Lucas-Nülle GmbH 7/10

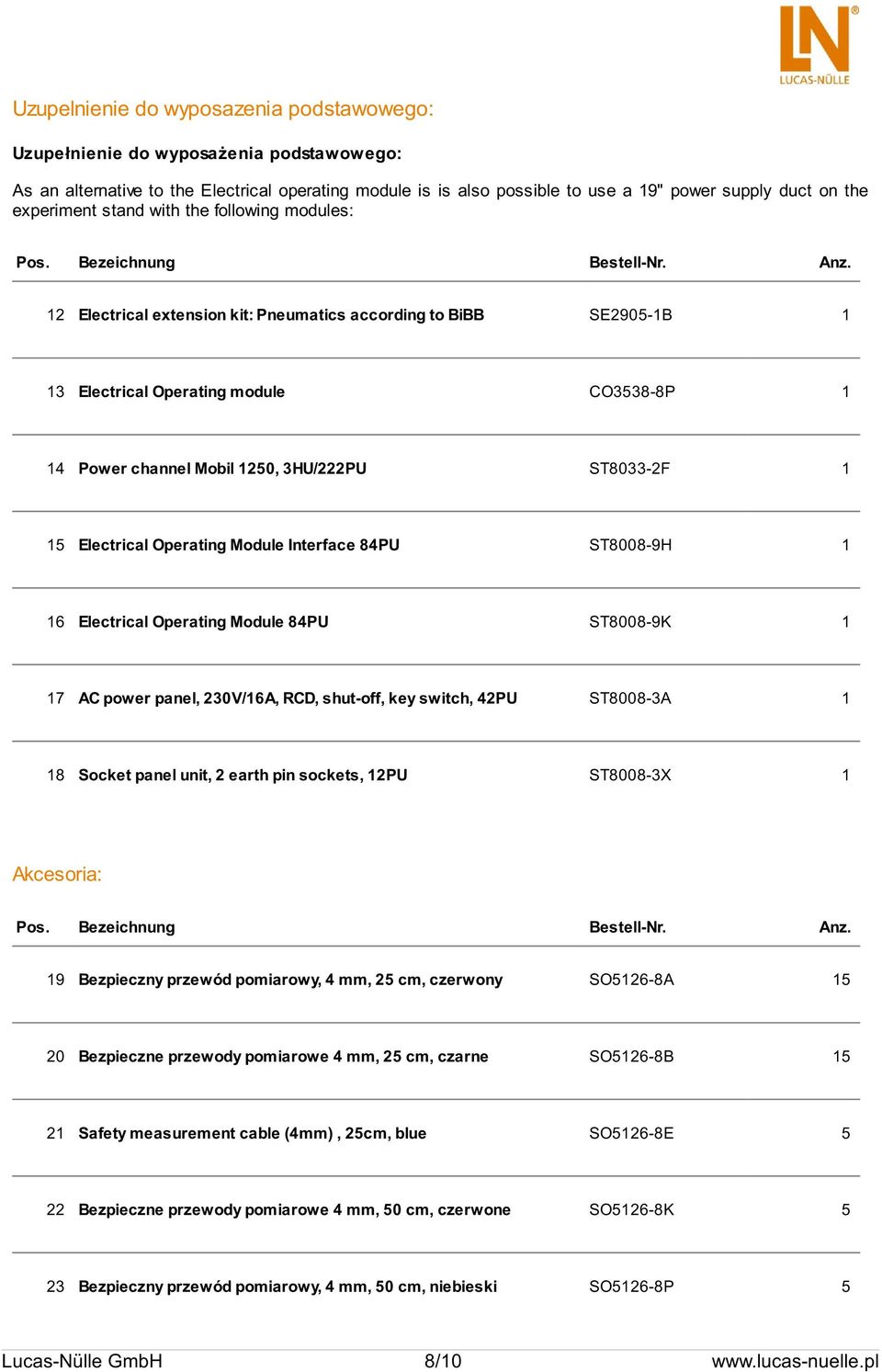

8 Uzupelnienie do wyposazenia podstawowego: Uzupełnienie do wyposażenia podstawowego: As an alternative to the Electrical operating module is is also possible to use a 19" power supply duct on the experiment stand with the following modules: 12 Electrical extension kit: Pneumatics according to BiBB SE2905-1B 1 13 Electrical Operating module CO3538-8P 1 14 Power channel Mobil 1250, 3HU/222PU ST8033-2F 1 15 Electrical Operating Module Interface 84PU ST8008-9H 1 16 Electrical Operating Module 84PU ST8008-9K 1 17 AC power panel, 230V/16A, RCD, shut-off, key switch, 42PU ST8008-3A 1 18 Socket panel unit, 2 earth pin sockets, 12PU ST8008-3X 1 Akcesoria: 19 Bezpieczny przewód pomiarowy, 4 mm, 25 cm, czerwony SO5126-8A Bezpieczne przewody pomiarowe 4 mm, 25 cm, czarne SO5126-8B Safety measurement cable (4mm), 25cm, blue SO5126-8E 5 22 Bezpieczne przewody pomiarowe 4 mm, 50 cm, czerwone SO5126-8K 5 23 Bezpieczny przewód pomiarowy, 4 mm, 50 cm, niebieski SO5126-8P 5 Lucas-Nülle GmbH 8/10

9 24 Bezpieczny przewód pomiarowy, 4 mm, 100 cm, czerwony SO5126-8U Bezpieczny przewód pomiarowy, 4 mm, 100 cm, niebieski SO5126-9A 12 Materialy szkoleniowe: Materiały szkoleniowe: 26 Project manuals Pneumatic - Manual/pneumatic operating (GB) SO5153-5R 1 27 Project manuals Pneumatic - Electrical operating (GB) SO5153-5S 1 Akcesoria: 28 Sprężarka, cichobieżna SE2902-9L 1 29 Mobile aluminium experiment stand for pneumatics and hydraulics ST7200-3W 1 30 Grooved plate 1130 x 700 x 30 mm SE2905-8A 1 31 Wall or aluminium-profile mounting cable storage for 48 cables ST8003-8E 2 32 Ochronne etui na mobilne stanowisko doświadczalne 3-piętrowe ST8010-9Y 1 33 Osuszacz membranowy IDG3 z szybkozłączem i filtrem AF20 z separatorem wody LM Lucas-Nülle GmbH 9/10

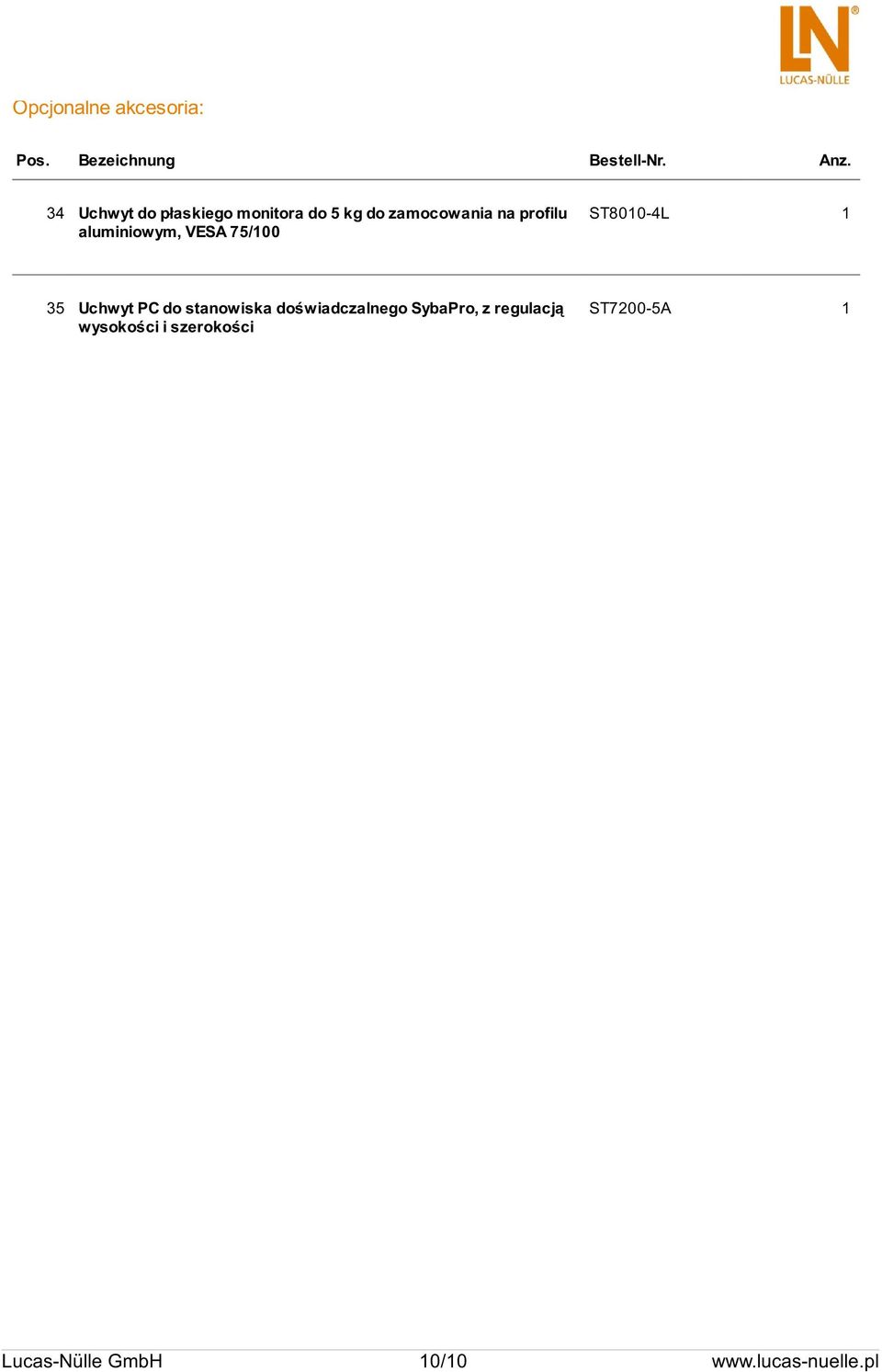

10 Opcjonalne akcesoria: 34 Uchwyt do płaskiego monitora do 5 kg do zamocowania na profilu aluminiowym, VESA 75/100 ST8010-4L 1 35 Uchwyt PC do stanowiska doświadczalnego SybaPro, z regulacją wysokości i szerokości ST7200-5A 1 Lucas-Nülle GmbH 10/10
