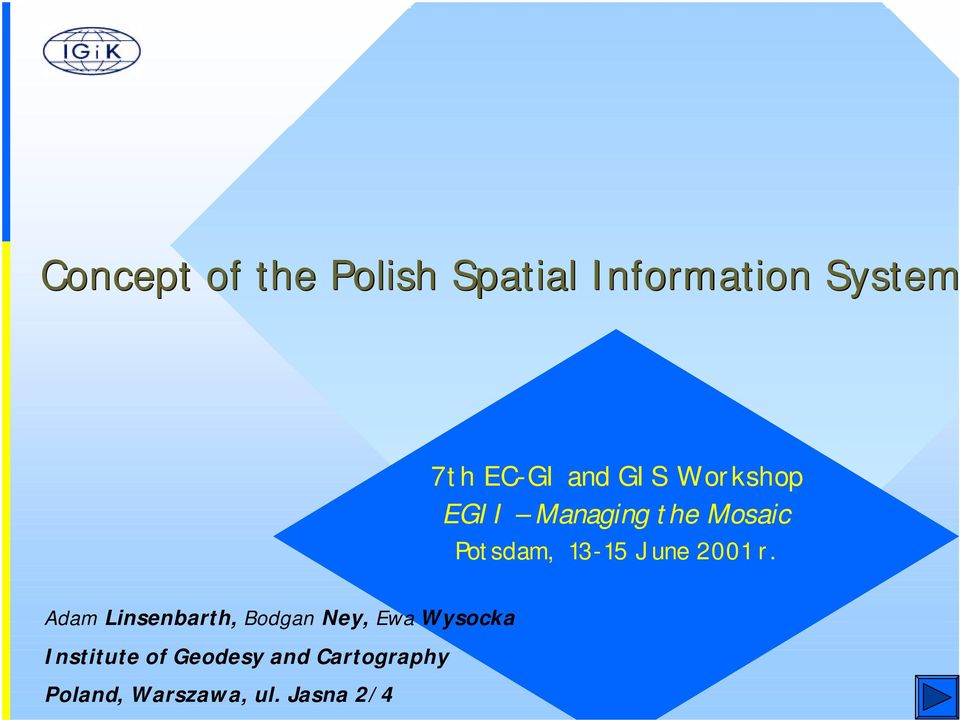

1 Concept of the Polish Spatial Information System 7th EC-GI and GIS Workshop EGII Managing the Mosaic Potsdam, June 2001 r. Adam Linsenbarth, Bodgan Ney, Ewa Wysocka Institute of Geodesy and Cartography Poland, Warszawa, ul. Jasna 2/4

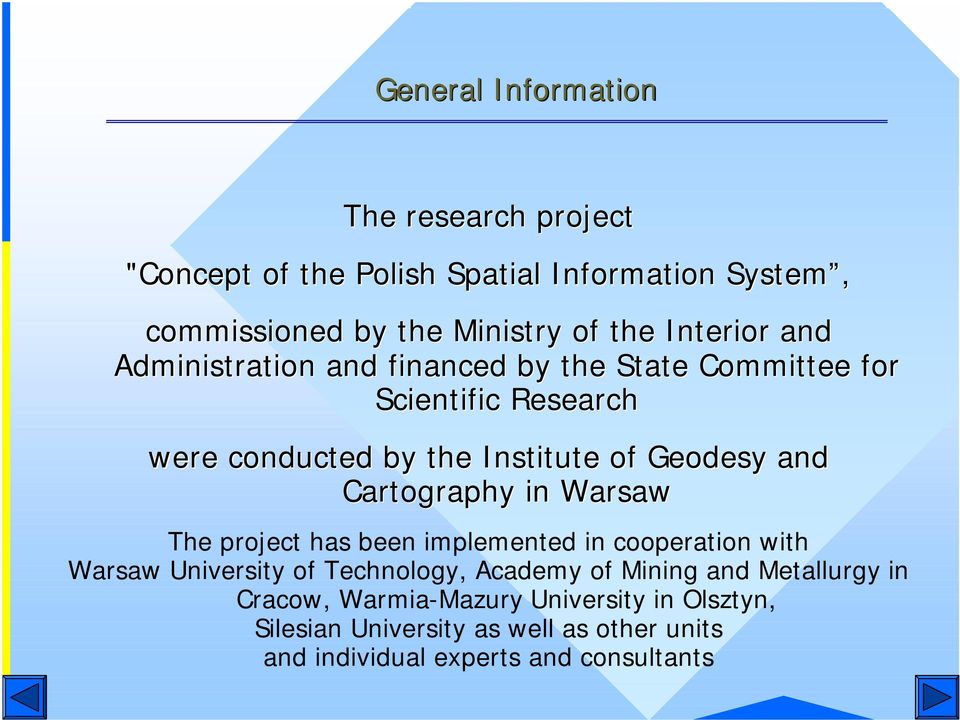

2 General Information The research project "Concept of the Polish Spatial Information System, commissioned by the Ministry of the Interior and Administration and financed by the State Committee for Scientific Research were conducted by the Institute of Geodesy and Cartography in Warsaw The project has been implemented in cooperation with Warsaw University of Technology, Academy of Mining and Metallurgy in Cracow, Warmia-Mazury University in Olsztyn, Silesian University as well as other units and individual experts and consultants

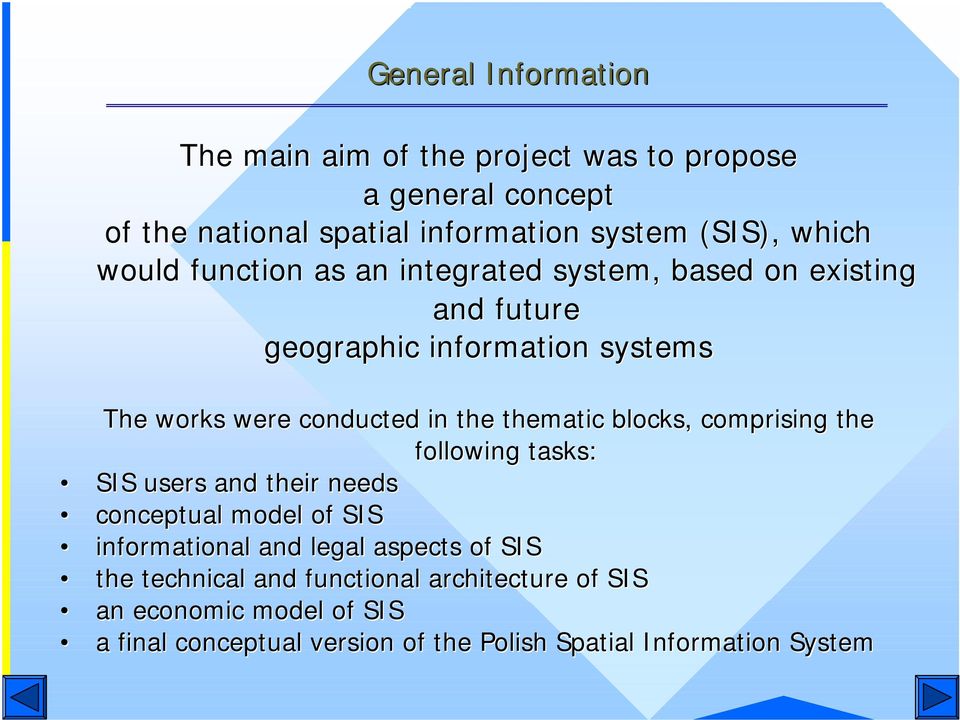

3 General Information The main aim of the project was to propose a general concept of the national spatial information system (SIS), which would function as an integrated system, based on existing and future geographic information systems The works were conducted in the thematic blocks, comprising the following tasks: SIS users and their needs conceptual model of SIS informational and legal aspects of SIS the technical and functional architecture of SIS an economic model of SIS a final conceptual version of the Polish Spatial Information System

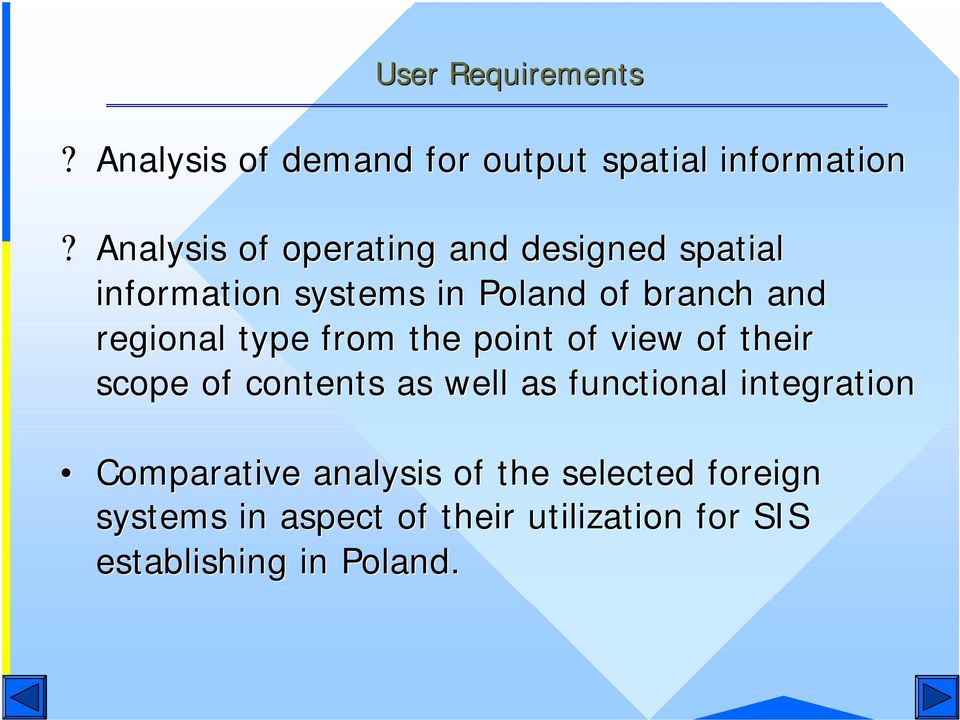

4 User Requirements? Analysis of demand for output spatial information? Analysis of operating and designed spatial information systems in Poland of branch and regional type from the point of view of their scope of contents as well as functional integration Comparative analysis of the selected foreign systems in aspect of their utilization for SIS establishing in Poland.

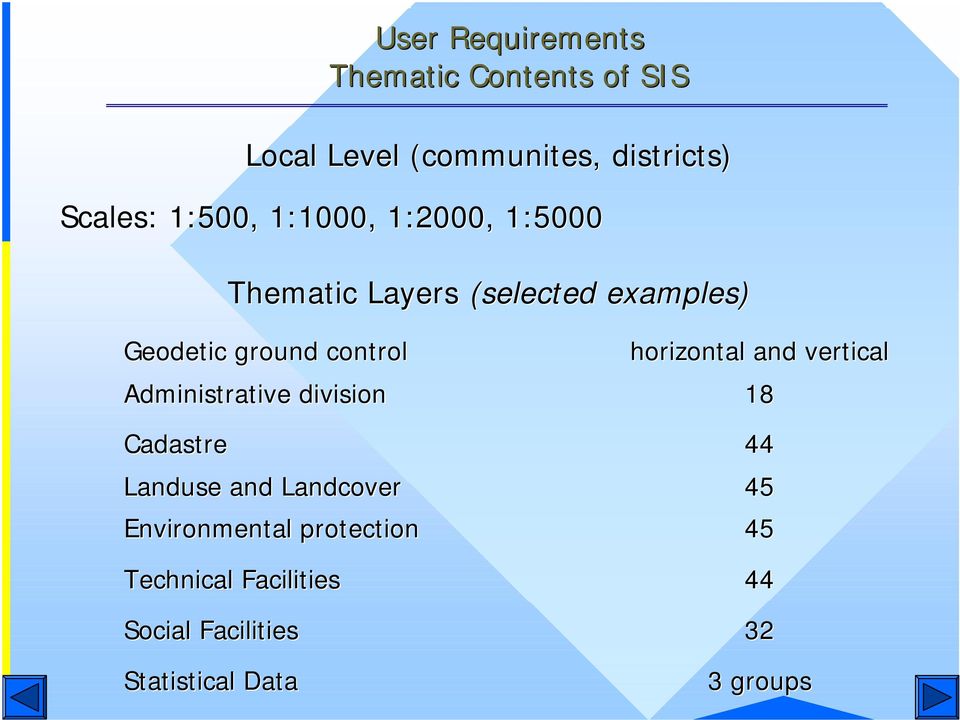

5 User Requirements Thematic Contents of SIS Local Level (communites, districts) Scales: : 1:500, 1:1000, 1:2000, 1:5000 Thematic Layers (selected examples) Geodetic ground control Administrative division Cadastre Landuse and Landcover Environmental protection Technical Facilities Social Facilities Statistical Data horizontal and vertical groups

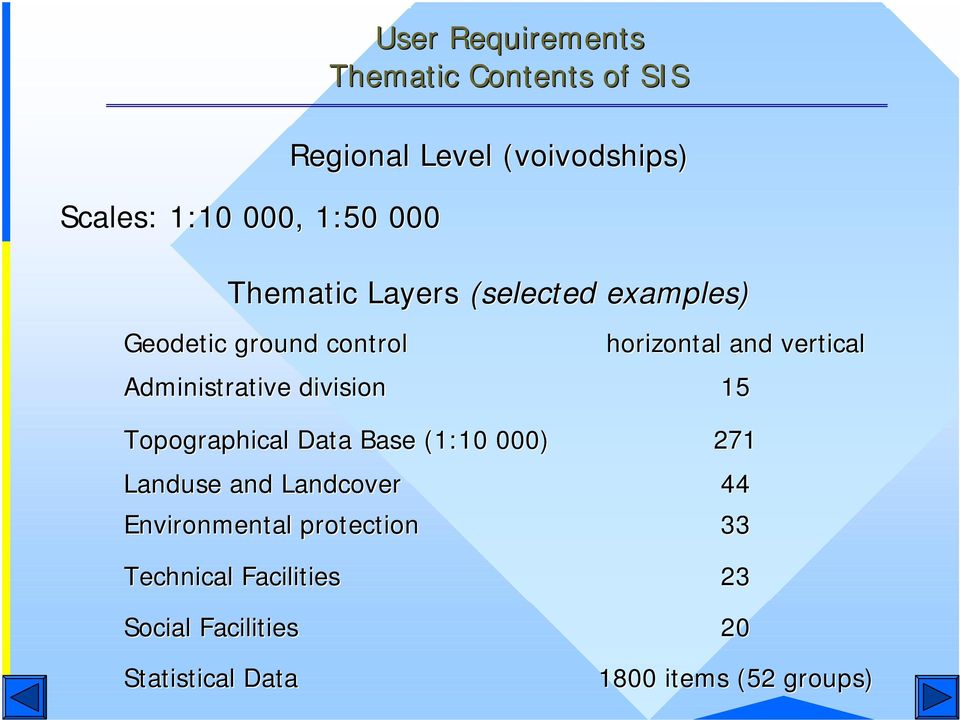

6 Scales: : 1:10 000, 1: User Requirements Thematic Contents of SIS Regional Level (voivodships) Thematic Layers (selected examples) Geodetic ground control Administrative division horizontal and vertical 15 Topographical Data Base (1:10 000) Landuse and Landcover Environmental protection Technical Facilities Social Facilities Statistical Data items (52 groups)

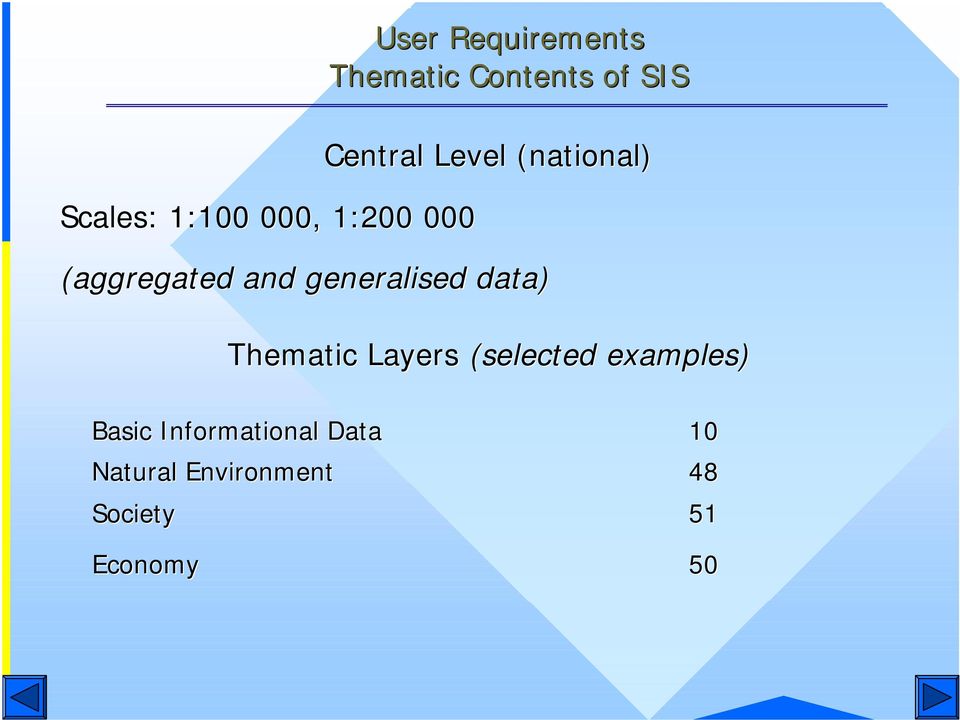

7 Scales: 1: , 1: User Requirements Thematic Contents of SIS Central Level (national) (aggregated and generalised data) Thematic Layers (selected examples) Basic Informational Data Natural Environment Society Economy

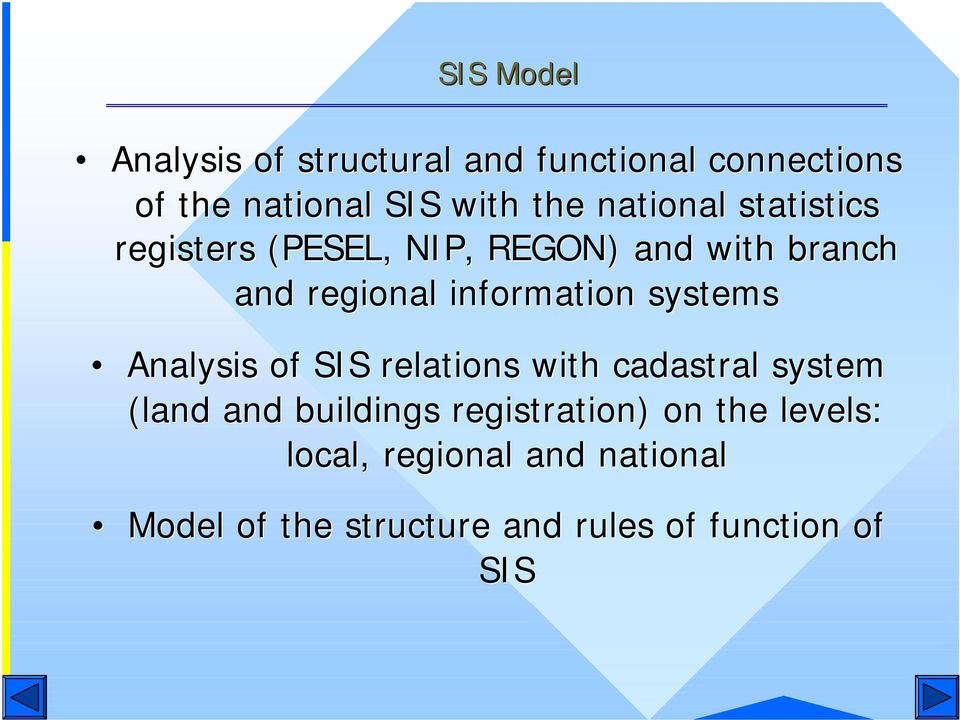

8 SIS Model Analysis of structural and functional connections of the national SIS with the national statistics registers (PESEL, NIP, REGON) and with branch and regional information systems Analysis of SIS relations with cadastral system (land and buildings registration) on the levels: local, regional and national Model of the structure and rules of function of SIS

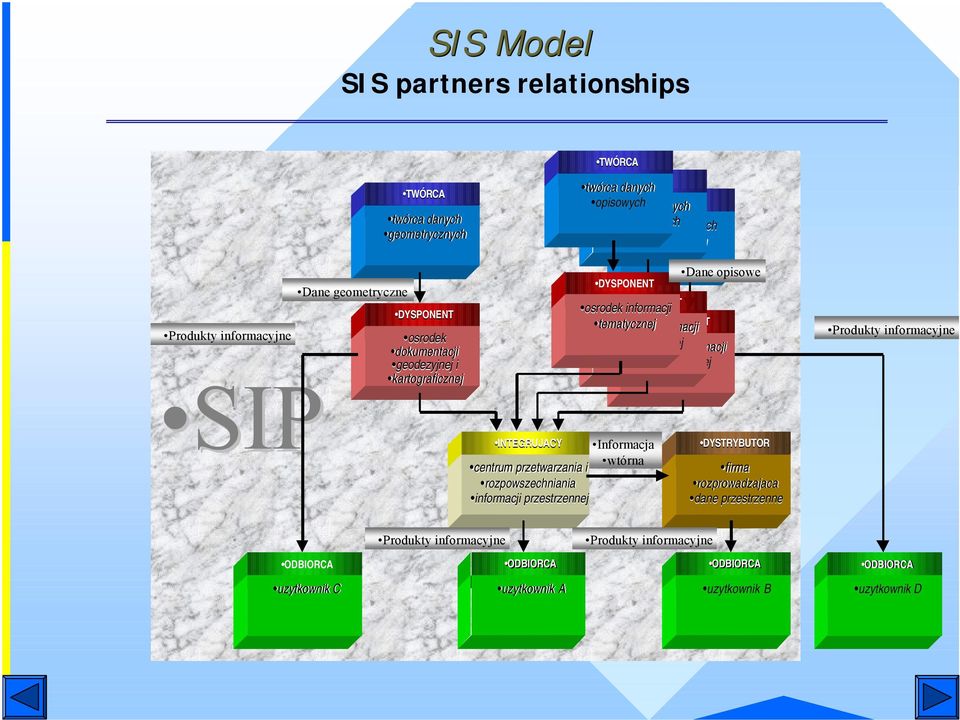

9 SIS Model SIS partners relationships P r o d u k t y i n f o r m a c y j n e SIP D a n e g e o m e t r y c z n e TWÓRCA twórca danych geometrycznych DYSPONENT osrodek dokumentacji geodezyjnej i kartograficznej INTEGRUJACY centrum przetwarzania i rozpowszechniania informacji przestrzennej TWÓRCA TWÓRCA twórca danych opisowych TWÓRCA twórca danych opisowych twórca danych opisowych DYSPONENT DYSPONENT osrodek informacji tematycznej DYSPONENT osrodek informacji tematycznej osrodek informacji tematycznej Informacja w t ó r n a D a n e o p i s o w e DYSTRYBUTOR firma rozprowadzajaca dane przestrzenne P r o d u k t y i n f o r m a c y j n e P r o d u k t y i n f o r m a c y j n e P r o d u k t y i n f o r m a c y j n e ODBIORCA ODBIORCA ODBIORCA ODBIORCA uzytkownik C uzytkownik A uzytkownik B uzytkownik D

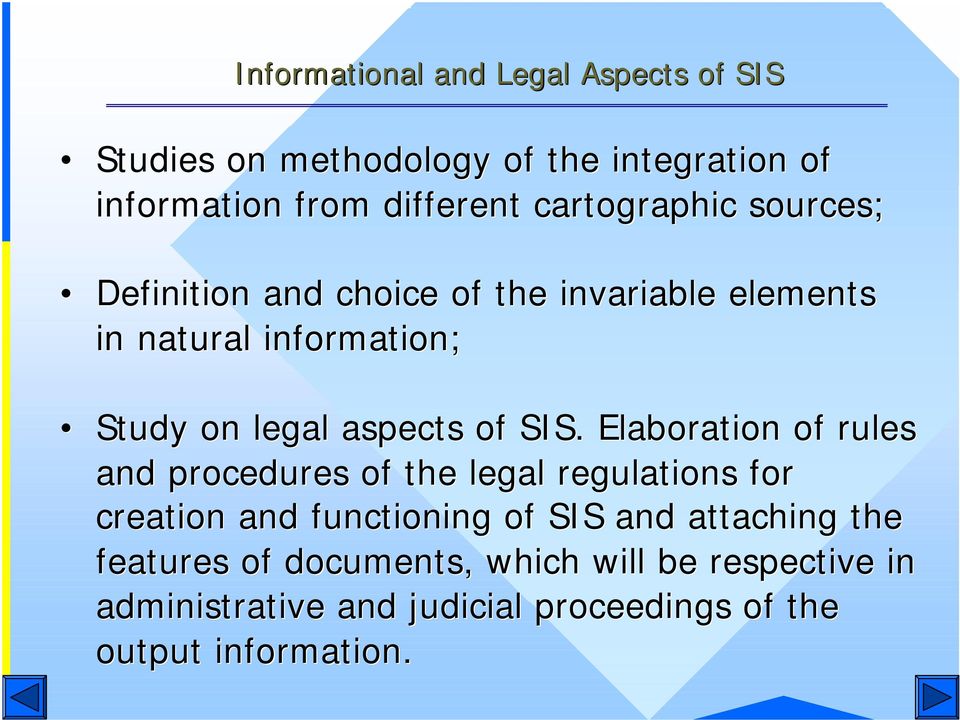

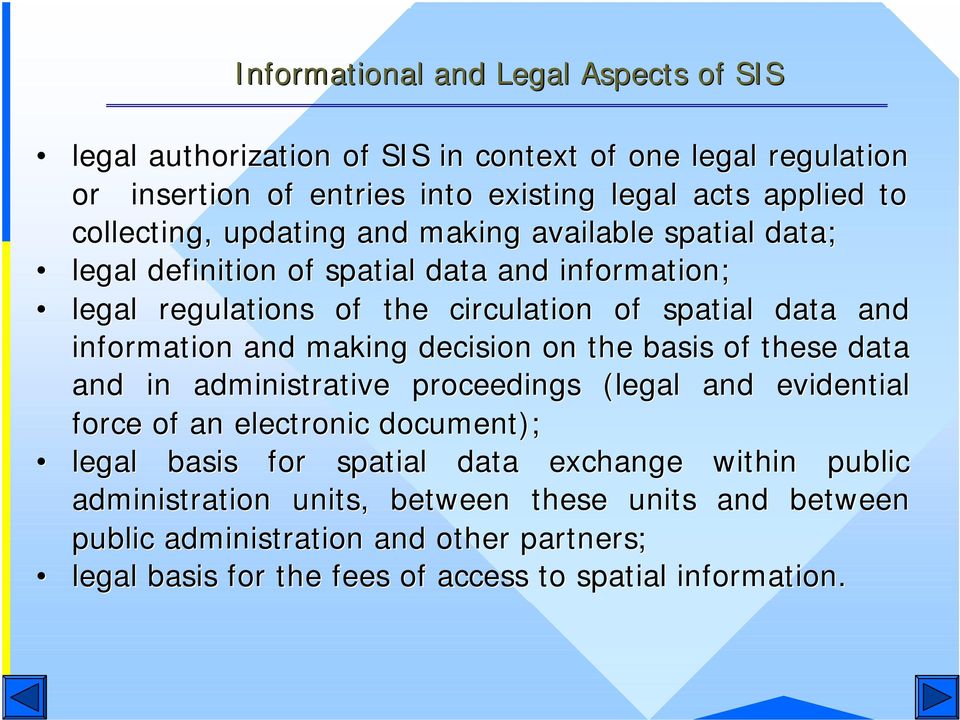

10 Informational and Legal Aspects of SIS Studies on methodology of the integration of information from different cartographic sources; Definition and choice of the invariable elements in natural information; Study on legal aspects of SIS. Elaboration of rules and procedures of the legal regulations for creation and functioning of SIS and attaching the features of documents, which will be respective in administrative and judicial proceedings of the output information.

11 Informational and Legal Aspects of SIS legal authorization of SIS in context of one legal regulation or insertion of entries into existing legal acts applied to collecting, updating and making available spatial data; legal definition of spatial data and information; legal regulations of the circulation of spatial data and information and making decision on the basis of these data and in administrative proceedings (legal and evidential force of an electronic document); legal basis for spatial data exchange within public administration units, between these units and between public administration and other partners; legal basis for the fees of access to spatial information.

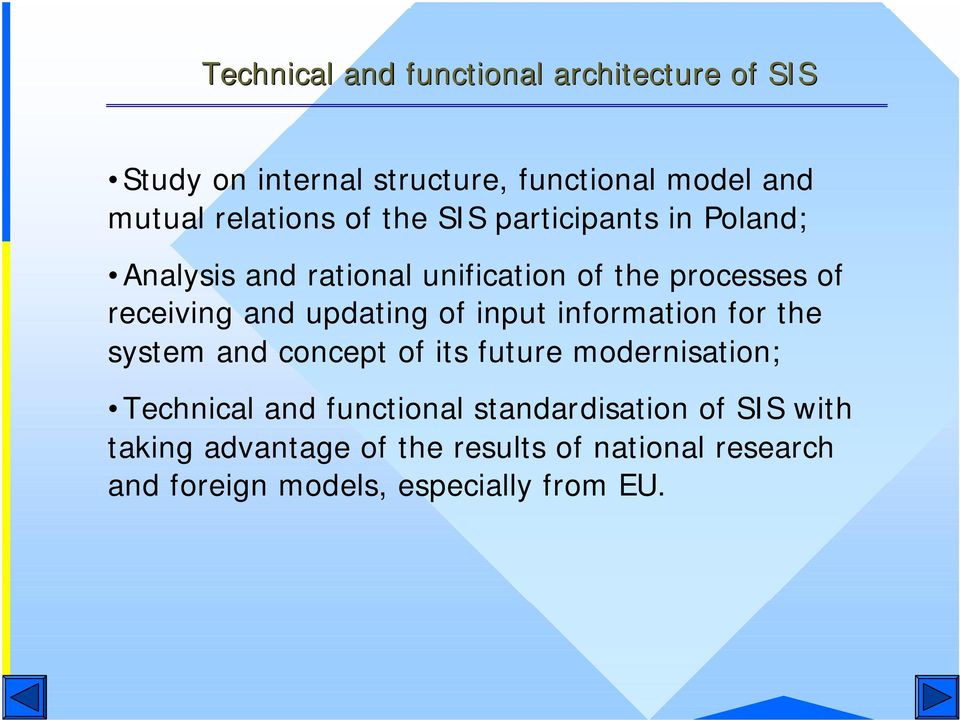

12 Technical and functional architecture of SIS Study on internal structure, functional model and mutual relations of the SIS participants in Poland; Analysis and rational unification of the processes of receiving and updating of input information for the system and concept of its future modernisation; Technical and functional standardisation of SIS with taking advantage of the results of national research and foreign models, especially from EU.

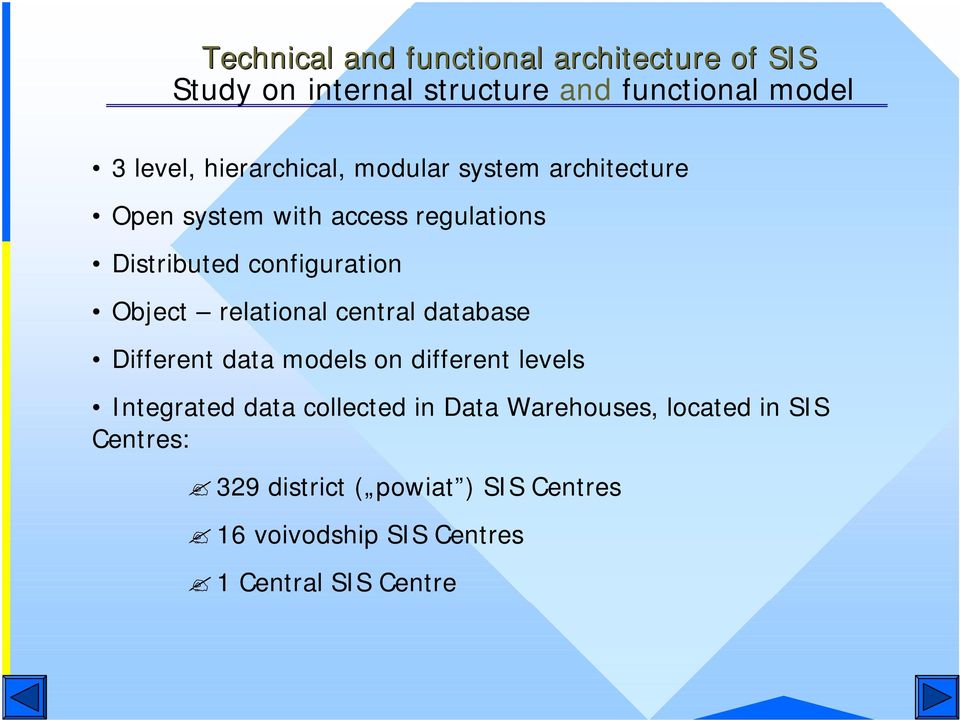

13 Technical and functional architecture of SIS Study on internal structure and functional model 3 level, hierarchical, modular system architecture Open system with access regulations Distributed configuration Object relational central database Different data models on different levels Integrated data collected in Data Warehouses, located in SIS Centres: 329 district ( powiat ) SIS Centres 16 voivodship SIS Centres 1 Central SIS Centre

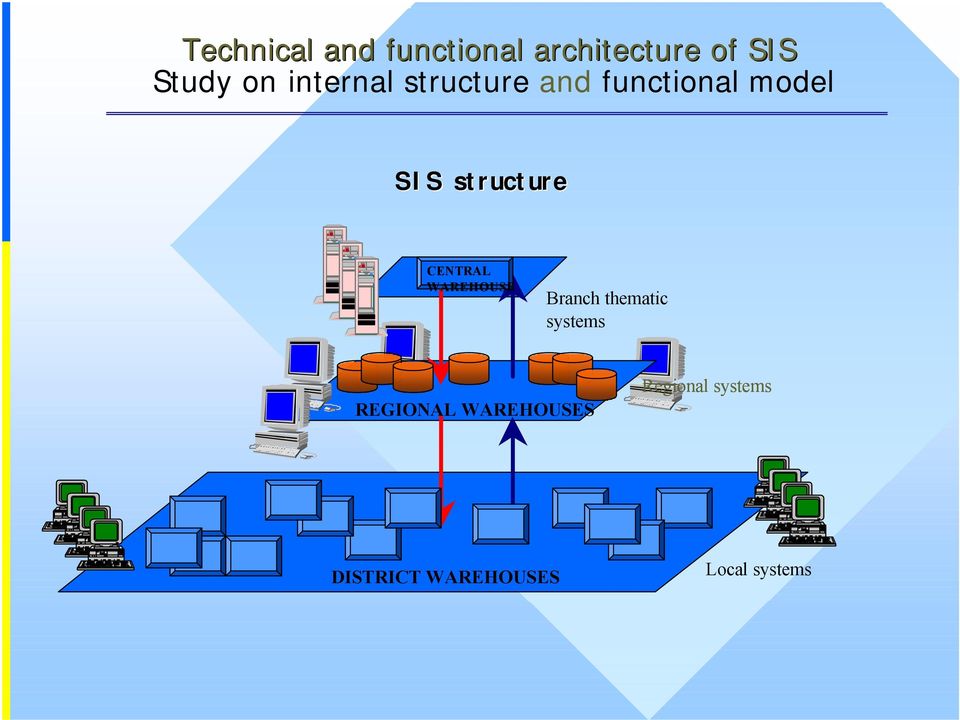

14 Technical and functional architecture of SIS Study on internal structure and functional model SIS structure CENTRAL WAREHOUSE Branch thematic systems REGIONAL WAREHOUSES Regional systems DISTRICT WAREHOUSES Local systems

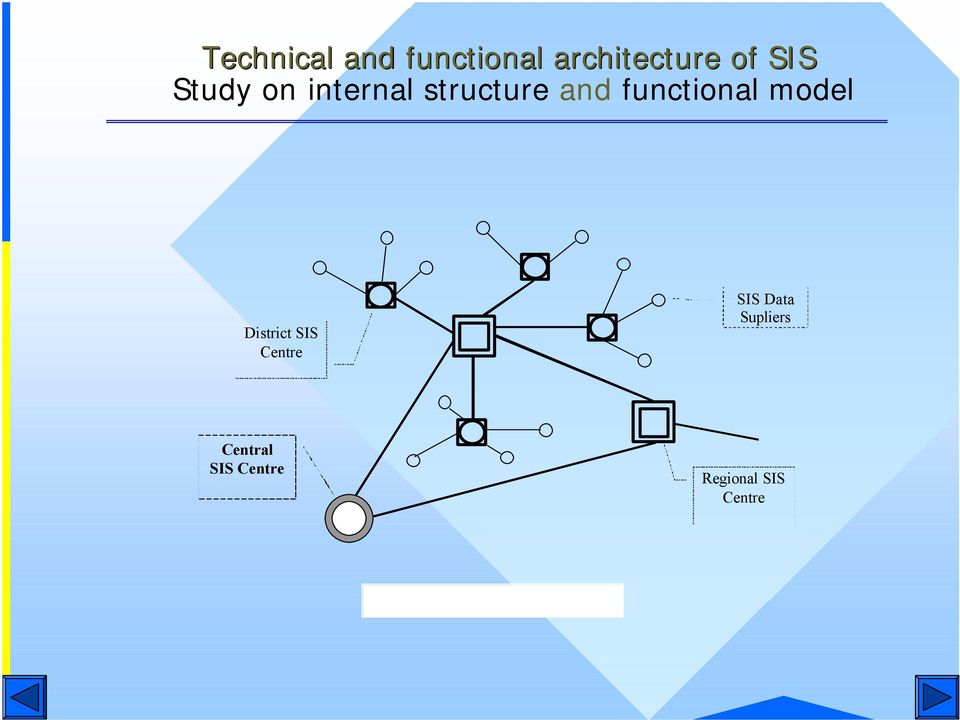

15 Technical and functional architecture of SIS Study on internal structure and functional model District SIS Centre S I S D a t a Supliers Central SIS Centre Regional SIS Centre

16 Technical and functional architecture of SIS Standards Study on standards and norms concerning: terms, data, metadata, input and output formats, hardware and software Study on the national standards (formats of data interchange SWING and TANGO) Adoption of the CEN and ISO standards Establishing of the Normalisation Commission Geographic Information within the Polish Normalisation Committee (PKN)

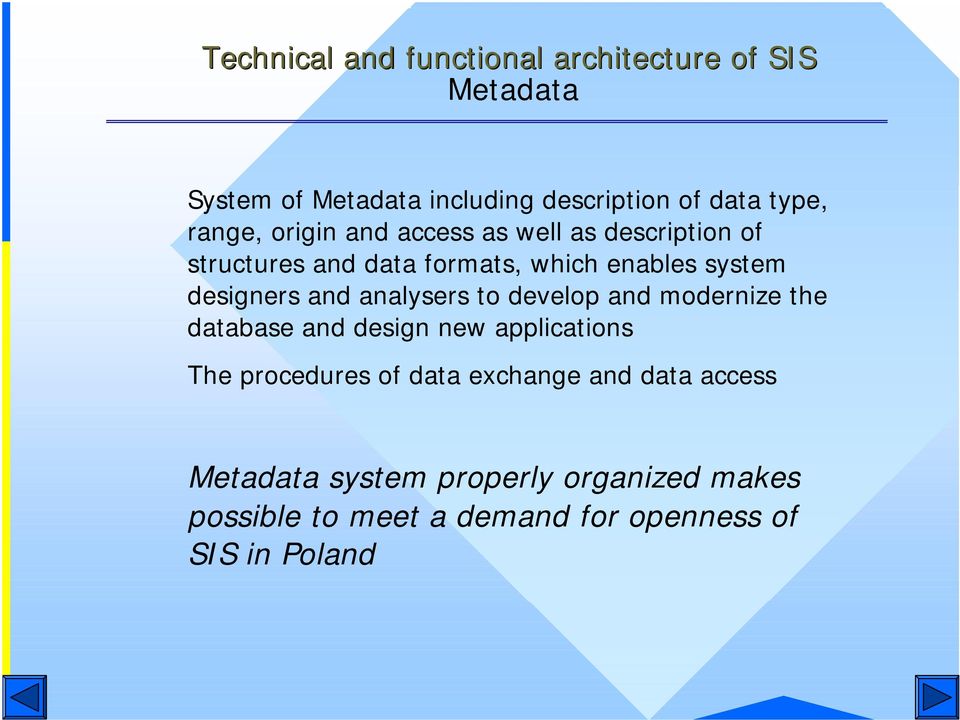

17 Technical and functional architecture of SIS Metadata System of Metadata including description of data type, range, origin and access as well as description of structures and data formats, which enables system designers and analysers to develop and modernize the database and design new applications The procedures of data exchange and data access Metadata system properly organized makes possible to meet a demand for openness of SIS in Poland

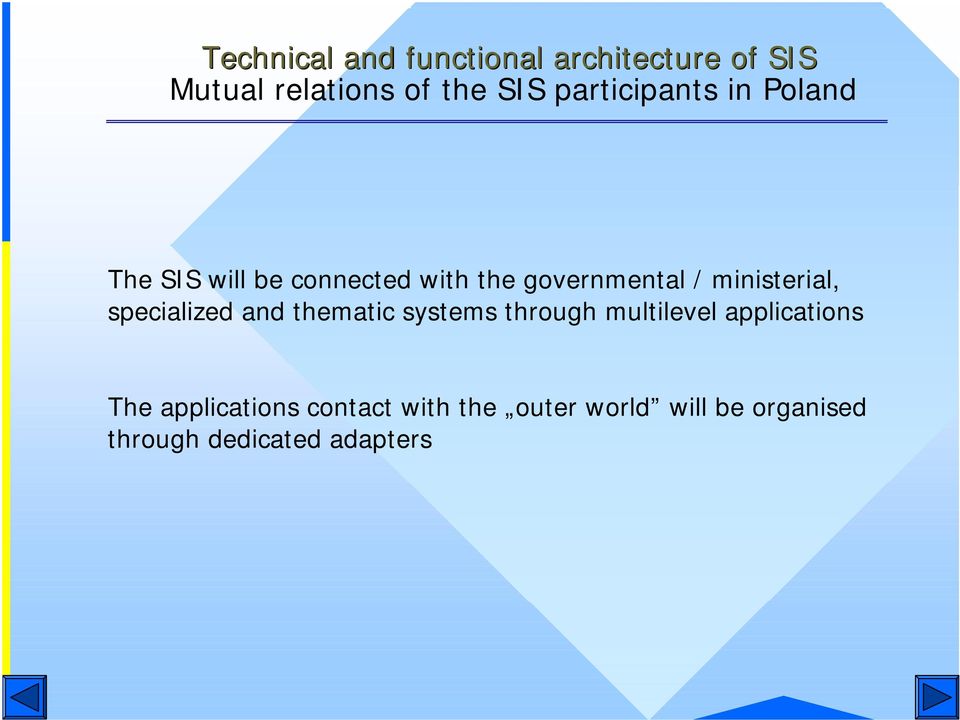

18 Technical and functional architecture of SIS Mutual relations of the SIS participants in Poland The SIS will be connected with the governmental / ministerial, specialized and thematic systems through multilevel applications The applications contact with the outer world will be organised through dedicated adapters

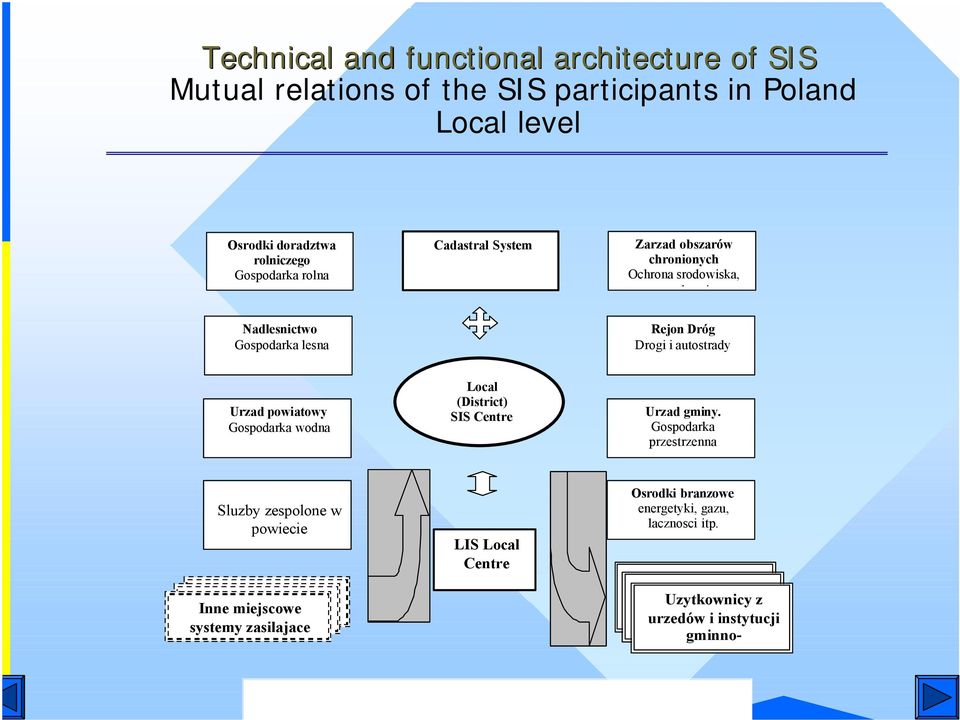

19 Technical and functional architecture of SIS Mutual relations of the SIS participants in Poland Local level Osrodki doradztwa rolniczego G o s p o d a r k a r o l n a Cadastral System Zarzad obszarów chronionych Ochrona srodowiska, t e r e n y c h r o n i o n e Nadlesnictwo G o s p o d a r k a l e s n a Rejon Dróg D r o g i i a u t o s t r a d y Urzad powiatowy Gospodarka wodna Local (District) SIS Centre Urzad gminy. Gospodarka p r z e s t r z e n n a Sluzby zespolone w powiecie Inne miejscowe systemy zasilajace LIS Local Centre Osrodki branzowe e n e r g e t y k i, g a z u, l a c z n o s c i i t p. Uzytkownicy z urzedów i instytucji gminnopowiatowych

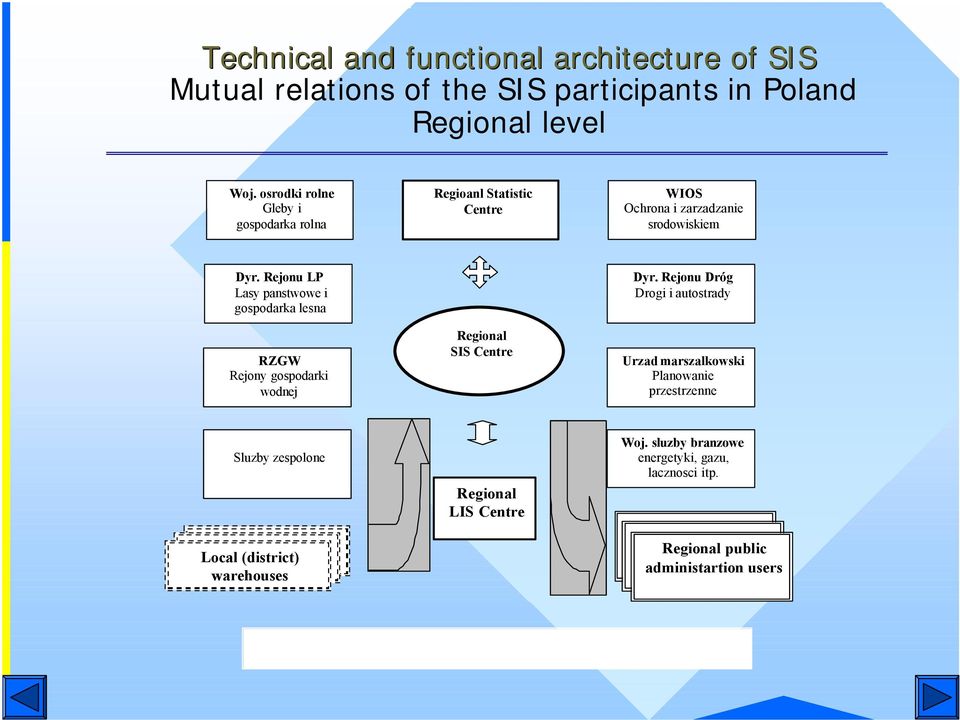

20 Technical and functional architecture of SIS Mutual relations of the SIS participants in Poland Regional level Woj. osrodki rolne Gleby i gospodarka rolna Regioanl Statistic Centre WIOS O c h r o n a i z a r z a d z a n i e srodowiskiem Dyr. Rejonu LP Lasy panstwowe i g o s p o d a r k a l e s n a RZGW Rejony gospodarki wodnej Regional SIS Centre Dyr. Rejonu Dróg D r o g i i a u t o s t r a d y Urzad marszalkowski P l a n o w a n i e p r z e s t r z e n n e Sluzby zespolone Local (district) warehouses Regional LIS Centre Woj. sluzby branzowe e n e r g e t y k i, g a z u, l a c z n o s c i i t p. Regional public administartion users

21 Technical and functional architecture of SIS Technical and functional architecture of SIS Mutual relations of the SIS participants in Poland Regional level
