1 SSO Management API configuration Introduction This document guides on how to enable Ubisecure SSO Management API in Ubisecure SSO 8.2 or later. Getting started Enable SSO Management API SSO Management API is not enabled by default. To enable the SSO Management API in Ubisecure SSO, use a text editor to edit a custom version of the s erver.xml in the following directory: \ubilogin-sso\ubilogin\custom\tomcat\server.xml If the file does not already exist in that location, copy the currently used server.xml to the custom directory. Modifications to files in the custom directory will be retained when a software upgrade is performed. Windows copy "c:\program Files\Ubisecure\ubilogin-sso\tomcat\conf\server.xml" "c:\program Files\Ubisecure\ubiloginsso\ubilogin\custom\tomcat\server.xml" Unix cp /usr/local/ubisecure/ubilogin-sso/tomcat/conf/server.xml /usr/local/ubisecure/ubilogin-sso/ubilogin/custom /tomcat/server.xml Uncomment the following line: <Context path="/sso-api" docbase="${catalina.base}/webapps/sso-api"/> Save the file and run Tomcat update. Windows cd /d c:\program Files\Ubisecure\ubilogin-sso\ubilogin config\tomcat\update.cmd Unix..\ubilogin-sso\ubilogin\config\tomcat\update.sh /etc/init.d/ubilogin-server restart Import certificates The SSO Management API connects to the SSO OAuth2 endpoints. The issuer of the SSL certificate on those endpoints must be trusted by the java installation used. By default, no publically issued CAs are trusted and must be trusted explicitly. The certificates can be imported using the following syntaxes. The whole certificate chain must be imported using the keytool tool. keytool (linux) or Keytool.exe (Windows) can be found in the..\ubilogin-sso\java\windows-x64\jre\bin directory (prior to 8.2) or the bin directory of the java installation under JRE_HOME. Import the server certificate.

2 ./keytool -importcert -file../lib/security/login.example.com.crt -keystore../lib/security/cacert Import the intermediate certificate. Use the intermediate certificate of the issuer of your externally facing SSL certificate. In this example, the login.example. com certificate was issued by Comodo../keytool -importcert -alias "COMODO RSA Domain Validation Secure Server CA" -file../lib/security /COMODORSADomainValidationSecureServerCA.crt -keystore../lib/security/cacert Import the CA certificate of the issuer of your externally facing SSL certificate../keytool -importcert -alias "COMODO RSA Certification Authority" -file../lib/security /COMODORSACertificationAuthority.crt -keystore../lib/security/cacert Update SSO API Application Agent In a production environment a new SSO API Application Agent intergration MUST be registered, using the SSO management web console or by other bootstrapping methods. The client id and secret of SSO Management API MUST NOT be used outside the server environment. Log in to the Ubisecure SSO management console and navigate to System SSO API Applications. Select SSO API, which is an existing Application Agent that was added during SSO installation. In the SSO API Application screen, click the Activate button to create new client_id and client_secret for the application. Clicking Activate button opens a dialog warning you that existing client_id and client_secret will be replaced. This is fine, so click OK. Browser should now initiate a download for sso api.json file ( sso file, if there's a problem with whitespaces in the filename). Save the file, rename it to client. json and open it using a text editor. Below is an example. {"client_id":"085bc54a-5a4e-4806-a07b-c97f8dc466c7","client_secret":"x90gqo4wlhovzloybxxqpviojgaoqjrd"} Click on ' Upload' and paste the content into the window and click ' OK'.

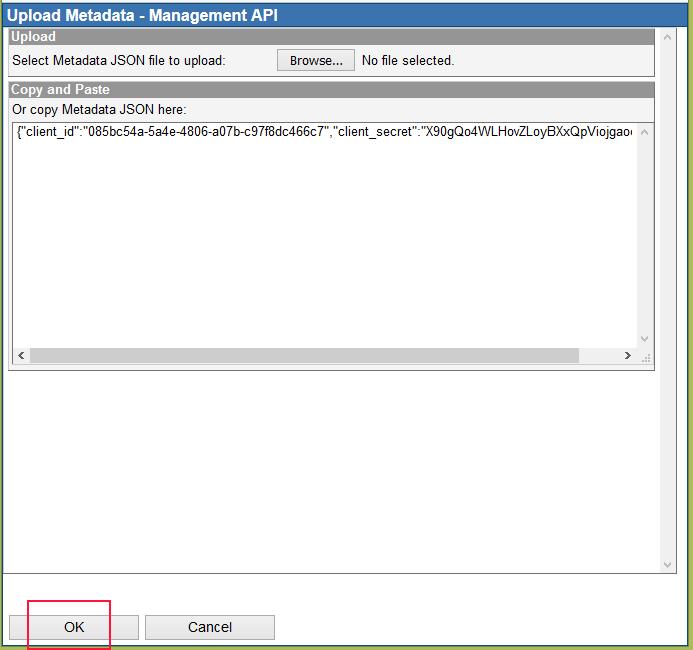

3 Next, copy the client.json file to ubilogin-sso/ubilogin/webapps/sso-api/web-inf/oauth2/client.json in the SSO installation. Then update Tomcat and restart SSO. Next, activate password.1 method to the application and click on ' Update' -button. Add the group to the application

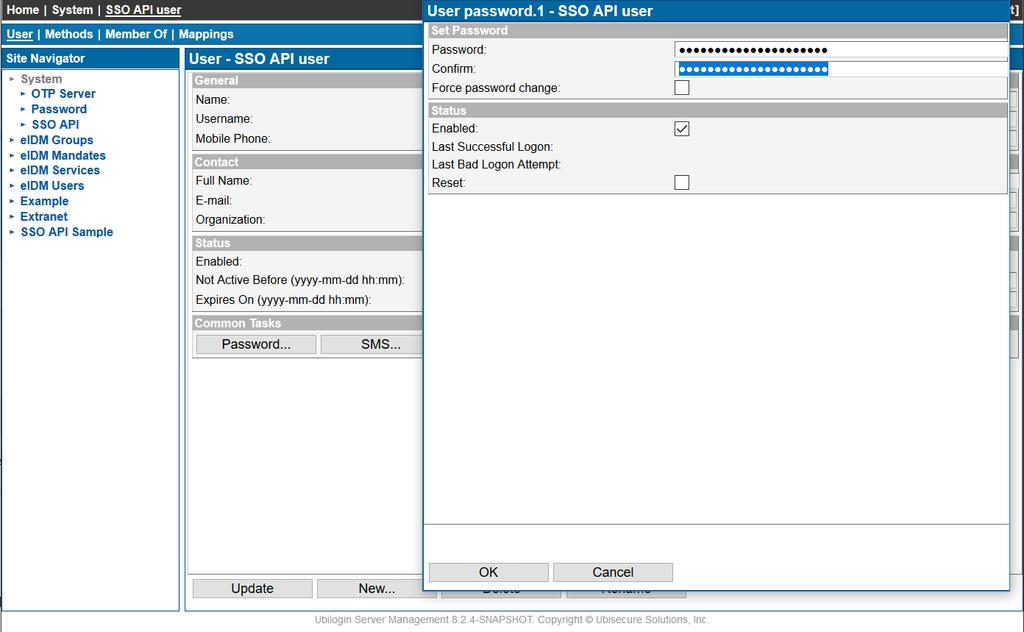

4 Navigate the System User and click on the ' New user ' -button. Create an API user Create and enter a password for the ssoapiuser.

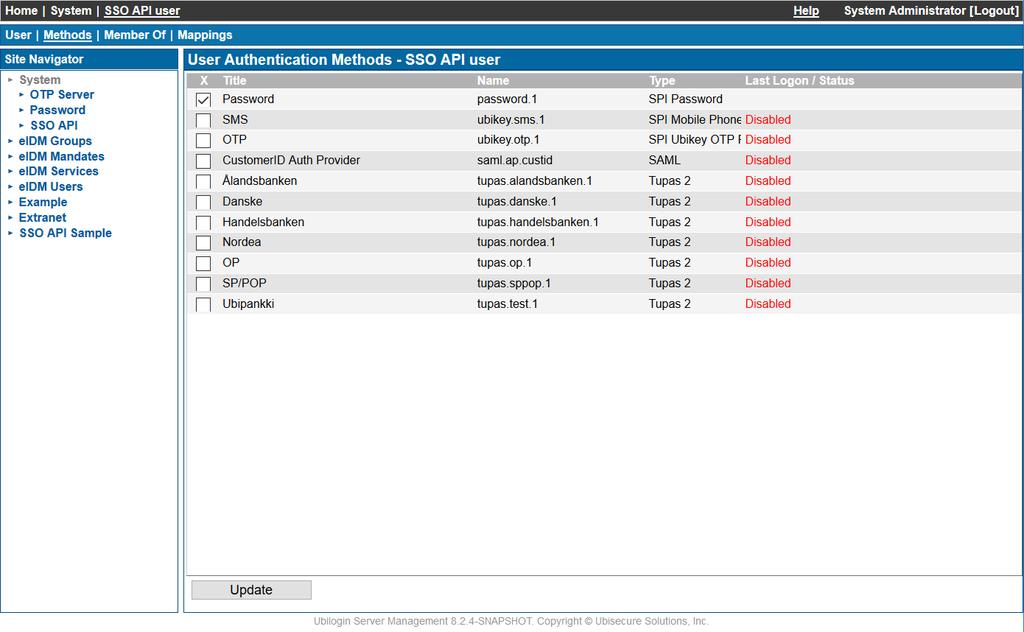

5 Next, add user to the SSO Management API Administrators group. Next, activate to authentication method to the end user and click ' Update'.

Testing the connection You can start testing the connection using the following syntax using Curl. You may use the --insecure flag in case self-signed certificates are used.

6 Testing the connection You can start testing the connection using the following syntax using Curl. You may use the --insecure flag in case self-signed certificates are used. curl -i At this point a unauthorized response should come back. This indicates that you SSO Management API is up and running. HTTP/ Unauthorized Server: Apache-Coyote/1.1 Cache-Control: no-cache, must-revalidate, no-transform, max-age=0, private WWW-Authenticate: Bearer realm=" c645-4f56-bc19-0cc4428cbe34" scope="openid c645-4f56-bc19-0cc4428cbe34" Content-Length: 0 Date: Thu, 15 Sep :02:04 GMT Get the token curl --basic -u 085bc54a-5a4e-4806-a07b-c97f8dc466c7:X90gQo4WLHovZLoyBXxQpViojgaoqJRd /uas/oauth2/token -d grant_type=password -d username=ssoapiuser -d password=t3kn11kant1314 Response

7 {"access_token": "eyjjbgllbnrfawqioiiwodviyzu0ys01ytrlltq4mdytyta3yi1jotdmogrjndy2yzcilcjhbgcioijiuzi1nij9. eyj0b2tlbl90exblijoiywnjzxnzx3rva2vuiiwic2vzc2lvbl9pbmrleci6il8zzdrkotbknta2zjdkntyxmtc0yji1zdnkzju1zdu2ngyzmmzh ZDQzIiwic2NvcGUiOlsiMDg1YmM1NGEtNWE0ZS00ODA2LWEwN2ItYzk3ZjhkYzQ2NmM3Iiwib3BlbmlkIl0sImNsaWVudF9pZCI6IjA4NWJjNTRh LTVhNGUtNDgwNi1hMDdiLWM5N2Y4ZGM0NjZjNyIsImV4cCI6MTQ3MzkzOTUzMjM2N30. 4ARxJqC4HEK0KJsvckICfg7e3ic_gr79uJLOerx5Yzg", "scope":"085bc54a-5a4e-4806-a07b-c97f8dc466c7 openid","id_token":"eyjhbgcioijsuzi1nij9. eyjzdwiioijdtj1tu08gqvbjihvzzxist1u9u3lzdgvtlenopvviawxvz2lulerdpwvjmi01mi0xos0xlte4nyxeqz1lds13zxn0ltesrem9y29t chv0zsxeqz1hbwf6b25hd3msrem9y29tiiwiaxnzijoiahr0chm6ly9lyzitntitmtktms0xodcuzxutd2vzdc0xlmnvbxb1dguuyw1hem9uyxdz LmNvbTo4NDQzL3VhcyIsImF1ZCI6WyIwODViYzU0YS01YTRlLTQ4MDYtYTA3Yi1jOTdmOGRjNDY2YzciXSwiZXhwIjoxNDczOTM5NTMyLCJpYXQi OjE0NzM5MzU5MzIsImF1dGhfdGltZSI6MTQ3MzkzNTkzMiwiYW1yIjpbImh0dHBzOi8vZWMyLTUyLTE5LTEtMTg3LmV1LXdlc3QtMS5jb21wdXRl LmFtYXpvbmF3cy5jb206ODQ0My91YXMvc2FtbDIvbmFtZXMvYWMvcGFzc3dvcmQuMSJdLCJhenAiOiIwODViYzU0YS01YTRlLTQ4MDYtYTA3Yi1j OTdmOGRjNDY2YzciLCJzZXNzaW9uX2luZGV4IjoiXzNkNGQ5MGQ1MDZmN2Q1NjExNzRiMjVkM2RmNTVkNTY0ZjMyZmFkNDMiLCJwYXNzd29yZC4x LmdyYW50X3R5cGUiOlsicGFzc3dvcmQiXSwicGFzc3dvcmQuMS5kbiI6WyJDTj1TU08gQVBJIHVzZXIsT1U9U3lzdGVtLENOPVViaWxvZ2luLERD PWVjMi01Mi0xOS0xLTE4NyxEQz1ldS13ZXN0LTEsREM9Y29tcHV0ZSxEQz1hbWF6b25hd3MsREM9Y29tIl0sInBhc3N3b3JkLjEubGRhcCI6WyJs ZGFwOi8vL2NuPVViaWxvZ2luLGRjPWVjMi01Mi0xOS0xLTE4NyxkYz1ldS13ZXN0LTEsZGM9Y29tcHV0ZSxkYz1hbWF6b25hd3MsZGM9Y29tIl19.Mzo3WRCqgcXX4gX0noXtUbnamCXxvU3Yn_erdakuT- ZtJOxp3QGxgAun7gexSvdRuia3M77fNfnZvDnbhURIUQH19NYcWjwoyDUaU9BeaXzhjWi0rgbi-8-owEpTK3dX_1qUlYRngwF-s2hCCLy9- d78c2v3huqdqb53qzjbyolein3jeygwlavdetqtzx2dyfxkkryuy-6- ulixxc6bwb16jpnk9uglbjpotgy8o3uujlyzcenez5kylip3gmrdxjqzq0aqwhpgn2ycxwdtzs3scsftdgo0wzr7ekpipqs4begfgdz78kvywniobqcb8dbg7qy-qxt8vyvuf7qiq","token_type":"bearer","expires_in":3600} Test the token curl -H "Authorization: Bearer eyjjbgllbnrfawqioiiwodviyzu0ys01ytrlltq4mdytyta3yi1jotdmogrjndy2yzcilcjhbgcioijiuzi1nij9. eyj0b2tlbl90exblijoiywnjzxnzx3rva2vuiiwic2vzc2lvbl9pbmrleci6il8zzdrkotbknta2zjdkntyxmtc0yji1zdnkzju1zdu2ngyzmmzh ZDQzIiwic2NvcGUiOlsiMDg1YmM1NGEtNWE0ZS00ODA2LWEwN2ItYzk3ZjhkYzQ2NmM3Iiwib3BlbmlkIl0sImNsaWVudF9pZCI6IjA4NWJjNTRh LTVhNGUtNDgwNi1hMDdiLWM5N2Y4ZGM0NjZjNyIsImV4cCI6MTQ3MzkzOTUzMjM2N30.4ARxJqC4HEK0KJsvckICfg7e3ic_gr79uJLOerx5Yzg" Response { "sub":"cn=sso API user,ou=system,cn=ubilogin,dc=ec ,dc=eu-west-1,dc=compute,dc=amazonaws,dc=com"," iss":" ,"auth_time": ,"amr":[" saml2/names/ac/password.1"],"azp":"085bc54a-5a4e-4806-a07b-c97f8dc466c7","session_index":" _3d4d90d506f7d561174b25d3df55d564f32fad43","password.1.grant_type":["password"],"password.1.dn":["CN=SSO API user,ou=system,cn=ubilogin,dc=ec ,dc=eu-west-1,dc=compute,dc=amazonaws,dc=com"],"password.1.ldap": ["ldap:///cn=ubilogin,dc=ec ,dc=eu-west-1,dc=compute,dc=amazonaws,dc=com"] } Add a Site in Ubisecure SSO curl -H "Authorization: Bearer eyjjbgllbnrfawqioiiwodviyzu0ys01ytrlltq4mdytyta3yi1jotdmogrjndy2yzcilcjhbgcioijiuzi1nij9. eyj0b2tlbl90exblijoiywnjzxnzx3rva2vuiiwic2vzc2lvbl9pbmrleci6il8zzdrkotbknta2zjdkntyxmtc0yji1zdnkzju1zdu2ngyzmmzh ZDQzIiwic2NvcGUiOlsiMDg1YmM1NGEtNWE0ZS00ODA2LWEwN2ItYzk3ZjhkYzQ2NmM3Iiwib3BlbmlkIl0sImNsaWVudF9pZCI6IjA4NWJjNTRh LTVhNGUtNDgwNi1hMDdiLWM5N2Y4ZGM0NjZjNyIsImV4cCI6MTQ3MzkzOTUzMjM2N30.4ARxJqC4HEK0KJsvckICfg7e3ic_gr79uJLOerx5Yzg" -X PUT The OAuth endpoints of Ubisecure SSO are discovered from OAuth metadata:

8 { "issuer":" "authorization_endpoint":" "token_endpoint":" "userinfo_endpoint":" "jwks_uri":" "tokeninfo_endpoint":" "introspection_endpoint":" "revocation_endpoint":" "response_types_supported":["code"],"grant_types_supported":["authorization_code","password","refresh_token"," urn:ietf:params:oauth:grant-type:saml2-bearer"," "subject_types_supported":["public"], "id_token_signing_alg_values_supported":["rs256"], "token_endpoint_auth_methods_supported":["client_secret_post","client_secret_basic"], "scopes_supported":["openid","userinfo"] } Available at: Response messages The default response message format is XML. Use the Accept header to request the response message encoded as JSON. curl -H "Authorization: Bearer %TOKEN%" -H "Accept: application/json"
