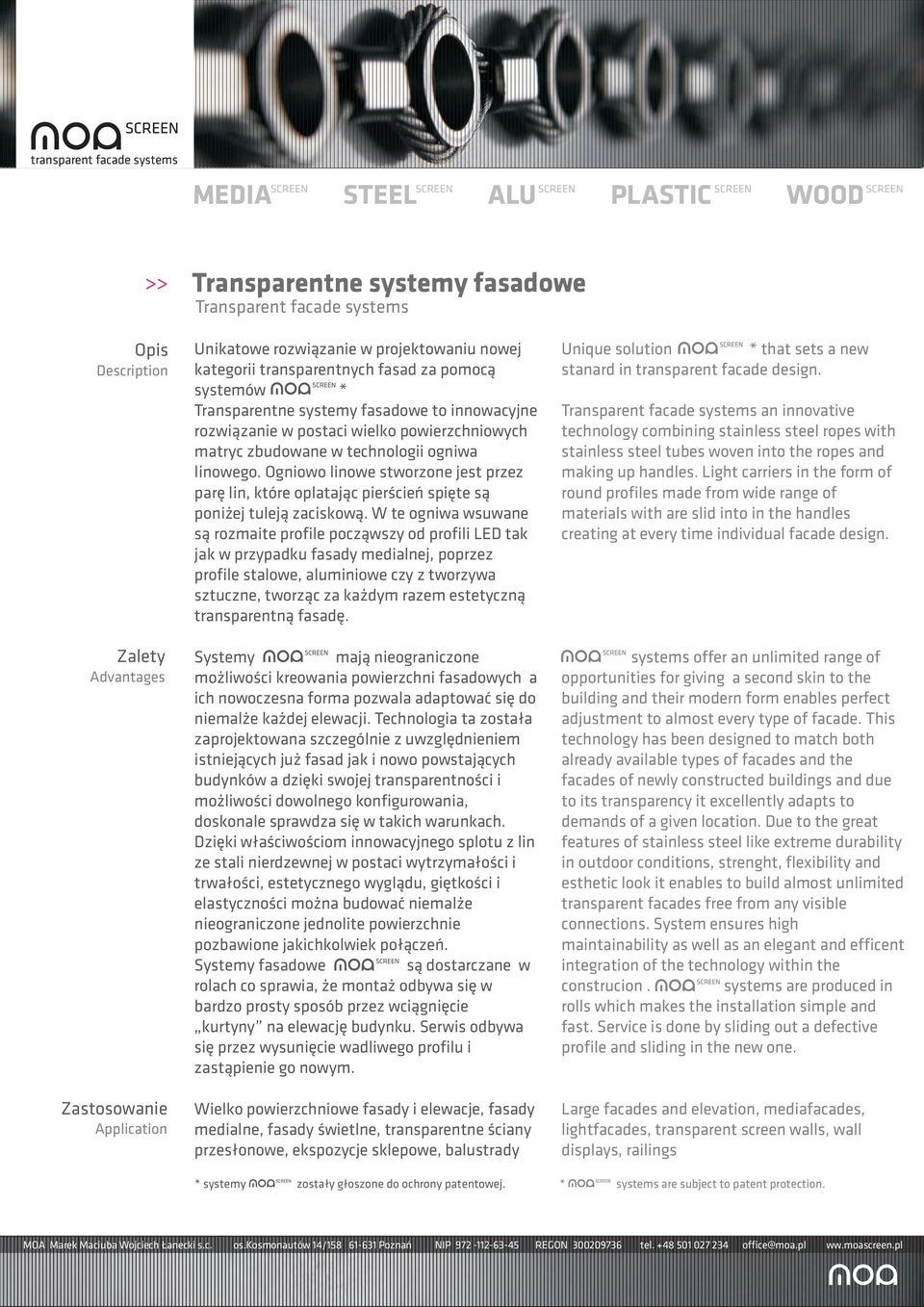

1 MEDIA STEEL ALU PLASTIC WOOD Transparentne systemy fasadowe Transparent facade systems Opis Description Zalety Advantages Zastosowanie Application Unikatowe rozwiązanie w projektowaniu nowej kategorii transparentnych fasad za pomocą systemów * Transparentne systemy fasadowe to innowacyjne rozwiązanie w postaci wielko powierzchniowych matryc zbudowane w technologii ogniwa linowego. Ogniowo linowe stworzone jest przez parę lin, które oplatając pierścień spięte są poniżej tuleją zaciskową. W te ogniwa wsuwane są rozmaite profile począwszy od profili LED tak jak w przypadku fasady medialnej, poprzez profile stalowe, aluminiowe czy z tworzywa sztuczne, tworząc za każdym razem estetyczną transparentną fasadę. Systemy mają nieograniczone możliwości kreowania powierzchni fasadowych a ich nowoczesna forma pozwala adaptować się do niemalże każdej elewacji. Technologia ta została zaprojektowana szczególnie z uwzględnieniem istniejących już fasad jak i nowo powstających budynków a dzięki swojej transparentności i możliwości dowolnego konfigurowania, doskonale sprawdza się w takich warunkach. Dzięki właściwościom innowacyjnego splotu z lin ze stali nierdzewnej w postaci wytrzymałości i trwałości, estetycznego wyglądu, giętkości i elastyczności można budować niemalże nieograniczone jednolite powierzchnie pozbawione jakichkolwiek połączeń. Systemy fasadowe są dostarczane w rolach co sprawia, że montaż odbywa się w bardzo prosty sposób przez wciągnięcie kurtyny na elewację budynku. Serwis odbywa się przez wysunięcie wadliwego profilu i zastąpienie go nowym. Wielko powierzchniowe fasady i elewacje, fasady medialne, fasady świetlne, transparentne ściany przesłonowe, ekspozycje sklepowe, balustrady Unique solution * that sets a new stanard in transparent facade design. Transparent facade systems an innovative technology combining stainless steel ropes with stainless steel tubes woven into the ropes and making up handles. Light carriers in the form of round profiles made from wide range of materials with are slid into in the handles creating at every time individual facade design. systems offer an unlimited range of opportunities for giving a second skin to the building and their modern form enables perfect adjustment to almost every type of facade. This technology has been designed to match both already available types of facades and the facades of newly constructed buildings and due to its transparency it excellently adapts to demands of a given location. Due to the great features of stainless steel like extreme durability in outdoor conditions, strenght, flexibility and esthetic look it enables to build almost unlimited transparent facades free from any visible connections. System ensures high maintainability as well as an elegant and efficent integration of the technology within the construcion. systems are produced in rolls which makes the installation simple and fast. Service is done by sliding out a defective profile and sliding in the new one. Large facades and elevation, mediafacades, lightfacades, transparent screen walls, wall displays, railings * systemy zostały głoszone do ochrony patentowej. * systems are subject to patent protection.

2 systems thanks to its vast choice of material configuration, its adjustable resolution and transparency level allow free creation in achieving unique facade design at each time. STEEL ALU PLASTIC WOOD

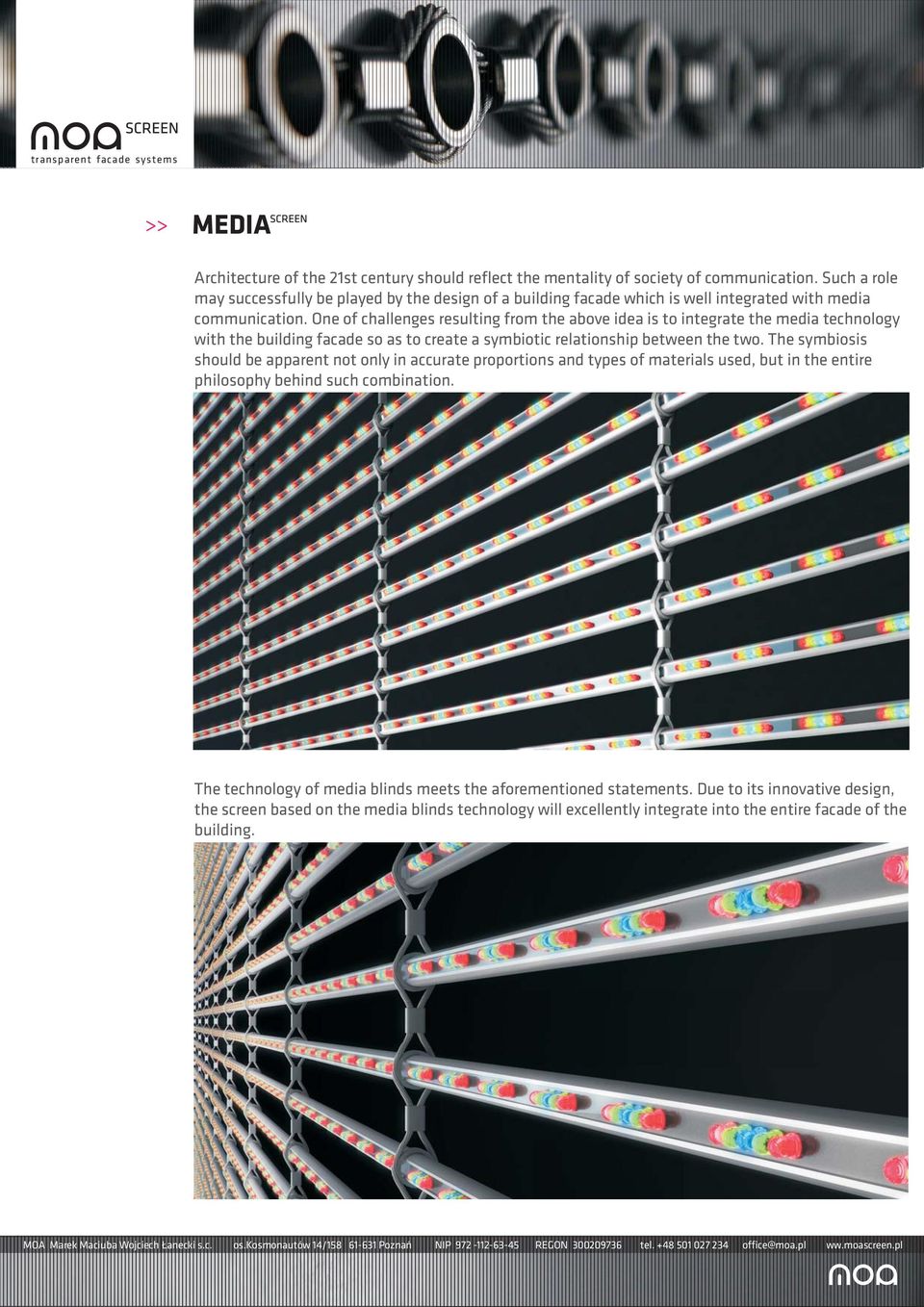

3 MEDIA Architecture of the 21st century should reflect the mentality of society of communication. Such a role may successfully be played by the design of a building facade which is well integrated with media communication. One of challenges resulting from the above idea is to integrate the media technology with the building facade so as to create a symbiotic relationship between the two. The symbiosis should be apparent not only in accurate proportions and types of materials used, but in the entire philosophy behind such combination. The technology of media blinds meets the aforementioned statements. Due to its innovative design, the screen based on the media blinds technology will excellently integrate into the entire facade of the building.

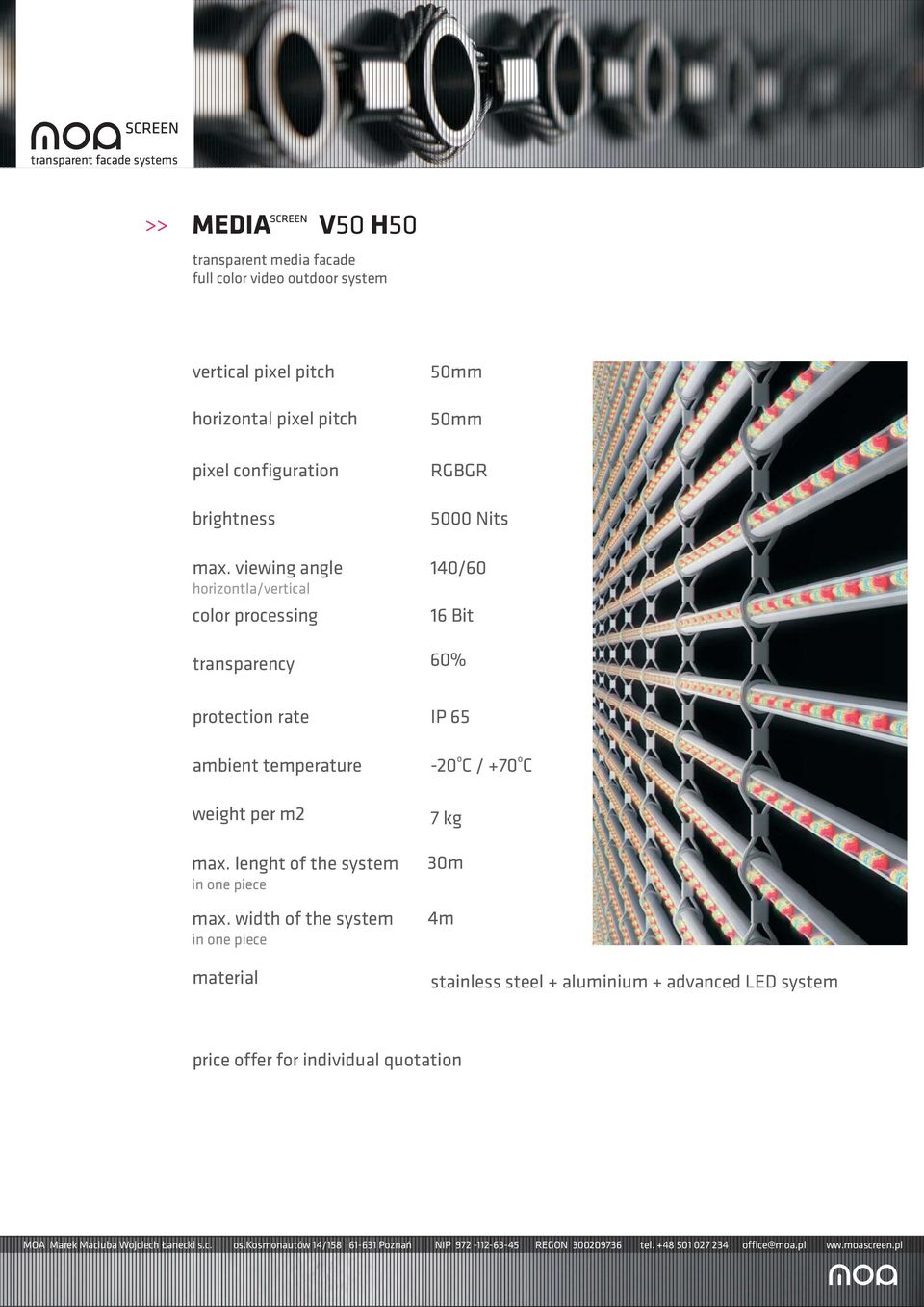

4 MEDIA V50 H50 transparent media facade full color video outdoor system vertical pixel pitch horizontal pixel pitch pixel configuration brightness max. viewing angle horizontla/vertical color processing RGBGR 5000 Nits 140/60 16 Bit transparency 60% protection rate IP 65 ambient temperature weight per m2 max. lenght of the system max. width of the system material o o -20 C / +70 C 7kg 30m 4m stainless steel + aluminium + advanced LED system price offer for individual quotation

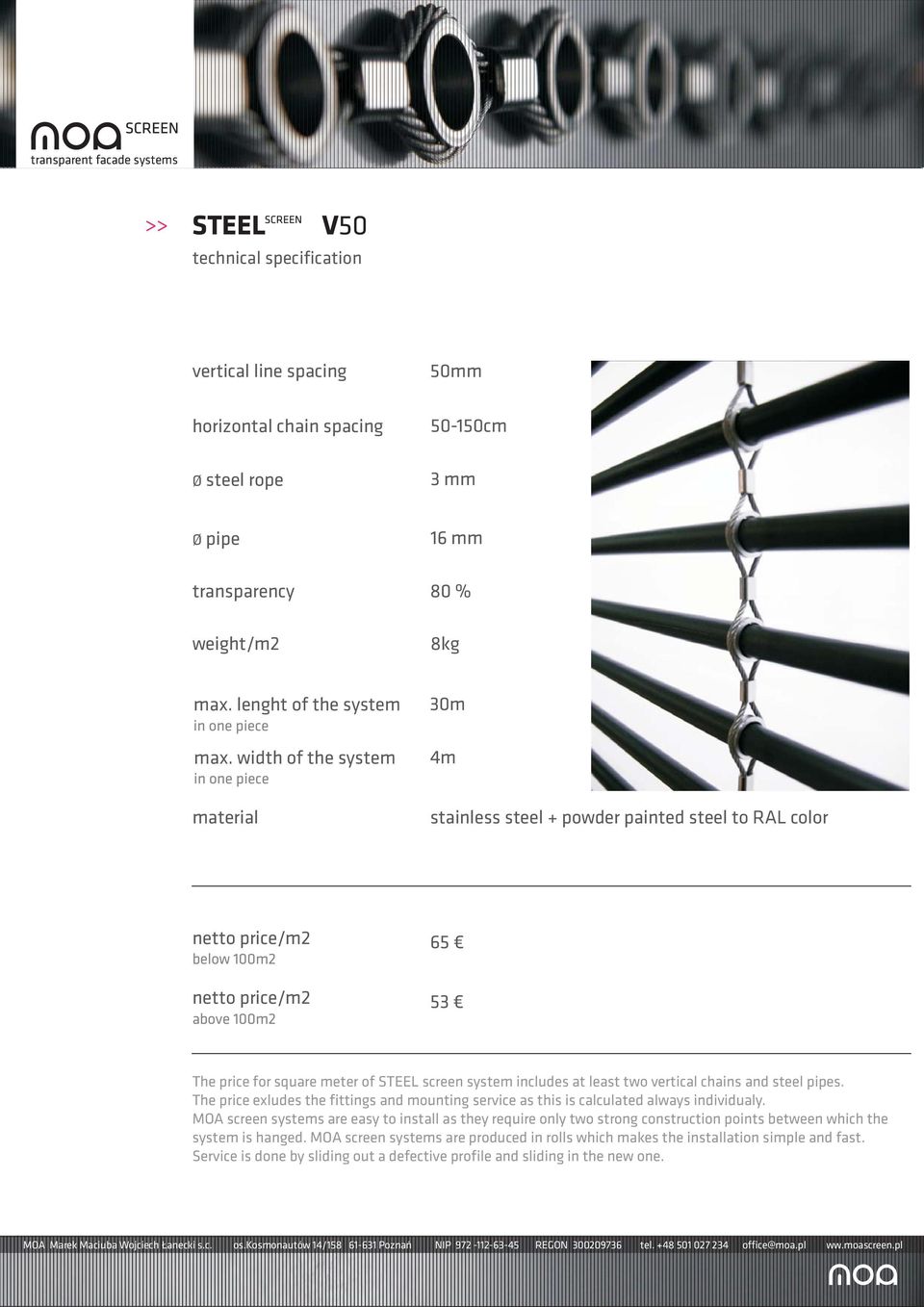

5 STEEL V50 technical specification vertical line spacing horizontal chain spacing cm Ø steel rope 3mm Ø pipe 16 mm transparency 80 % weight/m2 8kg max. lenght of the system max. width of the system material 30m 4m stainless steel + powder painted steel to RAL color below 100m2 above 100m The price for square meter of STEEL screen system includes at least two vertical chains and steel pipes. The price exludes the fittings and mounting service as this is calculated always individualy. MOA screen systems are easy to install as they require only two strong construction points between which the system is hanged. MOA screen systems are produced in rolls which makes the installation simple and fast. Service is done by sliding out a defective profile and sliding in the new one.

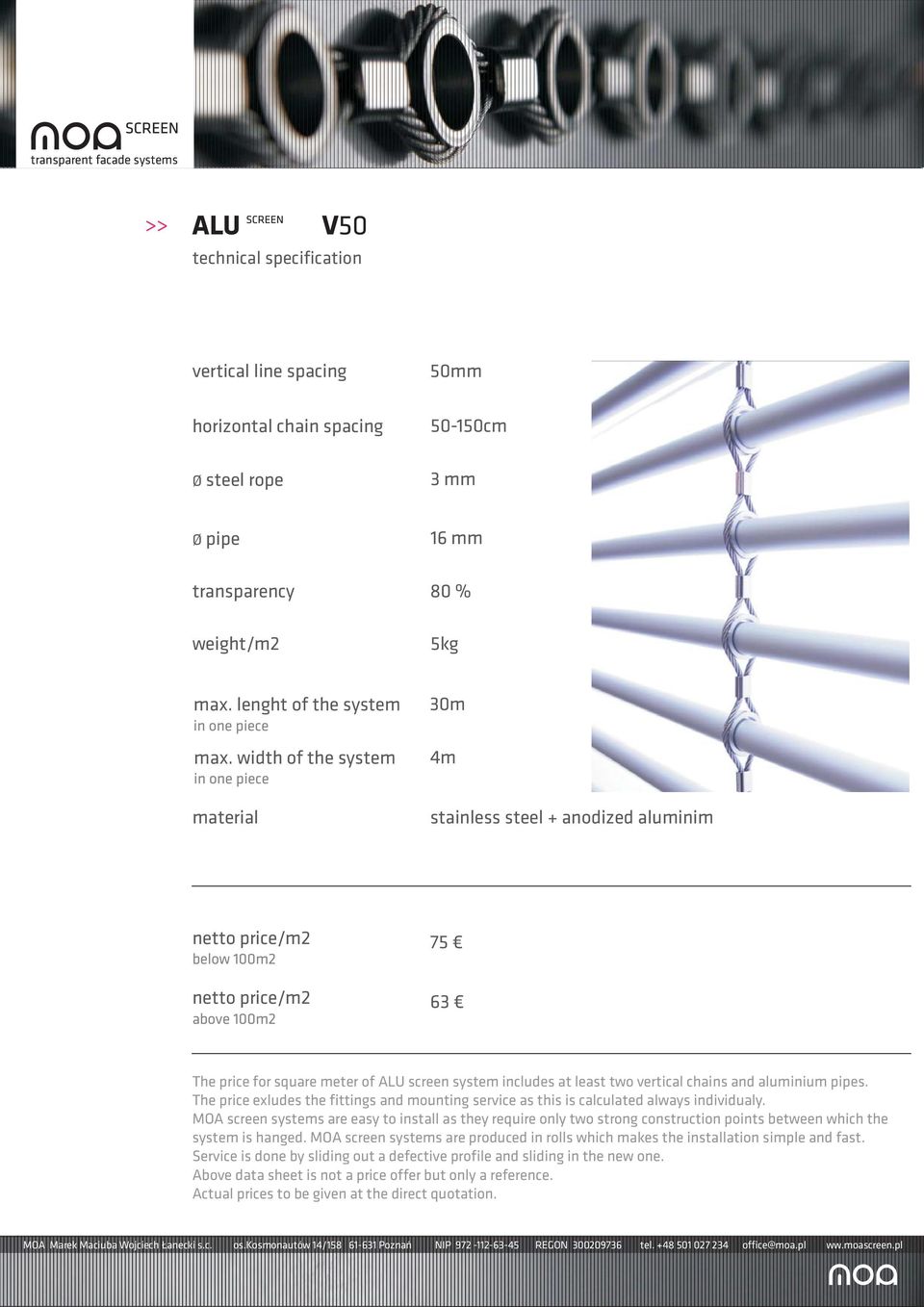

6 ALU V50 technical specification vertical line spacing horizontal chain spacing cm Ø steel rope 3mm Ø pipe 16 mm transparency 80 % weight/m2 5kg max. lenght of the system max. width of the system material 30m 4m stainless steel + anodized aluminim below 100m2 above 100m The price for square meter of ALU screen system includes at least two vertical chains and aluminium pipes. The price exludes the fittings and mounting service as this is calculated always individualy. MOA screen systems are easy to install as they require only two strong construction points between which the system is hanged. MOA screen systems are produced in rolls which makes the installation simple and fast. Service is done by sliding out a defective profile and sliding in the new one. Above data sheet is not a price offer but only a reference. Actual prices to be given at the direct quotation.

7 PLASTIC technical specification V50 vertical line spacing horizontal chain spacing cm Ø steel rope 3mm Ø pipe 16 mm transparency 80 % weight/m2 3kg max. lenght of the system max. width of the system material 30m 4m stainless steel + PCV below 100m2 above 100m The price for square meter of PLASTIC screen system includes at least two vertical chains and plastic pipes. The price exludes the fittings and mounting service as this is calculated always individualy. MOA screen systems are easy to install as they require only two strong construction points between which the system is hanged. MOA screen systems are produced in rolls which makes the installation simple and fast. Service is done by sliding out a defective profile and sliding in the new one. Above data sheet is not a price offer but only a reference. Actual prices to be given at the direct quotation.

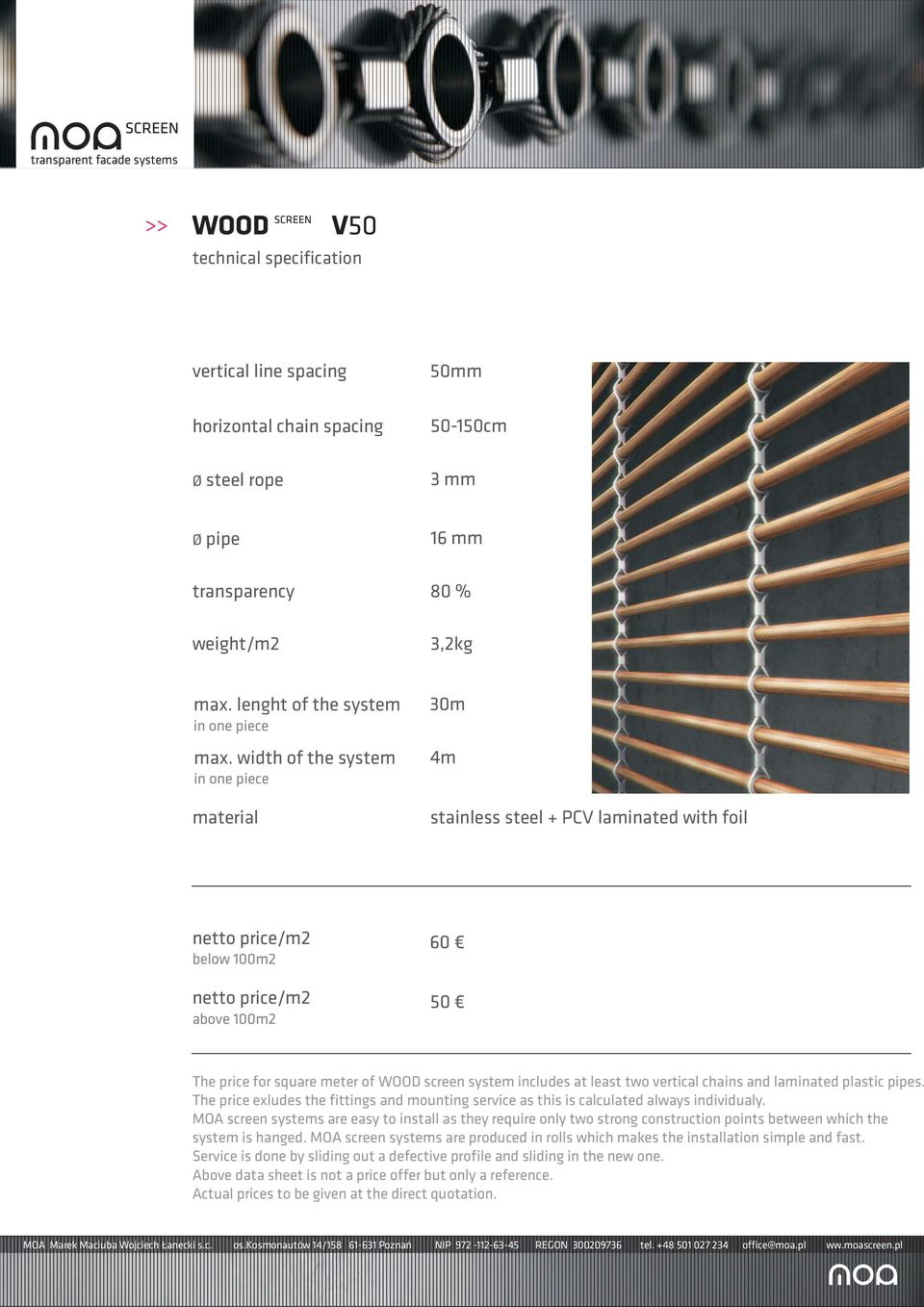

8 WOOD V50 technical specification vertical line spacing horizontal chain spacing cm Ø steel rope 3mm Ø pipe 16 mm transparency 80 % weight/m2 3,2kg max. lenght of the system max. width of the system material 30m 4m stainless steel + PCV laminated with foil below 100m2 above 100m The price for square meter of WOOD screen system includes at least two vertical chains and laminated plastic pipes. The price exludes the fittings and mounting service as this is calculated always individualy. MOA screen systems are easy to install as they require only two strong construction points between which the system is hanged. MOA screen systems are produced in rolls which makes the installation simple and fast. Service is done by sliding out a defective profile and sliding in the new one. Above data sheet is not a price offer but only a reference. Actual prices to be given at the direct quotation.

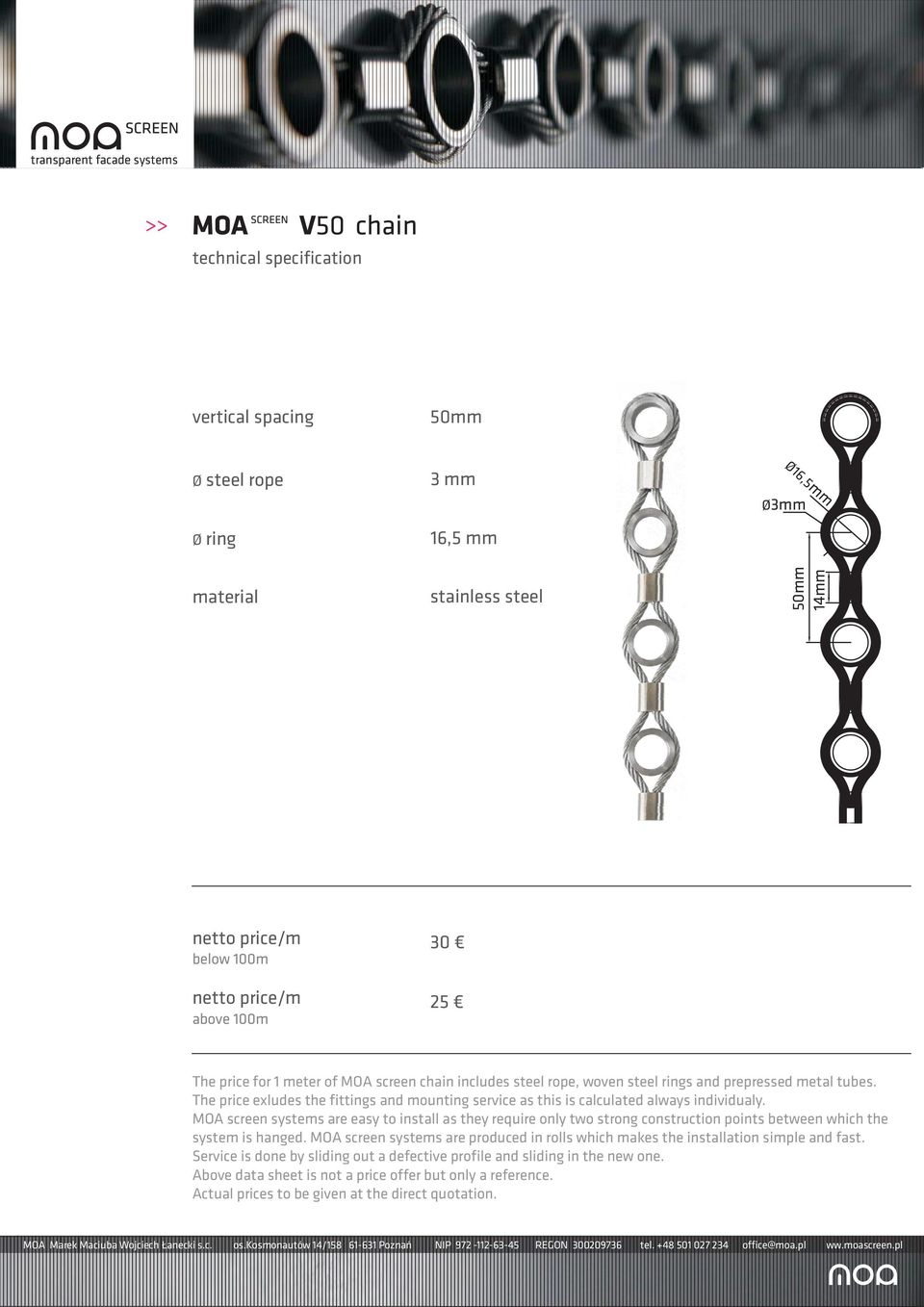

9 MOA V50 chain technical specification vertical spacing Ø steel rope Ø ring 3mm 16,5 mm Ø16,5mm Ø3mm material stainless steel 14mm netto price/m below 100m netto price/m above 100m The price for 1 meter of MOA screen chain includes steel rope, woven steel rings and prepressed metal tubes. The price exludes the fittings and mounting service as this is calculated always individualy. MOA screen systems are easy to install as they require only two strong construction points between which the system is hanged. MOA screen systems are produced in rolls which makes the installation simple and fast. Service is done by sliding out a defective profile and sliding in the new one. Above data sheet is not a price offer but only a reference. Actual prices to be given at the direct quotation.

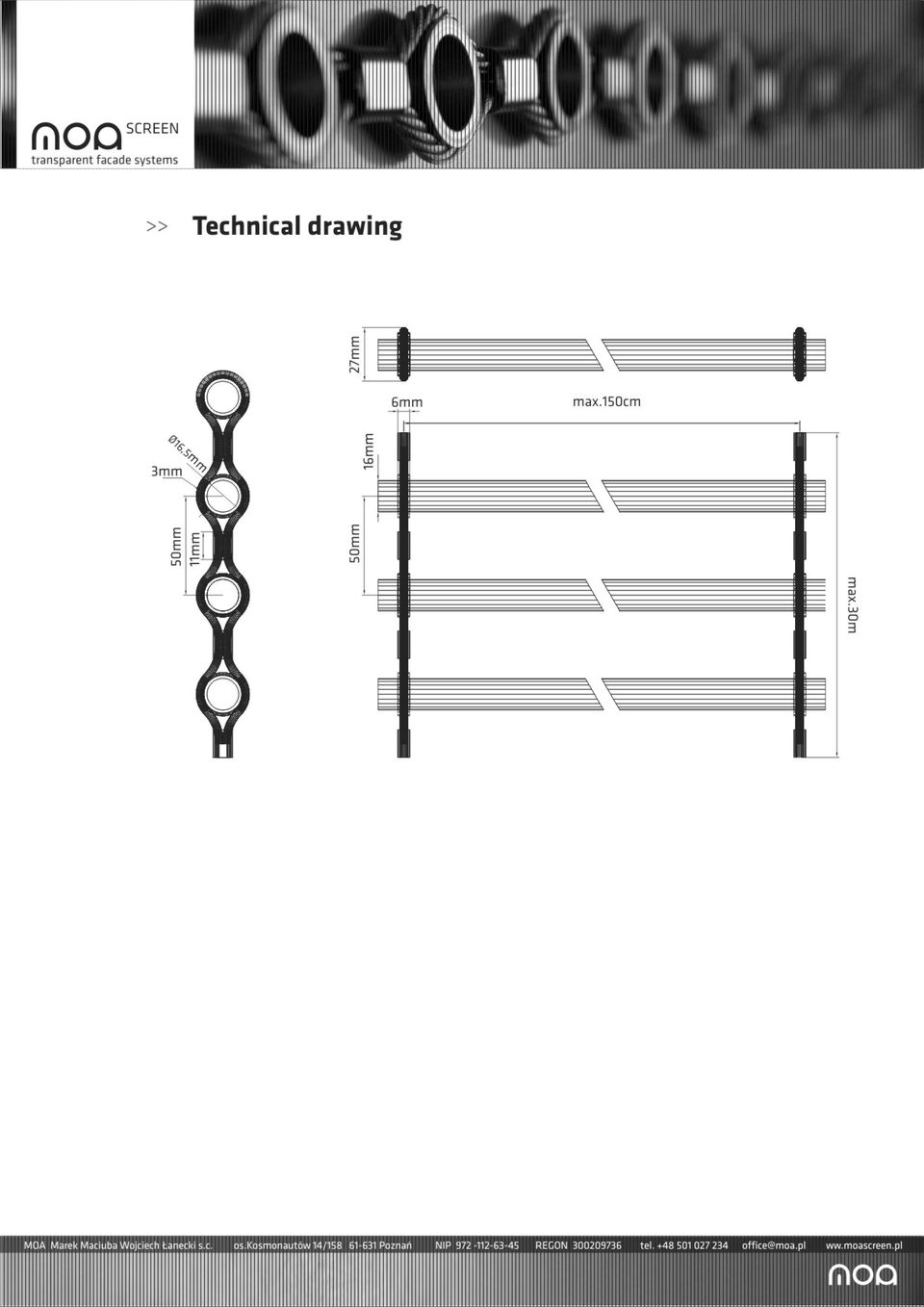

10

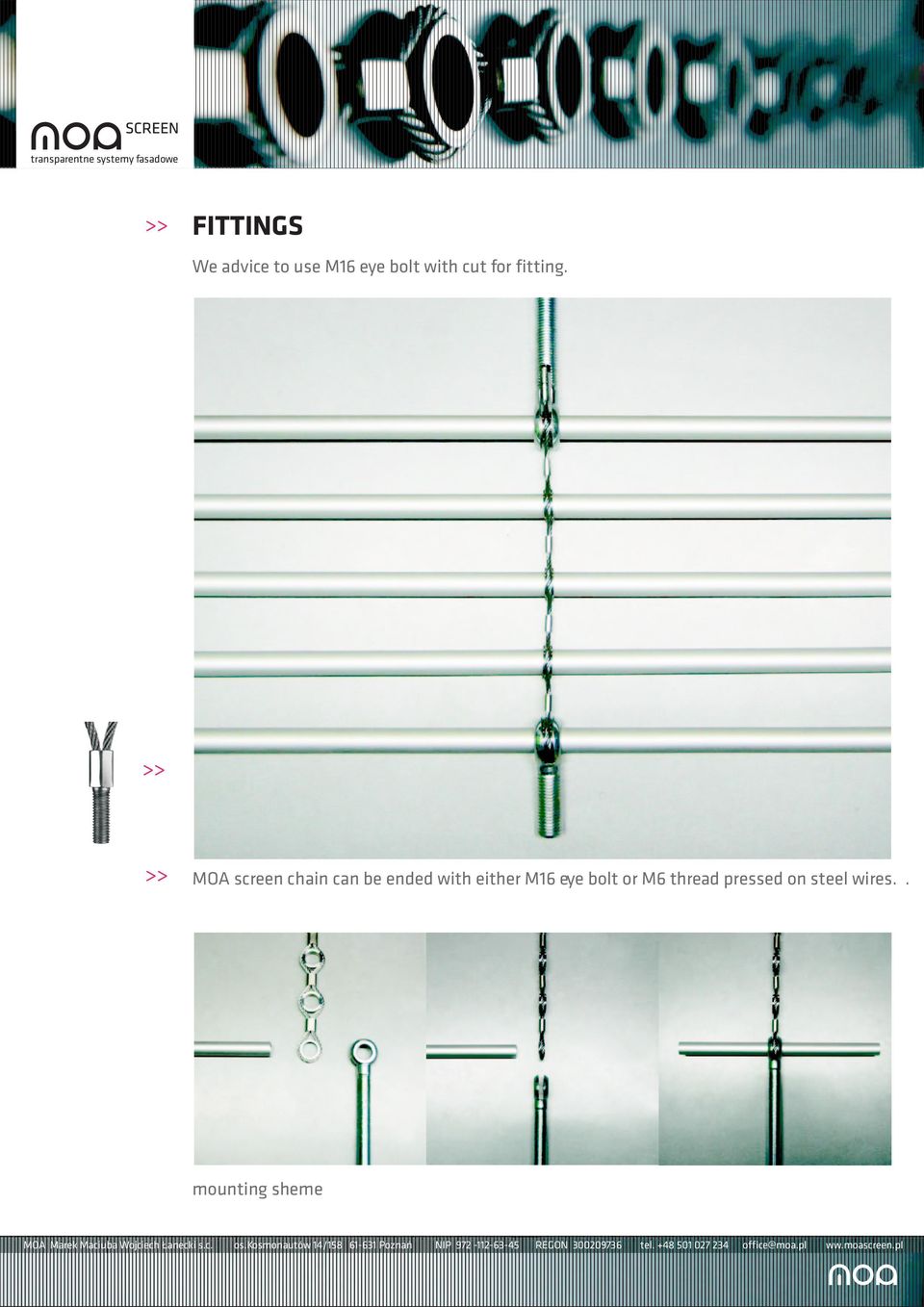

11 transparentne systemy fasadowe FITTINGS We advice to use M16 eye bolt with cut for fitting. MOA screen chain can be ended with either M16 eye bolt or M6 thread pressed on steel wires.. mounting sheme MOA Marek Maciuba Wojciech anecki s.c. os.kosmonautów 14/ Poznañ NIP REGON tel ww.moascreen.pl

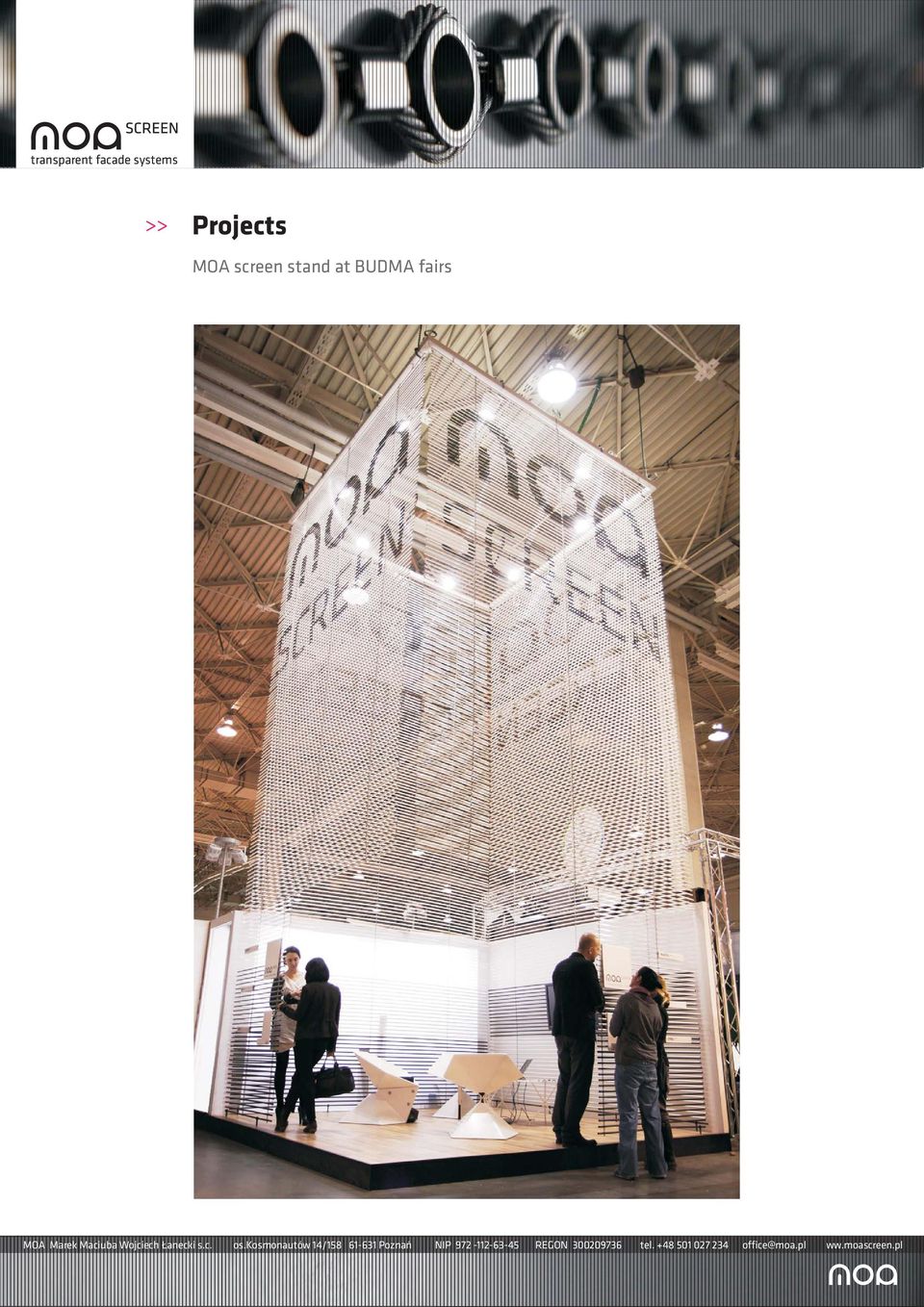

12 Projects MOA screen stand at BUDMA fairs

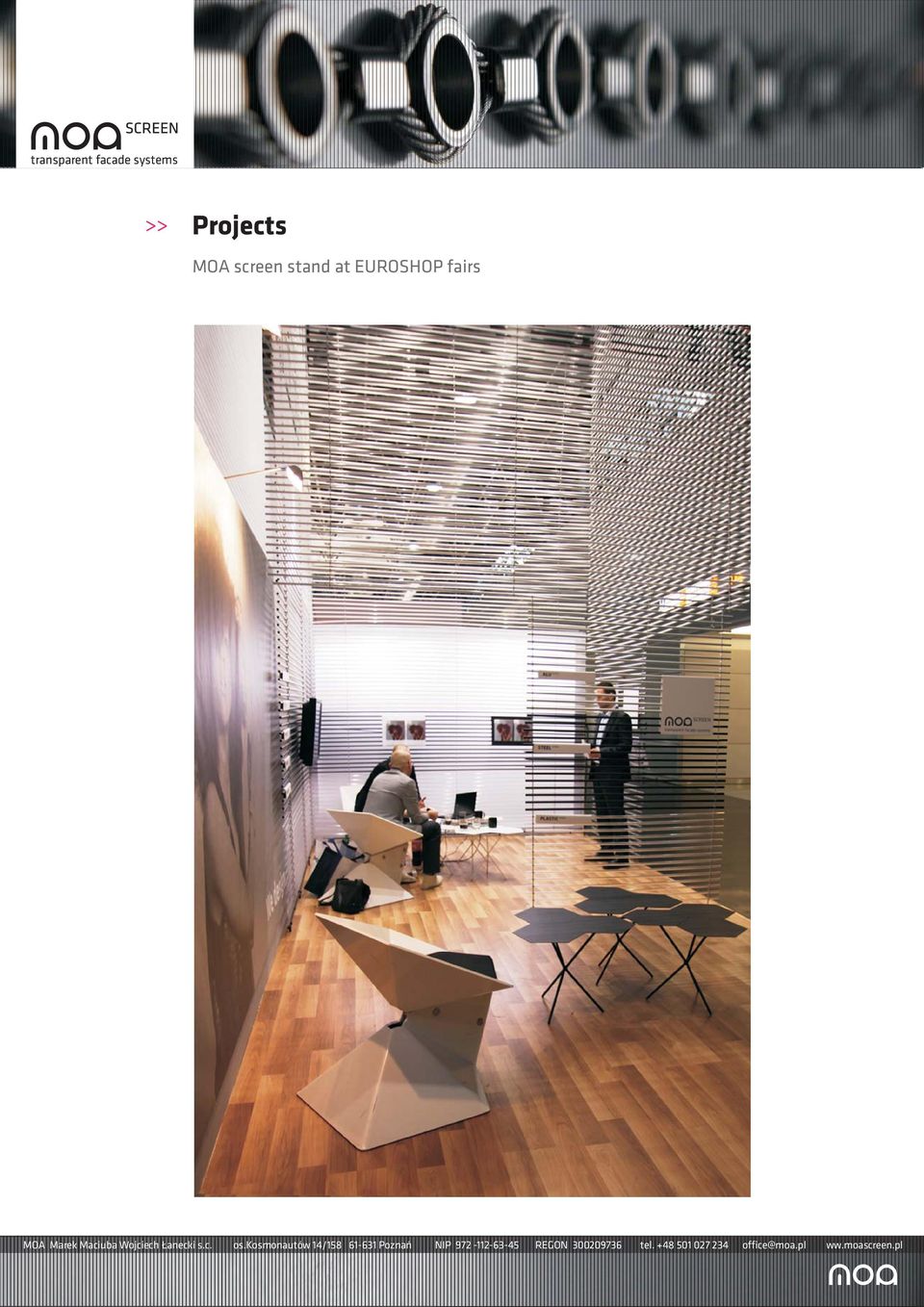

13 Projects MOA screen stand at EUROSHOP fairs

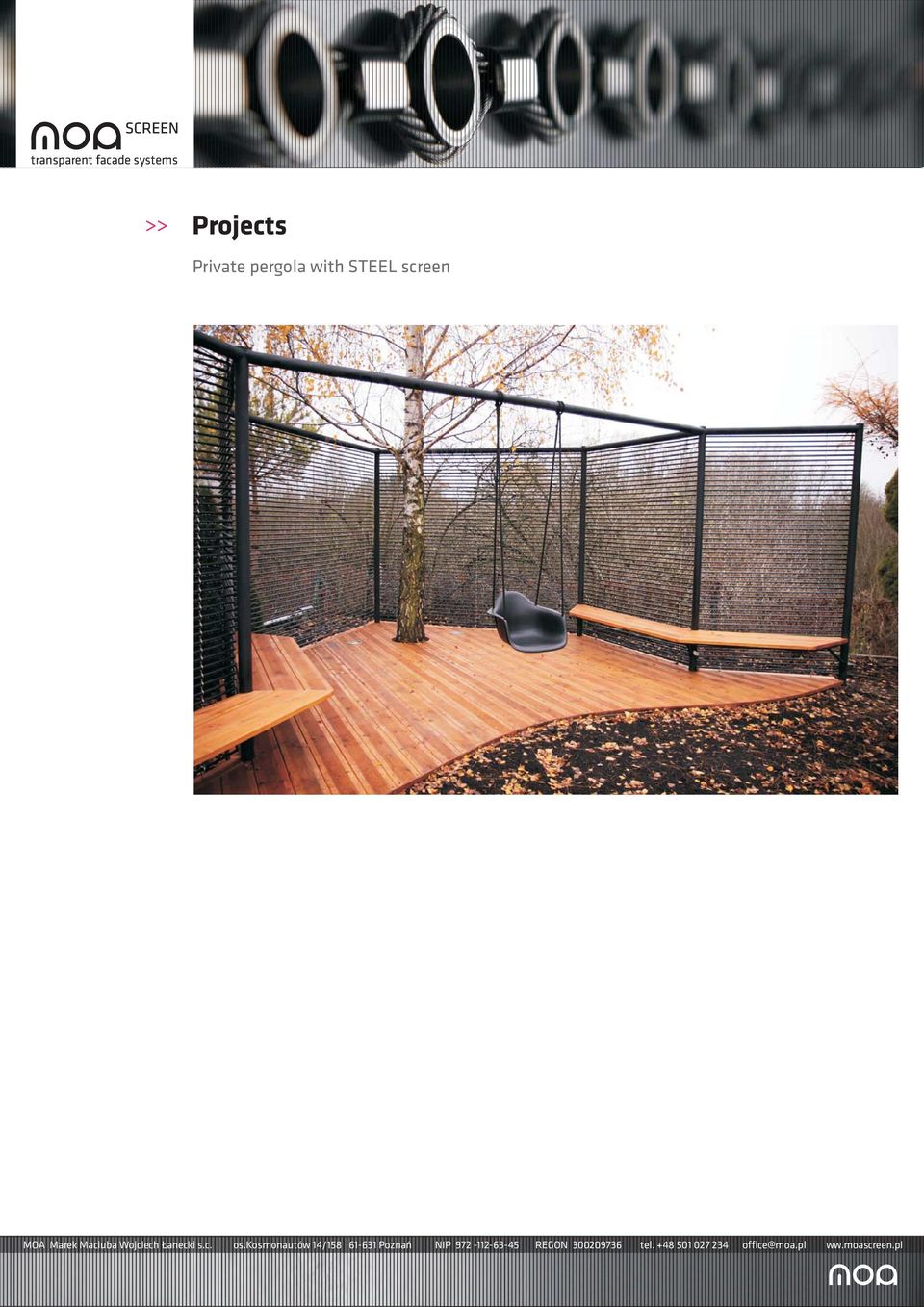

14 Projects Private pergola with STEEL screen
