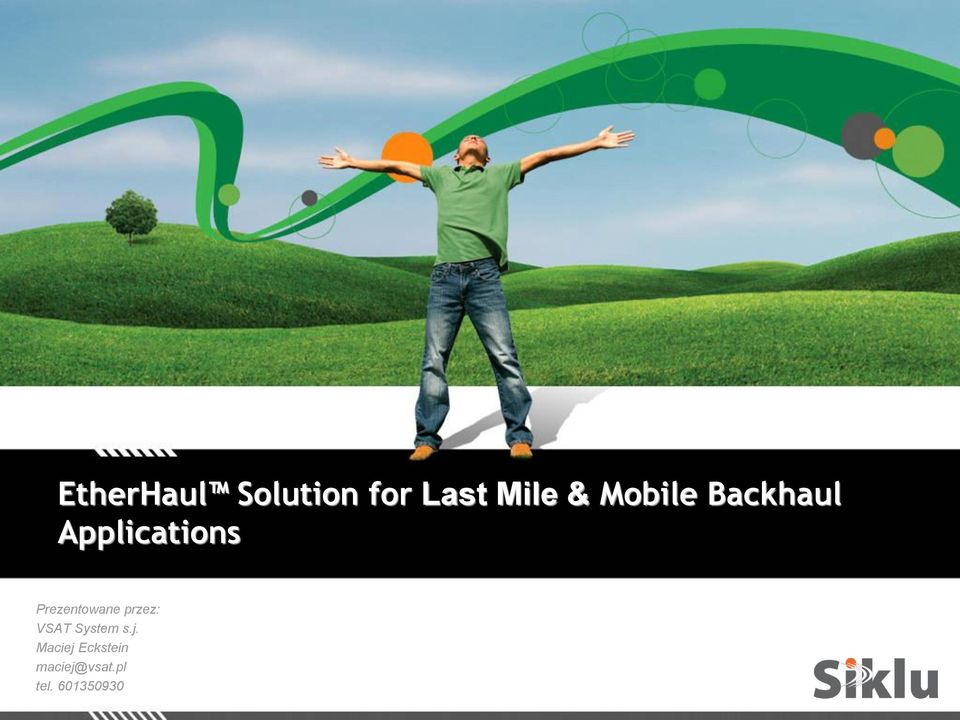

1 EtherHaul Solution for Last Mile & Mobile Backhaul Applications Prezentowane przez: VSAT System s.j. Maciej Eckstein tel

2 MILLIMETER WAVES - THE NEW FRONTIER FOR WIRELESS BACKHAUL 2

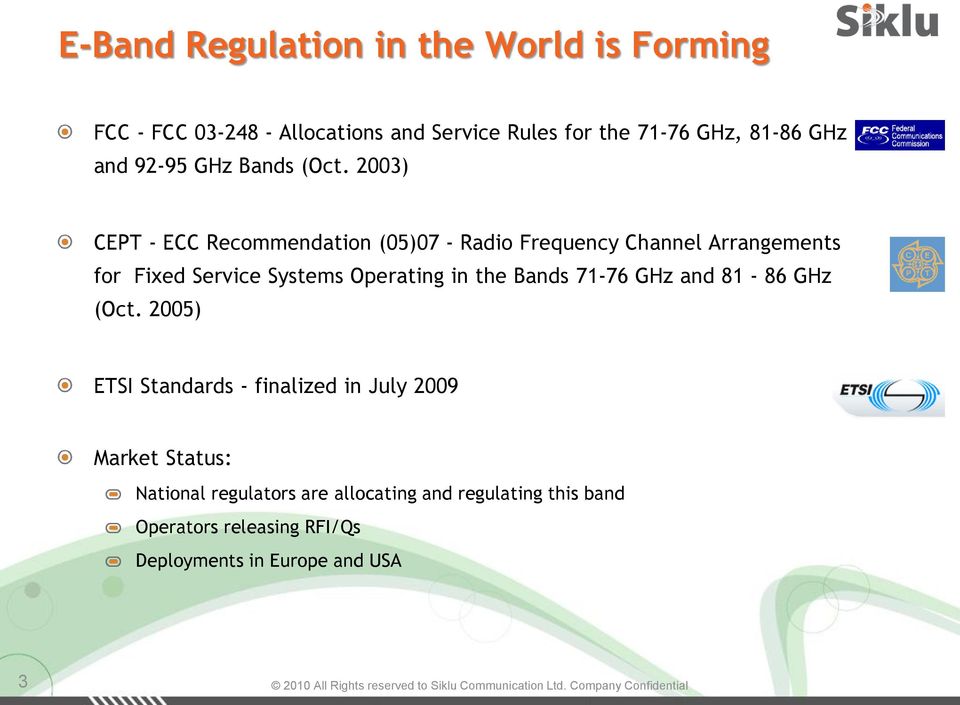

3 E-Band Regulation in the World is Forming FCC - FCC Allocations and Service Rules for the GHz, GHz and GHz Bands (Oct. 2003) CEPT - ECC Recommendation (05)07 - Radio Frequency Channel Arrangements for Fixed Service Systems Operating in the Bands GHz and GHz (Oct. 2005) ETSI Standards - finalized in July 2009 Market Status: National regulators are allocating and regulating this band Operators releasing RFI/Qs Deployments in Europe and USA 3

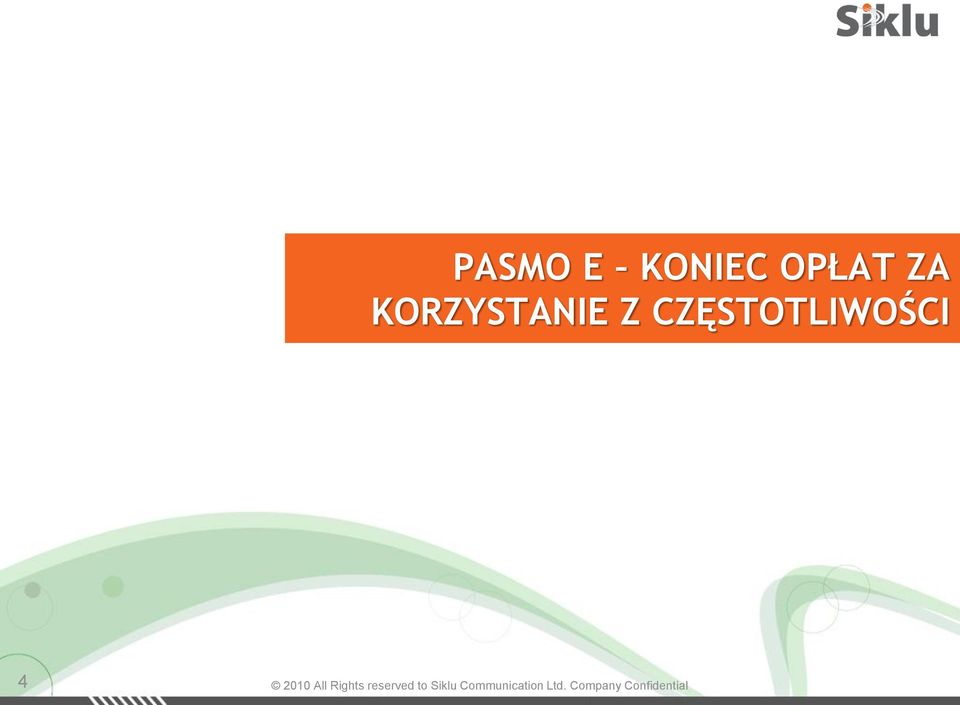

4 PASMO E KONIEC OPŁAT ZA KORZYSTANIE Z CZĘSTOTLIWOŚCI 4

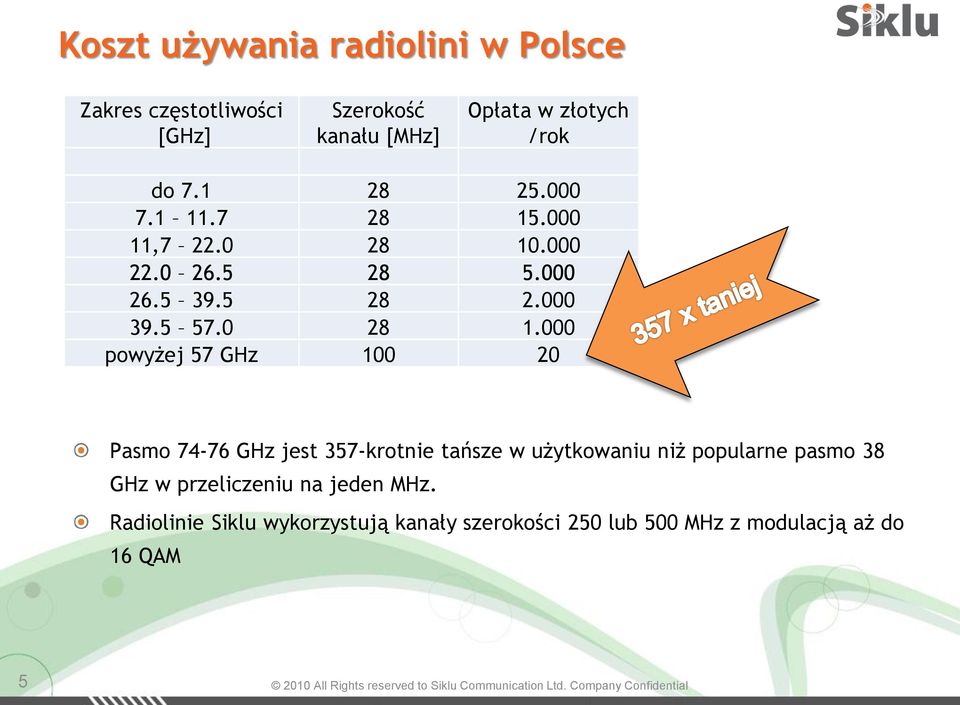

5 Koszt używania radiolini w Polsce Zakres częstotliwości [GHz] Szerokość kanału [MHz] Opłata w złotych /rok do , powyżej 57 GHz Pasmo GHz jest 357-krotnie tańsze w użytkowaniu niż popularne pasmo 38 GHz w przeliczeniu na jeden MHz. Radiolinie Siklu wykorzystują kanały szerokości 250 lub 500 MHz z modulacją aż do 16 QAM 5

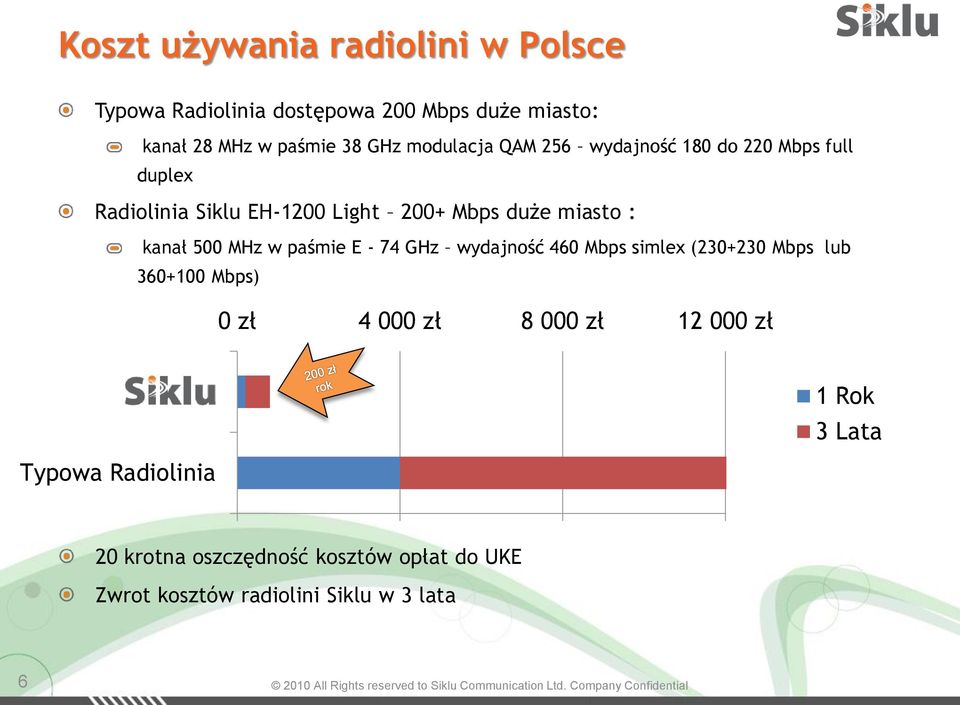

6 Koszt używania radiolini w Polsce Typowa Radiolinia dostępowa 200 Mbps duże miasto: kanał 28 MHz w paśmie 38 GHz modulacja QAM 256 wydajność 180 do 220 Mbps full duplex Radiolinia Siklu EH-1200 Light 200+ Mbps duże miasto : kanał 500 MHz w paśmie E - 74 GHz wydajność 460 Mbps simlex ( Mbps lub Mbps) 0 zł zł zł zł Siklu 1 Rok 3 Lata Typowa Radiolinia 20 krotna oszczędność kosztów opłat do UKE Zwrot kosztów radiolini Siklu w 3 lata 6

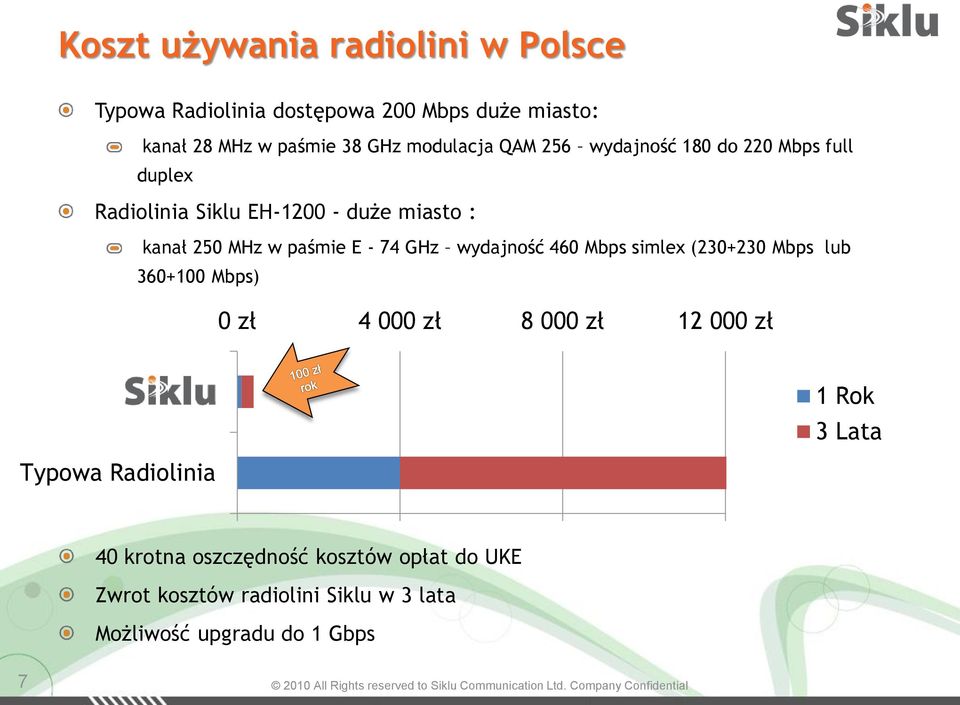

7 Koszt używania radiolini w Polsce Typowa Radiolinia dostępowa 200 Mbps duże miasto: kanał 28 MHz w paśmie 38 GHz modulacja QAM 256 wydajność 180 do 220 Mbps full duplex Radiolinia Siklu EH duże miasto : kanał 250 MHz w paśmie E - 74 GHz wydajność 460 Mbps simlex ( Mbps lub Mbps) 0 zł zł zł zł Siklu 1 Rok 3 Lata Typowa Radiolinia 40 krotna oszczędność kosztów opłat do UKE Zwrot kosztów radiolini Siklu w 3 lata Możliwość upgradu do 1 Gbps 7

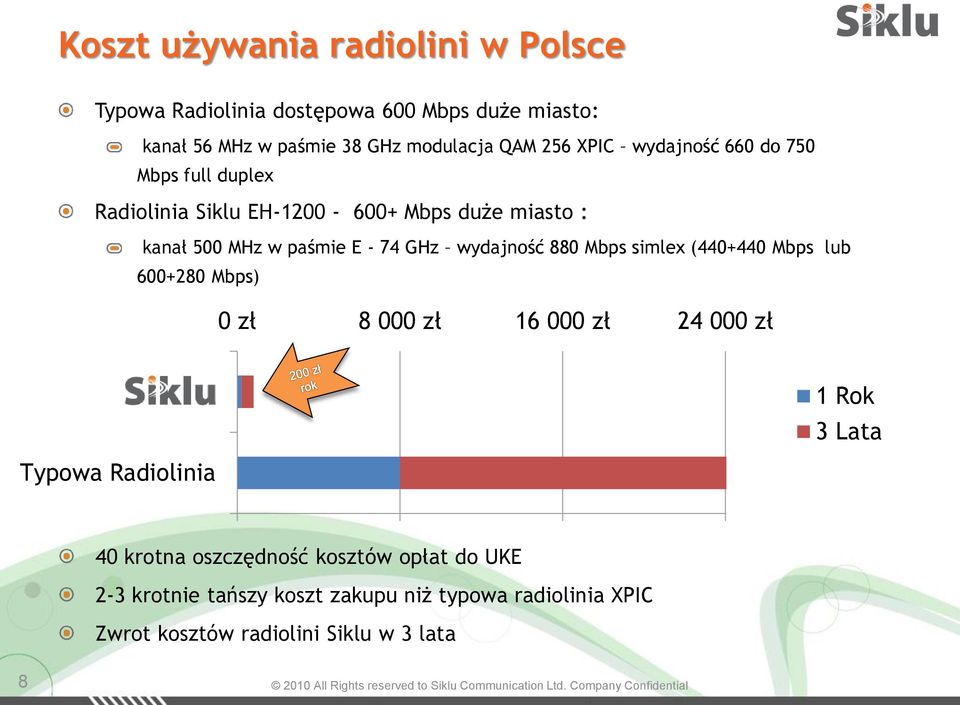

8 Koszt używania radiolini w Polsce Typowa Radiolinia dostępowa 600 Mbps duże miasto: kanał 56 MHz w paśmie 38 GHz modulacja QAM 256 XPIC wydajność 660 do 750 Mbps full duplex Radiolinia Siklu EH Mbps duże miasto : kanał 500 MHz w paśmie E - 74 GHz wydajność 880 Mbps simlex ( Mbps lub Mbps) 0 zł zł zł zł Siklu 1 Rok 3 Lata Typowa Radiolinia 40 krotna oszczędność kosztów opłat do UKE 2-3 krotnie tańszy koszt zakupu niż typowa radiolinia XPIC Zwrot kosztów radiolini Siklu w 3 lata 8

9 ETHERHAUL - CHANGING THE BACKHAUL RULES 9

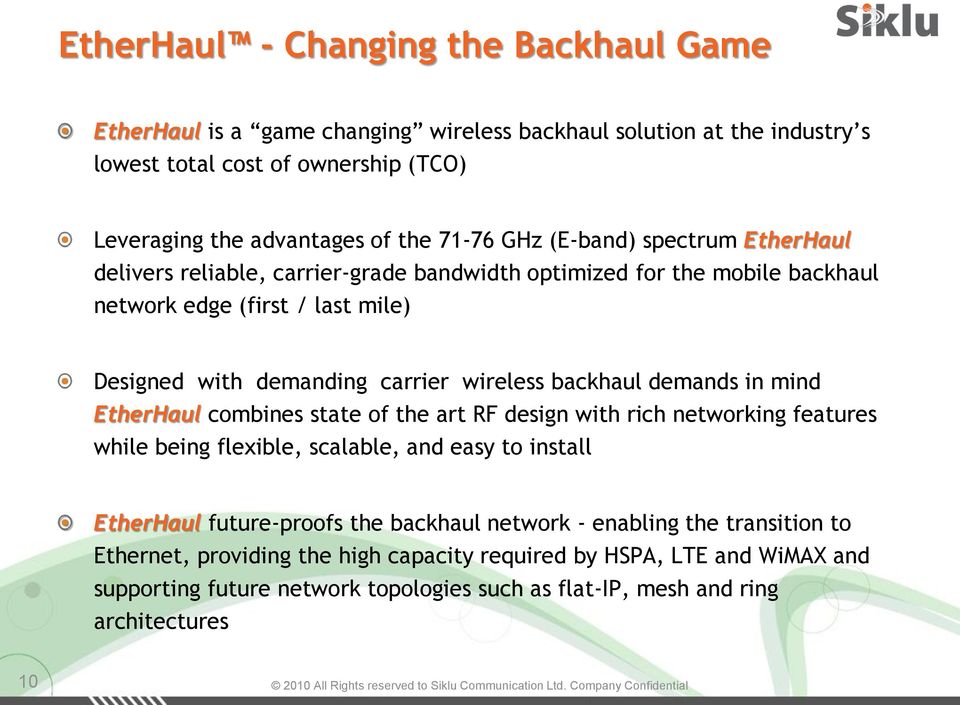

10 EtherHaul - Changing the Backhaul Game EtherHaul is a game changing wireless backhaul solution at the industry s lowest total cost of ownership (TCO) Leveraging the advantages of the GHz (E-band) spectrum EtherHaul delivers reliable, carrier-grade bandwidth optimized for the mobile backhaul network edge (first / last mile) Designed with demanding carrier wireless backhaul demands in mind EtherHaul combines state of the art RF design with rich networking features while being flexible, scalable, and easy to install EtherHaul future-proofs the backhaul network - enabling the transition to Ethernet, providing the high capacity required by HSPA, LTE and WiMAX and supporting future network topologies such as flat-ip, mesh and ring architectures 10

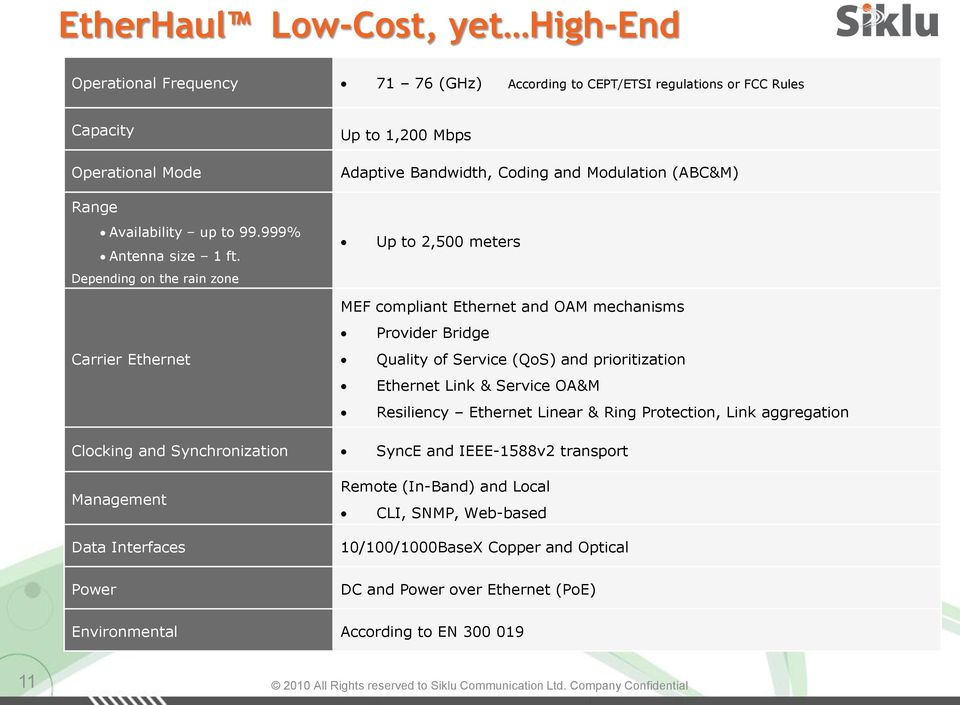

11 EtherHaul Low-Cost, yet High-End Operational Frequency (GHz) According to CEPT/ETSI regulations or FCC Rules Capacity Operational Mode Up to 1,200 Mbps Adaptive Bandwidth, Coding and Modulation (ABC&M) Range Availability up to % Antenna size 1 ft. Depending on the rain zone Up to 2,500 meters Carrier Ethernet MEF compliant Ethernet and OAM mechanisms Provider Bridge Quality of Service (QoS) and prioritization Ethernet Link & Service OA&M Resiliency Ethernet Linear & Ring Protection, Link aggregation Clocking and Synchronization SyncE and IEEE-1588v2 transport Management Data Interfaces Power Remote (In-Band) and Local CLI, SNMP, Web-based 10/100/1000BaseX Copper and Optical DC and Power over Ethernet (PoE) Environmental According to EN

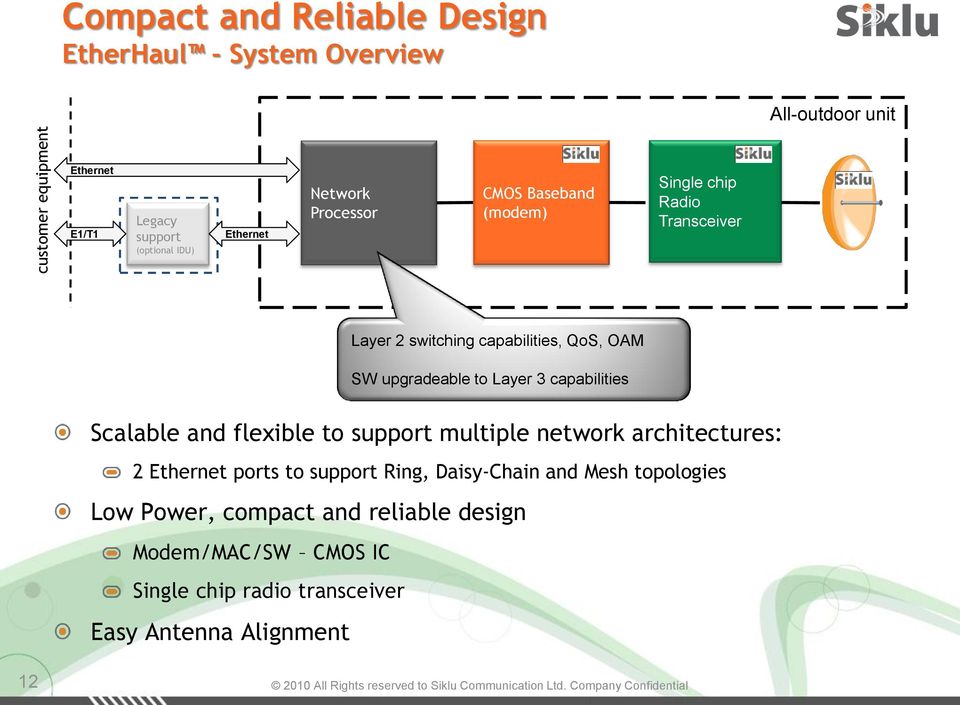

12 customer equipment Compact and Reliable Design EtherHaul - System Overview All-outdoor unit Ethernet E1/T1 Legacy support (optional IDU) Ethernet Network Processor CMOS Baseband (modem) Single chip Radio Transceiver Layer 2 switching capabilities, QoS, OAM SW upgradeable to Layer 3 capabilities Scalable and flexible to support multiple network architectures: 2 Ethernet ports to support Ring, Daisy-Chain and Mesh topologies Low Power, compact and reliable design Modem/MAC/SW CMOS IC Single chip radio transceiver Easy Antenna Alignment 12

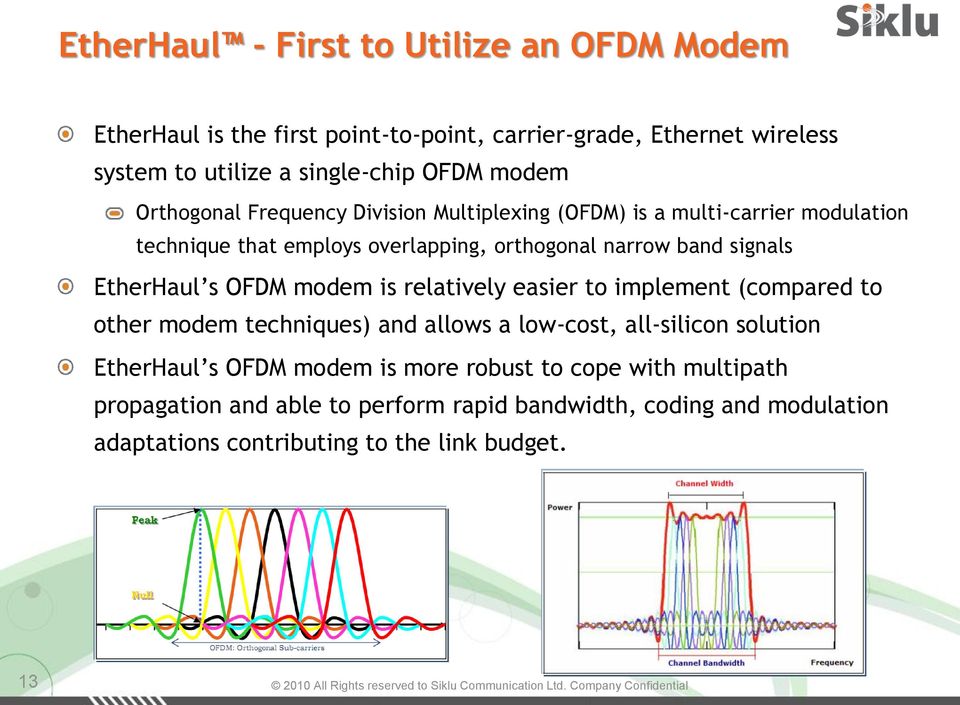

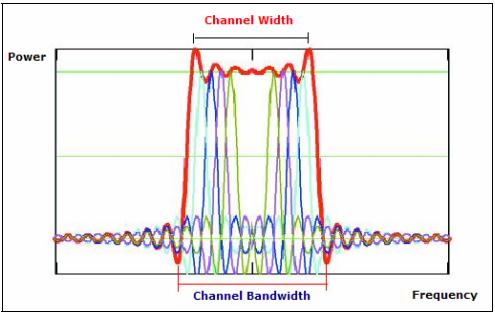

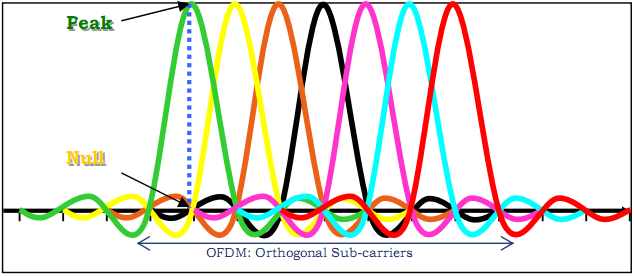

13 EtherHaul - First to Utilize an OFDM Modem EtherHaul is the first point-to-point, carrier-grade, Ethernet wireless system to utilize a single-chip OFDM modem Orthogonal Frequency Division Multiplexing (OFDM) is a multi-carrier modulation technique that employs overlapping, orthogonal narrow band signals EtherHaul s OFDM modem is relatively easier to implement (compared to other modem techniques) and allows a low-cost, all-silicon solution EtherHaul s OFDM modem is more robust to cope with multipath propagation and able to perform rapid bandwidth, coding and modulation adaptations contributing to the link budget. 13

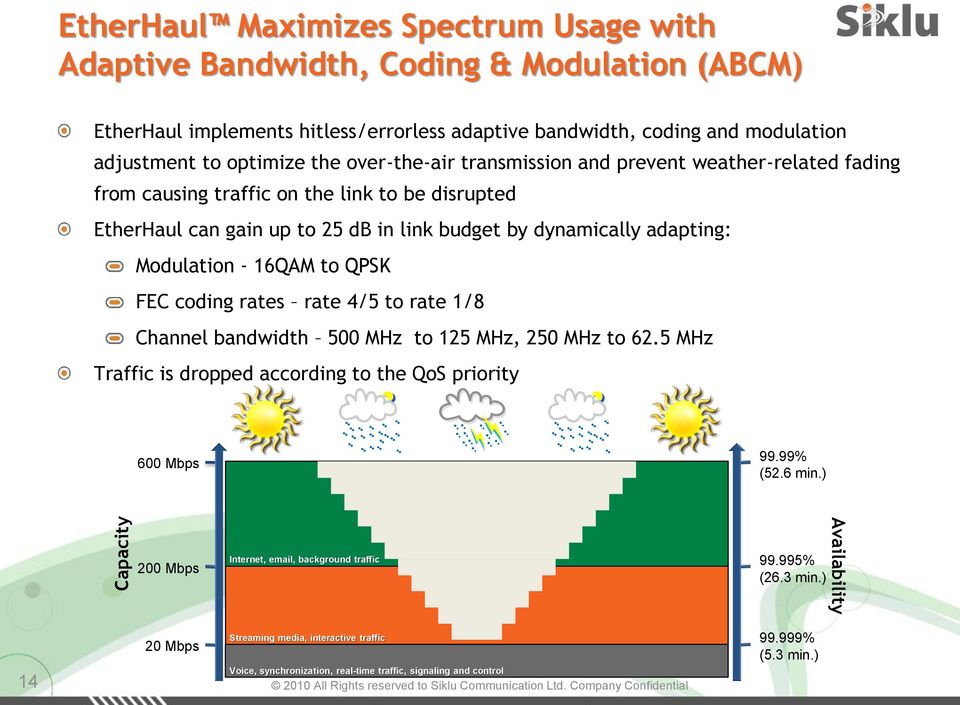

14 Capacity EtherHaul Maximizes Spectrum Usage with Adaptive Bandwidth, Coding & Modulation (ABCM) EtherHaul implements hitless/errorless adaptive bandwidth, coding and modulation adjustment to optimize the over-the-air transmission and prevent weather-related fading from causing traffic on the link to be disrupted EtherHaul can gain up to 25 db in link budget by dynamically adapting: Modulation - 16QAM to QPSK FEC coding rates rate 4/5 to rate 1/8 Channel bandwidth 500 MHz to 125 MHz, 250 MHz to 62.5 MHz Traffic is dropped according to the QoS priority 600 Mbps 99.99% (52.6 min.) 200 Mbps Internet, , background traffic % (26.3 min.) Availability Mbps Streaming media, interactive traffic Voice, synchronization, real-time traffic, signaling and control % (5.3 min.)

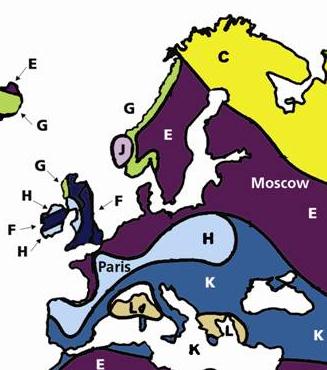

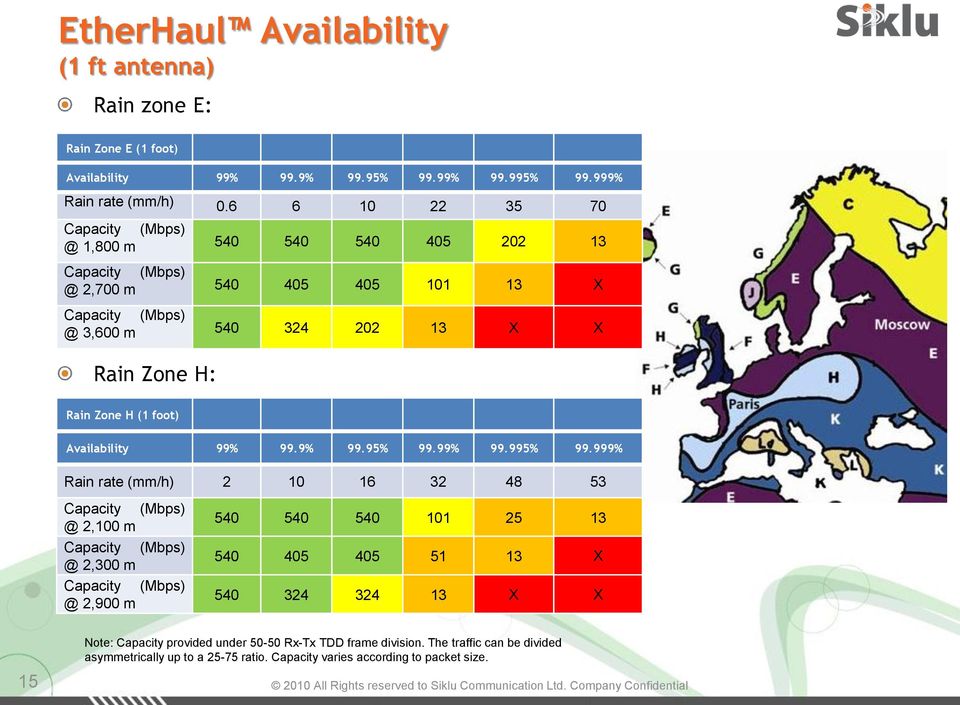

15 EtherHaul Availability (1 ft antenna) Rain zone E: Rain Zone E (1 foot) Availability 99% 99.9% 99.95% 99.99% % % Rain rate (mm/h) Capacity 1,800 m Capacity 2,700 m X Capacity 3,600 m X X Rain Zone H: Rain Zone H (1 foot) Availability 99% 99.9% 99.95% 99.99% % % Rain rate (mm/h) Capacity 2,100 m Capacity 2,300 m Capacity 2,900 m X X X 15 Note: Capacity provided under Rx-Tx TDD frame division. The traffic can be divided asymmetrically up to a ratio. Capacity varies according to packet size.

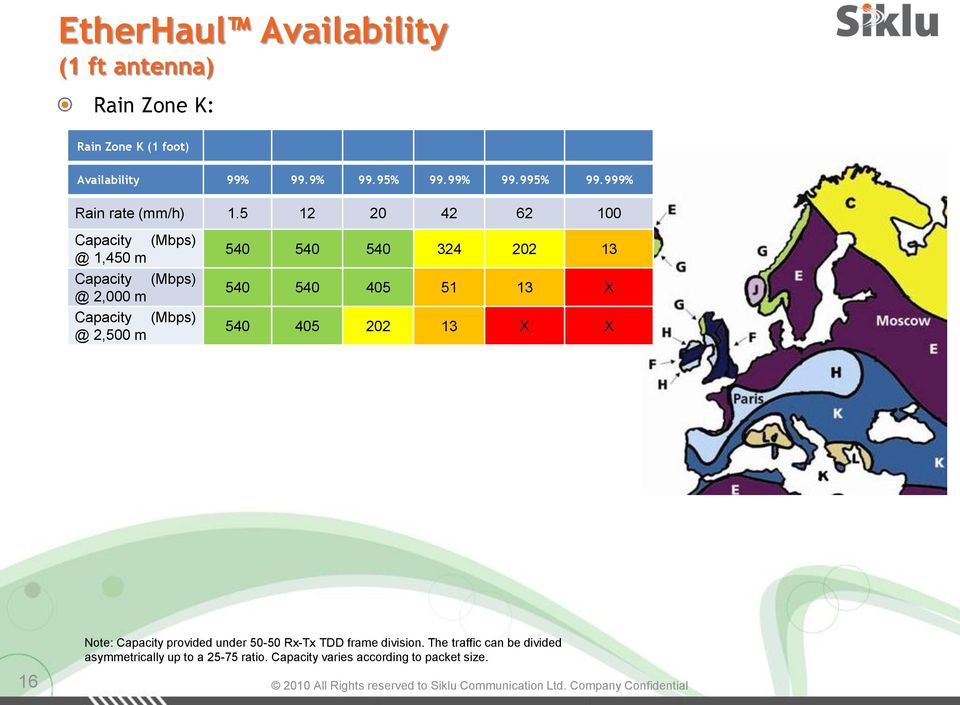

16 EtherHaul Availability (1 ft antenna) Rain Zone K: Rain Zone K (1 foot) Availability 99% 99.9% 99.95% 99.99% % % Rain rate (mm/h) Capacity 1,450 m Capacity 2,000 m Capacity 2,500 m X X X 16 Note: Capacity provided under Rx-Tx TDD frame division. The traffic can be divided asymmetrically up to a ratio. Capacity varies according to packet size.

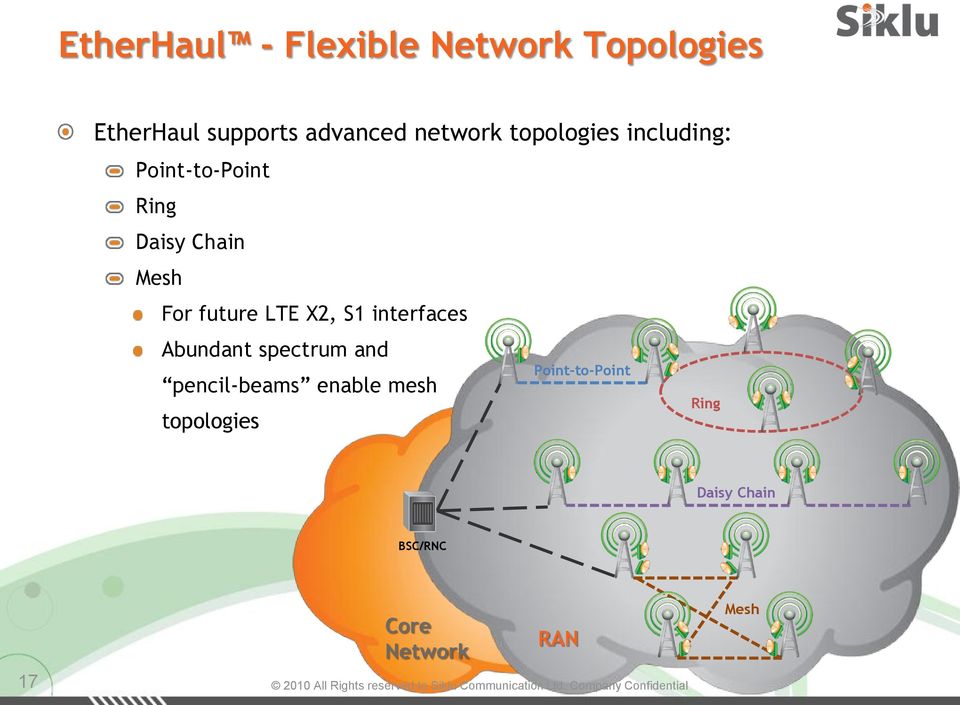

17 EtherHaul - Flexible Network Topologies EtherHaul supports advanced network topologies including: Point-to-Point Ring Daisy Chain Mesh For future LTE X2, S1 interfaces Abundant spectrum and pencil-beams enable mesh topologies Point-to-Point Ring Daisy Chain BSC/RNC 17 Core Network RAN Mesh

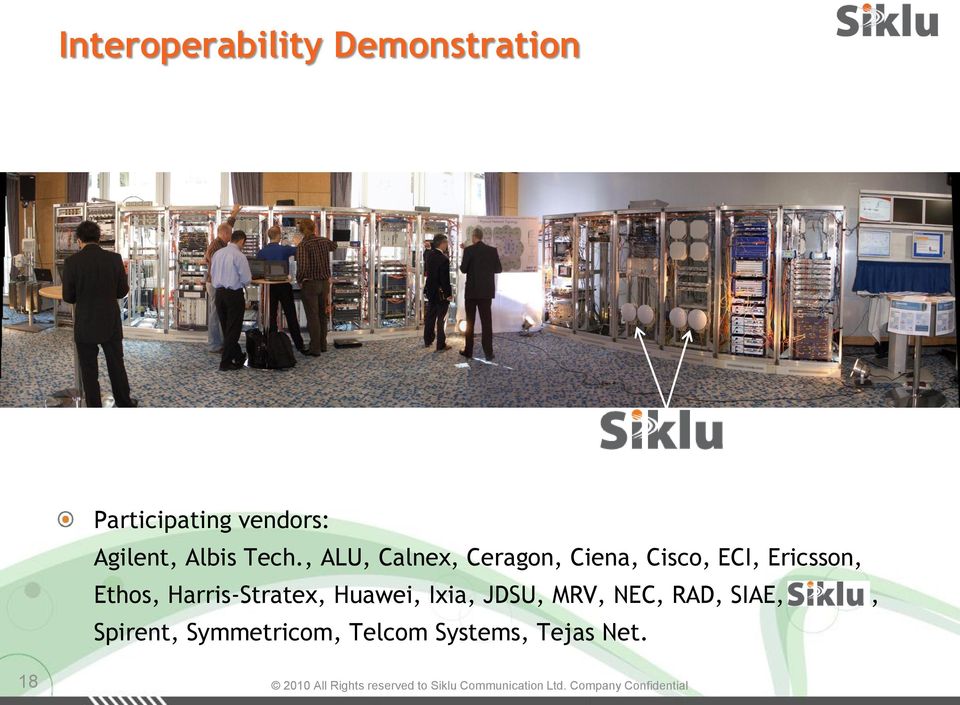

18 Interoperability Demonstration Participating vendors: Agilent, Albis Tech., ALU, Calnex, Ceragon, Ciena, Cisco, ECI, Ericsson, Ethos, Harris-Stratex, Huawei, Ixia, JDSU, MRV, NEC, RAD, SIAE,, Spirent, Symmetricom, Telcom Systems, Tejas Net. 18

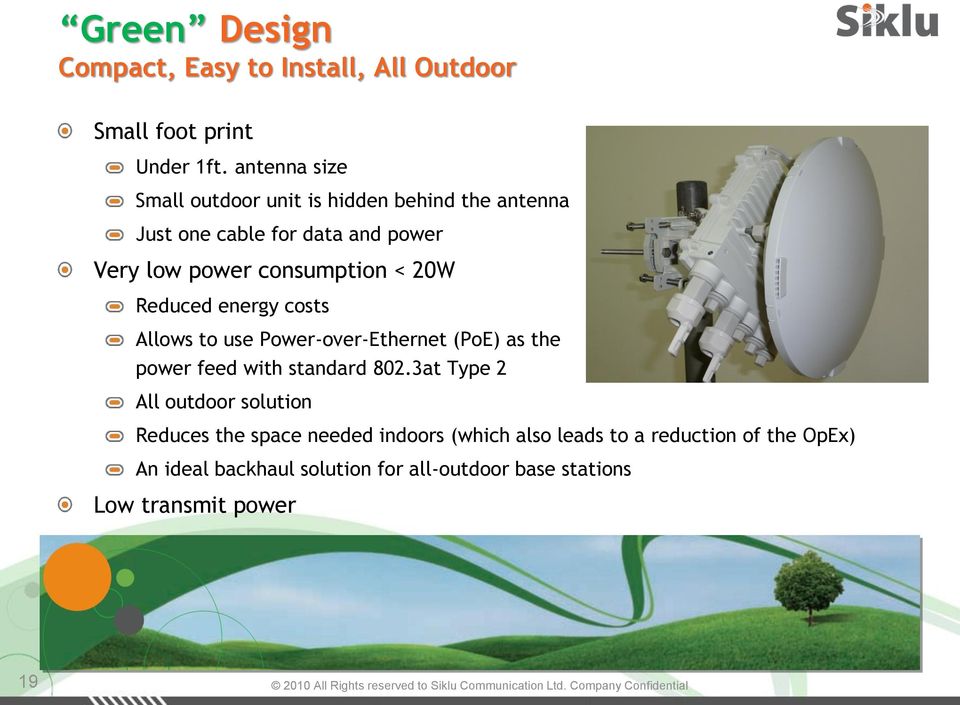

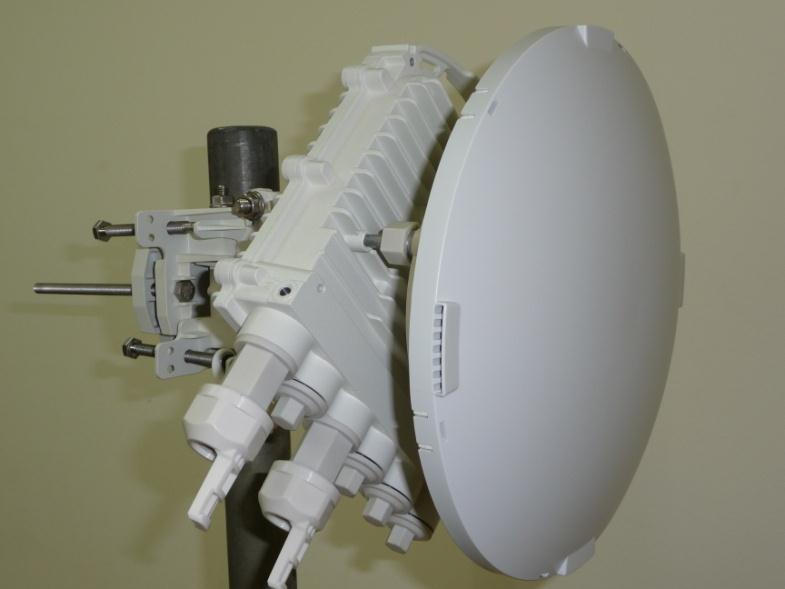

19 Green Design Compact, Easy to Install, All Outdoor Small foot print Under 1ft. antenna size Small outdoor unit is hidden behind the antenna Just one cable for data and power Very low power consumption < 20W Reduced energy costs Allows to use Power-over-Ethernet (PoE) as the power feed with standard 802.3at Type 2 All outdoor solution Reduces the space needed indoors (which also leads to a reduction of the OpEx) An ideal backhaul solution for all-outdoor base stations Low transmit power 19

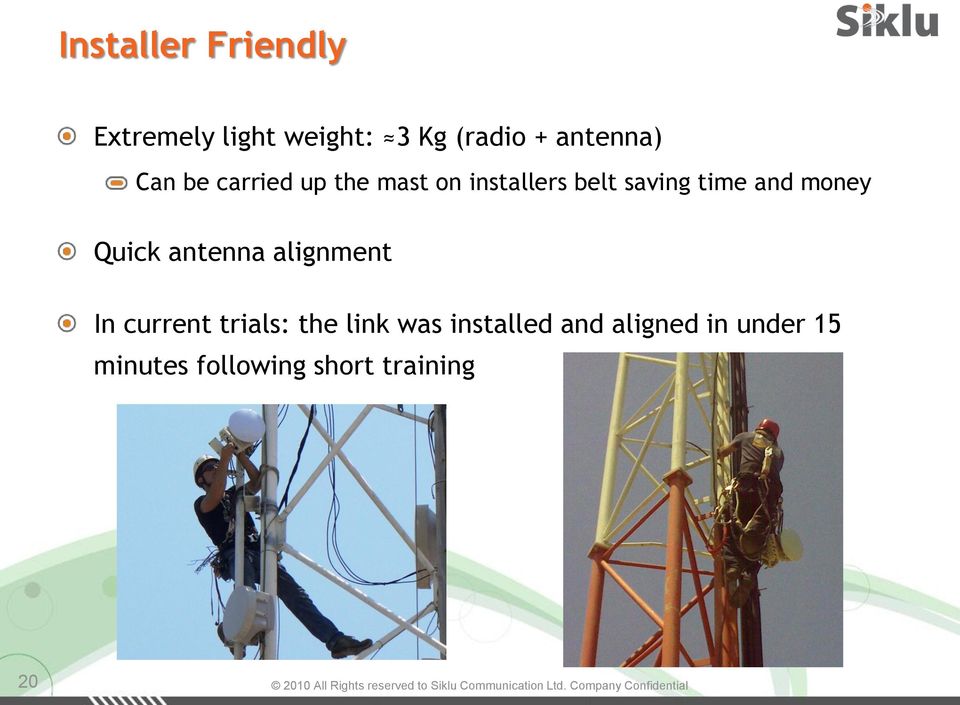

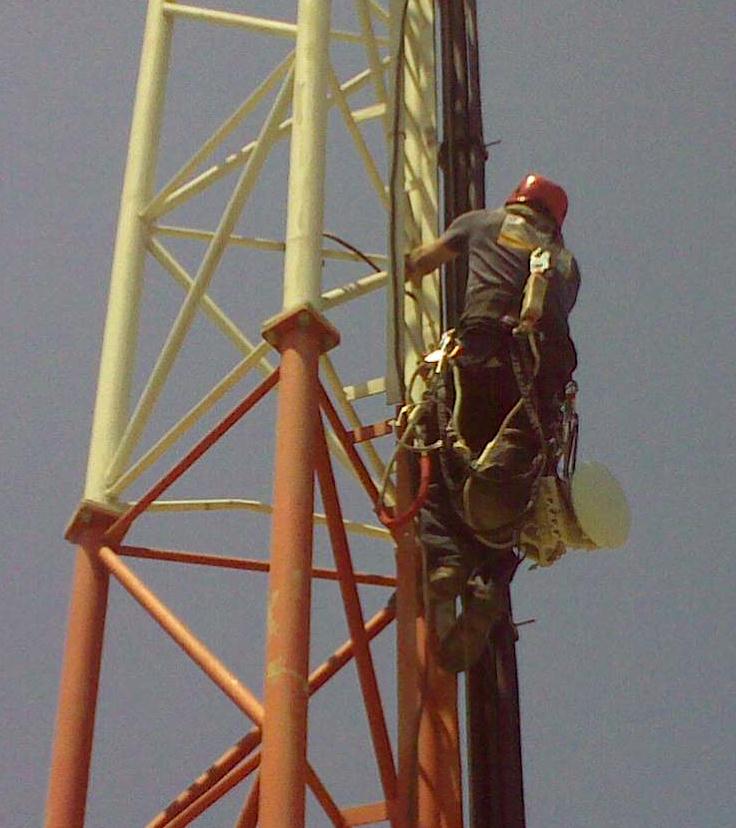

20 Installer Friendly Extremely light weight: 3 Kg (radio + antenna) Can be carried up the mast on installers belt saving time and money Quick antenna alignment In current trials: the link was installed and aligned in under 15 minutes following short training 20

21 to conclude Siklu offers a game changing product that combines low cost with state of the art performance to enable real 90% savings in backhaul costs Siklu s products are optimized for the network edge, flexible, scalable, easy to install, and environmentally friendly Siklu operates in the mmwave band which is the next fastest growing segment of the licensed microwave frequency bands Our mission: to become the mmwave backhaul leader! 21

22 THANK YOU VSAT System s.j. Maciej Eckstein tel
