Microsoft StorSimple nowe możliwości archiwizacji oraz back-up danych dla uczelni. Michał Jędrzejczak Architekt IT, Cloud Expert Comparex

Transkrypt

1 Microsoft StorSimple nowe możliwości archiwizacji oraz back-up danych dla uczelni. Michał Jędrzejczak Architekt IT, Cloud Expert Comparex

2 COMPAREX 33 kraje 80 biur i oddziałów

3 StorSimple: kto już używa?

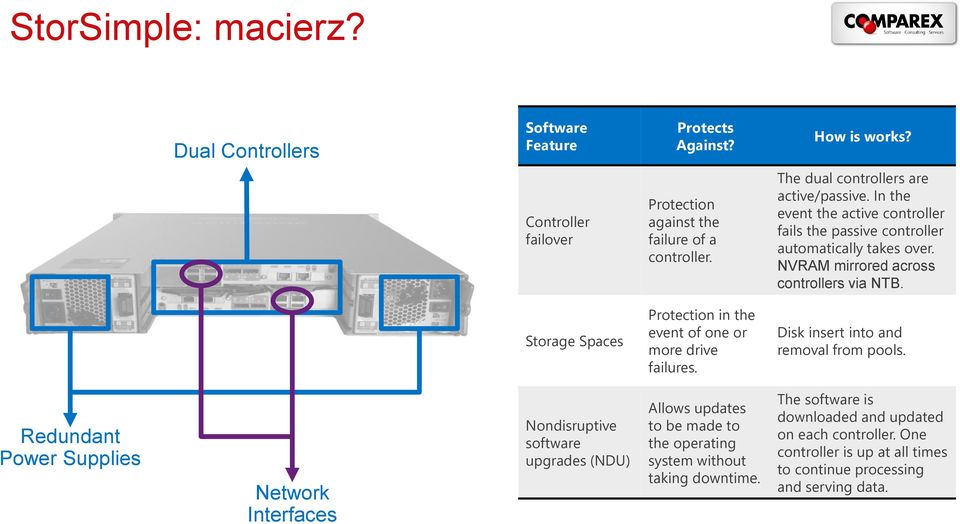

4 StorSimple: macierz? Dual Controllers Software Feature Protects Against? How is works? Controller failover Protection against the failure of a controller. The dual controllers are active/passive. In the event the active controller fails the passive controller automatically takes over. NVRAM mirrored across controllers via NTB. Storage Spaces Protection in the event of one or more drive failures. Disk insert into and removal from pools. Redundant Power Supplies Network Interfaces Nondisruptive software upgrades (NDU) Allows updates to be made to the operating system without taking downtime. The software is downloaded and updated on each controller. One controller is up at all times to continue processing and serving data.

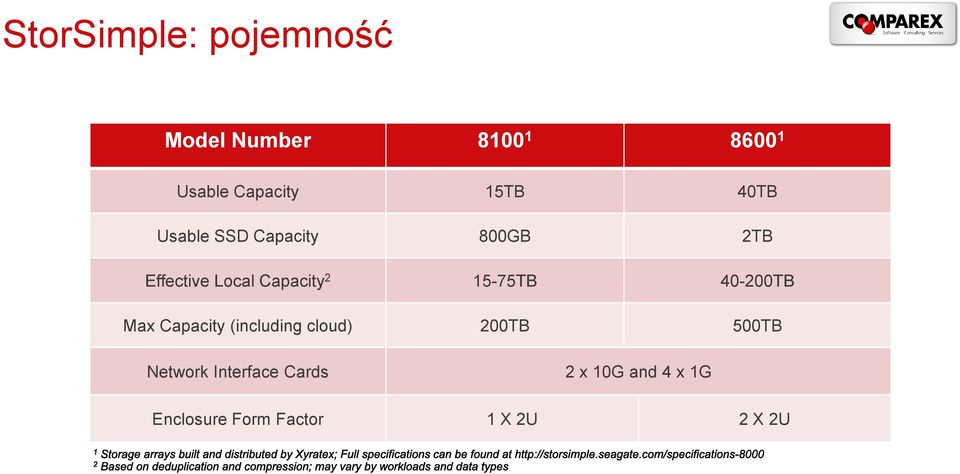

5 StorSimple: pojemność Model Number Usable Capacity 15TB 40TB Usable SSD Capacity 800GB 2TB Effective Local Capacity TB TB Max Capacity (including cloud) 200TB 500TB Network Interface Cards 2 x 10G and 4 x 1G Enclosure Form Factor 1 X 2U 2 X 2U

6 Access Cykl życia danych SSD HDD Cloud Unstructured data growing 40% YoY Working data set stays fairly constant Hybrid storage array performance for working set Inactive data is tiered to the cloud Time StorSimple provides enterprise storage with cloud economics

7 StorSimple: procesy składowania danych Storage Today Microsoft Azure StorSimple Primary Storage Manage data growth Lower storage costs Archival Storage Disk-based Backup Remote Replication StorSimple Simplify data protection and disaster recovery Increase business agility Tape backup and DR Reduce storage costs by 40-60%

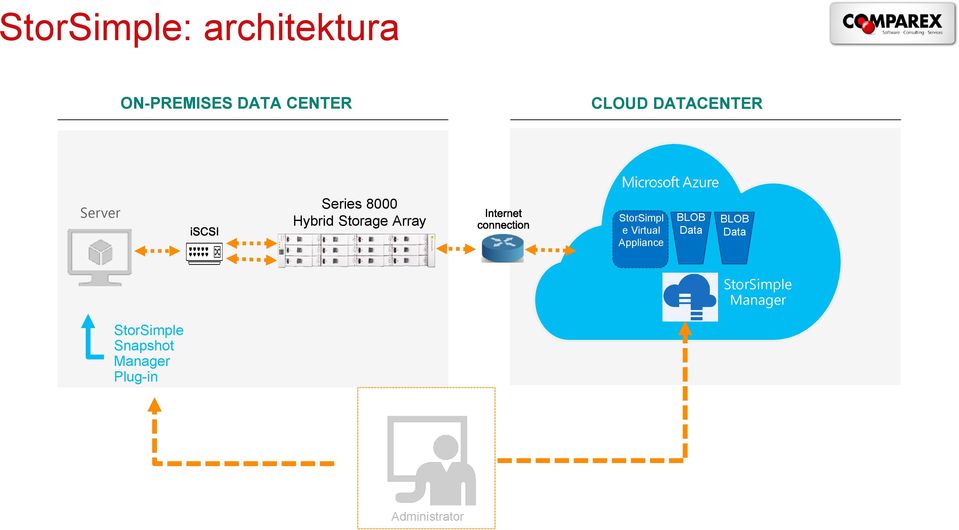

8 StorSimple: architektura ON-PREMISES DATA CENTER CLOUD DATACENTER Server Series 8000 Hybrid Storage Array StorSimpl e Virtual Appliance BLOB Data BLOB Data StorSimple Manager StorSimple Snapshot Manager Plug-in Administrator

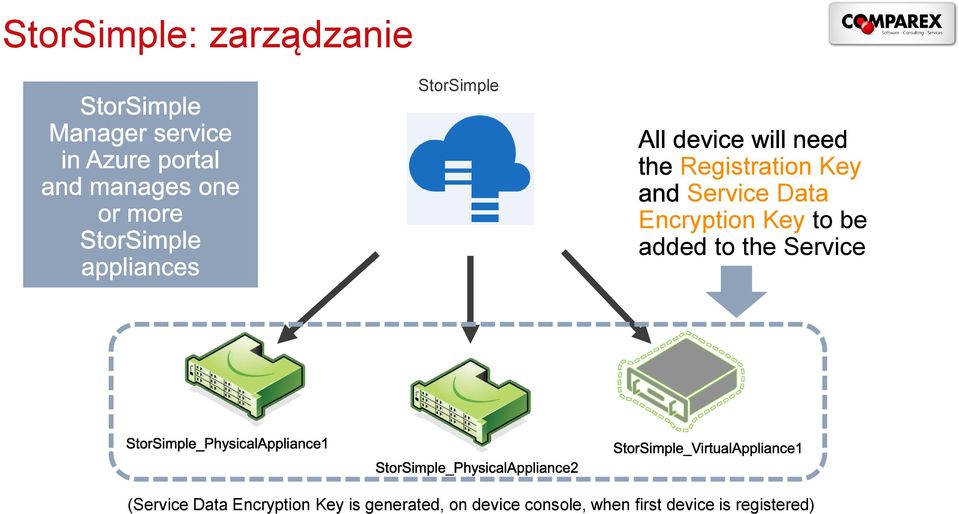

9 StorSimple: zarządzanie Azure StorSimple Manager Registration Key Service Data Encryption Key to be added to the Service (Service Data Encryption Key is generated, on device console, when first device is registered)

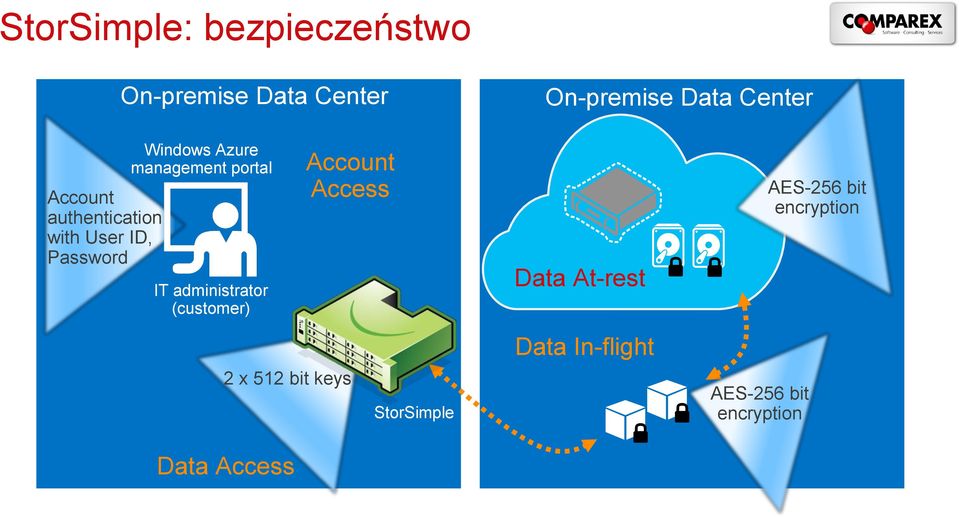

10 StorSimple: bezpieczeństwo On-premise Data Center On-premise Data Center Account authentication with User ID, Password Windows Azure management portal IT administrator (customer) Account Access 2 x 512 bit keys Data Access StorSimple Data At-rest Data In-flight AES-256 bit encryption AES-256 bit encryption

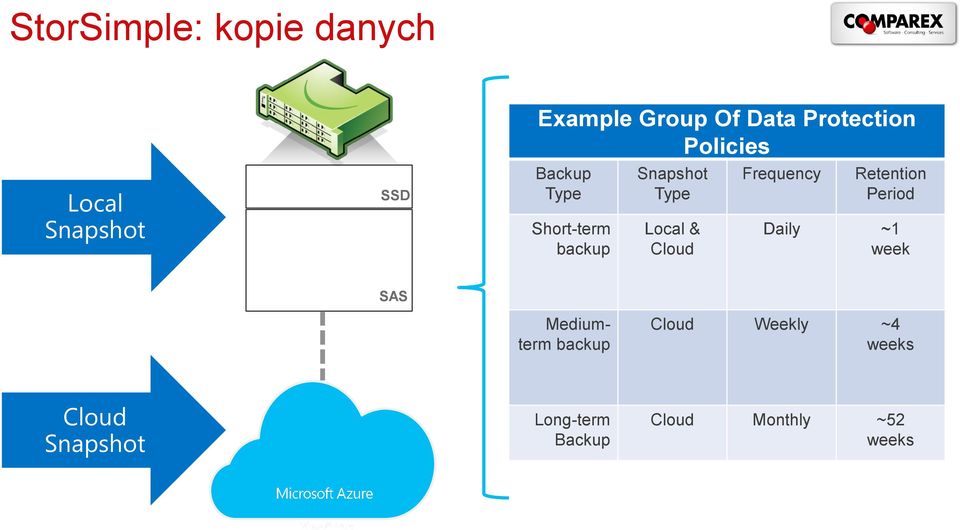

11 StorSimple: kopie danych Local Snapshot SSD Example Group Of Data Protection Policies Backup Type Short-term backup Snapshot Type Local & Cloud Frequency Retention Period Daily ~1 week SAS Mediumterm backup Cloud Weekly ~4 weeks Cloud Snapshot Long-term Backup Cloud Monthly ~52 weeks

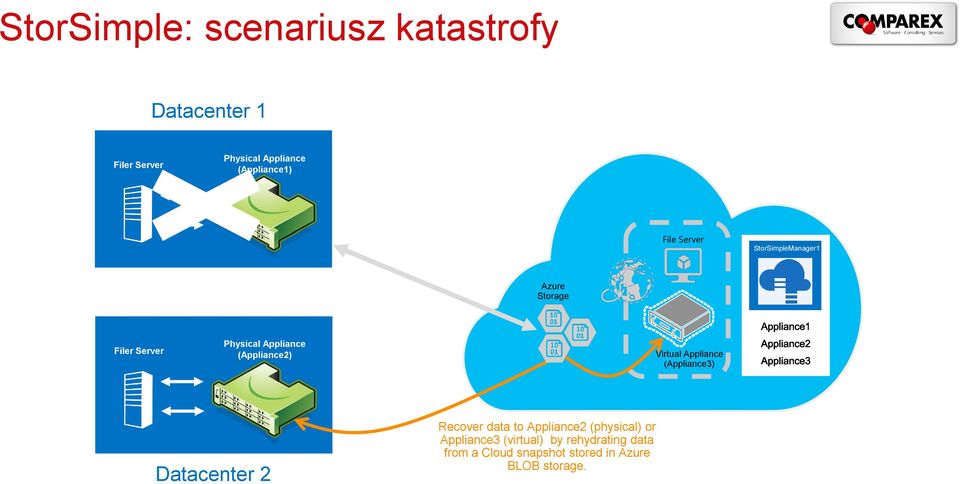

12 StorSimple: scenariusz katastrofy Datacenter 1 Filer Server Physical Appliance (Appliance1) File Server StorSimpleManager1 Azure Storage Filer Server Physical Appliance (Appliance2) Virtual Appliance (Appliance3) Datacenter 2 Recover data to Appliance2 (physical) or Appliance3 (virtual) by rehydrating data from a Cloud snapshot stored in Azure BLOB storage.

13 Recovery Time StorSimple: czas odtworzenia danych Storage Recovery Times from Offsite Backups in a Disaster 90 Days 30 Days Regular Cloud Backup with 100 Mbps WAN Link 7 Days Tape Storage availability after DR is independent of volume sizes Rapid recovery enables DR testing and validation 1 Day 1 Hour 15 Min. 1 TB 5 TB 20 TB 50 TB 100 TB Primary Data StorSimple Cloud Snapshots with 50 Mbps WAN Link

14 StorSimple: Virtual Appliance VM Data

15 StorSimple: procesy składowania danych Storage Today Microsoft Azure StorSimple Primary Storage Manage data growth Lower storage costs Archival Storage Disk-based Backup Remote Replication StorSimple Simplify data protection and disaster recovery Increase business agility Tape backup and DR Reduce storage costs by 40-60%

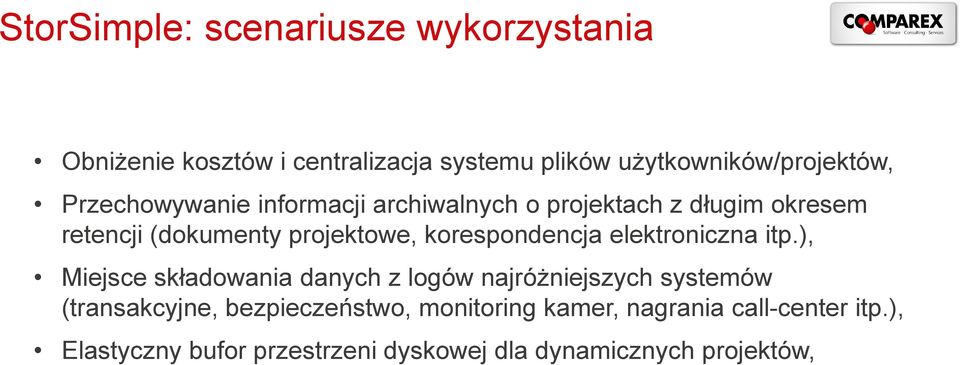

16 StorSimple: scenariusze wykorzystania Obniżenie kosztów i centralizacja systemu plików użytkowników/projektów, Przechowywanie informacji archiwalnych o projektach z długim okresem retencji (dokumenty projektowe, korespondencja elektroniczna itp.), Miejsce składowania danych z logów najróżniejszych systemów (transakcyjne, bezpieczeństwo, monitoring kamer, nagrania call-center itp.), Elastyczny bufor przestrzeni dyskowej dla dynamicznych projektów,

17 DEMO

18 Remote Desktop Sharing Plug-in here

19 StorSimple: dlaczego z Comparex? Status Cloud Platform competency at the gold level Zasięg globalny (Comparex Group ponad 30 krajów) Doświadczenie w rozwiązaniach infrastruktury datacenter klientów Dedykowany zespół handlowy / dedykowany zespół techniczny Demo systemu Zdalne testy systemu Zestaw demonstracyjny dla klienta Warsztaty techniczne

20 Q&A

21 Dziękuję za uwagę

22 Contact: Michał Jędrzejczak IT Architect, Cloud Expert phone: web:
