1 Ceramic roof tiles and accessories roof tiles

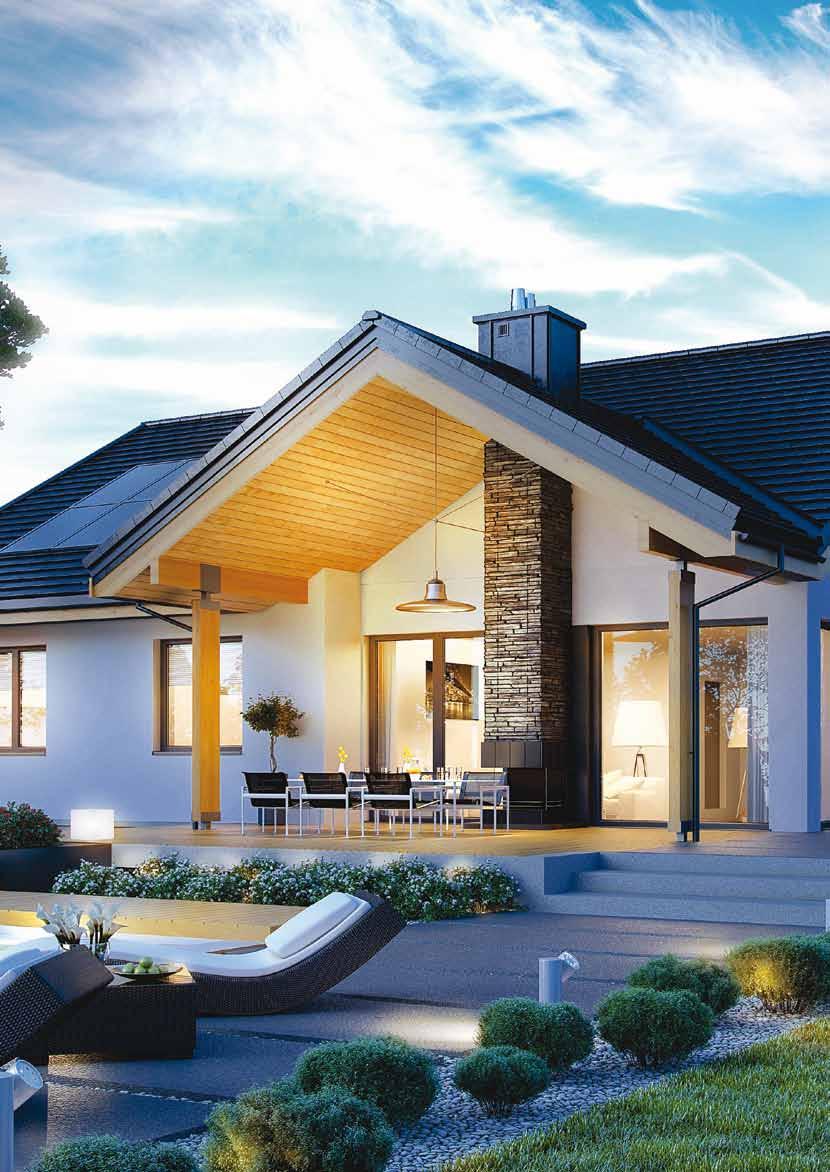

2 Bergamo C e r a m i c r o o f t i l e s approx. 12 tiles per sq. m possibility to be laid in two different ways precise installation of clips due to a special interlocking system modern design perfect water drainage advanced tile interlocking system for a tight roof tiling medium profile of bottom edges Visualisation ARCHIPELAG Project Studio

3 LAF Bergamo C e r a m i c r o o f t i l e s Modern ceramic roof covering BERGAMO Roof inclination angle RIDGE TILE LAF/FLA (mm) LAF FLA FLA Cross-section of the roof cover. Proper assembly depends, inter alia, on the shape of the roof and location of the house, which is why it may be different from the solutions presented here. The best option is to consult a qualified roofer. Please read the guidelines for proper roof ventilation. Details can be found in the information sheets at Visualisation ARCHIPELAG Project Studio Available colours of roof tiles Technical data * Properties New New Weight (1 item) ca kg Total length ca cm Total width ca cm Length of cover ca cm Average width of cover ca cm Minimum design value/m ca. 12 items Quantity/m ca items Minimum roof inclination angle up to 25 Quantity/EURO pallet items Weight per sqm ca kg Weight of full pallet ca. 975 kg Frost resistance yes perfectly flat roof area tight cover thanks to precise interlocks possibility of putting roof tiles in a series or with a shift * technical parameters may be slightly changed ca. 43,6 cm ca. 28,5 cm perfectly flat roof area Extreme left roof tile Extreme right roof tile Anthracite slipped Grey matt slipped 4 Product catalogue. ceramic roof tiles and accessories 5

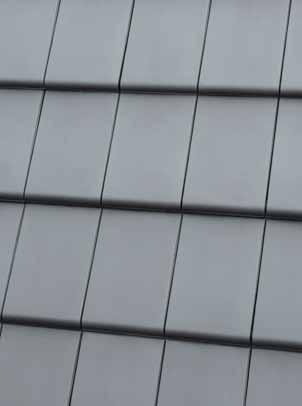

4 BERGAMO / Anthracite slipped New BERGAMO / Grey matt slipped New 6 Product catalogue. ceramic roof tiles and accessories 7

5 LAF Piemont C e r a m i c r o o f t i l e s Perfect for new and renovated roofs PIEMONT Roof inclination angle RIDGE TILE LAF/FLA (mm) LAF FLA FLA Cross-section of the roof cover. Proper assembly depends, inter alia, on the shape of the roof and location of the house, which is why it may be different from the solutions presented here. The best option is to consult a qualified roofer. Please read the guidelines for proper roof ventilation. Details can be found in the information sheets at Available colours of roof tiles Technical data * Properties Titan grey glazed Red natural Weight (1 item) ca kg Total length ca cm Total width ca cm Length of cover ca cm Average width of cover ca. 24,5 cm Minimum design value/m ca. 10,1 items Quantity/m ca items Minimum roof inclination angle up to 22 Quantity/EURO pallet items Weight per sqm ca kg Weight of full pallet ca. 983 kg Frost resistance yes * technical parameters may be slightly changed high leaktightness strength attractive design lighter roof attractive price average length of cover ca mm Trentino slipped Chestnut slipped Copper slipped Rustic slipped Tolerance (shift/displacement) as much as 38 mm ca. 47,2 cm ca. 29,0 cm Extreme roof tile Autumn leaf slipped Brown slipped Tobago glazed Anthracite slipped Average length of cover ca mm Double Roman roof tile 8 Product catalogue. ceramic roof tiles and accessories 9

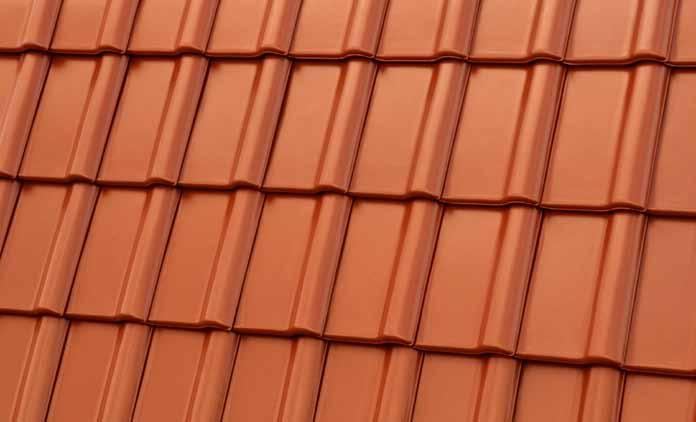

6 Piemont / Titan grey glazed Piemont / Trentino slipped Piemont / Red natural Piemont / Chestnut slipped 10 Product catalogue. ceramic roof tiles and accessories 11

7 piemont / Copper slipped Piemont / Rustic slipped 12 Product catalogue. ceramic roof tiles and accessories 13

8 Piemont / Autumn leaf slipped piemont / Brown slipped 14 Product catalogue. ceramic roof tiles and accessories 15

9 piemont / Tobago glazed Piemont / Anthracite slipped 16 Product catalogue. ceramic roof tiles and accessories 17

10 LAF MONZAplus C e r a m i c r o o f t i l e s Fast and economical roof covering MONZAplus Roof inclination angle RIDGE TILE LAF/FLA (mm) LAF FLA FLA ca ca. 210 Flat time Cross-section of the roof cover. Proper assembly depends, inter alia, on the shape of the roof and location of the house, which is why it may be different from the solutions presented here. The best option is to consult a qualified roofer. Please read the guidelines for proper roof ventilation. Details can be found in the information sheets at Available colours of roof tiles Technical data * Properties New Weight (1 item) ca kg Total length ca cm Total width ca cm Length of cover ca cm Average width of cover ca cm Minimum design value/m ca. 9,5 items Quantity/m ca items Minimum roof inclination angle up to 22 large size smaller consumption per m 2 only items are enough! fast assembly lighter roof attractive price Quantity/EURO pallet items Weight per sqm ca kg Weight of full pallet ca kg Frost resistance yes Graphite slipped Maduro glazed Anthracite slipped * technical parameters may be slightly changed ca. 46,4 cm ca. 30,4 cm Additional teeth, located at the side edge of the roof tile, guarantee more durable and stable connection of the roof tile to the Extreme roof tile patch section Tobago glazed Copper slipped Chestnut slipped Trentino slipped Double Roman roof tile Product catalogue. ceramic roof tiles and accessories 19

11 MONZAplus / Graphite slipped MONZAplus / Tobago glazed New MONZAplus / Anthracite slipped MONZAplus / Maduro glazed 20 Product catalogue. ceramic roof tiles and accessories 21

12 MONZAplus / Trentino slipped MONZAplus / Chestnut slipped MONZAplus / Copper slipped 22 Product catalogue. ceramic roof tiles and accessories 23

13 LAF Bornholm C e r a m i c r o o f t i l e s Traditional shape in modern version BORNHOLM Roof inclination angle RIDGE TILE LAF/FLA (mm) LAF FLA FLA Cross-section of the roof cover. Proper assembly depends, inter alia, on the shape of the roof and location of the house, which is why it may be different from the solutions presented here. The best option is to consult a qualified roofer. Please read the guidelines for proper roof ventilation. Details can be found in the information sheets at Available colours of roof tiles Technical data * Properties Weight (1 item) ca kg Total length ca cm Total width ca cm Length of cover ca cm Average width of cover ca cm Minimum design value/m ca items Quantity/m ca items Minimum roof inclination angle up to 22 Quantity/EURO pallet items Weight per sqm ca kg Weight of full pallet ca. 971 kg Frost resistance yes deepened curved flexure levelled proportions larger roof tile area fast assembly Tobago glazed Chestnut slipped * technical parameters may be slightly changed ca. 44,4 cm ca. 28,2 cm Extreme roof tile S-shape of the roof tile provides specific corrugation of the roof area Double Roman roof tile Copper slipped 24 Product catalogue. ceramic roof tiles and accessories 25 Red natural

14 Bornholm / Tobago glazed Bornholm / Copper slipped Bornholm / Chestnut slipped Bornholm / Red natural 26 Product catalogue. ceramic roof tiles and accessories 27

15 Accessories System of roof accessories /9/ /10/ a /11/ /12/ b INITIAL SEMI-CIRCULAR LARGE RIDGE TILE ca. 3.8 kg ANTENNA CERAMIC ROOF TILE Piemont ca. 4.3 kg DEAERATING FIREPLACE WITH A CONNECTING PIPE a head ca. 4.2 kg b standard ca. 3 kg ROOF TILE 1/2 Piemont ca. 2.5 kg a /13/ /14/ /15/ /16/ /17/ b CHIMNEY FOOTING set 0.80 m CHIMNEY FOOTING set 0.40 m CHIMNEY STEP END OF THE ROOF RIDGE TILE beginning (a), end (b) ca. 1.4/1.8 kg TAPE FOR CHIMNEY TREATMENT/CHIMNEY TAPE Alu3D width 300 mm /1/ /2/ a b /3/ /4/ /18/ /19/ /20/ /21/ /22/ STANDARD ROOF TILE MONZAplus ca kg BASIC RIDGE TILE ca. 3.4 kg a with standard clamp b with lightning arrester clamp ROOF SLAT HOLDER TWO-WAVE ROOF TILE Piemont ca. 5.3 kg TAPE FOR THE RIDGE TILE/ROOF TAPE Alu roll width 300 mm ROOF BASKET width 500 mm CLAMP FOR THE ROOF TILE 4 x 6 (patch section) FENCE AGAINST SNOW HOOD RIDGE N E W P R O D U C T S! /5/ /6/ /7/ a /8/ b /23/ /24/ /25/ LEFT LIMIT ROOF TILE (sprocket) Piemont ca. 6 kg RIGHT LIMIT ROOF TILE (sprocket) Piemont ca. 5.5 kg VENTILATION ROOF TILE Piemont ca. 4.6 kg RIDGE TILE, ROOF CONNECTOR, TEE PIPE a model 1 b model 2 ca. 3.5 kg SNOW TRAP SKYLIGHT ROOF TILE MONZAplus CHIMNEY STRIP SOLAR ROOF TILE MONZAplus ca. 5 kg PANEL ROOF TILE MONZAplus 3.3 kg angle 70 /90 VENTILATION FIREPLACE ø150 mm WITH A CONNECTING PIPE ca. 8.9 kg 28 Product catalogue. ceramic roof tiles and accessories 29
