1 Technological modifications in pilot research on capture process Tomasz SPIETZ*, Lucyna WIĘCŁAW-SOLNY, Adam TATARCZUK, Aleksander KRÓTKI, Marcin STEC Institute for Chemical Processing of Coal, Zabrze, Poland Please cite as: CHEMIK 2014, 68, 10, Introduction In recent years, there has been a growing interest in research regarding [1]. This is related to the implementation of energy and climate package by the European Union in 2008, which aims to reduce emissions from power facilities. Currently published papers present among others studies on new amine sorbents [2, 3], physicochemical data of amine solutions [4], analytical methods of determination of loadinge (α) and sorbent concentration [5], as well as model testing [6] and experimental data from research plants [7]. There are many pilot installations for capture from flue gas, both worldwide and in Poland including Mobile Pilot Installation for from flue gas of TAURON group launched in 2010 and exploited by the Institute for Chemical Processing of Coal [8, 9]. Pilot installations operating with real flue gas allow thorough examination of the process, thus helping to choose optimum operation parameters, which cannot be measured on a laboratory scale, such as corrosion or effect of other acid flue gas components on sorbent operation. The barrier in applying chemical absorption method for from flue gas on industrial scale is the energy consumption of the process, mainly due to the high amount of energy required for sorbent regeneration. For achieving efficiency of 90% of captured, energy supplied for installation operation is equivalent to the decrease in power plant efficiency by approx. 20% [10]. Decrease in the energy consumption can be achieved not only by changing the sorbent, but also through various technological modifications [11]. Classic system for amine Process diagram of amine installation for, showing classical processing system is presented in Figure 1. It shows only part related to absorption, without taking into account flue gas pre-treatment and desulphurization units. However, in each case, flue gas (input gas) entering the absorber is pre-cooled and dedusted in columns with water spray and then purified from excess SO 2 and NO x. For that purpose absorption columns are most commonly used, in which flowing gas contacts alkaline solution [8, 12]. Fig. 1. Flow sheet of the standard amine CO2 capture process Corresponding author: Tomasz SPIETZ MSc., tspietz@ichwp.zabrze.pl process in classic configuration of apparatus is carried out as follows. Pre-treated gas is directed to the absorber, where it contacts with counter-current flow of cooled and lean amine solution. In this column, amine reacts chemically with from flue gas and then gas purified from carbon dioxide leaves the column. Then, amine solution reach with is directed to the top of desorption column (regenerator), where it contacts hot vapours coming from heating the solution in the bottom part of the column, and desorption occurs. released from the reach solution leaves the desorption column. reach with water is cooled and the steam condesed in the cooler is collected in the separator and recirculated to the stripper. Hot lean solution is firstly directed to the heat exchanger, where it is partially cooled, transferring heat to the reach solution and then cooled to 40 C in aftercooler, after which it is recirculated to absorption column. This way absorption-desorption cycle occurs in a continuous manner. In order to improve capture process, numerous technological modifications are being implemented. Additional columns (strippers) are used, whose task is to ensure better regeneration of the solution. Moreover, except the main streams of amines from the columns lean and reach amine there can be two or only one additional split streams (semi-lean). Moreover, condensation heat of vapours generated in regenerator can be also used by leading steam out of the column, letting it to expand and then compressing it, after which it is redirected to the column. Due to the vastness of discussed topic, only selected modifications are discussed in the paper. Other solutions can be found in the literature describing CCS installations [10, 12, 13]. Temperature modification in absorption column Modifications that allow temperature change inside absorption column may increase efficiency of absorption process. One of such technological modifications is the use of additional sorbent cooling system in absorption column. Solution from the bottom part of the absorber is pumped through the cooler and then recirculated to the column. It was found that cooling the solution taken from the bottom part of the column to 40 C gives the best results, in comparison with heating or cooling the solution from other parts of the column [10]. The modified installation is presented in Figure 2. The driving force of absorption process is the difference between partial pressure of at given column height (so-called operating line) and partial pressure of, which settles at equilibrium (in the same column operating conditions). Solution cooling causes the decrease in equilibrium partial pressure of at the column height, at which cooled sorbent is recirculated into the column, which corresponds with the increase of driving force of absorption process. In the plot (Fig. 3) presenting the drop of partial pressure with the increase of column height, it may be seen that equilibrium curve shifts in place of applying additional sorbent cooling (1.78 m), and thus driving force increases. For the purpose of comparison, plot shows also equilibrium curve for reference system (i.e. classic configuration of installation) [10]. 888 nr 10/2014 tom 68

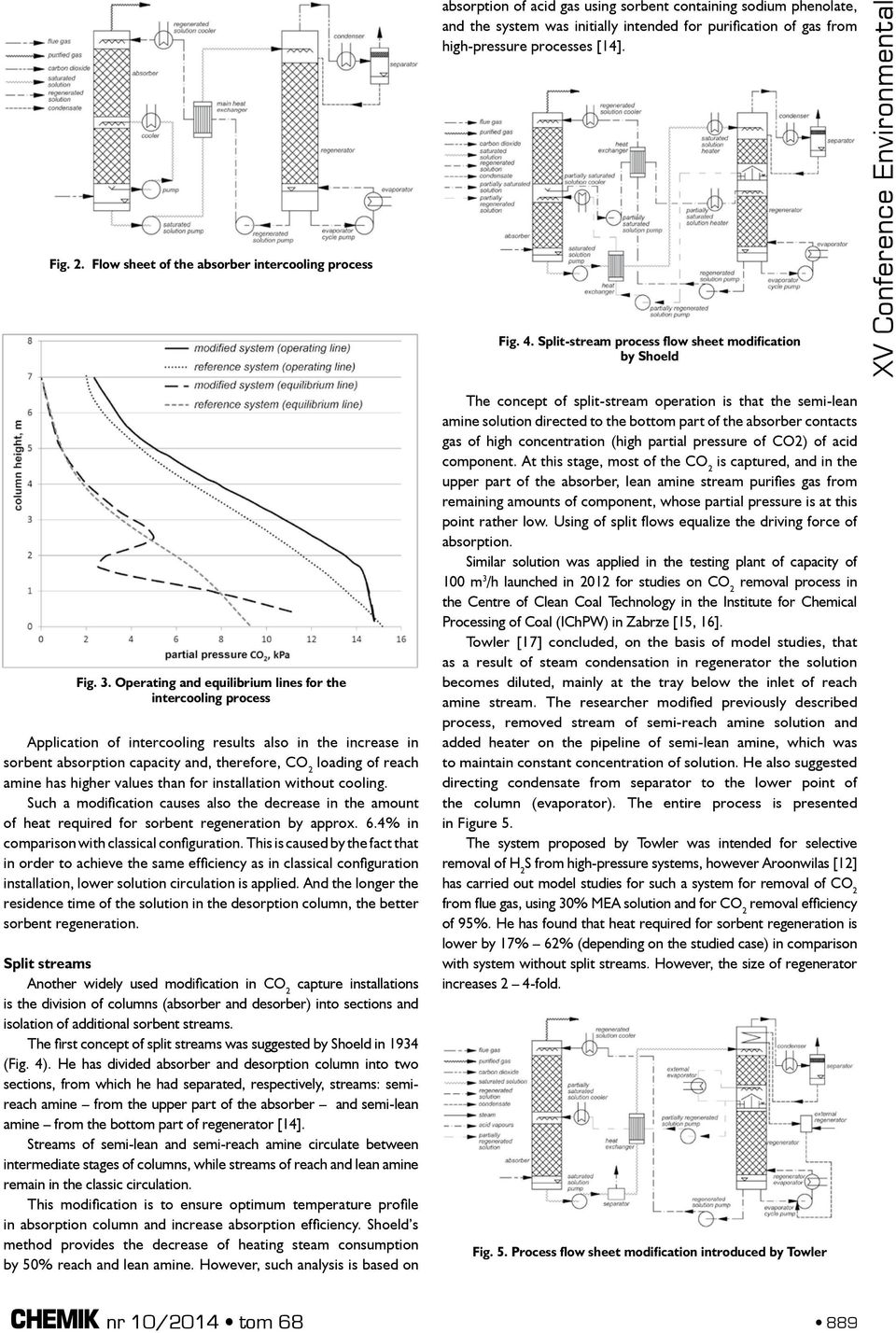

2 Fig. 2. Flow sheet of the absorber intercooling process absorption of acid gas using sorbent containing sodium phenolate, and the system was initially intended for purification of gas from high-pressure processes [14]. Fig. 4. Split-stream process flow sheet modification by Shoeld XV Conference Environmental Fig. 3. Operating and equilibrium lines for the intercooling process Application of intercooling results also in the increase in sorbent absorption capacity and, therefore, loading of reach amine has higher values than for installation without cooling. Such a modification causes also the decrease in the amount of heat required for sorbent regeneration by approx. 6.4% in comparison with classical configuration. This is caused by the fact that in order to achieve the same efficiency as in classical configuration installation, lower solution circulation is applied. And the longer the residence time of the solution in the desorption column, the better sorbent regeneration. Split streams Another widely used modification in capture installations is the division of columns (absorber and desorber) into sections and isolation of additional sorbent streams. The first concept of split streams was suggested by Shoeld in 1934 (Fig. 4). He has divided absorber and desorption column into two sections, from which he had separated, respectively, streams: semireach amine from the upper part of the absorber and semi-lean amine from the bottom part of regenerator [14]. Streams of semi-lean and semi-reach amine circulate between intermediate stages of columns, while streams of reach and lean amine remain in the classic circulation. This modification is to ensure optimum temperature profile in absorption column and increase absorption efficiency. Shoeld s method provides the decrease of heating steam consumption by 50% reach and lean amine. However, such analysis is based on The concept of split-stream operation is that the semi-lean amine solution directed to the bottom part of the absorber contacts gas of high concentration (high partial pressure of CO2) of acid component. At this stage, most of the is captured, and in the upper part of the absorber, lean amine stream purifies gas from remaining amounts of component, whose partial pressure is at this point rather low. Using of split flows equalize the driving force of absorption. Similar solution was applied in the testing plant of capacity of 100 m 3 /h launched in 2012 for studies on process in the Centre of Clean Coal Technology in the Institute for Chemical Processing of Coal (IChPW) in Zabrze [15, 16]. Towler [17] concluded, on the basis of model studies, that as a result of steam condensation in regenerator the solution becomes diluted, mainly at the tray below the inlet of reach amine stream. The researcher modified previously described process, removed stream of semi-reach amine solution and added heater on the pipeline of semi-lean amine, which was to maintain constant concentration of solution. He also suggested directing condensate from separator to the lower point of the column (evaporator). The entire process is presented in Figure 5. The system proposed by Towler was intended for selective of H 2 S from high-pressure systems, however Aroonwilas [12] has carried out model studies for such a system for of from flue gas, using 30% MEA solution and for efficiency of 95%. He has found that heat required for sorbent regeneration is lower by 17% 62% (depending on the studied case) in comparison with system without split streams. However, the size of regenerator increases 2 4-fold. Fig. 5. Process flow sheet modification introduced by Towler nr 10/2014 tom

3 Stripping column with internal heat exchange Another process modification, which aims to decrease energy consumption in process, is the using a heat-integrated stripper (heat recorvery) [12]. Diagram of modified plant is presented in Figure 6. In this case, a hot solution of semi-lean amine, as well as lean amine is recirculated to the desorption column, where flowing through the part of column via spiral pipeline it transfers heat directly and then, after leaving the column, it is directed further to the absorber. Table 1 Parameters of the reference test (without recovery heat exchangers) conducted on Pilot Installation in Łaziska Power Plant Parameter Value Unit Flow of flue gas streamed to absorber 217 m 3 /h concentration in flue gas % v/v concentration in purified flue gas 2.08 % v/v efficiency 84.4 % Flow of captured 37.1 kg/h Energy consumption for solution regeneration 3.90 MJ/kg Energy supplied to regenerator 50.4 kw Flow rate of amine solution 1,400 kg/h Pressure in absorption column 130 kpa (abs) Pressure in desorption column 130 kpa (abs) Liquid to gas ratio (L/G ratio) 4.63 kg/kg loading of lean amine mol/mol loading of reach amine mol/mol Cooling water consumption 1,402 kg/h Fig. 6. Process flow diagram using a heat-intgerated stripper This modification causes that heat of hot solution is transferred to the inside of stripping column, instead of being exchanged in heat exchangers outside the column, as for installation with classic configuration. Heat exchange outside the column is associated with higher losses to the environment. Heat transferred inside the desorption column results in the increase of column internal temperature and improves solution regeneration. IIn comparison with classic flow sheet configuration, reboiler heat duty is lower [12]. According to Oyenekan [18], the total energy expenditure of column (including compression) is lower by 17% in comparison with the desorption column without internal heat transfer. Experimental part In order to test effect of technological configuration on the process of from flue gas, number of research campaigns was carried out using Pilot Installation in Łaziska Power Plant TAURON Wytwarzanie S.A. [19]. The Pilot Installation uses modified technology of amine absorption. One of the technological modifications in presented research installation is the division of the desorption column and separation of additional semi-lean amine stream (MRA) and system of (recovery) heat exchangers inside the regenerator, in analogy to the previously described solutions. The detailed description and operation of the Pilot Installation is presented in [20]. Below (Tab. 1) results obtained for system operation with flow of lean-amine (streamed to the top and middle of absorption column) are presented, along with operating energy recovery heat exchanger or without them reference test. Average content of in flue gas, for both tests, was 11.2 % v/v; while 30% aqueous solution of monoethanolamine was used as sorbent. Most important data for reference test are presented in Table 1. Results presented in Table 1 show that the efficiency of the process is high; almost 85% of is removed from flue gas stream with energy consumption of solution regeneration equal to 3.9 MJ/kg. This result is fully acceptable and similar to the results achieved in other operating installations in the world [21]. Application of internal heat exchange as a modification in regenerator allowed significant improvement of obtained parameters as shown in the graph (Fig. 7). Fig. 7. Impact of the heat-integrated stripper on efficiency from flue gas. 1. standard process (reference) 2. heatintegrated stripper process Experimental data show that the use of additional heat exchange inside the regenerator allows the improvement of process increase from 84.4% to 91.4% with simultaneous decrease in the energy consumption by approx. 2.5%. Hot and lean solution flowing through the recovery heat exchangers transfers heat in desorption column, heating the column and increasing the temperature of the liquid, especially in the upper part of the column. It helps to achieve better regeneration of reach solution streamed in the column, while deeper lean solution absorbs more efficiently and thus increases the efficiency of carbon dioxide. 890 nr 10/2014 tom 68

4 This is confirmed By values of loading of solution: reach and lean amine obtained in tests (Tab.2): reach amine (α LA ) and deeply regenerated amine (α RA ) solutions for the conducted tests (Tab. 2). Table 2 Comparison of solution carbonation levels for tests with recovery heat exchangers and without internal heat exchange Test α LA mol /mol amine α RA mol /mol amine Without recovery heat exchangers With recovery heat exchangers Better desorption (decrease in saturation degree α RA by 6.9%) means greater stream of removed increase in the stream of removed by 8.97%. For the same power supplied to regenerator, more carbon dioxide is removed. Table 3 Selected operation parameters of the Pilot Installation in 2013 Parameter Value Number of research campaigns 10 Number of conducted tests 118 Total plant operation time Amount of removed 550 hours about 20,000 kg Summary The paper presents selected technological modifications of installation for from flue gas, which aim to improve the process. Unfortunately, many of the described options has been tested only by means of model research. In order to verify presented solutions, experimental studies were carried out using the Pilot Installation, which due to its flexible technological structure allows to verify effect of internal heat exchange in regenerator and split streams on process. Test results (Fig. 7) show that applied heat recovery in desorption column helped to achieve better regeneration of sorbent carbonation degree of lean amine solution decreased by mol /mol amine. Better regeneration of solution affected also the increase of capture efficiency by 7% and decrease in the energy consumption by 2.6% in comparison with reference test. The obtained results were in line with model tests. The efficiency increase, as well as the decrease in regeneration energy can be achieved by technological modifications of installations and by using different sorbents. The complex design of Pilot Installation allowed testing numerous technological variants of the process (i.a. by using recovery heat exchangers, split of absorption solution streams). Hundreds of hours of operation of the Pilot Installation (Tab. 3) has proven efficiency of selected technology under the conditions of real industrial facility. Tests using new sorbents are underway, which may help to increase capture efficiency, just as previous studies on technological configurations. The results presented in this paper were obtained from research work cofinanced by the National Centre of Research and Development in the framework of Contract SP/E/1/67484/10 Strategic Research Programme Advanced technologies for energy generation: Development of a technology for highly efficient zero-emission coal-fired power units integrated with capture. Literature 1. The European Commission, Commission Decision of Bruksela, Dubois L., Thomas D.: Postcombustion capture by chemical absorption: screening of aqueous amines(s)-based solvents. Energy Procedia 37, 2013, Wilk A., Więcław-Solny L., Tatarczuk A., Śpiewak D., Krótki A.: Wpływ zmiany składu roztworu absorpcyjnego na efektywność procesu usuwania z gazów spalinowych. Przem. Chem. 2013, 92, 1, Jayarathna S. A., Weerasooriya A., Dayarathna S., Eimer D. A., Melaaen C. A.: Densities and surface tensions of loaded aqueous monoethanoloamine solutions with r = (0.2 to 0.7) at T = ( to ) K. J. Chem. Eng. Data 2013, 58, Einbu A., Ciftja A. F., Grimstvedt A., Zakeri A., Svendsen H. F.: Online analysis of amine concentration and loading in MEA solutions by ATR- FTIR spectroscopy. Energy Procedia 23, 2012, Stec M., Tatarczuk A., Wilk A.: Modeling of solubility in aqueous amine solutions using hybrid neural network. Power Engineering and Environment, Ostravice 2012, VŠB-TU Ostrava, pp Śpiewak D., Krótki A., Tatarczuk A., Więcław-Solny L., Wilk A.: Badania procesu usuwania za pomocą wieloskładnikowych sorbentów aminowych. Inżynieria i Aparatura Chemiczna, 2014, 53, 3, Tatarczuk A., Więcław-Solny L., Stec M., Krótki A., Zdeb J., Janikowski J.: Mobile Pilot Plant for capture from flue gases. Clean Coal Technologies, Thessaloniki, Greece, 05/ Artanto Y., Jansen J., Pearson P., Puxty G., Cottrell A., Meuleman E., Feron P. M.: Pilot-scale evaluation of AMP/PZ to capture CO2 from flue gas of Australian brown coal-fired power station. Int. Journal of Greenhouse Gas Control 2014, 20, Cousins A., Wardhaugh L. T., Feron P. M.: Preliminary analysis of process flow sheet modifications for energy efficient capture from flue gases using chemical absorption. Chem. Eng. Research and Design, 2011, 89, Szczypiński T., Tatarczuk A., Grudnik K.: Optymalizacja procesu aminowego wychwytu ze spalin poprzez zmianę konfiguracji układu technologicznego. Przemysł Chemiczny 2013, 92, 1, Cousins A., Wardhaugh L. T., Feron P. M.: A survey of process flow sheet modifications for energy efficient capture from flue gases using chemical absorption. Int. Journal of Greenhouse Gas Control, 2011, 5, Le Moullec Y., Kanniche M.: Screening of flowsheet modifications for an efficient monoethanoloamine (MEA) based post-combustion capture. Int. Journal Greenhouse Gas Control, 2011, 5, Shoeld M.: Purification and separation of gaseous mixtures. Patent No.US , The Koppers Co Krótki A., Śpiewak D., Więcław-Solny L., Spietz T., Tatarczuk A.: Badanie procesu usuwania metodą absorpcji aminowej w skali półtechnicznej. Inżynieria i Aparatura Chemiczna, 2014, 53, Lajnert R., Latkowska B.: Potencjał badawczy instalacji technologicznych Centrum Czystych Technologii Węglowych (CCTW) w Zabrzu. Przemysł Chemiczny 2013, 92, Towler G.P, Shethna H.K, Cole B., Hajdik B.: Improved absorberstripper technology of gas sweetening to ultra-low H 2 S concentrations. Proceedings of the 76 th GPA Annual Convention, 1997,Tulsa, OK, Oyenekan B. A., Rochelle G. T.: Alternative stripper configurations to minimize energy for capture. Proceedings of the 8 th International Conference on Greenhouse Gas Control Technologies. Trondheim, 2006, Norwegia. 19. Tatarczuk A., Ściążko M., Stec M., Tokarski S.: Zastosowanie absorpcji aminowej do usuwania ze spalin w skali pilotowej. Chemik 2013, 67, XV Conference Environmental nr 10/2014 tom
