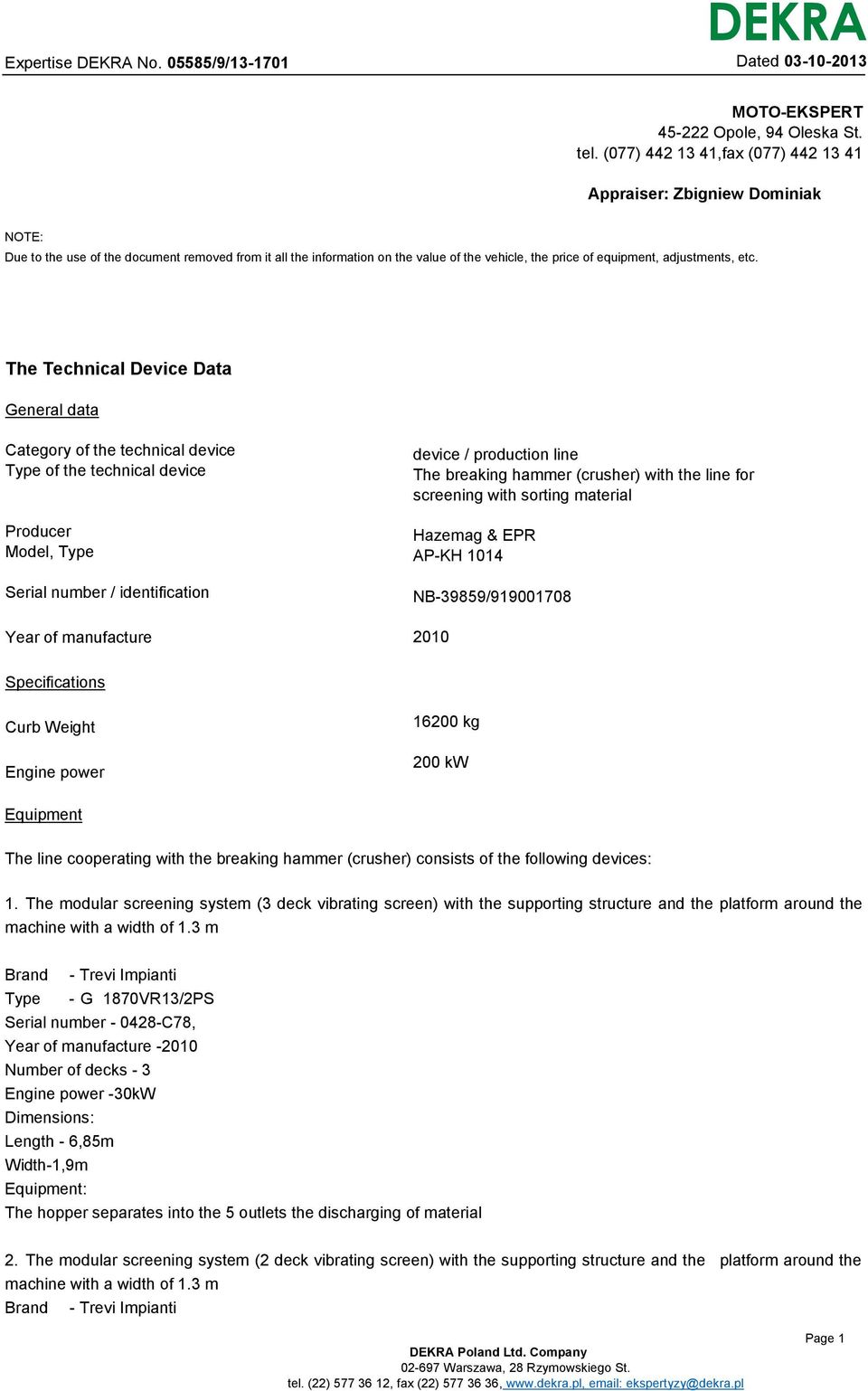

1 Expertise No /9/ Dated MOTO-EKSPERT Opole, 94 Oleska St. tel. (077) ,fax (077) Appraiser: Zbigniew Dominiak NOTE: Due to the use of the document removed from it all the information on the value of the vehicle, the price of equipment, adjustments, etc. The Technical Device Data General data Category of the technical device Type of the technical device Producer Model, Type Serial number / identification Year of manufacture device / production line The breaking hammer (crusher) with the line for screening with sorting material Hazemag & EPR AP-KH 1014 NB-39859/ Specifications Curb Weight Engine power kg 200 kw Equipment The line cooperating with the breaking hammer (crusher) consists of the following devices: 1. The modular screening system (3 deck vibrating screen) with the supporting structure and the platform around the machine with a width of 1.3 m Brand - Trevi Impianti Type - G 1870VR13/2PS Serial number C78, Year of manufacture Number of decks - 3 Engine power -30kW Dimensions: Length - 6,85m Width-1,9m Equipment: The hopper separates into the 5 outlets the discharging of material 2. The modular screening system (2 deck vibrating screen) with the supporting structure and the platform around the machine with a width of 1.3 m Brand - Trevi Impianti Poland Ltd. Company Warszawa, 28 Rzymowskiego St. tel. (22) , fax (22) , Page 1

2 Expertise No /9/ Type - G 1540VR2PS Serial number C78 Year of manufacture Number of decks - 2 pcs Engine power - 7,5 kw Dimensions: Length - 4,7 m Width -1,5m Dated The vibrating Feeder with the supporting structure and the platform (from the feed hopper) Brand - Trevi Impianti Type - AC 60 Serial number C78 Year of manufacture Engine power -3kW 4. The stationary belt conveyor with the ramp and railing (from 3 deck screen) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -5,5kW Length - 20 lm Belt width mm 5. The feed hopper TP 25 series Brand - Individual production Dimensions: Length - 4,6 m Width - 4,6 m Height - approx. 4,0 m Capacity - approx m3 6. The stationary belt conveyor with the ramp and railing (from 3 deck screen) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -5,5kW Length - 20 lm Belt width mm 7. The stationary belt conveyor with the ramp and railing (from 3 deck screen) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -5,5kW Length - 20 lm Belt width mm Page 2 Poland Ltd. Company Warszawa, 28 Rzymowskiego St. tel. (22) , fax (22) ,

3 Expertise No /9/ The stationary belt conveyor with the ramp and railing (from 3 deck screen) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -5,5kW Length - 20 lm Belt width mm Dated The stationary belt conveyor with the ramp and railing (from 3 deck screen) Brand - Trevi Impianti Type -TN MT Serial number C78 Year of manufacture Engine power -11kW Length - 31 lm Belt width mm 10. The stationary belt conveyor with the ramp and railing (from the feed hopper to the crusher) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -9,2kW Length -18lm Belt width mm 11. The stationary belt conveyor with the ramp and railing (under the crusher) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -15kW Length - 27 lm Belt width mm Equipment - the top cover with a length of approx. 20 m 12. The stationary belt conveyor with the ramp and railing (from 2 deck screen) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -5,5kW Length - 20 lm Belt width mm 13. The vibrating drawer Feeder with mechanically adjustable feed Brand - Trevi Impianti Type -AV Serial number C78 Year of manufacture Page 3 Poland Ltd. Company Warszawa, 28 Rzymowskiego St. tel. (22) , fax (22) ,

4 Expertise No /9/ Number of engines -2 pcs Engine power - 2x0,55 kw Dated The stationary belt conveyor (in the tunnel) Brand - Trevi Impianti Type - TN MT Serial number C78 Year of manufacture Engine power -7,5kW Length - 27 lm Belt width mm 15. The vibrating drawer Feeder with mechanically adjustable hopper Brand - Trevi Impianti Type - AV 60 Serial number C78 Year of manufacture Number of engines -2 pcs Engine power - 2x0,55 kw 16. The vibrating drawer Feeder with mechanically adjustable feed Brand - Trevi Impianti Type - AV 60 Serial number C78 Year of manufacture Number of engines - 2 pcs Engine power - 2x0,55 kw 17. The vibrating drawer Feeder with mechanically adjustable hopper Brand - Trevi Impianti Type - AV 60 Serial number C78 Year of manufacture Number of engines -2 pcs Engine power - 2x0,55 kw 18. The steel tunnel (with vibrating feeders 3 pcs and the conveyor belt TN TM) Dimensions: Length - approx.25 m. Width - 3,5 m. Height -2,6 m. 19. The roof structure over 3 deck screen. Dimensions: Length -approx.10.0m. Width - approx.5.0 m. 20. The control cabinet container Brand - Baldin EDI Length mm Width mm Page 4 Poland Ltd. Company Warszawa, 28 Rzymowskiego St. tel. (22) , fax (22) ,

5 Expertise No /9/ Height mm Dated The feed hopper with 3 deck screen Brand - lack ( the product from a workshop) Serial number - lack Year of manufacture (established on the base of other devices of the lines) Number of outlets -5 pcs 22. Roofing of the 3 deck screen (item 2) Brand - brak ( the product from a workshop) Serial number - lack Year of manufacture (established on the base of other devices of the lines) 23. The top cover of the stationary conveyor belt TN MT, with a length of approx. 20 m (item 11) Description of activities, purpose of the technical device The breaking hammer (crusher) used to crush material in particles of a size resulting from the manufacturing process. Supply efficiency t / h Dimension of the throat - 580x1360 mm The line which includes the crusher is used for crushing and sorting of dry matter. Technical condition of the device According to the statement of the Client the devices presented to the valuation were not operated since October The organoleptic examination, without performing the production cycle didn't show abnormalities. This valuation assumes that the valuated line is technically efficient. The line compatible with the screen and the line for sorting of sand and gravel, which is located at the mine sand Żelazna. Methodological Basis of valuation - To fulfil the task of valuation, determined by the need of the Orderer, the value of the technical device will be estimated in a following way. The market value - it is reasonably determined amount of money which a buyer would be willing to offer to a willing seller in exchange for the subject transaction, assuming equality of the parties, without the existence of any pressure affecting the decision to purchase and sale, with full knowledge of the subject and the circumstances of the transaction and with the appropriate time exposure of the object on the open market. Poland Ltd. Company Warszawa, 28 Rzymowskiego St. tel. (22) , fax (22) ,' Page 5

6 Expertise No /9/ Dated The above value includes, among the others, the manufacturer, the type and use of the device, the construction, completeness, age of the technical device, period and method of exploitation, the remaining available time and method of exploitation. Basis of the action in the mentioned purpose is: -detailed identification of the subject of valuation -arrangements for completeness and technical efficiency -arrangements for the operation (conditions and time) -findings on the primary market Comments The origin of the technical device technical device imported from abroad Verification of the technical device in action lack of possibility to verify the technical device in action, the device out of operation since October Aim and purpose of the valuation valuation performed for the needs of trustee Notes to the order - related to the valuation Estimated area occupied by the machine in the warehouse [m2] estimated at approx. 600m2 Others: According to the order the subject of the valuation is the breaking hammer (crusher) along with the entire line of devices included into the production process of crushing and sorting the material. The value of the line equipment given in the expertise by the appraiser was estimated by an approximate valuation of its individual components. Taking into account the scope of the order the value of each piece of the equipment was not given having regard to its total value. Disclaimer restrictions - Year of vehicle manufacture was not verified, assumed on data provided by the Orderer. Poland Ltd. Company Warszawa, 28 Rzymowskiego St. tel. (22) , fax (22) , Page 6

7 Expertise No /9/ Dated Mileage was not verified. It was adopted on the basis of odometer indications. - This expertise serves only to estimate of the market value of the estimated object and can not be used to any other purpose, that the above mentioned. In particular the estimation can not be taken as a base to valuate the parameters and condition of an estimated object at the moment of transaction. - The Appraiser assumes no liability for hidden defects (legal and physical), and the possible consequences arising from the continuing use of the subject of valuation, as well as the effects of using the valuation itself. -The above valuation is not an expertise of the technical condition of the device being valuated and it can not be considered as such.. - This valuation may not be published in full in any document without the acceptance of the Appraisers and with no agreement with them, about the form and content of such publication. -The valuation was made on the basis of documentation supplied and organoleptical examination of the valuated object. Diagnostic examination and Verifying of the object in the garage was not performed. - This valuation was made on the basis of an inspection of the valuated object in conditions occurring in a place where it is available - The identification / serial numbers, were not taken into account its correctness/construction were not verified as well as the accuracy of the data. Document issued electronically valid without a signature. Poland Ltd. Company Warszawa, 28 Rzymowskiego St. tel. (22) , fax (22) , Page 7

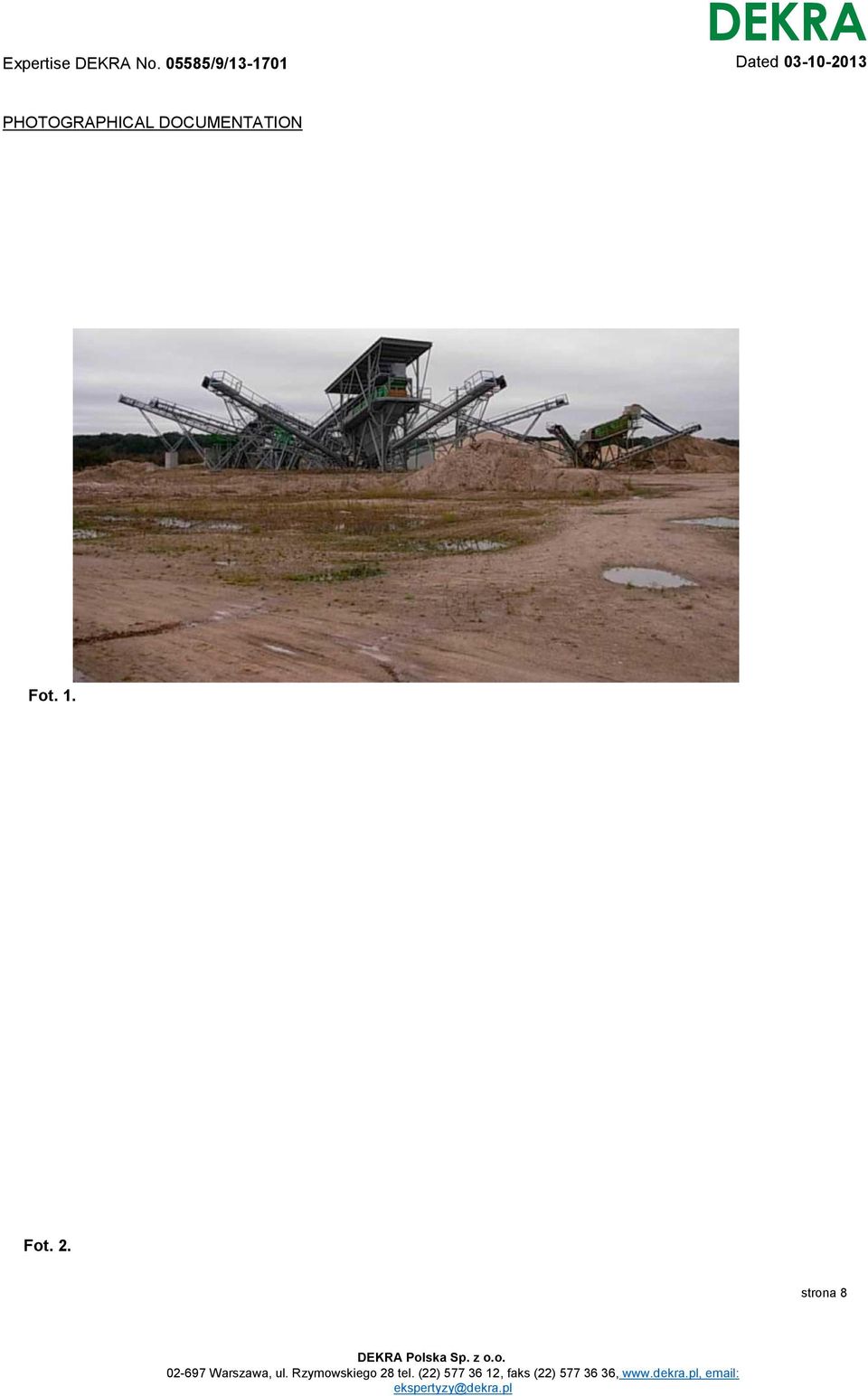

8 Expertise No /9/ Dated PHOTOGRAPHICAL DOCUMENTATION Fot. 1. Fot. 2. strona 8 Polska Sp. z o.o.

9 Ekspertyza nr 05585/9/ Fot. 2. strona 9 Polska Sp. z o.o.

10 Ekspertyza nr 05585/9/ DOKUMENTACJA FOTOGRAFICZNA Fot. 4. strona 10 Polska Sp. z o.o.

14 Ekspertyza nr 05585/9/ DOKUMENTACJA FOTOGRAFICZNA Fot. 7. Fot. 8. strona 14 Polska Sp. z o.o.

18 Ekspertyza nr 05585/9/ DOKUMENTACJA FOTOGRAFICZNA Fot. 12. strona 18 Polska Sp. z o.o Warszawa, ul. Rzymowskiego 28 tel. (22) , faks (22) ,

19 Ekspertyza nr 05585/9/ Fot. 12. strona 19 Polska Sp. z o.o Warszawa, ul. Rzymowskiego 28 tel. (22) , faks (22) ,

27 Ekspertyza nr 05585/9/ strona 27 Polska Sp. z o.o.

32 Ekspertyza nr 05585/9/ DOKUMENTACJA FOTOGRAFICZNA strona 32 Polska Sp. z o.o.

48 Ekspertyza nr 05585/9/ DOKUMENTACJA FOTOGRAFICZNA TREVI1M ] \ia \allio.3l \,,nastierditrevi«>(tv),, +3*> I2 f.,x+w Jf V \ m 6 50 &7 WT ^A SPORTf ttore C 7S Fot. 50. strona 48 Polska Sp. z o.o.

65 Ekspertyza nr 05585/9/ DOKUMENTACJA FOTOGRAFICZNA »Pł -! x, * M.. us«ier di Trcvł*o O V ł sot o Fot. 67. Fot. 68. strona 65 Polska Sp. z o.o.
