1 Proceedings of ECOpole Vol. 2, No Marta KORNILUK 1, Agnieszka MONTUSIEWICZ 1, Adam PIOTROWICZ 1 and Grzegorz ŁAGÓD 1 SIMULATION OF WASTEWATER TREATMENT SYSTEMS WITH MEMBRANE SEPARATION SYMULACJA SYSTEMÓW OCZYSZCZANIA ŚCIEKÓW Z MEMBRANOWĄ SEPARACJĄ BIOMASY Summary: The application of membrane separation to the biological treatment processes by activated sludge eliminates the secondary clarifier. The solution introduces significant differences in clarification process, as the retention of biomass separated on membranes does not depend on sludge sedimentation properties. Thus, in membrane bioreactors a high biomass concentration and a high flow rate can be achieved. Such specific conditions impose the growth of characteristic activated sludge population which differs from conventional process with respect to biotic community composition and its performing. Therefore, by employing membrane separation it is possible to influence the wastewater effluent parameters, that is the efficiency of biological treatment. Computer modeling has become a helpful tool in analysis of performance and effectiveness of wastewater treatment systems. The simulation presented in the text was carried out in GPS-X program which makes it possible to create the model of wastewater treatment plant, run the simulation and subsequently interpret the results and draw appropriate conclusions. Assuming parameters at the entry point of treatment process, the performance of membrane separation system in comparison with conventional activated sludge system was examined. Keywords: WWTP simulation, wastewater treatment, activated sludge, MBR, membrane bioreactor Sewage is the major source of contamination of both surface and groundwaters. Conventional activated sludge process with its limitations is often insufficient in removing some contaminants which results in certain amounts of biogenic substances and suspended solids discharged into receiver. Therefore, further development and research on advanced biological wastewater treatment processes is necessary. One of the examples of a new approach to the problem is the membrane biological reactors (MBR) technology [1]. Membrane bioreactor is the combination of biological treatment using activated sludge and membrane filtration. In this solution membrane is used to separate solids from the effluent and thereby effectively replace conventional secondary clarifier [2]. The technology implicates significant differences in clarification process due to biomass retention in the membrane bioreactor which is independent of sedimentation properties. In such a case, a high concentration of biomass and a high flow rate can be achieved. The conditions characterizing MBR cause the growth of characteristic activated sludge population [3]. There are two basic configurations of MBR systems. In the first one the membrane module is located inside the aeration tank while in the other a separate external membrane tank is used [4]. MBR technology is an attractive option for densely built-up urban areas or the areas where a high effluent quality is required [5]. Computer simulation has become a helpful tool in analysis of performance and effectiveness of wastewater treatment systems. Using advanced program it is possible to create a model of wastewater treatment plant, run a simulation and subsequently interpret results and draw conclusions [6]. 1 Faculty of Environmental Engineering, Lublin University of Technology, Nadbystrzycka 40B, Lublin, tel , M.Korniluk@fenix.pol.lublin.pl

2 42 Marta Korniluk, Agnieszka Montusiewicz, Adam Piotrowicz and Grzegorz Łagód The aim of presented study was to examine the performance of membrane bioreactor based upon the results obtained in computer simulation. Additionally, for the assumed influent parameters an efficiency comparison was made between the MBR and the conventional bioreactor utilizing MUCT process. The simulations were carried out in the GPS-X program (version 5.02). Methods In order to conduct simulation two separate models of wastewater treatment systems were created. Figure 1 presents schematic diagram of both analyzed systems in one layout. Fig. 1. Schematic diagram of analyzed systems: the MUCT process with secondary clarifier and the MBR Quantity and composition of the raw wastewater plays an important role in modeling procedure. As an input data the same, arbitrarily chosen values of influent parameters were used for both systems. The average daily flow rate was set equal to m 3 /d. The values of the main wastewater indicators were as follows: BOD g/m 3, COD g/m 3, TSS g/m 3, total nitrogen - 62 g/m 3, NH nitrogen - 49 g/m 3, + 4 NO x nitrogen - 1 g/m 3, total phosphorus - 13 g/m 3, orthophosphate phosphorus - 10 g/m 3. The alkalinity was equal 350 g CaCO 3 /m 3. The above characterization was made using the codfractions model as the influent model in GPS-X. To achieve the influent consistent with the assumed values of parameters some changes were made in the default settings of influent stoichiometric coefficients: volatile/total suspended solids ratio (VSS/TSS) was changed from 0.60 to 0.69, particulate COD/volatile suspended solids ratio (XCOD/VSS) - from 2.20 to 1.88, BOD 5 /BOD ultimate ratio - from 0.66 to 0.68, inert fraction of soluble COD - from 0.35 to 0.29, substrate fraction of particulate COD - from 0.75 to 0.77, heterotrophic and autotrophic biomass fraction of particulate COD - from 0 to 0.02 and 0.01, respectively.

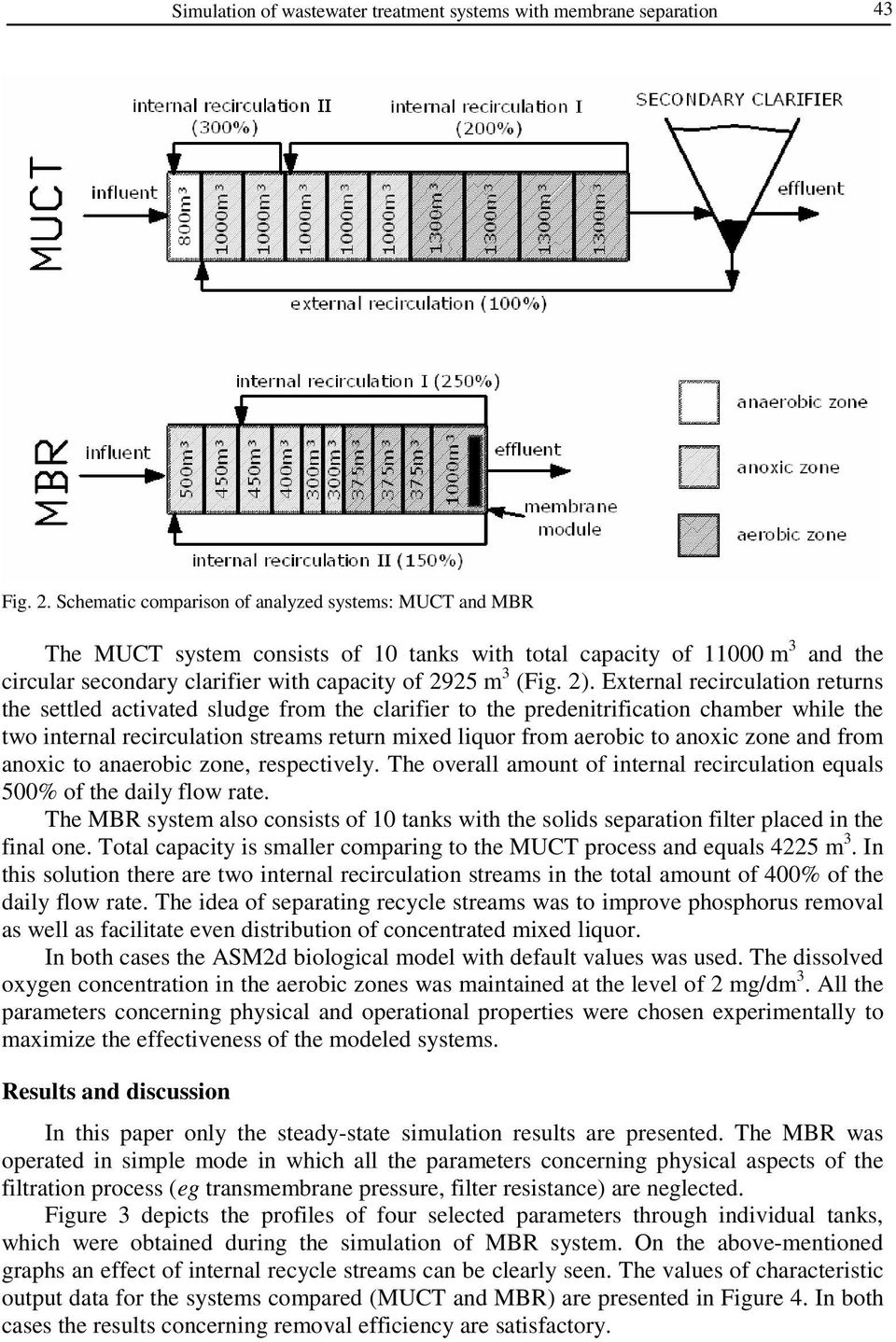

3 Simulation of wastewater treatment systems with membrane separation 43 Fig. 2. Schematic comparison of analyzed systems: MUCT and MBR The MUCT system consists of 10 tanks with total capacity of m 3 and the circular secondary clarifier with capacity of 2925 m 3 (Fig. 2). External recirculation returns the settled activated sludge from the clarifier to the predenitrification chamber while the two internal recirculation streams return mixed liquor from aerobic to anoxic zone and from anoxic to anaerobic zone, respectively. The overall amount of internal recirculation equals 500% of the daily flow rate. The MBR system also consists of 10 tanks with the solids separation filter placed in the final one. Total capacity is smaller comparing to the MUCT process and equals 4225 m 3. In this solution there are two internal recirculation streams in the total amount of 400% of the daily flow rate. The idea of separating recycle streams was to improve phosphorus removal as well as facilitate even distribution of concentrated mixed liquor. In both cases the ASM2d biological model with default values was used. The dissolved oxygen concentration in the aerobic zones was maintained at the level of 2 mg/dm 3. All the parameters concerning physical and operational properties were chosen experimentally to maximize the effectiveness of the modeled systems. Results and discussion In this paper only the steady-state simulation results are presented. The MBR was operated in simple mode in which all the parameters concerning physical aspects of the filtration process (eg transmembrane pressure, filter resistance) are neglected. Figure 3 depicts the profiles of four selected parameters through individual tanks, which were obtained during the simulation of MBR system. On the above-mentioned graphs an effect of internal recycle streams can be clearly seen. The values of characteristic output data for the systems compared (MUCT and MBR) are presented in Figure 4. In both cases the results concerning removal efficiency are satisfactory.

4 44 Marta Korniluk, Agnieszka Montusiewicz, Adam Piotrowicz and Grzegorz Łagód Fig. 3. Concentration profiles of selected parameters in individual tanks The elimination of contaminants is in most cases higher with regard to membrane bioreactor. The most noticeable difference relates to suspended solids, for which the removal level exceeds 99.8%. However, there are no meaningful differences in the elimination of the soluble substances. Fig. 4. Comparison of effluent parameters of the modeled systems: MUCT (left) and MBR (right) Conclusions Conducted simulations allow coming to the following conclusions: 1. The application of membrane separation technology in activated sludge systems significantly influences the course of the occurring processes. 2. In membrane bioreactors a high efficiency of contaminant removal can be achieved using relatively small volumes and internal recycle streams together with the lack of external recirculation.
