2 MAIN FACILITIES Hall No. 1 Original purpose: The factory area comprises: - production and ancillaries - welding and assembly shop, measuring room, material storage, tool shop, maintenance rooms, storage of spare parts - total area 14, m 2 - hygiene and related: - toilets, housekeeping rooms, cloaks, wash rooms, personal hygiene rooms for women, showers - total area 1, m 2 - offices: office rooms - total area m 2 - vestibules, corridors, staircases - total area m 2 Area: covered area 16, 534 m 2 usable area 17, 978 m 2 cubic capacity 189, 746 m 3 (height 8m) Description: Ground floor hall of steel structure supported by pillars on a 20 x 20 m grid. In the southern part there is a mezzanine 10 m wide, supported by pillars grid 10 x 5 m. In the northern part there is a mezzanine 10m wide, supported by pillars grid 10 x 5 m. The roof is made of corrugated metal sheets, insulated by foil, 12 cm mineral wool, plus 2 x laminated roofing paper. External walls - lightweight cladding of corrugated metal sheets mounted to pillars, insulated with 12 cm mineral wool, Exit gates: steel, insulated, segmented roller shutter gates with window line and a pedestrian door. Exit doors: steel, insulated, window line at the top. Windows: made of PVC profiles, panes made of compound glass. Floors: concrete, surface hardened, anti-static, Korafit type of ceramic tiles or PVC rolled lining. Installations: Central heating, ventilation, water, sewage, electro-energetic, teletechnical, hot water, compressed air, circulating (cooling) water installations. Note: Hall No 1 was intended for use as a medium commercial van body and assembly shop and contains a built-in de-mountable steel structure for that purpose, which is also available for sale. This hall also contains substantial unfinished office space on two floors. 2

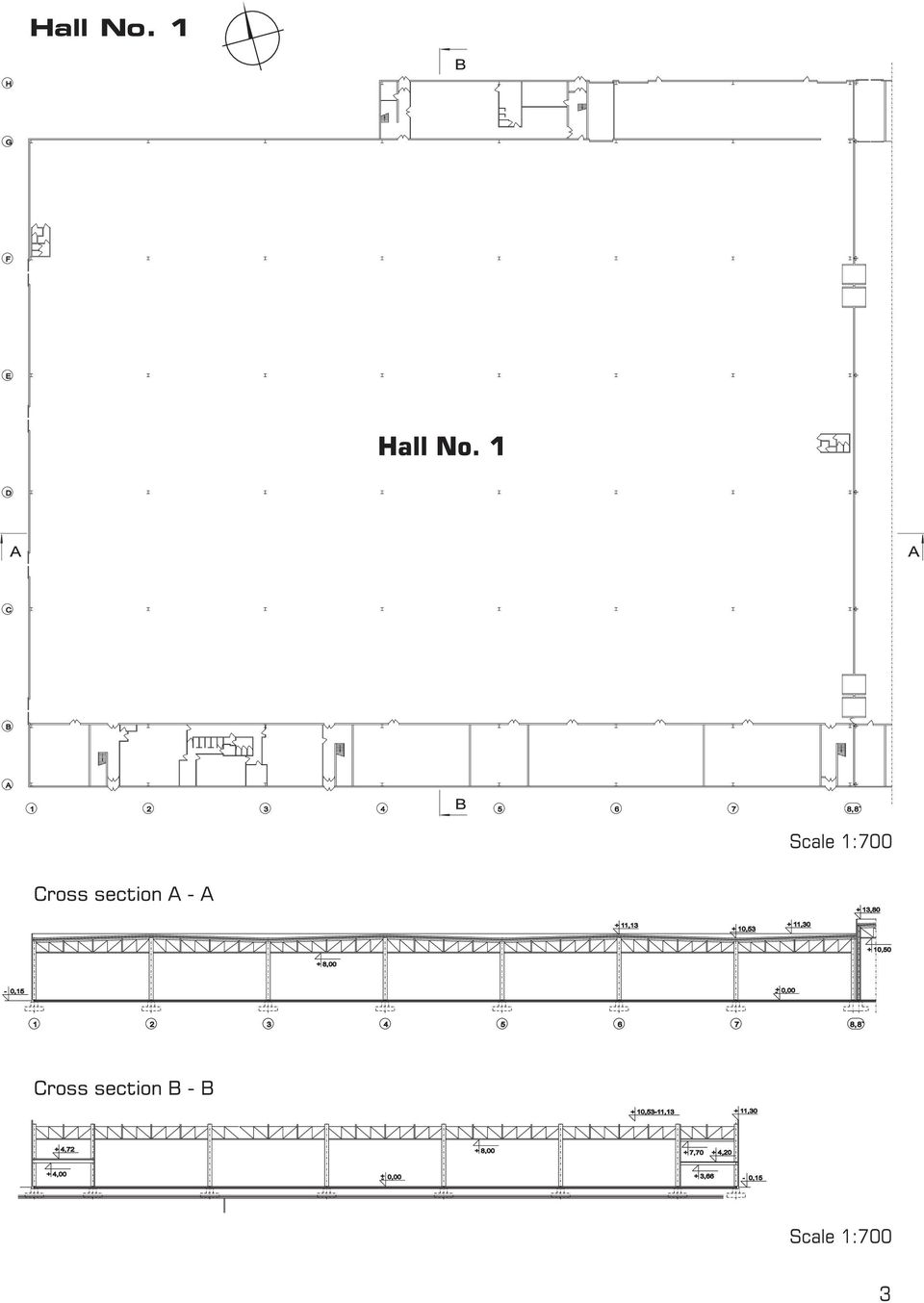

3 Hall No. 1 Scale 1:700 Scale 1:700 3

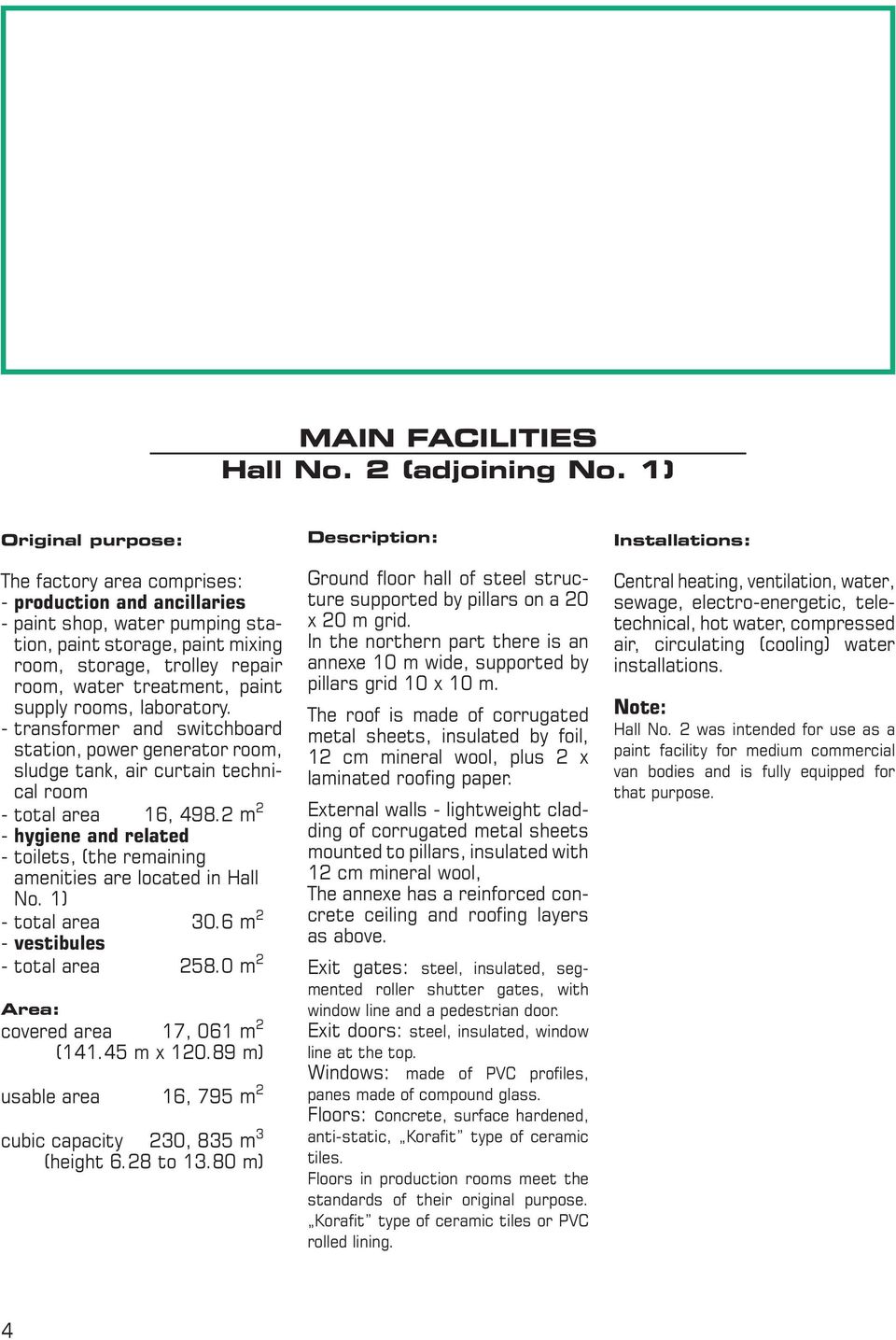

4 MAIN FACILITIES Hall No. 2 (adjoining No. 1) Original purpose: The factory area comprises: - production and ancillaries - paint shop, water pumping station, paint storage, paint mixing room, storage, trolley repair room, water treatment, paint supply rooms, laboratory. - transformer and switchboard station, power generator room, sludge tank, air curtain technical room - total area 16, m 2 - hygiene and related - toilets, (the remaining amenities are located in Hall No. 1) - total area 30.6 m 2 - vestibules - total area m 2 Area: covered area 17, 061 m 2 ( m x m) usable area 16, 795 m 2 cubic capacity 230, 835 m 3 (height 6.28 to m) Description: Ground floor hall of steel structure supported by pillars on a 20 x 20 m grid. In the northern part there is an annexe 10 m wide, supported by pillars grid 10 x 10 m. The roof is made of corrugated metal sheets, insulated by foil, 12 cm mineral wool, plus 2 x laminated roofing paper. External walls - lightweight cladding of corrugated metal sheets mounted to pillars, insulated with 12 cm mineral wool, The annexe has a reinforced concrete ceiling and roofing layers as above. Exit gates: steel, insulated, segmented roller shutter gates, with window line and a pedestrian door. Exit doors: steel, insulated, window line at the top. Windows: made of PVC profiles, panes made of compound glass. Floors: concrete, surface hardened, anti-static, Korafit type of ceramic tiles. Floors in production rooms meet the standards of their original purpose. Korafit type of ceramic tiles or PVC rolled lining. Installations: Central heating, ventilation, water, sewage, electro-energetic, teletechnical, hot water, compressed air, circulating (cooling) water installations. Note: Hall No. 2 was intended for use as a paint facility for medium commercial van bodies and is fully equipped for that purpose. 4

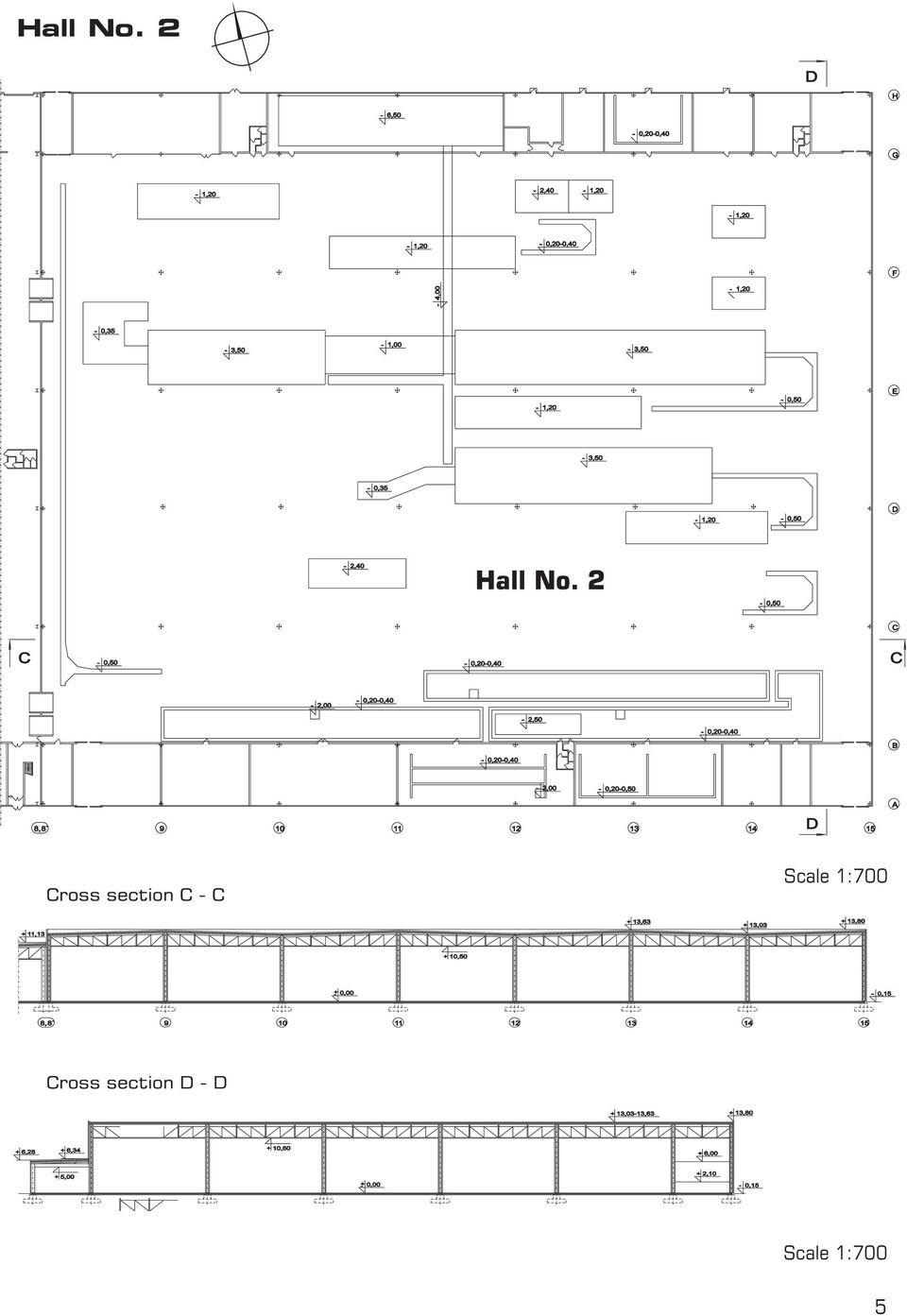

5 Hall No. 2 Scale 1:700 Scale 1:700 5

6 1, 2 In addition to the main building, which comprises Hall 1 and 2, there are eight associated ancillary buildings with a total covered area of 2,930 m2 for housing a sewage treatment plant, compressors, dryers, electric substations, workshop, laboratory, pumping stations, water tanks, retention pond, gate house and offices ,

7 FACTORY SITE PLAN Scale 1:4,500 FACILITIES: 1 - Body Shop, Assembly Shop 2 - Paint Shop 3 - Utility center 4 - Wastewater treatment 5 - Water tank, Pump room 6 - Cooling Tower 7 - Gas storage 8 - Rainwater collector 9 - Delivery and gate house 10 - PDI Pre-Delivery Inspection 11 - Oil storage yard Area of MU DMP Facilities to be finished 7

8

9 PRODUCTION HALL OFFER PRODUCTION HALL DATA 1. Name of production hall / Nazwa LD Location / Lokalizacja Town / Street Lublin, ul. Mełgiewska 7-9 Province (Voivodship) / Województwo Lubelskie Special Economic Zone / Specjalna Strefa Ekonomiczna Technology / Industrial Park Park Technologiczny / Przemysłowy TAK Website / Strona internetowa 3. Owner / Właściciel obiektu ECRIS POLSKA Sp. Z o.o Lublin, ul. Mełgiewska Contact person / Osoba do kontaktu Name, surname Imię, nazwisko Bartłomiej Boruta Tel: bboruta@gasket.com.pl 4. Basic data for production hall / Podstawowe dane dotyczące hali produkcyjnej 4.1 Usable space (except: social and office space) / Powierzchnia uŝytkowa (nie dotyczy: powierzchni socjalnych i biurowych) Area Powierzchnia sq.m. m 2 Number of storeys Liczba kondygnacji 1 / 2 Height Wysokość 10.5 m Year of construction Rok budowy 1999 Floor carrying capacity Nacisk na posadzkę 20t kg / sq.m. kg / m 2 Year of modernization Rok modernizacji -

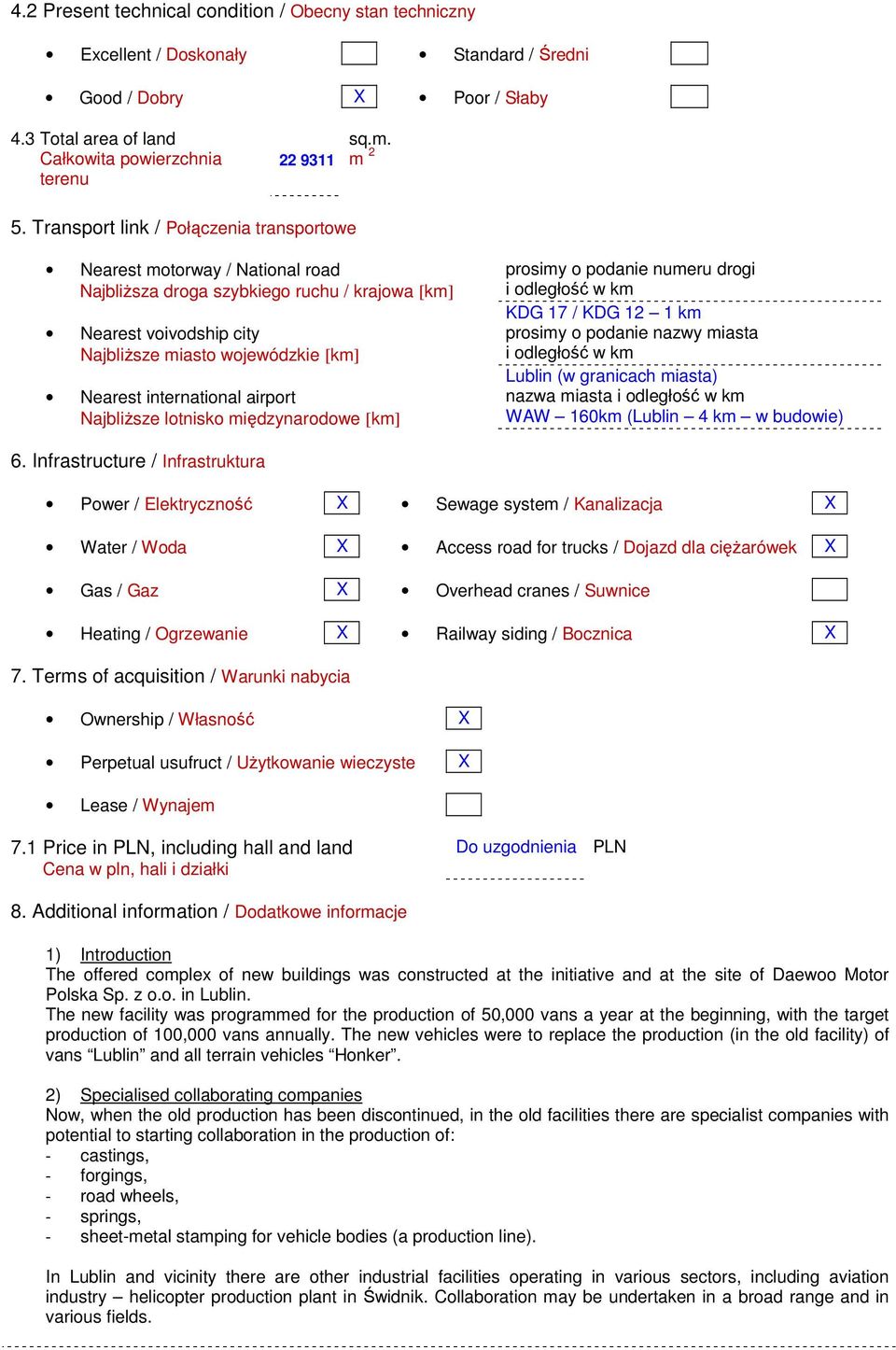

10 4.2 Present technical condition / Obecny stan techniczny Excellent / Doskonały Standard / Średni Good / Dobry X Poor / Słaby 4.3 Total area of land Całkowita powierzchnia terenu sq.m. m 2 5. Transport link / Połączenia transportowe Nearest motorway / National road NajbliŜsza droga szybkiego ruchu / krajowa [km] Nearest voivodship city NajbliŜsze miasto wojewódzkie [km] Nearest international airport NajbliŜsze lotnisko międzynarodowe [km] prosimy o podanie numeru drogi i odległość w km KDG 17 / KDG 12 1 km prosimy o podanie nazwy miasta i odległość w km Lublin (w granicach miasta) nazwa miasta i odległość w km WAW 160km (Lublin 4 km w budowie) 6. Infrastructure / Infrastruktura Power / Elektryczność X Sewage system / Kanalizacja X Water / Woda X Access road for trucks / Dojazd dla cięŝarówek X Gas / Gaz X Overhead cranes / Suwnice Heating / Ogrzewanie X Railway siding / Bocznica X 7. Terms of acquisition / Warunki nabycia Ownership / Własność X Perpetual usufruct / UŜytkowanie wieczyste X Lease / Wynajem 7.1 Price in PLN, including hall and land Cena w pln, hali i działki Do uzgodnienia PLN 8. Additional information / Dodatkowe informacje 1) Introduction The offered complex of new buildings was constructed at the initiative and at the site of Daewoo Motor Polska Sp. z o.o. in Lublin. The new facility was programmed for the production of 50,000 vans a year at the beginning, with the target production of 100,000 vans annually. The new vehicles were to replace the production (in the old facility) of vans Lublin and all terrain vehicles Honker. 2) Specialised collaborating companies Now, when the old production has been discontinued, in the old facilities there are specialist companies with potential to starting collaboration in the production of: - castings, - forgings, - road wheels, - springs, - sheet-metal stamping for vehicle bodies (a production line). In Lublin and vicinity there are other industrial facilities operating in various sectors, including aviation industry helicopter production plant in Świdnik. Collaboration may be undertaken in a broad range and in various fields.

11 3) Personnel resources, education The industrial traditions in the region and production operations in various sectors have contributed to developing workforce and managers able to take up contemporary tasks. Seven university-level schools in Lublin and the secondary-level education secure the workforce for the future. 4) Transportation and power infrastructure There are direct road and railway connections and an efficient urban transportation system. Not far away an airport is being constructed to be completed in There are direct connections to the buildings and there are declarations for the supply of: electricity, natural gas, heat, water and discharge of industrial and sanitary sewage. 5) Economic zone A procedure will be commenced to establish an economic zone for the site covered with this offer. 6) Suggestions concerning future production In view of the size of the site (23.0 ha), the parameters of the production buildings (space between pillars 20 x 20 m; working height 10.5 m) and complete utilities, the new facility may be used for the manufacture of complex products and in large quantities. This may include road vehicles, all terrain vehicles or potentially aviation-related production. The current state of the new facility enable almost immediate installation of machinery and other manufacturing equipment. Henryk Korszla tel.: mob.: hkorszla@poczta.onet.pl Date of the offer Data przygotowania oferty 20 - I
